2007-2008 Honda Fit
Upgrading the stereo system in your Fit
2007 • 2008
In brief: This Crutchfield Research Garage article gives you an overview of your Fit's stock stereo system and your aftermarket upgrade options. Use our vehicle selector to find the gear that will fit your car.
Overview of the Honda Fit
Subcompact economy cars were once derisively (and in many cases, deservedly) referred to as “penalty boxes.” Just ask one of our writers about the 3-state, 800-mile round-trip he endured at the wheel of a rented subcompact a decade ago. On second thought, just…don’t. Trust us; the only positive thing he’ll grudgingly say about that car is that it got great gas mileage.
The 2007-08 Honda Fit gets great mileage, too. But, unlike our friend’s unpleasant weekend companion, the first-generation Fit also looks kinda cool, holds a surprising amount of stuff, gets out of its own way on the interstate, and actually provides comfortable seating for at least two adult humans. No wonder it was a perennial fixture on every car magazine’s “Best” list.
When a gallon of gas costs more than a quarter-pound cheeseburger, a subcompact is a very good thing to have. The Honda Fit proves that a subcompact can also be a very good car.
Detailed stereo and speaker removal instructions
Factory stereo system
The base-model Fit is, as you might expect, rather basic, though it does have a four-speaker AM/FM/CD system. If you buy a Sport model, you’ll find a host of upgraded features, including an AM/FM/CD/MP3/WMA receiver (with an aux jack) and six speakers.
The Honda Fit's factory radio. (Crutchfield Research Photo)
Replacing your factory radio
Removing the factory radio isn’t difficult, but it isn’t as straightforward as it might be in a larger car. The Fit makes very efficient use of every inch of space, but that also means that every inch of space is being used. That’s why you’ll find yourself removing the glove box (there’s wiring back there and you need to get to it) on your way to removing the radio. Again, it’s not difficult, but it is an extra step.
The actual removal of things can be accomplished using screwdrivers, a socket wrench, and a panel tool, but you’ll also need patience when you’re removing the radio/heater control assembly. It’s held in place by seven clips that, in typical Honda fashion, are very, very tight. Use extreme caution when prying around the edges and releasing those clips. Complete instructions can be found in the Crutchfield MasterSheet™ that’s included free with your Crutchfield stereo purchase.
The aftermarket dash kit blends in beautifully. (Crutchfield Research Photo)
When you look at the stock radio/heater assembly, you’ll notice that the right edge wraps around the knee panel on the passenger’s side. This interesting bit of asymmetric design is, thankfully, duplicated in the dash adapter kit, which is available at a very nice discount with your Crutchfield stereo purchase.
The kit works with both single-DIN and double-DIN receivers, so you can install everything from a run-of-the mill CD receiver to a 4” full-screen navigation unit in your Fit.
The installation kit comes with complete mounting and installation instructions, as does the wiring harness that's also available at a discount with your purchase. Once your new receiver is mounted and installed, reassemble the dash by reversing the removal process.
Tools needed: short Phillips screwdriver, small flat blade screwdriver, 8mm socket w/ ratchet and extensions, panel tool
Steering wheel audio control
It's relatively easy to retain the steering wheel audio controls when you install a new stereo in your Fit. When you enter your vehicle information, our database will choose the adapter you need to make your factory steering wheel controls work with your new receiver.
Replacing your factory speakers
Upgrading the speakers in your Fit will really make a difference in your overall sound quality.
The Honda Fit's front door, with the panel removed. (Crutchfield Research Photo)
Front door speakers
On the standard Fit, you’ll find 6-1/2" speakers in the base of each front door. The Sport model adds a set of tweeters in the sail panels, but we’ll get to those in a moment. For now, let’s take a look into the doors.
Aftermarket 6-1/2" or 5-1/4" speakers will work nicely here, but a speaker adapter bracket (available at a discount with your Crutchfield speaker purchase) is required in either case. You’ll also have to do some minor drilling to install your new speaker/bracket combo.
To remove the door panels, you’ll start by removing the door release assembly, then the armrest. Next, you’ll need to disconnect the door release rod, then pry the armrest away from the door panel. Here, and when removing the door panel itself, you’ll encounter those remarkably snug Honda retaining clips. As always, use extreme care when prying them away with your panel tool. Your Crutchfield MasterSheet has in-depth details on this and other aspects of the installation.
To remove the speaker, use a flat head screwdriver to push the metal clip at the top of the speaker downward while pushing the speaker outward to release it. Disconnect the wiring harness and remove the factory speaker.
Use a flat head screwdriver to push the metal clip at the top of the speaker downward. (Crutchfield Research Photo)
Most aftermarket speakers don’t attach with metal clips. So, to install your new speaker, you’ll need to drill new mounting holes. Mount the new speaker in the adapter bracket, then place the speaker/bracket assembly in the mounting location and use it as a template to mark mounting holes with a pencil or permanent marker. Then, drill the new mounting holes with a 1/8" bit. There’s nothing difficult about drilling a hole, of course, but you are drilling into a metal car door here, so be careful, be patient, and wear eye protection.
From there, attach the speaker wiring adapter (also discounted with your Crfutchfield purchase) to your Fit’s speaker harness, then secure the speaker/bracket combo to the door using self-drilling/self-tapping screws. In all likelihood, your speakers won’t come with mounting hardware, but the screws are available at your local hardware store.
If you’re planning to upgrade the rear speakers, buy extras now and save yourself a trip. Once the assembly is attached, test to make sure the speakers are working properly before you reinstall the door panel.
Tools needed: Panel tool, Phillips screwdriver, drill and 1/8" bit
The Fit's door-mounted tweeter. (Crutchfield Research Photo)
The tweeters, found on the Sport model only, are located behind grilles on the door panels. Getting to them is merely a matter of removing four Phillips screws and removing the tweeters from their brackets. The factory models measure 1.416" in diameter, with a mounting depth of 1.494".
To install new tweeters underneath the factory grille, you’ll have to find or fabricate new mounting brackets. Our universal backstraps will help, because they can be cut or bent to the size or shape you need. Depending on the aftermarket tweeters you choose, you also have the option of surface-mounting them on the sail panel.
A speaker wiring adapter is not available for the tweeters, so you’ll need to splice into the factory wiring system. A set of Posi-Products connectors can make this easier. These wonderful little things help you make connections without crimping, soldering, or tape. Just strip your stranded wires, insert them in the caps, then hand-tighten the two caps together. The wire ends get locked between opposing cone shapes to create a water-, dirt-, vibration-, and heat-proof housing.
All this might sound a lot more complicated than it is, but don’t let this added bit of work deter you from adding a set of component speakers. The improvement in sound quality is well worth the effort.
The Fit's rear door speakers are easy to deal with (Crutchfield Research Photo)
Rear door speakers
Replacing the 6-1/2" rear door speakers is a lot like replacing the front door speakers. And when we say “a lot,” we mean “essentially the same.” You’ll need to remove the sail panel in the trailing edge of each rear door before diving into the rest of the removal process, but that’s the only notable addition to the task list. Just remember to be gentle when prying off the panels and to be careful when drilling your new speaker mounting holes. Aftermarket 6-1/2" or 5-1/4" speakers will work in the rear doors, too.
Tools needed: Panel tool, Phillips screwdriver, drill and 1/8" bit

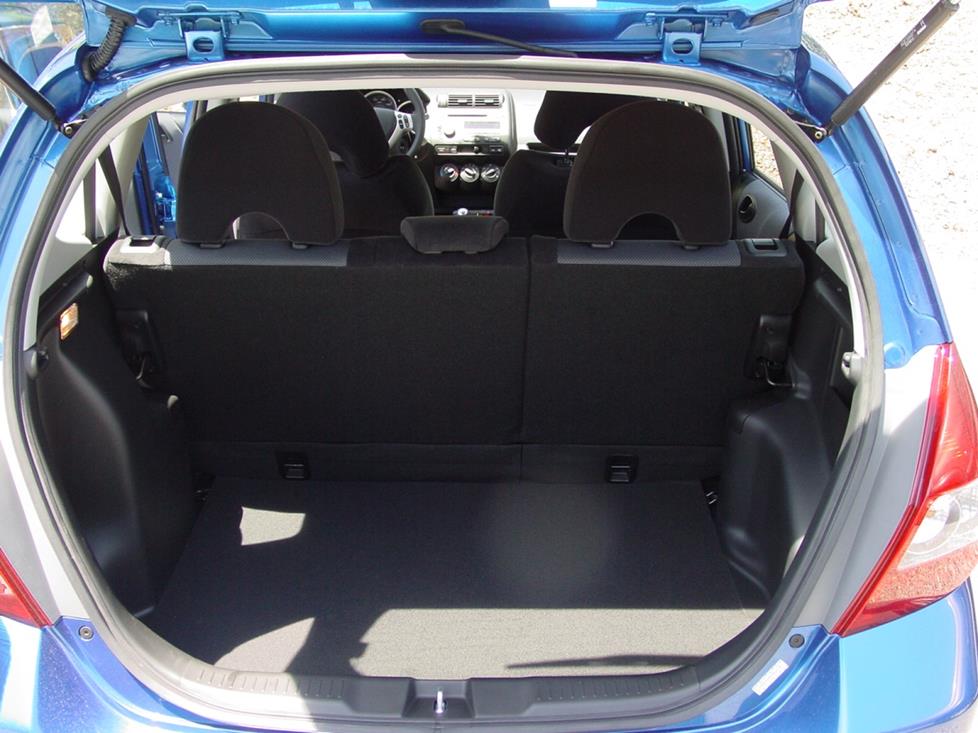

The cargo area is a great spot for a powered subwoofer (Crutchfield Research Photo)
Bass in your Honda Fit
For a relatively tiny car, the Fit has a lot of available storage space. With the seats in their upright and locked position, you have 40” W x 21” H x 27” (bottom) /17” (top) D worth of available space back there.
If you’re still planning on using your Fit to buy groceries and things like that, you might want to consider a powered subwoofer. They take up less space that a subwoofer box and can fill your car with plenty of bass.
Powered subs are also more convenient because the amp is built in, so you don't have to shop for — or install — separate components.
Other options for your Fit
There are plenty of ways to improve your Fit's sound quality and overall functionality. Here are a few suggestions:
iPod® and satellite radio adapters
Not everyone is up for replacing the factory receiver. Not a problem. You can still add versatility and great sound to your Fit, especially if you’re okay with the idea of going CD-free. We offer several adapters that will allow you to use an iPod, MP3 player, or satellite radio with the factory system. Bear in mind that you need to connect the adapter to the back of the factory radio, so you’ll still need to follow the radio removal instructions above. You can upgrade the speakers later for even better sound.
The Fit has a well-earned reputation as a solidly built car, but it’s still a subcompact and it can be a bit buzzy at highway speeds. The Dynamat Xtreme Door Kit is the perfect way to seal out the noise and seal in the sound. This heavy-duty insulating material is easy to install, and it really makes a difference. This is a great thing to do while you’re installing new speakers. Why take the doors apart twice if you don’t have to? One kit will take care of the front doors.
Installing a security system in your Fit isn't easy (security systems rarely are), but it's definitely a good idea. Our Crutchfield Advisors can help figure out what you need to get the job done, but we usually recommend taking your car and new gear to a professional installer.
Find the audio gear that fits your car or truck
Visit our Outfit My Car page and enter your vehicle information to see stereos, speakers, subs, and other audio accessories that will work in your vehicle.
