Crutchfield CKD4

4-gauge dual amplifier power wiring kit

Item # 007CKD4

Crutchfield's 4-gauge dual amplifier wiring kit contains the wire and hardware necessary to supply power to two...

Crutchfield's 4-gauge dual amplifier wiring kit contains the wire and hardware necessary to supply power to two...

Item # 007CKD4

Ships free

In Stock
C$129.99
Add to wishlist

About the Crutchfield CKD4

Deliver the power your amps deserve

Crutchfield's 4-gauge dual amplifier wiring kit contains the wire and hardware necessary to supply power to two amplifiers safely, efficiently, and economically. A fused distribution block helps keep your installation neat, and protects each amp from dangerous short circuits. This wiring kit does not include RCA patch cables or speaker wire. You may need to purchase those items separately, in order to complete your installation.

Deliver the power your amps deserve

Crutchfield's 4-gauge dual amplifier wiring kit contains the wire and hardware necessary to supply power to two amplifiers safely, efficiently, and economically. A fused distribution block helps keep your installation neat, and protects each amp from dangerous short circuits. This wiring kit does not include RCA patch cables or speaker wire. You may need to purchase those items separately, in order to complete your installation.

Power ratings and amp efficiency

Most amplifiers come in two distinct "Classes" of technology with different efficiencies and power wire size requirements. This Crutchfield wiring kit was designed to accommodate the energy demands of two Class AB amplifiers with a combined total output of up to 700 watts RMS — a 50 watts x 4 speaker amplifier plus a 500-watt sub amp, for example. For Class D amps, the kit will work with up to 1,100 watts RMS total output — a 75 watts x 4 amp plus a 750-watt sub amp, for example.

CTA-2015 Compliant

Crutchfield wire

Crutchfield wire is made of oxygen-free copper, with no impurities that could raise its resistance to a signal's flow or add interference. Crutchfield wire meets all Consumer Technology Association (CTA-2015) standards for size, resistance, and insulation quality.

READ LESS

Product highlights:

  • dual amplifier wiring kit
  • RCA cables and speaker wire not included
  • maximum power ratings (total of both amps): Class AB: 700 watts RMS, Class D: 1100 watts RMS
  • oxygen-free copper wires meet all ANSI and CEA standards
    • 17 feet (5.2m) of 4-gauge red power wire with ring terminal
    • 3 feet (0.9m) of 4-gauge black ground wire with ring terminal
    • 6 feet (1.8m) of 8-gauge red power wire
    • 6 feet (1.8m) of 8-gauge black ground wire
    • 17 feet (5.2m) of 18-gauge blue remote turn-on lead wire
  • brass mini-ANL fuse holder and two 50A fuses (100A total rating)
  • fused distribution block with one 40A and one 60A mini-ANL fuse
  • ground distribution block: two 8-gauge inputs to one 4-gauge output
  • assorted hardware
    • 6 feet (1.8m) of 4-gauge black split loom
    • 4-gauge firewall bushing
    • two 22-18-gauge butt connectors
    • ten wire ties
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # CKD4
KEEP READINGREAD LESS

What's in the box:

  • 17' Length of 4AWG power wire (red translucent jacket and terminated with ring-terminal on one end)
  • 3' Length of 4AWG ground wire (black translucent jacket and terminated by a ring-terminal on one end)
  • 6' Length of 8AWG power wire (red translucent jacket)
  • 6' Length of 8AWG ground wire (black translucent jacket)
  • 17' Length of 18AWG remote turn-on wire (blue jack)
  • Fuse holder
  • Two 50A Mini-ANL fuses (red-installed in fuse holder)
  • Distribution block
  • 40A Mini-ANL fuse (amber-installed in distribution block)
  • 60A Mini-ANL fuse (blue-installed in distribution block)
  • Distribution ground block
  • Firewall bushing
  • 2 Butt-connectors
  • 6' Length of split loom
  • 10 Wire ties

Customer reviews

Loading reviews...

Crutchfield CKD4 reviews

Average review:

41 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

All-in-one

Crutchfield customer from Lloyd Harbor, NY on 6/24/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Everything you need to install an amp and a powered subwoofer.

Pros: Cheaper than buying separately

Cons: 1. Could have used an extra foot of length in the secondary power and ground wires 2. Would have preferred more standard fuses 3. The thick gauge of the wire made connection to the subwoofer difficult. Could have used some sort of adapter

Crutchfield response on

0 of 0 found this helpful

Perfect solution

Crutchfield customer from Prosper, TX on 5/10/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Nice complete kit for wiring up my 4 channel amp and mono channel amp. Made powering up those guys super simple which I needed because I have never installed an amp before let alone two.

Pros: Plenty of 4 gauge Excellent quality

Cons:

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Crutchfield customer from West New York, NJ on 3/6/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great quality wires

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Conner from Saline, LA on 2/24/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great kit, good quality wire and connectors.

Pros: Great quality Good connectorsW

Cons: Needs longer 8 AWG

Crutchfield response on

0 of 0 found this helpful

Quality kit; make sure it's what you need.

Shaun from Centennial, CO on 2/10/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

This kit is great if you are installing a sub and and amp in close proximity. But if you're putting the amp under the drivers seat and the sub in the back, it doesn't work out quite as well. The 4G wire has a quality housing and 17 feet would reach from the battery back to the cargo area in our 4Runner. However, we put the amp under the drivers seat and the sub in the back, so had to split the 4G at the front seat; there's not enough 8G wire to run to the amp and the sub. So we picked up some additional 6G wire to run back to the sub. Ended up not using most of the 4G wire. Also, with our setup, the grounds can't be connected using the supplied wire and block, so grounded the amp and sub separately and didn't use the block. Also, the plastic covers on the fuse blocks don't stay on very well, so have added some tape and hoping they'll stay.

Pros:

Cons:

Crutchfield response on

1 of 4 found this helpful

Crutchfield CKD4

Jason from Tucson, AZ on 1/26/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Ground Cable terminals were mounted backwards on the mounting plate. Found some rubber grommets under it. Removed the screws and swapped it.

Pros:

Cons:

Crutchfield response on

0 of 1 found this helpful

Everything needed. High quality.

J from Garden City, ID on 1/8/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Everything I needed to install my amp and subwoofer in a Professional way. Good quality insulated wiring, connectors and fuses.

Pros: Suited my amp and sub installation needs perfectly. I love the wire connector/splitter and fuses especially. Good quality.

Cons: None.

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Mark from Seminole, FL on 12/29/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

This wire kit is great! I love that it has wire loom and zip ties to make the install neat and clean. The wire is very flexible and the fuse holder and distribution blocks (fuses included) are easy to mount!

Pros: Everything, especially Crutchfield customer service and support!

Cons: None

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Steve from Wildomar, CA on 12/24/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Did exactly what it's supposed to do and I saved $ by buying it here

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Great Cables

Gil from Orlando, FL on 12/20/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

great cables and quality is top of the line

Pros: Great cables and great quality and price

Cons:

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Horacio from Richards, TX on 12/18/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Perfect for the install I had. This kit has what you need. I have my kit pre wired for the other amp as well.

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

So so kit - check with installer before buying

franc23 from Northborough, MA on 12/7/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Not that great a saving if you're not going to install it yourself. I had mine installed by car audio specialists and they ended up having to use additional parts - which in turn cost some more money. Might as well buy the full kit from them. Further, got two different advice from Crutchfield specialists when ordering on the actual install kit i needed - for the same speaker/woofer/amp components. Which was interesting to say the least, but I was in a hurry and went ahead with the second Crutchfield rep's suggestion.

Pros:

Cons:

Crutchfield response on

0 of 1 found this helpful

Great product

Evan from Santa Rosa, CA on 12/6/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Super high quality cable, ultra flexible and easy to route.

Pros: Super high quality cable, ultra flexible and easy to route.

Cons: A little difficult to strip the ends of the 4 gauge wire.

Crutchfield response on

0 of 0 found this helpful

Good dual amp installation kit

Rick from Smithfield, VA on 8/31/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

My only reason for not giving 5 stars is I feel the 4ga ground wire is too short. While I understand 3 ft will work for most car audio installations, the kit would also work for RV, off road or motorcycle cycle installation if the length was 6 ft like the 8 ga power and ground. I had to buy a longer 4 ga ground so it would reach directly to the battery vice frame.

Pros: Comes with distribution blocks and fuses needed.

Cons: 4 ga ground wire too short for some applications

Crutchfield response on

3 of 3 found this helpful

Good buy

Jesse from Kerrville, TX on 8/12/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Wire is top notch, was missing a few small pieces such as the firewall bushing.

Pros: Quality wire, nice distribution blocks

Cons: Missing bushing, no RCA's which others at this price point include

Crutchfield response on

1 of 1 found this helpful

Nice quality

Crutchfield customer from Quakertown, PA on 8/12/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Good quality wiring, better than I found in the stores as far as the small things quality-wise

Pros: Construction

Cons: No RCA's included

Crutchfield response on

1 of 1 found this helpful

Nice, tight package

Antonio from Salida, CA on 8/11/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Overall high quality wire kit. Only issue was the distribution block came with a fuse rated higher than what was required of my mono amp. Also, the package states that it comes with two additional ring connectors but they were missing in the bag. Although I did have to call Crutchfield to ameliorate this, they responded swiftly with great customer service.

Pros: Comes with mostly everything you need to install two amps

Cons: Fuses may not be right match for your amps. Package contents inaccurate.

Crutchfield response on

0 of 0 found this helpful

Seems good, missing pieces

Jacob from Prattville, AL on 6/15/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

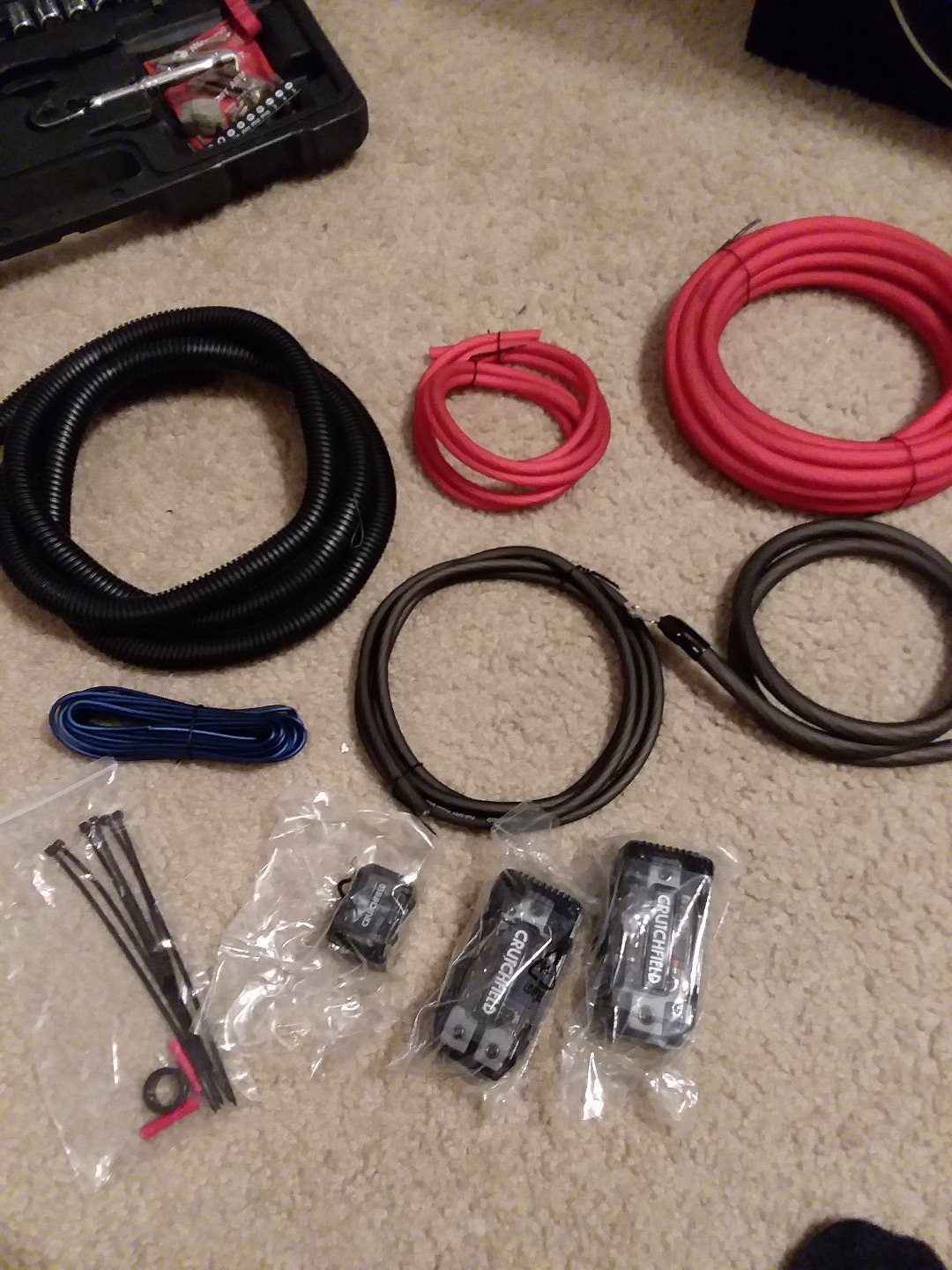

I just opened the kit and noticed it's missing 2 pcs 4-gauge ring terminals and 4 pcs black wire ties. I have not measured lengths of wire. Fuses come loaded in holders. Seems like a quality kit, but needs to be labeled correctly.

Pros: Seems good but haven't installed yet.

Cons: Missing 2 loose ring terminals and 4 wire ties.

Crutchfield response on

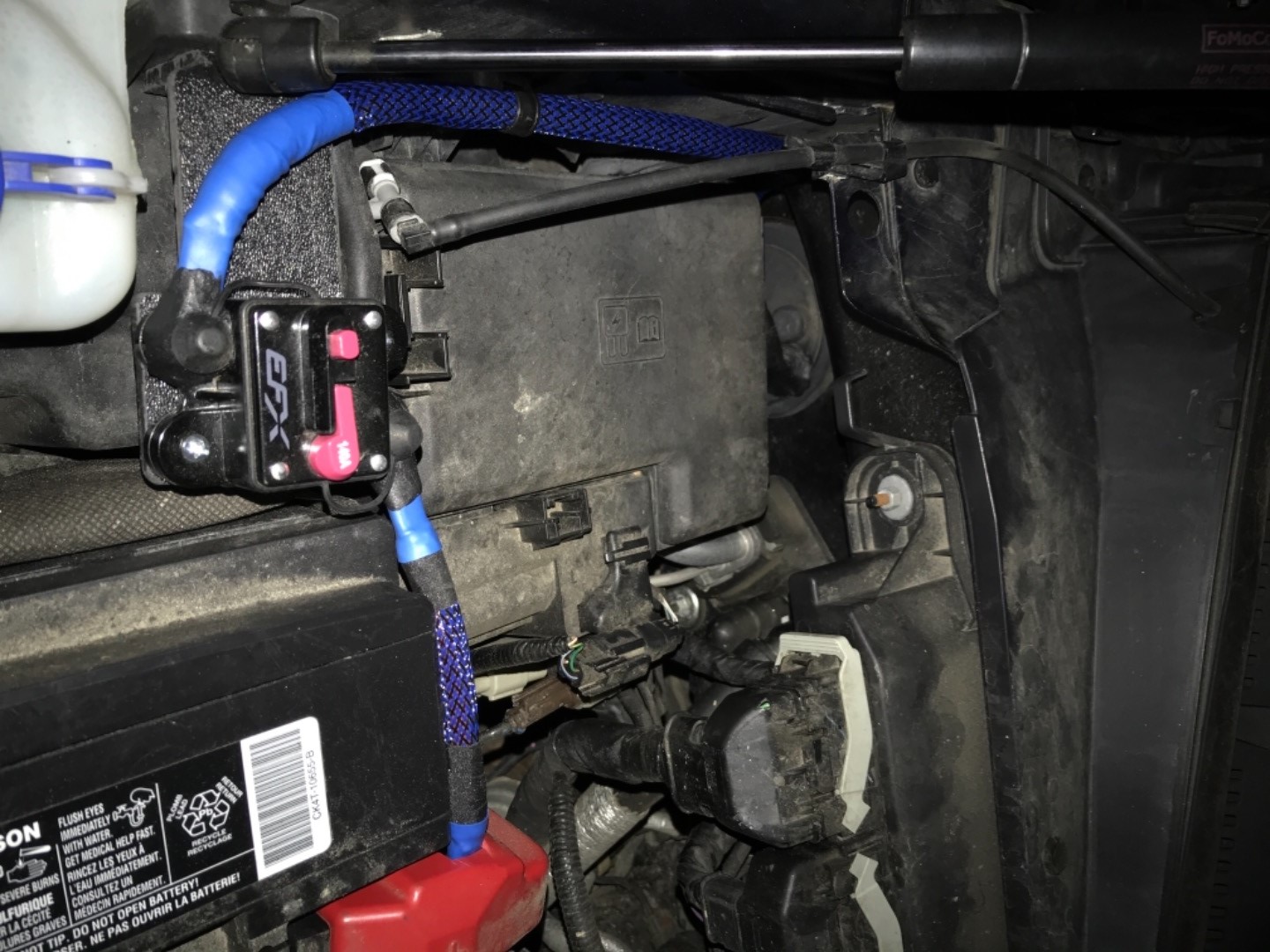

Customer review photo

1 of 1 found this helpful

Satisfied customer

Craig from Rockford, IL on 6/1/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Extremely happy with my purchase from Crutchfield , both the amp and wiring kit seem to be very good quality . Great customer service , timely arrival of products and good packaging all make for a good experience and another satisfied customer.

Pros: Good quality , timely arrival , packaged well , great customer service.

Cons: Prices seem to be a little higher.

Crutchfield response on

1 of 1 found this helpful

Crutchfield CKD4

Crutchfield customer from Cranston, RI on 5/4/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Best quality and value around honestly Wire quality is better than more expensive options and love that they offer everything in everysize

Pros: Best quality and price

Cons: Limited on lengths you can order really only a big deal if it is further than 17 ft would like to see a by the foot option, 20ft rca options, and individual distribution block availability with Crutchfield logo

Crutchfield response on
Customer review photo

1 of 1 found this helpful

Crutchfield CKD4

Crutchfield customer from Gadsden, AL on 4/26/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Exactly what was needed and great price

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

My .02

Jace from Grove City, OH on 4/4/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Kit came with everything I need to hook up my dual amplifiers. Wires seem to be high quality and distribution blocks are easy to work with.

Pros: High quality cables and good length.

Cons: I would have liked some more, or a second, power on(blue) wire.

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Leon from Sumter, SC on 3/18/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Nice! Heavy duty easy to work with!

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Jonathan from Saint Louis, MO on 3/8/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

This kit is high quality - functions perfectly!

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Jason from El Dorado Hls, CA on 3/5/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

All came as described. Wire was easy to work with and seems to be of high quality. Fuse holders though seemed a little cheap. The cover is easily knocked off and the the attachment points for the distribution blocks are a bit flimsy.

Pros: Wire was easy to work with and seems to be of high quality.

Cons: Fuse holder covers are easily knocked off and the the attachment points for the distribution blocks are a bit flimsy.

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Bryan from Cumming, GA on 1/28/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Just what you need to install 2 mid size amps. Everything in it seams to be of good quality. The fuse holders are nice, but I notice the covers are easy to knock off. That's the reason I dropped this rating to 4 stars. I used a wire wrap around each of the fuse holders to insure the covers stay in place.

Pros: Good price to install 2 mid size amps.

Cons: Fuse covers pop off easily.

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Crutchfield customer from Pride, LA on 1/8/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Quality product. Will recommend it to friends.

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Crutchfield customer from Charleston Afb, SC on 12/19/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great quality kit. Copper is very strong and wires look nice.

Pros: Good look and quality

Cons: None

Crutchfield response on

0 of 0 found this helpful

Crutchfield CKD4

Phaneeswar from Houston, TX on 12/16/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Quality is good, price is decent. Highly recommended!

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

Good quality but overpriced

Mike from Pennsylvania on 11/11/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Though this kit is a very high quality it lacks vital components. For the price of this kit it does not include enough. It should have the RCA cables and speaker wire at least. The price point for a kit like this is a rediculasly price when all it includes is heavy Gage wire and fuse boxes. You can find the same quality kit for less money and it includes more. I should've read into it a little more before purchasing. 2 stars for price and lack of all the components that you will need for any install you do.

Pros: High quality

Cons: High price and missing cables.

Crutchfield response on

1 of 3 found this helpful

2016 Veloster r spec

nelson from Kissimmee fl on 10/21/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Perfect and good quality

Pros: Quality, price

Cons: None

Crutchfield response on

1 of 1 found this helpful

Crutchfield CKD4

Crutchfield customer from Prairieville, LA on 10/10/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Awesome Products

Pros:

Cons:

Crutchfield response on

1 of 1 found this helpful

Great kit

David from Albuquerque, NM on 9/10/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

The components of this kit are very high quality. The power cable is flexible and very easy to work with. I like that it comes with a fused distribution block, but the distribution block is where my one and only complaint lies. It only has 8 ga outputs instead of being sleeved for 4 or 8 ga. Luckily the metal is soft enough (aluminum I believe) that I was able to use a 5/16" drill bit to enlarge one side to accept the gauge wire. In short, this is a great wiring kit for powering two amps so it gets 5 stars still since I was able to modify the distribution block without any negative consequences.

Pros: -Easy to work with and install two amps. -High quality copper wire

Cons: Distribution block only has 8 gauge outputs. I feel it should be sleeved so it can accept either 4 or 8 gauge wire.

Crutchfield response on

1 of 2 found this helpful

Quality Kit

Ronnie from Greencastle Indiana on 6/25/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

I opened the kit expecting the 4 gage wire to be stiff from being bound with twist ties. To my surprise it was as limp as cooked spaghetti making easy to work with. The fuse blocks are thick walled plastic,very solid and snapped together firmly plus they're attractive for showing your gear.

Pros: All things needed to run power to two amps in trunk in one kit. Well made product.

Cons: None. After doing a project of any type and completing it I do not wish to go back and trouble shoot to find out what went wrong. Get it right the first time. This kit is solid quality with eye appeal.

Crutchfield response on

1 of 1 found this helpful

Excellent quality

Chase from College Station, TX on 6/9/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Includes everything I needed, extremely durable.

Pros: Durable All inclusive

Cons:

Crutchfield response on

1 of 1 found this helpful

High quality cables and wires

Eddie from Bentonville, AR on 5/27/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Had all the components I needed to upgrade from a 1 amp to a 2 amp system.

Pros: High quality, everything needed

Cons: None

Crutchfield response on

1 of 1 found this helpful

Perfect

Chris from Lincoln university PA on 5/8/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Perfect it fit the bill and not overly costly

Pros: Cost and perfect length everything I needed

Cons: None

Crutchfield response on

1 of 1 found this helpful

Crutchfield CKD4

Christian from Lyons, Ga on 4/9/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Awesome product, high quality build and easy installation!

Pros: Everything!

Cons: None

Crutchfield response on

1 of 1 found this helpful

Crutchfield CKD4

Crutchfield customer from Chesapeake, VA on 2/28/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Bought this to install a 4-channel amp and a mono amp. This made my first time installing a sound system very easy.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

Good Kit

Jorge from St. Cloud, FL on 2/2/2017

Verified customer (What's this?)
Verified employee purchase (What's this?)

Good kit but for a couple of parts, the butt connectors are brittle, would have prefer to see the heat shrink butt connector type. The hard plastic grommet supplied for the 4 GA cord does not provide a good seal, would have prefer to see a heavy duty grommet or a strain relief. Other than that it is a great kit.

Pros: All you need in one box

Cons: None

Crutchfield response on

1 of 1 found this helpful

Quality kit

Ian from Carlisle, PA on 10/9/2016

Verified customer (What's this?)
Verified employee purchase (What's this?)

This two amp installation kit from Crutchfield is top notch. It comes with high quality wire and distribution/ fuse blocks -- all at a reasonable price.

Pros: High quality wire and components

Cons: None

Crutchfield response on

1 of 1 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Crutchfield CKD4

Mark G.

Product Research

Features & Dimensions

Power & Ground Wire:

  • Gauge: 4 AWG
    • Wire Construction: Oxygen Free Copper (1862 strands)
    • Length: 17' (Power), 3' (Ground)
    • Diameter: 0.425"
    • Terminal Type: Nickel-plated brass ring-terminal (on Power & Ground wire)
    • Terminal Diameter: Outer Diameter = 0.635", Inner Diameter = 0.315"
  • Gauge: 8AWG
    • Wire Construction: Oxygen Free Copper (735 strands)
    • Length: 6' (Power), 6' (Ground)
    • Diameter: 0.275"
    • Terminal Type: Not terminated

Fuse Holder:

  • Wire Gauge: 4 AWG
  • Fuse Type: Mini-ANL
  • Fuse Size: 50A x 2
  • Number Of Fuses: 2

Distribution Block:

  • Input/Outputs: 1 Input (4 AWG)/2 outputs (8 AWG)
  • Fuse Type: Mini-ANL
  • Fuse Size: 40A, 60A
  • Number Of Fuses: 2 (one each)

Grounding Block:

  • Input/Outputs: 1 Input (4 AWG)/2 outputs (8 AWG)
  • Number Of Fuses: 0

Remote Turn-On Wire:

  • Gauge: 18 AWG
  • Wire Construction: Oxygen Free Copper (16 strands)
  • Length: 17'
  • Diameter: 0.105"

Included Accessories:

  • Grommet: 4 AWG firewall bushing
  • Butt-connectors: 22-18 AWG butt-connectors (2)
  • Loom: 6' length of 4 AWG split-loom
  • Wire-ties: 10

Installation Notes:

  • RCA cables and speaker wire not included (sold separately).
  • Installation tools sold separately.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
It's the wiring kit recommended for the amp I chose [ Brantley  Jul 07, 2019 ]
A
Running a dual amp, one for front and rear speakers and another for sub. This kit has everything I might need for what I'm doing for a nice price. [ Michael  Jun 23, 2019 ]
A
Because it can take the load of the amp [ megale  Apr 17, 2019 ]
A
got it before and it worked great. [ Jacob  Apr 15, 2019 ]
A
Rep recommendation [ Nancy  Mar 08, 2019 ]
A
I live in a rural area and trying to round up all the various components to install my amps is too daunting. Crutchfield offers one-stop shopping for items such as this. [ ED  Mar 04, 2019 ]
A
Wiring, may need 2nd amplifier [ Anthony  Jan 22, 2019 ]
A
Its awasome [ Ryan  Jan 11, 2019 ]
A
The sales rep suggested this. [ Jonathan  Dec 21, 2018 ]
A
price and quality [ GILBERTO  Dec 06, 2018 ]
A
It was discounted at the time of my amplifier purchase, and included everything I need for installing the amplifiers with no extra runs to a stereo supply house. [ Joseph  Dec 02, 2018 ]
A
Price [ Conrad  Nov 30, 2018 ]
A
Crutchfield tech Bernie assisted with the purchase and really helped out [ Tristan  Nov 27, 2018 ]
A
I real don't know the price wasn't the cheapest [ Anthony  Nov 16, 2018 ]
A
Great kit used on previous vehicles. [ Nelson  Nov 16, 2018 ]
A
Because I can [ Daniel  Oct 14, 2018 ]
A
Easy to work with when running cables under carpet and a decent price not overpriced [ THOMAS A  Oct 08, 2018 ]
A
Advisor recommended. [ Steven  Sep 27, 2018 ]
A
advice [ Chris  Aug 20, 2018 ]
A
my speakers [ nathaniel  Aug 13, 2018 ]
A
Looks like this kit has everything I need to hook this package up for my sons 17th birthday present in his 2011 Dodge Challenger, he will be absolutely thrilled! Thanks to cructhfeild for making it so easy. [ jason  Aug 10, 2018 ]
A
I trust that Crutchfield has recommended a kit that fits my needs. [ ANTONIO  Jul 26, 2018 ]
A
Its gonna power both my speaker amp and my sub amp and be a lot cleaner than running two different power supplies. [ Anthony  Jul 22, 2018 ]
A
Trevor from tech support suggested it as a perfect fit for the amplifiers I was already going to purchase. Glad he mentioned this because I was prepared to use the existing wiring I have run in my truck now, only to have found out during install they were not proper fit for the new equipment. [ BRADEN  Jul 21, 2018 ]
A
Value [ David  Jul 14, 2018 ]
A
It's what I needed and O2 free cables [ E  Jul 09, 2018 ]
A
Needed for instal [ Michael  Jul 02, 2018 ]
A
Because Nemo says so. [ Aaron  Jun 27, 2018 ]
A
Needed to power two Amps without running two power cables/grounds. [ H  Jun 03, 2018 ]
A
Seemed like a good choice to wire my amps. [ Michael  May 28, 2018 ]
A
two amps simple great deal [ ALAN  Apr 18, 2018 ]
A
It's the wiring kit that goes to my 5-chanel amp I have purchased. [ Geoff  Mar 04, 2018 ]
A
Ofc, decent price. [ Scott  Feb 28, 2018 ]
A
Adviser recommendation [ Barry  Feb 20, 2018 ]
A
Suggested by Crutchfield. [ Floyd Wm  Jan 05, 2018 ]
A
To run two amps [ Richard  Oct 21, 2017 ]
A
Quality products and at a great price....and I like the traditional Red/Black +/- keeps it simple..... [ DAMON  Sep 17, 2017 ]
A
Installing 2 amps and this has everything that I need [ ERIC  Sep 14, 2017 ]
A
Price. [ Pete  Sep 01, 2017 ]
A
needed for application [ andrew  Aug 28, 2017 ]
A
Great deal going on this wiring kit w/purchase of amp plus, I may change the system in the near future and add another amp. Getting a good deal on it made the purchase a no-brainer. [ A  Jul 04, 2017 ]
A
everything i need to install my amps [ Chase  Jun 23, 2017 ]
A
I chose the CKD4 kit to connect two amps to my system. I had all of the other patch cords already... And the 25% off was a plus! [ Gregory  Mar 24, 2017 ]
A
Has everything I need. [ Nolan  Feb 27, 2017 ]
A
good price, excellent information for comparing products and good advice from the service advisor [ SWATI  Feb 18, 2017 ]
A
All the high quality parts needed in one "discounted" package to connect my Pioneer with my amplifier. [ Anthony J.  Feb 01, 2017 ]
A
Based on compatibility with AMP and info Andy sent me. [ Terrence  Jan 22, 2017 ]
A
Decided on 4AWG even though Crutchfield recommended 8AWG because I wanted to future proof the wiring in the vehicle. If i ever go bigger on the amp/sub, I don't have to rewire the car. I went with Crutchfield's brand as my 1st time trying them out. You can always return the product while in the package if its not what you paid for. I said "why not?" [ Vincent  Dec 04, 2016 ]
A
So I could install another amp in the near future! [ Shane  Nov 21, 2016 ]
A
friend [ DAVID  Oct 22, 2016 ]
A
Great alternative to more expensive "name-brand" amp install kits. Great quality at a good price! [ M  Sep 30, 2016 ]
A
it was recommended [ Jesse  Aug 28, 2016 ]
SHOW MORESHOW LESS

3 questions already asked

Q
Will this supply enough power to a 500w RMS mono and a 4x100w RMS full range? the fuse ratings are 60 and 50 amp, 110 combined amperage rating max.
[ Stuart  Sep 08, 2018 ]
2 answers
A
Yes it would
[ Juan  Sep 14, 2018 ]
A
II babe a 500 watt rms amp plus a 60 watt X 4 rms amp running smoothly wwitho ut aany battery drain or flicker.
[ Stephen  Sep 13, 2018 ]
Q
In an article about choosing the wiring on here it says to double the amp's watts because of the efficiency loss. Does the maximum watts on this product already assume this? so if I had a 400 watt amp and 250 watt amp would this kit work? if i have to double that it would be over the 1100 watt figure.
[ Brad  May 27, 2018 ]
2 answers
A
Yes that will work make sure you ground your amps first and in the same spot . That's called common ground
[ JOYCE A  Jun 05, 2018 ]
A
TThis kit works. I have a 4-channel amp (800watt) and a mono amp (500watt). This is the kit you need for the power you choose.
[ Stephen  Jun 05, 2018 ]
Q
I'm new to these kind of things with subs and stuff but does this connect the radio to the amp then to the subs or do I have to get a separate wiring harnes to connect the amp to the radio?
[ Nathan  Mar 18, 2017 ]
9 answers
A
No. The wiring comes with this system.This is all you need.
[ VERONICA R  Mar 21, 2017 ]
A
If one amp, your all good. Multiple amps need extra rca jacks to plug into the amplifiers. I installed 2 amps, one mono amp, one 4-channel amp. I had to buy 2 more rca jacks. This gives me more control to remain the music. Although, you can run the single rca then use line splitters to connect multiple amps, that leaves the amps as the only control over the sound.
[ Stephen  Mar 20, 2017 ]
A
This wiring kit is awesome but it only brings power from your battery to your amps. You run the heavy gauge wire from the battery to a splitter and you can power 2 amps. Then the 2nd splitter is used to ground both amps. You will most likely need separate RCA cables (or wires if you are feeding from the radio speaker outputs) to connect from the head unit to the anps.
[ Mark  Mar 20, 2017 ]
A
This kit is for connecting two separate amps to the car's battery and ground. The kit also has a wire that connects to the radio that signals the amp to turn on when the radio is on. You will need additional RCA cables to connect the audio signal from the radio to the amps.
[ Doug  Mar 19, 2017 ]
A
This kit has a ~16gauge blue wire that is connected to most after market head units (radio) as the "remote wire". This would tell the amp the radio has been turned on, and the amp would use thst signal tp turn itself on. This lit is used to provide adequate power to the amp, which needs a good ground source (black wire) connect to a screw so that contact can be made with bare metal. The red wire in this kit is connected to the + battery terminal with the provided fuse ~12in from the battery, the other end goes to the + terminal on the amp. The actual sound signal connection between the amp and the head unit is done with speaker wire (high level) or RCA cables with on cable pair per speaker. Crutchfield has great tutorials and diagrams on their site with more details than I can provide here.
[ Marcos  Mar 19, 2017 ]
A
Hi - This kit is just for power. The red wire will connect to your car battery, run through the firewall, and back to your amp(s), which are usually mounted in the trunk. The black wire is for ground. You will ground your amp(s) to your car chassis. You will need a separate wire harness for the back of your stereo along with RCA cables that will run from the back of your stereo to your amps. You will also need speaker wire to run from your amps to your speakers (usually 16-18 gauge). Hope this helps.
[ gabe  Mar 19, 2017 ]
A
I think this will answer your question. In short, it connects your battery to amplifier via fat power cord. There is also a thin wire that connects your radio to the on/off remote on your amp. It doesn't include the "rca" cables, which connect your radio to your amp.
[ BRADEN  Mar 19, 2017 ]
A
This kit powers two amps. You'll need to add a set of RCA interconnects, either 2 or 4 channel or both depending on your set up. Now your subs plug into your sub/mono amp which you'll need speaker wire for those....
[ DAMON  Mar 19, 2017 ]
A
This kit is just for powering an amp. Comes with power and ground wire and fuse blocks. You'll need rca cables to connect an aftermarket head unit unless you're using your stock head unit.
[ DWAYNE  Mar 19, 2017 ]

Loading articles...

TOP
