About the Infinity Reference REF-6532ix
A modern classic
A modern classic
One thing's for sure — our customers love Infinity's Reference Series speakers. Year after year, car after car, options like these Reference Series REF-6532ix 6-1/2" car speakers remain a popular choice for replacing factory speakers because of their competitive pricing and superb sound.
Step up to a 1" edge-driven dome tweeter for smoother highs with minimal breakup. Plus, push-button tweeter attenuation gives you a "brightness" quick fix.
Plus One+ woofer cone
The Reference Series polypropylene woofer with its durable hi-roll rubber surround ensures you'll enjoy powerful sound every mile you drive. Its oversized cone moves more air than other speakers of similar size, adding plenty of punch to the speaker's impressive performance.
These speakers will really blossom when powered by an external amplifier, but they're also sensitive enough to be a good match for a factory or aftermarket stereo. Plus, Infinity comes up with a safe way to get a little more power out of your system — these 3-ohm speakers combine with the speaker wire in your car so your car stereo sees actual 4-ohm impedance.
- 6-1/2" 2-way car speakers
- Plus One+ polypropylene woofer cone with hi-roll rubber surround
- 1" edge-driven, textile dome tweeter
- included brackets allow mounting in a variety of 6-3/4" and 6-1/2" openings
- True Four Ohm Impedance technology:
- speaker's 3-ohm impedance combines with speaker wire impedance for a 4-ohm load
- compatible with virtually all factory or aftermarket car stereos
- handles up to 60 watts RMS (180 watts peak power)
- frequency response: 53-21,000 Hz
- sensitivity: 93 dB
- top-mount depth: 2-1/16"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # REF-6532IX
What's in the box:
- Two 2-way speakers
- 2 Grilles
- 2 Grille frames
- 2 Plastic mounting rings
- Eight 1" Screws
- Eight 1/2" Screws
- 8 Speed clips
- 2 Adhesive backed foam gaskets
- Instruction manual
- Template on box
More details on the Infinity Reference REF-6532ix
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||Edge-Driven Dome|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||93|
|Frequency Response||53 - 21k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||60|
|Peak Power Handling (Watts)||180|
|Top-mount Depth (Inches)||2 1/16|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||5 1/8|
|Mounting Height (Inches)||0.698|
Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.
Angled Tweeter: The tweeters are mounted at an angle (fixed), so they can be directed toward the listeners to improve imaging.
Tweeter Level Control: A switch on the front of the tweeter allows you to boost the tweeter output to +3dB, useful if the speakers are mounted low in a door where high frequencies are easily absorbed.
High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.

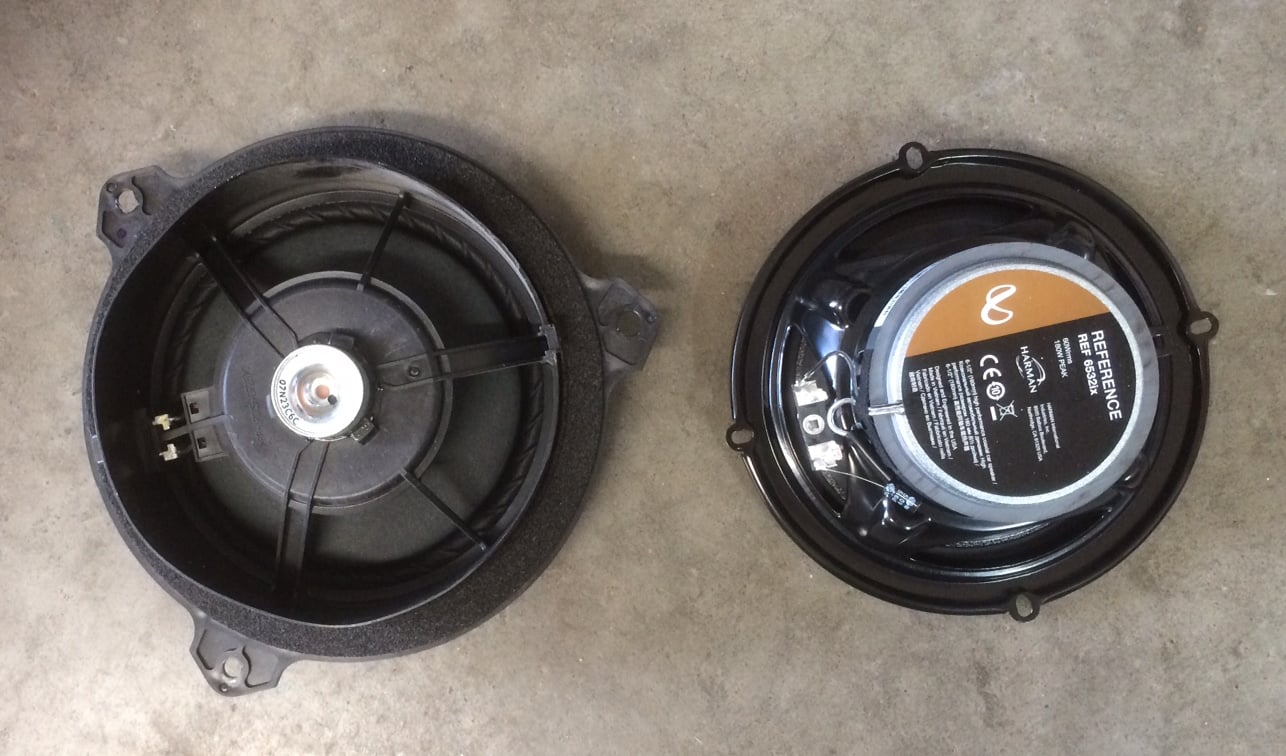

Mounting: Without an adapter, the 6532ix speakers fit standard 6-3/4" applications. Given their required cutout, they will also fit 6-1/2" applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a variety of 6-1/2" and 6-3/4" applications, without any modification. Please enter your vehicle information to confirm fit.
The Infinity Reference REF-6532ix replaces these items
