Kenwood DNR876S Digital multimedia navigation receiver (does not play discs)

Item # 113DNR876S

Kenwood knows that a lot of people don't play CDs anymore, so they've responded by introducing excellent...

Find what Fits your vehicle

Remove

Checking fit...

Kenwood knows that a lot of people don't play CDs anymore, so they've responded by introducing excellent...

Item # 113DNR876S

Shop all Kenwood In-dash GPS Navigation

About the Kenwood DNR876S

Dominic DeVito

Meet Kenwood's flagship no-disc navigation receiver

Kenwood knows that a lot of people don't play CDs anymore, so they've responded by introducing excellent stereos without built-in disc players. The Kenwood DNR876S navigation receiver boasts a lot of top-notch features, including wireless Apple CarPlay® and Android Auto™ compatibility, accurate Garmin directions, expanded entertainment choices, and audio upgrades you'll hear and feel. Will it be enough for you to notice that you can't slide your beloved copy of Abba Gold into the nonexistent CD slot? Read on to find out.

Meet Kenwood's flagship no-disc navigation receiver

Kenwood knows that a lot of people don't play CDs anymore, so they've responded by introducing excellent stereos without built-in disc players. The Kenwood DNR876S navigation receiver boasts a lot of top-notch features, including wireless Apple CarPlay® and Android Auto™ compatibility, accurate Garmin directions, expanded entertainment choices, and audio upgrades you'll hear and feel. Will it be enough for you to notice that you can't slide your beloved copy of Abba Gold into the nonexistent CD slot? Read on to find out.

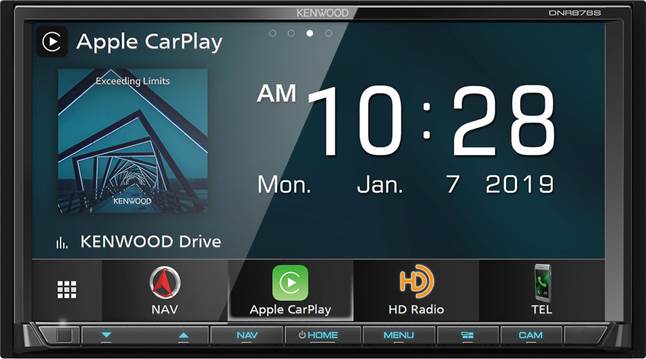

Kenwood DNR876S digital media navigation receiver

Wireless Android Auto and Apple CarPlay

Thanks to built-in Wi-Fi®, you can enjoy the benefits of Android Auto and Apple CarPlay without connecting your phone to the DNR876S via USB. That's convenience on top of convenience, considering that you can now get maps, messaging, music, and much more done through the stereo using your fingers and either Siri® voice assistant or Google Assistant™ to control the action. Plus, you'll get easy access to many of your favourite apps — find out more at www.android.com/auto and www.apple.com/ios/carplay. In addition, the DNR876S offers wireless screen mirroring for select Android phones, which lets you select apps directly from the Kenwood touchscreen when the emergency brake's on.

(Please check the Details tab to ensure your Android device works with wireless Android Auto.)

Pair a pair of phones

If you're driving with a passenger, the DNR876S can pair with up to two phones at once. You'll be able to designate one phone as the priority but be able to switch between the two with ease, as well as have access to both phonebooks.

Reliable directions from Garmin

The DNR876S supplies Garmin maps of the U.S., Canada, Mexico, Puerto Rico, and U.S. Virgin Islands, so you'll also get reliable routing with spoken street names at turns and lane assistance. Kenwood's interface also provides more opportunities for split-screen control, so you can still follow the maps as the stereo shows you what's playing or who's calling.

2 years of free INRIX traffic reports

You'll get a free 2-year subscription to INRIX traffic service, which provides quick updates on congestion along your route. You'll need to have your smartphone with the app on it connected to the receiver to take advantage of these traffic updates. INRIX updates require an in-app purchase after the 2-year subscription ends.

Upgraded interface and Photo Frame Widget

With a new user interface for 2019, it's easier than ever to find and switch between your favourite sources and check out album artwork and map details. The new Photo Frame Widget feature lets you create a slideshow of up to 500 images from a thumb drive on the receiver's home screen.

HD Radio

Comes with an HD Radio™ tuner

The DNR876S also features an HD Radio tuner. You'll enjoy much-improved AM/FM sound quality when you're tuned into a local participating station, and there's no subscription required — just tune it in like a regular radio station.

Get down with your files and external sources

High-res audio

Even without a disc player, you can still enjoy connection for more audio/video sources with an A/V input. A pair of rear USB ports let you add audio from an iPod or flash drive, including high-resolution FLAC and WAV files. You also get an SD card slot for playing digital music files and map updates.

Satellite radio for hours of varied listening

Why struggle with stations fading away as you travel? You can hook up a SiriusXM satellite radio tuner (not included) to this receiver and access the wide variety of entertainment, sports, news, and commercial-free music satellite radio provides — and your favourite stations are always there.

Add up to three cameras

The DNR876S is capable of connecting two different cameras so you can see more when you're getting in and out of tight spots. If you've got a pair of rear-view cameras, you can reverse the image of the one up front to get a more precise picture. With select Kenwood cameras, you can have the display automatically switch to a momentary view from the front camera when you shift out of reverse. The receiver also features a dedicated input for Kenwood's DRV-N520 Drive Recorder dash cam so you can capture your travels in high definition.

iDatalink Maestro lets you keep your factory extras — and add some upgrades

The DNR876S offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle info on the Kenwood's screen. It'll even integrate your stealth K40 RL200di radar detector into the stereo's display, so you can see and hear about incoming threats. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to the Shopping Cart if it's compatible.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our articles about Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

You'll need a wired connection to your parking brake to access settings and other features on this receiver. Your parking brake must be connected and set in order to view video on its screen.

READ LESS

Product highlights:

    General Features:
    • digital multimedia player with motorized 6.95" resistive touchscreen (does not play discs)
    • built-in Garmin navigation system
    • plays media loaded with MP3, WMA, AAC music files, plus high-res WAV and FLAC files
    • fits double-DIN (4" tall) dash openings
    • built-in Bluetooth for hands-free calling and audio streaming
    • built-in HD Radio tuner
    • AM/FM tuner
    Smartphone Features:
    • Android Auto and Apple CarPlay compatible (wired or wireless) — see "Details" for more info
    • Pandora and Spotify control with iPhone and Android
    • voice control through Siri® or Google Assistant™
    • wireless screen mirroring from select Android phones
    • compatible with Kenwood Remote S smartphone app for wireless source selection through your phone
    Navigation Features:
    • maps of the United States, Canada, Mexico, Puerto Rico, and U.S. Virgin Islands, plus 6 million points of interest
    • optional traffic reports available through INRIX smartphone app — 2-year subscription included with purchase (smartphone required)
    • text-to-speech voice prompts announce actual road names at turns
    • lane assistance
    Audio/video Features:
    • plays USB memory devices and SD cards (see Details for full capabilities)
    • Drive EQ boosts specific frequencies to overcome road noise
    • 13-band EQ
    • high- and low-pass filters
    • digital time alignment, space enhancer, sound realizer, sound elevation, bass boost, and loudness
    • dual-zone A/V output
    • supports rear-view camera adjustable parking lines (optional camera required)
    Expandability:
    • compatible with SiriusXM satellite radio tuner
    • inputs: dual rear USB inputs; SD card slot; rear A/V input (mini); two camera inputs; input for Kenwood DRV-N520 Drive Recorder
    • outputs: video output (RCA) with audio output (mini-jack), 6-channel preamp outputs (4-volt front, rear, sub)
    Other Information:
    • wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
    • SD card input for map updates
    • built-in amplifier (22 watts RMS/50 peak x 4 channels)
    • compatible with most factory steering wheel audio controls (adapter required)
    • compatible with iDatalink Maestro
      • retains factory features in a wide selection of vehicles
      • displays engine performance and other vehicle data on touchscreen
    • warranty: 1 year
    • MFR # DNR876S

    What's in the box:

    • Navigation receiver w/ electronic 6.95" touchscreen monitor (15A fuse)
    • Sleeve (attached)
    • Trim ring
    • Wiring harness
    • Two 39" USB extension cables
    • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
    • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
    • Self-adhesive pad
    • 2 Radio removal tools
    • 6 Pan-head ISO-mount screws
    • 6 Flat-head ISO-mount screws
    • Quick Start Guide
    • Warranty card

    Featured video:

    Customer reviews for Kenwood DNR876S

    Loading reviews...

    Average review:

    4.5 out of 5 stars
    40 reviews

    Filter by rating

    Customer photos

    Customer provided image, click to load a larger version.
    Customer provided image, click to load a larger version.

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee review (What's this?)

    Reviewed on Samsung.com

    This review was collected as part of a promotion

    Pros:

    Cons:

    Crutchfield response
    Customer provided image, click to load a larger version.
    << >>

    More details on the Kenwood DNR876S

    Stacey B.

    Features & specs

    Expandability
    AUX Input Mini (rear)
    Audio/video Input Mini (rear)
    USB Input Rear (2)
    USB Port Power 1.5A
    Backup Camera Input Yes
    Second Camera Input Yes
    CarPlay Wireless
    Android Auto Wireless
    Siri Control CarPlay only
    Alexa Voice Control N
    Android Control Yes
    Memory Card Slot USB, SD/SDHC/SDXC
    Bluetooth Compatible Built-in
    Satellite Radio Ready SiriusXM 3.0
    HD Radio Built-in
    Navigation Yes
    iPod Compatibility
    Full size No
    Nano No
    Touch 6Gen and newer
    iPhone 5 and newer
    General
    RMS Power (CTA-2006) N/A
    RMS Power (Manufacturer) 22 watts
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) Apple, Google, Waze
    Navigation App Compatible (Android) Google,Waze
    Preamp Voltage 4 volts
    Screen Size 6.95
    Screen Type Basic (Resistive)
    Display Color
    Key Button Color Variable
    EQ Bands 13
    Wireless Remote Optional
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 9.3 dBf
    European Tuning No
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3,WMA,AAC,FLAC,WAV
    High-res Playback WAV/FLAC (24-bit/192kHz)
    The Kenwood DNR876S replaces these items:

    Product Research

    Onboard Navigation
    Android (Android Auto) & iPhone (CarPlay) Integration
    Built-in Bluetooth
    Internet+SiriusXM+HD Radio
    USB/SD-Card Playback
    Audio & DSP Section
    AV/Camera/OEM Connectivity
    Touchscreen & Remote Control
    Onboard Navigation

    Garmin Navigation: With built-in Garmin & HERE navigation software and map data, the Kenwood DNR876S features on-screen maps of the United States, Puerto Rico, Virgin Islands, Canada, and Mexico. The built-in maps include over 6-million Points of Interest (POIs) such as hotels, restaurants, gas stations, attractions, parking, airports, ATMs, and more. The built-in navigation software provides you with calculated on-screen routes and audible directions to follow in order to reach your destination safely.

    Note: While the receiver's map database was judged to be as accurate as possible at the time of its release (2018), a map database can never be 100% accurate. Road information that is maintained in the map databases, such as turn restrictions or road names may change over time.

    Software/Map Data Updates: When the preloaded maps are considered out of date, the Kenwood receiver will provide periodic notification at startup. Garmin software and map updates can be purchased and downloaded as needed, via SD card. To find a software or map update, please go to www.garmin.com/kenwood.

    GPS/GLONASS Receiver & Antenna: The Kenwood DNR876S employs GPS (Global Positioning System) and GLONASS (Global Navigation Satellite System) that work alongside one another to provide fast and accurate position information. With an additional 24 satellites to utilize, GLONASS can acquire satellites up to 20% faster than GPS alone. The high-sensitivity GPS receiver that is forgiving of less than optimal antenna placement, giving you additional placement options. The included GPS antenna features a self-adhesive base and an attached 11.5' cable which plugs into the back of the head unit. The GPS antenna is designed to be mounted inside the vehicle on the dash. The GPS antenna measures 1.3125" (w) x 0.625" (h) x 1.4375" (d). The self-adhesive pad measures 2.625" square.

    • Acquisition Time: 29 seconds (cold)
    • Update Rate: 1/second, continuous
    • Accuracy: <2.5 meters continuous (Position), 0.1 meter/sec (Velocity)

    Note: The navigation receiver took approximately 11.7 seconds to calculate directions from Charlottesville, Virginia to Los Angeles, California. It only took 6.3 seconds to calculate directions from Charlottesville, Virginia to Baltimore, Maryland. These tests were done inside the Crutchfield Lab. Results will vary based on length of calculated route and your surrounding area.

    INRIX Traffic: You can receive INRIX traffic information and weather forecast through the Kenwood Excelon DNR876S by connecting your compatible iPhone or Android smartphone with "Kenwood's Traffic Powered By INRIX" application (for Apple iOS 8.0+ and Android OS 4.0.3+) installed. While the DNR876S is in navigation mode, it pulls real-time data from the INRIX Traffic app on your smartphone which provides you with up-to-the-minute traffic, weather, parking, traffic cameras, and travel advisory information on-screen. You get 2 years free access to INRIX traffic information (fees will apply after 2nd year). Your iPhone must be connected via USB, while your Android smartphone must be connected via Bluetooth to the Kenwood navigation receiver.

    • Traffic: By automatically learning a user's driving habits, INRIX Traffic personalizes routes to avoid the worst traffic, recommends trips and departure times, and provides automatic, intelligent alerts to keep users aware of changing road conditions. INRIX even provides real-time images from traffic cameras along major roadways to supplement the traffic information.
    • Weather: INRIX provides local area current temperatures, forecasted weather conditions, and severe weather alerts. It also gives you advance warning of dangerous weather-related road conditions ahead, keeping your safer along your route.
    • Parking: INRIX helps you to find detailed parking information, including parking availability in nearby garages and pricing information.
    • Fuel: INRIX also helps you find nearby fuel stations and compare fuel prices.

    On-Screen Map: The Kenwood DNR876S displays a real-time moving map illustrating your current position and intended route. It will show map scale and geographic details such as lakes, rivers, highways and towns. Your route is marked with a magenta line. A checkered flag marks your destination. As you travel the DNR876S guides to your destination with arrows on the map and directions at the top of the screen. The upper-left corner of the screen indicates the distance to your next maneuver. During your calculated route, your arrival time is displayed in the lower left corner, your current speed is shown in the lower right corner. The posted speed limit for most major roads is displayed near the lower right corner as well. The unit allows you to zoom, pan, and point using the touchscreen during navigation.

    • Map Detail: You can adjust the amount of detail shown on the map screen. More detail may cause the map to be slower.
    • 2D/3D Map View: You can changes the perspective of the map from 2D North-Up (displays the map in 2 dimensions with North at the top), 2D Track-Up (displays the map in 2 dimensions with your direction of travel at the top of the screen), 3D Track-Up (displays the map in 3 dimensions with your direction of travel at the top of screen).
    • Vehicle Type: You can change the icon (arrow, station wagon, sports car, compact car, SUV, jeep, RV, or sled) used to display your position on the map.
    • Color Mode: Select between Day (for a bright background), Night (for a black background) or Auto (to automatically switch between the two) for the on-screen map.
    Note: In Split-Screen mode, you can view song/artist information (including album art) of your audio source (including CarPlay & Android Auto) while you also viewing the navigation map. In addition, the backup camera can be displayed in Split-Screen mode along with the map screen. You can even watch video in Split-Screen mode along with the map when the vehicle's parking brake is engaged.

    Text-To-Speech Voice Prompts: The unit's text-to-speech voices "read and speak" the same words that are displayed on the unit's screens. The voices have an extensive vocabulary and they pronounce the street names as you approach turns. Voice prompts can heard from both of your front speakers, only the left front speaker, or only the right front speaker. You can independently adjust the volume (0-40) of the voice prompts without affecting the main volume. The unit offers English, French, and Spanish voice prompts.

    Note: You can continue to listen to your music source while navigating. The DNR876S will mute the music source, when there is a text-to-speech voice prompt. Once the voice prompt has ended, your music volume will automatically raise to previous setting.

    Driver Assistance: The DNR876S features Turn & Lane Assistance, Exit Services, and Speed Limit Icons to assist you along the calculated route to your destination.

    • Turn & Lane Assistance: While navigating a route, a preview of the next turn, lane change, or other maneuver appears in the upper-left corner of the map. Lane Assist guides you to the correct lane for an approaching turn or exit, making unfamiliar intersections and exits easy to navigate.
    • Exit Services: The Exit Services function lets you search roadway exits for food, lodging, and rest areas so you are never left guessing what is around the bend. You must be on a major highway or road to use this feature.
    • Speed Limit Icon: A speed limit icon may appear as you travel on major roadways. This icon displays the current speed limit of the roadway. The unit's speed limit icon feature is for information only and does not replace the driver's responsibility to abide by all posted speed limit signs and to use safe driving judgment at all times.

    Destination & Location Screens: The DNR876S offers a variety of destination/location screens & functions to help you along your route.

    • Where Am I?: The "Where Am I?" feature gives you instant access to important information in case of an emergency. When you select "Where Am I?" from the menu, you get the coordinates (including elevation) of your current position, plus the nearest address and intersections. There are also menus to help you locate the nearest hospitals, police stations, gas stations, and roadside assistance. You can also save the location for future reference.
    • Where To? Screen: The "Where To?" screen provides several different ways to enter your destination. The navigation system automatically searches for places near your current location. You can also choose to have the DNR876S search for places in a different city, a recent destination, a favorite destination, projected destination, or along your current route.
      • Browse Map & Go Home: The receiver allows you to search for a destination by touching and dragging the map. You can also store one home location to allow you to calculate a route home from any current location.
      • Address/Cities/Intersections: Input your destination address by house number, street, city, and zip-code. You can also search for a city by name or search two intersecting streets.
      • POI Category + Quick Search: The detailed maps loaded in this navigation system contain locations, such as restaurants, hotels, parking, auto services, and other POIs (points-of-interest). You can use these categories to browse for nearby businesses and attractions. After you have performed a search for a point-of-interest, certain categories may display a Quick Search list that displays the last four destinations you selected.
      • Favorites & Recents: You can save all of your favorite places in the navigation system, so you can quickly navigate to them later. You can also choose from one of your most recent destinations (up to 50) or waypoints.
      • Search Bar & Shortcuts: You can use the Search Bar to search for locations by entering a category, brand name, address, or city name. In addition, you can add up to 36 shortcuts to the Where to? menu. A shortcut can point to a location, a category, or a search tool.
    • Where I've Been/Trip Log: The "Where I've Been" application allows you to view your previous routes and places you have stopped on the map. In addition, the device keeps a Trip Log, which is a record of the path you have traveled. The Travel History setting must be enabled in order for the Where I've Been and Trip Log features to function.

    Trends: The DNR876S has the ability to recall frequent destinations and historic traffic information to help calculate your route faster.

    • myTrends: The myTrends feature senses when you are driving to a common destination and displays the destination and estimated time of travel in the navigation bar on the map. myTrends does not work when you first begin using your navigation system. To effectively use the myTrends feature, your frequent destinations must be marked as favorites, and a regular pattern of driving habits must be established with three days of regular driving usage.
    • trafficTrends: When the trafficTrends feature is enabled, the navigation system uses historic traffic information to calculate more efficient routes. Different routes may be calculated based on traffic trends for the day of the week or based on the time of day.

    ecoRoute: The ecoRoute feature calculates your vehicle's fuel economy, carbon footprint, the fuel price of navigating to your destination, and offers tools for improving fuel efficiency. The first time you access the ecoRoute features, you will be asked to enter fuel and mileage information (Fuel Type, City Fuel MPG, HWY Fuel MPG, Fuel Price) about your vehicle.

    • Fuel Economy: If you have entered your vehicle profiles and the current fuel price, the DNR876S calculates fuel used, the average fuel economy for your vehicle, your carbon footprint, and the cost of the fuel consumed.
    • At The Pump: At your next fill-up, you can enter in fuel price, amount of fuel used, and the distance you traveled to calculate your vehicle's miles-per-gallon (MPG).
    • ecoChallenge Tool: The ecoChallenge tool helps you maximize your fuel economy by scoring your driving habits. The higher your overall score for a driving challenge, the more fuel you could save. You overall score is the average of these 3 scores -
      • Speed: gain points for driving at the best speed for conserving fuel, which is 45-60mph for most vehicles.
      • Acceleration: gain points for gradual acceleration; lose points for rapid acceleration
      • Braking: gain points for gradual braking; lose points for hard braking
    • Mileage Report: Mileage reports provide the distance, the time, the average fuel economy, and the fuel cost of navigation to a destination. A mileage report (up to 20) is created for every route that you drive. If you stop a route on your navigation system, a mileage report is created for the distance you traveled.
    Note: The data provide by the ecoRoute feature is only an estimate. The data is not actually read from your vehicle.

    Route Preferences/Avoidances: When calculating a route, you can select the following preferences; faster time, shorter distance, less fuel, or off road. You can also program the unit to avoid certain things that may be undesirable on your route; such as U-Turns, Highways, Toll Roads, Carpool Lanes, Unpaved Roads, and Ferries.

    Auto Reroute/Detour: If you happen to depart from your original route, the internal navigation system recalculates the route and provides new route instructions. You can also select a specific area to detour around. The navigation system will attempt to get you back on your original route as quickly as possible, after calculating a detour. If the route you are currently taking is the only reasonable option, the DNR876S might not calculate a detour.

    Trip Planner (Multiple Destination Routing): You can create and save a trip with multiple destinations (up to 500 via points) using the Trip Planner. Once you have entered your destinations, you can manually set them in the order of your preference, or allow the device to calculate the most efficient route. Trip itineraries can be saved in memory for future use. You can even add scheduling information to each location in your trip, including the desired arrival time and layover duration at each location.

    Trip Computer: The trip information page displays your current speed and direction, and provides helpful statistics about your trip. Dual trip odometers keep up with your total mileage. The page also indicates the distance and driving time to your next maneuver, as well as the distance and driving time to your destination. Your maximum speed and moving average speed are also displayed. The information can be reset in advance of your next trip.

    Safe Mode: Safe Mode disables all navigation system functions that require significant operator attention and could become a distraction while driving when the vehicle's parking brake is disengaged. You will need to engage the vehicle's parking brake to enter addresses or other advance navigation functions when you have the unit set to Safe Mode.

    GPS Simulator: You can turn the unit's GPS receiver off and simulate travel along a projected route.

    Android (Android Auto) & iPhone (CarPlay) Integration

    Android Auto Wireless: The Kenwood DNR876S supports the Android Auto app for select Android smartphones using a wired or wireless connection. A Google or Samsung smartphone with Android OS 10.0+ or any smartphone with Android OS 11.0+ and 5GHz WiFi can utilize Android Auto Wireless with the Kenwood receiver using the latest version of the Android Auto app, plus a WiFi and Bluetooth connection (both wireless connections must be made; a wired USB connection must be made initially between the Android phone and the Kenwood receiver to setup Wireless Android Auto). Android smartphones running Lollipop 5.0 or higher can also be connected to the Kenwood receiver's "grey" USB port (not "black") using the included USB extension cable and USB cable that came with your smartphone, plus be paired via Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen interface that is simple to use in the vehicle. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

    • Google Assistant: The Kenwood receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smarthome enabled devices.
    • Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
    • Phone & SMS: With Android Auto you get access to your contacts and messages through the Kenwood receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
    • Music: Access your Android smartphone's music library through the Kenwood receiver via Google Play Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more; as well as news, sports and talk radio apps. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

    Notes:

    • The initial setup for Android Auto requires that your vehicle be stopped and the parking brake is engaged. You will need to connect the parking brake wire of the receiver's harness to your vehicle's parking brake circuit for the head unit to recognize that the vehicle's parking brake is engaged.
    • Only one Android device with Android Auto can be connected at a time. An Android Auto device and Apple CarPlay device cannot be connected at the same time.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Android Auto is being used with a connected Android smartphone.
    • Use a USB cable that is under 6' long and avoid using any extension cable other than the one supplied. If you need an additional USB extension cable, use Kenwood's CA-U1EX USB extension cable (113CAU1EX, sold separately); any other USB extension cable can cause Android Auto to malfunction.
    • Click here to learn more About Android Auto and to see what phones are compatible.

    Wireless Apple CarPlay: Apple CarPlay is a smarter, safer in-vehicle interface to operate your iPhone with Lightning Connecter, and is specially designed for driving scenarios. Your iPhone can be connected to the Kenwood DNR876S wirelessly or via USB. A wireless connection to your compatible iPhone (iOS 9.0+) can be made using the Kenwood receiver's built-in WiFi (5GHz) and Bluetooth (2.4GHz) - requires both wireless connections. Or, you can choose to connect your compatible iPhone (iOS 7.1+) to the Kenwood receiver via USB. Your iPhone will need to be connected to the Kenwood receiver's "black" USB port (not "grey") via the included USB extension cable and the Lightning-cable that came with your Apple device or Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately). You can control CarPlay from the Kenwood receiver's touchscreen controls or use Siri to control to control CarPlay with just your voice. You'll be able to use CarPlay to get directions, make phone calls, listen to voice mails, send/receive text messages, select music, and even control Apple HomeKit compatible devices in a way that keeps you focused on the road ahead.

    • Navigation Maps: The power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via the Google Maps or Waze application instead of Apple Maps. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
    • Phone & Messages: You'll be able to make calls, return missed calls, and listen to voicemails through the Kenwood receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
    • Music Library: Access your artists, song, playlists, and iTunes Radio on your iPhone using the Kenwood receiver's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
    • Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
    • Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your  thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

    Notes:

    • Wireless Apple CarPlay works best with a vehicle speed pulse connection. You will need either a radio replacement interface with a vehicle speed pulse connection or Kenwood's OBD-II Spped Pulse Generation (KNA-SPM100) - both sold separately. Alternatively, you can also hardwire the Kenwood receiver's speed pulse wire to your vehicle's speed pulse wire (this method is much more time consuming and requires more installation experience).
    • Wirleless Apple CarPlay can be used without connecting the vehicle speed pulse wire by downloading the latest firmware update from Kenwood's website onto a USB thumbdrive and installing it in the Kenwood receiver. Although this software update makes installation easier, location and position accuracy for navigation maps will suffer without the VSS wire hooked up.
    • Only one Apple iPhone with CarPlay can be connected at a time. An Apple CarPlay and Android Auto device cannot be connected at the same time.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Apple CarPlay is being used with a connected iPhone.
    • If you need an additional USB extension cable, use Kenwood's CA-U1EX USB extension cable (113CAU1EX, sold separately). Any other USB extension cable can cause CarPlay to malfunction.

    Miracast for Android (Wireless Mirroring): Wi-Fi Certified Miracast lets you wirelessly send the display of your compatible Android OS 4.2 (Jelly Bean) - 9.0 (PIE) device that also supports Miracast to the receiver's touchscreen monitor. This allows you to view practically any content that is playing on your compatible Android device on the receiver's touchscreen (vehicle's parking brake must be engaged). You'll also be able to use the receiver's touchscreen to control your compatible Android smartphone.

    Notes:
    • Not all Android OS 4.2 (Jelly Bean) - 9.0 (PIE) will support Miracast. Future Android OS updates may cause the Miracast feature to not function properly. Click here to check for Miracast compatible Android smartphones and tablets.
    • Miracast (wireless mirroring) will require that the vehicle's parking brake be engaged to mirror your smartphone or view any content from your smartphone on the receiver's touchscreen monitor. Only audio content will be heard without the vehicle's parking brake engaged.
    • The Apple iPhone does not support Miracast or wireless mirroring.

    iPod/iPhone Music Playback Only: If you don't desire Apple CarPlay, you can also connect your Lightning-connector Apple iPod/iPhone to the DNR876S for music playback & control only using Kenwood's Lightning connector-to-USB cable (113KCIP103 sold separately) or the Lightning-to-USB cable that came with your Apple device. Simply plug your compatible Apple device into either of the receiver's rear-panel USB ports. The Kenwood receiver supports playback of stored music and music apps, along music browsing and playback control, plus song/artist information and album art.

    • Head Unit Control: The Kenwood head unit allows you to navigation your iPod/iPhone's music library from its front-panel & touchscreen controls. The head unit offers unique search features like Category Search & Link Search, plus offers basic playback functions like Play/Pause, Fast Forward/Rewind, Previous/Next Track and Repeat/Random of your connected iPod/iPhone. You'll also still be able to control your connected iPod touch or iPhone from its own touchscreen so you can access other music applications.
      • Category Search: Category Search allows you to navigate your iPod/iPhone's music library by Playlist, Artists, Album, Song, Genre, Song, Podcast, Audiobook, or Radio. You can then search each of these categories using the head unit's touchscreen slider function (categories will be listed in alphabetical order).
      • Link Search: The head unit offers Link Search, which allows you to play songs related to the currently playing song. Link Search lets the head unit create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
    • Song/Artist Info & Album Art: The DNR876S will display your iPod/iPhone's stored music information including Track number, Elapsed playing time, Song/Album title, Artist name, and Album art. The unit will also display song/artist info and album art from select music apps.

    Note: Only one Apple Lightning-connector device can be connected at a time.

    Apple Device Compatibility Chart: The Kenwood DNR876S is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 7/4/2019) -

    Apple Device Generation Tested Version Media Type Control Type Specific Apps Display Type Bluetooth Charge
    Audio Video Head Unit iPod/iPhone CarPlay Pandora Spotify Album Art Song/Artist Track Info Phone Audio Siri
    iPhone
    5/5C 10.3.3 Y N Y Y Y N Y Y Y Y Y Y Y Y
    5S/SE 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    6/6+/6S/6S+ 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    7/7+/8/8+ 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    XS-Max/XS/XR/X 12.3.1 Y N Y Y Y Y Y Y Y Y Y Y Y Y
    touch
    5th 9.3.5 N N N N N N N N N N N Y N Y
    6th 12.3.1 Y N Y Y N N N Y Y Y N Y N Y
    nano
    7th 1.02 PC N N N N N N N N N N N Y N Y
    Notes:
    • Not compatible with 30-pin Apple devices.
    • Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    Built-In WiFi: The Kenwood DNR876S receiver's built-in WiFi can only be used for Wireless Apple CarPlay, Android Auto Wireless, and Wireless Mirroring via Miracast for select Android devices. The built-in WiFi is not designed to be used with WiFi hotspots.

    Cellular & Data Plan Requirements: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

    GPS Antenna: In addition to supporting the built-in navigation, the included GPS antenna must also be installed for Android Auto and Apple CarPlay navigation maps. The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.

    Smartphone Charging: The Kenwood DNR876S will also charge (5V/1.5A) your Android smartphone or Apple iPod/iPhone device while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

    Built-in Bluetooth

    Bluetooth 5.0: The Kenwood DNR876S is equipped with built-in Bluetooth 5.0 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

    • Hands-Free Communication: HFP 1.7 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile)
    • Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.6 (Audio/Video Remote Control Profile).
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Kenwood DNR876S. Visit Kenwood's Support Site for a complete list of compatible Bluetooth enabled phones.

    SSP & Auto Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood DNR876S without having to enter pin codes or go through complicated settings. You can even pair your Apple iPhone (iOS 5+) or by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit's display. You can pair up to ten Bluetooth-enabled devices to the Kenwood head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

    • Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit's touchscreen.
    • Music Mix: The new Music Mix feature allows five Bluetooth audio source devices to be connected to the Kenwood receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While "BT Audio" source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.

    Hands-Free Communication: The head unit supports Bluetooth hands-free communication for your Bluetooth enabled smartphone. Thanks to the latest Hands-Free Profile (HFP 1.7) with wideband speech capability, the Kenwood DNR876S provides more natural sound quality and details during wireless calls. The touchscreen controls of the DNR876S can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers (All or Front only). During a conversation, you can switch between the Private Mode (talking directly on your phone) and the Hands Free Mode.

    • Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's touchscreen, or setup the head unit to automatically answer the incoming call immediately (1-30 seconds).
    • Dialing a Number: Using the DNR876S, you can dial a phone number in one of the following ways:
      • Entering a Phone Number: Allows you to directly dial a phone number from the head unit's touchscreen keypad.
      • Preset Dialing: Allows you to register up to 5 phone numbers for quick dialing. The preset numbers can be accessed from the head unit's touchscreen.
      • Phonebook: You can download phonebook data (up to 1000 entries) from your phone to the DNR876S. You can then dial by using the downloaded phone book and search it alphabetically.
      • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls (up to 50 entries total).
      • Voice Dialing: If your smartphone supports voice recognition (including Siri and Google Voice), then you can dial out by voice command. Simply speak into the included microphone.
    Note: This unit allows you to answer a call or dial out using any option without engaging the vehicle's parking brake.

    Wireless Audio Streaming: The Kenwood DNR876S supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player, plus song/artist information display and support for AAC lossless music streaming. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood DNR876S for playback.

    • SBC & AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the DNR876S offers support of AAC codecs for higher quality audio streaming from select Apple devices. By supporting AAC, the DNR876S offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
    • Advanced Music Playback: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DNR876S lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4-up phones only; which includes Android 4.0+ and iPhone 5.0+).
    • Song/Artist Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title (no album art).
    Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

    External Microphone: The Kenwood DNR876S includes an external microphone to carry on your side of your phone conversation and voice command dialing. The external wired microphone offers improved audio quality versus an integrated microphone, so you can be heard easier over noisy traffic and road noise. You can adjust the volume level, echo cancellation, and noise reduction of the microphone without affecting the other sources. The external microphone features an attached 10' cable terminated by a right-angle 3.5mm connector which plugs into the mic input on the rear-panel of the head unit. The microphone offers an integrated mounting bracket which can be clipped to your vehicle's sun-visor or taped to your dash.

    Internet+SiriusXM+HD Radio

    Internet Radio Apps (for iPhone & Android): You can access Pandora & Spotify online music services on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone through the Kenwood DNR876S receiver. You can also access Apple Music Radio through your USB or Bluetooth connected iPhone. Your compatible mobile device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi. Subscriptions and fees will apply.

    • Pandora: The free Pandora App (for Apple iOS 11.0+ or Android OS 4.0+) lets you play music from the Pandora music service through the DNR876S using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. The Kenwood DNR876S provides control over the Pandora music service and displays Artist, Album, and Song information. You can select Pandora stations from your station list and sort them by date or alphabetically, or shuffle playback stations in your list. New stations can be created based on the current songs or artists playing. You can also select stations from a Genre list. In addition, you can skip song tracks within a station. You can even give songs a thumbs up or thumbs down. An active Pandora account is required.
    • Spotify: The DNR876S has the ability to playback & control content from the Spotify music app (for Apple iOS 10.0+ or Android OS 4.0+) on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone. You can play, pause and skip tracks, browse playlists, albums and radio stations through the Kenwood receiver's touchscreen & front-panel controls. You can even create your stations by entering a track, artist, or playlist. You also get song/artist information on the unit's LCD touchscreen. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.
    • Apple Music Radio (iPhone Only): You can playback Apple Music Radio on your USB or Bluetooth connected Apple iOS 9.3.5+ device through the Kenwood DNR876S. With a WiFi or cellular connection on your iPhone, you can listen to Beats 1 and other live radio stations through the Kenwood receiver. Apple Music subscribers can also listen to on-demand stations for almost any genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations. The touchscreen will also display song/artist/album information, along with Album art.
    Note: Access to these Internet Radio services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Not supported in Canada and only available in the United States.

    SiriusXM-Ready: The Kenwood DNR876S is SiriusXM 3.0 Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

    • Channel List w/ Category Search: A channel list displays a list of all available channels. The Category Search function searches for channels in a certain category.
    • Song/Artist Info + Album Art: Displayed Information such as Channel Name, Channel Logo, Artist Name, Song Title, & Album Art can be viewed on the head unit's LCD
    • Smart Favorite Presets: Up to 20 SiriusXM Satellite Radio station presets can be saved. Up to 6 of your SiriusXM presets on the current band are recognized as Smart Favorites for advanced features such as TuneStart, TuneScan, & TuneMix.
      • TuneStart: TuneStart allows you to choose whether to start a song from the beginning or from its live point when tuning to a Smart Favorite channel.
      • TuneScan: TuneScan plays the first 6 seconds of each song that has not been listened to from each of the channels which you have saved as Smart Favorites.
      • TuneMix: TuneMix plays a unique blend of songs from your Smart Favorite preset music channels from the current SiriusXM preset band, allowing you to build a custom channel from as few as two to as many as six music channels.
    • Instant Replay: You can pause, rewind, and replay up to 60 minutes of current channel. You'll also be able to rewind and replay the last 30 minutes of content from your six Smart Favorite channels.
    • Alerts: Receive alerts of your favorite song or artist, favorite sports teams, plus traffic and weather.
      • Content Alerts: When a broadcast program related to the your favorite artist or song starts, a message appears to allow you to switch to that station.
      • Sports Flash: Sports Flash will notify you when a big play happens during a game with one your favorite sports teams. You can choose to tune to that station or continue to listening to the previous channel.
      • Traffic & Weather Now: Traffic & Weather Now allows you to access the latest report whenever you want to hear it by city.
    • Parental Control: Channels containing unsuitable content for children can be blocked.
    Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

    HD Radio: With its built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio significantly improves AM/FM audio quality and reception, as well as includes information such as artist name and song titles or traffic news, viewable on the receiver's display. HD Radio Technology will deliver high-quality digital sound. AM digital will have FM-like quality in stereo (80dB SNR @ 40-15kHz), while FM digital will have CD-like quality (80 dB SNR @ 20-20kHz) with static free and clear reception. The unit's built-in HD Radio tuner allows analog AM/FM tuning as well.

    • Seek Modes + Direct Access Tuning: You can choose one of three seek modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band's preset stations only with each button press), or Manual. You can also setup the DNR876S to search only HD Radio stations. In addition, you can directly access an AM/FM station by entering in the frequency number using the unit's LCD touchscreen.
    • Tuner Presets: You can store 15 FM presets and 5 AM presets (total of 20). Not only does the navigation receiver's tuner allow you manually enter your desired presets you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling.
    • Station Info/Album Art AM/FM digital stations can offer text and data such as artist names and song titles; as well as Album Art.
    • Multicasting & Emergency Alerts: In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 8 multicast programs (HD1 to HD8). HD Radio also delivers critical and life-saving messages to the public during emergency situations.
    Note: HD Radio is the system for digital AM and FM broadcasting in the U.S. More than 2,000 radio stations are broadcasting their primary signals in digital HD Radio technology, as a free service. Go to HDRadio.com to check for HD Radio stations in your area.
    USB/SD-Card Playback

    USB MSC Playback (Dual USB Ports): The Kenwood DNR876S features two rear-panel USB inputs (one is "black" and the other is "grey"). Each rear-panel USB input consists of a USB (type-A) port attached to the rear-chassis by a 7" pigtail and comes with a 39" USB extension cable. These USB ports can be used for connection and control of up to two portable USB mass-storage class (MSC) devices, such as a USB thumbdrive. The USB ports enable playback of a variety of audio (including Hi-Res), video, and photo files stored on a compatible USB memory device (see chart below). USB portable audio devices that can be charged via USB will be charged when plugged into the navigation receiver's USB ports (5V/1.5A), and the vehicle's ignition switch is set to ACC or On.

    • Category Search: You can navigate music stored on your USB memory device by Playlist, Artist, Song, or Album. The content within each category will be listed in alphabetical order.
    • Link Search: Link Search allows you to play songs related to the currently playing song. The head unit can create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
    Notes:
    • Two USB mass storage class devices or USB thumbdrives can be connected at the same time; you can switch back and forth between devices (it does not combine the libraries).
    • The USB ports do not support MTP (Media Transfer Protocol), AOA (Android Open Accessory), USB hubs, or card-readers.
    • You can connect an Android smartphone with Android Auto to the "grey" USB port and a USB thumbdrive to the "black" USB port at the same time.
    • You can connect an Apple iPod/iPhone to the "black" USB port and a USB thumbdrive to the "grey" USB port at the same time.

    SD Card Slot: The navigation receiver is fitted with a SD card slot located behind the electronic slide-down touchscreen monitor. The SD card slot supports both SD, SDHC, and SDXC memory cards. The unit supports playback of  a variety of compressed and high-resolution music files, as well as standard and high-definition video files, plus JPEG still image stored on a compatible SD/SDHC/SDXC memory card (see chart below).

    File Compatibility: The Kenwood DNR876S supports the following types of audio (including Hi-Res), video, and photo files recorded onto a SD-card or loaded onto a USB mass storage class device.

    Media Type USB (MSC), SD/SDHC/SDXC
    File System FAT 16/32, exFAT, NTFS
    Playable File Types Audio MP3/WMA/AAC: bit rate of 8-320kbps; sampling frequency of 16-48kHz
    WAV/FLAC (High-Res): bit depth of 16/24-bit; sampling frequency of 16-192kHz
    Vorbis:
    variable bit-rate; sampling frequency of 16-48kHz
    Video MPEG-1: max resolution of 352 x 240 or 352 x 288; max bit-rate of 1.5Mbps
    MPEG-2:
    max resolution of 720 x 480 or 720 x 576; max bit-rate of 8Mbps
    MPEG-4/H.264:
    max resolution of 1920 x 1080 (30fps); max bit-rate of 8Mbps
    WMV/MKV:
    max resolution of 1920 x 1080 (30fps); max bit-rate of 8Mbps
    Photo JPEG: 5000 x 5000
    PNG/BMP: 1000 x 1000
    Maximum # of Folders/Files Unlimited folders/9,999 files (999 files per folder)
    Tags MP3 ID3-tags, WMA/AAC/FLAC-tags, & Album Art

    High Resolution Audio Playback: The Kenwood navigation receiver supports playback of high-resolution FLAC & WAV music files (up to 24-bit/192kHz) via USB or SD. High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music.

    Folder/Track List: The Folder/Track List allows you to search folders and audio/video/picture files stored on a SD-card or USB device.

    Song/Artist Info with Album Art: The Kenwood DNR876S will display song/artist information as well as album art for MP3, WMA, AAC, and FLAC music tracks (if encoded).

    Firmware Updates (via USB): The unit's operating system is updateable via free downloadable software from Kenwood's support site. Firmware downloads assist in maintaining system performance when using external devices and emerging technologies. Firmware/software updates can be downloaded onto a USB thumbdrive from your computer and then inserted into the head unit's USB port and uploaded. Go to Kenwood's Support Site for the latest firmware/software updates.

    Audio & DSP Section

    24-Bit/192kHz DAC: The Kenwood DNR876S utilizes a 24-bit/192kHz digital to analog converter (DAC) for superior sound quality with a signal to noise ratio up to 90.5dB.

    MOSFET Amplifier: The Kenwood DNR876S is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the DNR876S are as follows:

    • Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
    • Maximum Output Power: 50 watts x 4 channels

    6ch/4V Pre-Outs + Sub Control: The DNR876S features front, rear and subwoofer 4.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer preamp output is non-fading and offers independent level control (-50 to +10 dB).

    Vehicle Setup: You can select your car type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off. For a better sound-stage you can select your optimal listening position & rear speaker location.

    • Listening Position + Digital Time Alignment: You can choose from All, Front Left, Front Right or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position.
    • Rear Speaker Location: You can indicate the location of your vehicle's Rear speakers. Choose from Door, Rear Deck, 2nd Row, or 3rd Row.

    Crossover Network: The Kenwood Excelon DNR876S lets you choose between a 2-way or 3-way crossover network for your car audio application.

    • 2-Way Crossover: Allows you to set high-pass and low-pass crossovers for a standard Tweeter, Front, Rear, and Subwoofer speaker setup.
      • Speaker Size: select which size speakers are in your vehicle.
        • Tweeter: Small, Medium, Large, or None
        • Front & Rear: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10" or None
        • Subwoofer: 6.5", 8", 10", 12", 15" or greater, None
      • X'Over: Select the high pass or low pass crossover settings for your speakers.
        • Tweeter: high pass filter (HPF)
          • Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Gain: -8 to 0 dB
        • Front & Rear: high pass filter (HPF)
          • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB, -18dB, -24dB
          • Gain: -8 to 0 dB
        • Sub: low pass filter (LPF)
          • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB, -18dB, -24dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
    • 3-Way Crossover: Allows you to set high-pass and low-pass crossovers for a complex 3-way speaker system with Highs, Mids, and Sub.
      • Speaker Size: select which size speakers are in your vehicle.
        • Tweeter: Small, Medium, Large, or None
        • Midrange: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", or 6x9"
        • Woofer: 6.5", 8", 10", 12", 15" or greater, None
      • X'Over: Select the high pass or low pass crossover settings for your speakers.
        • Tweeter: high pass filter (HPF)
          • HPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
        • Midrange: high pass filter (HPF) & low pass filter (LPF)
          • HPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • LPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB
        • Woofer: low pass filter (LPF)
          • LPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
          • Slope: -6dB, -12dB
          • Phase: Reverse (180°), Normal (0°)
          • Gain: -8 to 0 dB

    Equalizer: The Kenwood DNR876S offers 8 EQ Presets for easy adjustment, a 13-band EQ for customized tuning, and a Drive EQ mode to overcome road noise. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.

    • Preset EQ: The integrated equalizer offers 8 preset sound modes (Flat, Pops, Easy, Top40, Jazz, Powerful, Rock, or User 1-4) suitable for the music genre of your choice.
    • 13-Band EQ: The User modes (1-4) allows you to manually adjust the head unit's 13-band EQ (62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency's gain level can be adjusted from -9dB to +9 dB.
    • Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequency ranges that become hard to hear due to road noise.

    Music Enhancements: You can restore the sound lost due to audio compression, as well as enhance the sound by virtually manipulating the soundscape.

    • Realizer: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Realizer feature boosts low frequencies which can be lost during compression. Set to Level 1, Level 2, Level 3, or Off.
    • Supreme: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Supreme Setting function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When the Supreme Setting is Off, the unit plays the original sound stored in the audio file.
    • Space Enhancer & Stage EQ: You can set the Space Enhancer to Small, Large, or Off. Each setting value indicates the soundscape level. You can also virtually raise the sound position heard from your speakers; the Stage EQ can be set to High, Middle, Low, or Off.

    Volume Level & Bass Management: The navigation receiver offers several volume level adjustments to tailor the audio output of your sources. The DNR876S also provides bass management to get the most impact out of your system.

    • Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -8 to +6.
    • Dynamic Range: The dynamic range can be adjusted by selecting either Normal, Wide or Dialog. Dialog makes the total sound volume become larger as compared with Wide and Normal, allowing you to listen to the movie's dialogue more clearly. This is effective only on Dolby Digital software.
    • Bass Boost & DC Extension: The DNR876S features a four-step Bass Boost (Off/1/2/3) to enhance your music's lower frequencies. When "Bass DC Extension is turned on, frequencies lower than 6.25 Hz are set the same gain level as the unit's 13-Band EQ 62.5 Hz gain setting.
    • Loudness: This function enhances low and high frequencies to make the sound clearer lower volumes.

    Source Beep: The in-dash receiver provides an audible beep to confirm source selection. This function can be turned On or Off.

    AV/Camera/OEM Connectivity

    AV Input: The Kenwood DNR876S navigation receiver is fitted with a rear-panel minijack (3.5mm) audio/video input to connect external AV sources, such as a game system, Blu-ray player, or TV tuner.

    AV Output (with Dual Zone): The unit features a composite video jack and 3.5mm audio jack to output AV signals to an optional monitor and headphone system. The unit's AV output can be set to AV-In, USB, SD, or Off. Volume of the second zone can be controlled by the navigation receiver or your rear entertainment system.

    • If you select USB, SD, iPod, Spotify, Pandora, or Bluetooth as the main source; you cannot select USB as the AV output source.
    • If you select CarPlay, Android Auto, or Miracast as the main source; you cannot select SD or USB as the AV output.
    Note: Built-in Navigation, CarPlay, Android Auto, and Miracast cannot be displayed through the receiver's video output.

    Rear & Front Camera Inputs: The unit features a composite video input for connecting an optional rear view camera, such as the Kenwood CMOS-230 (113CMOS230, sold separately). By connecting a rear view camera, you can use the in-dash receiver's touchscreen LCD to see what's behind you when backing up. There is also a composite video input for connecting a front dash-cam (sold separately), so you can display what's ahead of you on the head unit's touchscreen LCD monitor. In addition, you can configure the unit's 3.5mm AV input with the help a minijack-to-composite video adapter cable (sold separately) to act as a camera input for adding a side-camera.

    • Parking Guide Lines: When a rear-view camera is connected to the dedicated rear view camera input and you are viewing a rear view image, parking guide lines appear on-screen making parking easy and safer. There are three color-coded horizontal guidelines and two vertical guidelines.
    • Rear-View Auto Switching: The video from the dedicated rear view camera connection can be set to display when switched to this input, or display the rear view camera video automatically when the vehicle is shifted into Reverse gear. The purple/white wire of the wiring harness must be connected to the vehicle's reverse lamp circuit for automatic video switching. Automatic video switching takes approximately 0.8 seconds.
    Note: The rear view camera feature is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

    Dash Cam Ready: In addition to the front camera input, the DNR876S is equipped with a proprietary "Dash Cam" control input for connecting Kenwood's DRV-N520 dashboard camera (113DRV520, sold separately). The DRV-N520 offers high resolution 1080p recording, plus motion detection technology. The dashboard camera's live and recorded video are displayed on the DNR876S's touchscreen. You'll also control the DRV-N520's settings and parameters from the receiver's touchscreen.

    OEM Integration: This Kenwood navigation receiver is compatible with the iDatalink Maestro RR (794ADSMRR, sold separately); a web programmable module that will permit the aftermarket Kenwood receiver to work with select Ford, Lincoln, and Mercury vehicles that feature the factory SYNC system; as well as select GM vehicles with factory OnStar; select Chrysler/Dodge/Jeep vehicles with U-Connect, plus select Honda/Acura, Toyota/Scion, Volkswagen & Subaru vehicles with factory digital amplifiers.

    • Retained Features: The iDatalink Maestro RR lets Ford/Lincoln/Mercury, GM, Dodge/Chrysler, and VW owners swap out their factory radio for this aftermarket Kenwood head unit; while retaining the Ford Sync system, GM OnStar system, Chrysler/Dodge/Jeep U-Connect system, steering wheel controls, Bluetooth, USB interface, Satellite Radio, and 911 assist. You also get to keep the hands-free mic that comes with the car (which is specially tuned to that particular vehicle). *Retained features will vary by vehicle.
    • Extra Features: In some installations, the iDatalink Maestro RR lets you configure the head unit to operate interior climate controls and provides extra visual data; such as User Selectable Gauges, Vehicle Info (Tire Pressure/Battery Voltage/Check Engine Codes/Door Ajar Warning), and Visual Park Assist. *Extra features will vary by vehicle.

    Note: The iDatalink Maestro RR is web programmable, which means you'll need to flash the iDatalink Maestro RR interface module with the correct firmware from iDatalink's website. In addition to flashing the iDatalink Maestro RR module, you'll also need a vehicle specific harness (sold separately). The Kenwood receiver's OEM Setup menu must also be configured with your compatible vehicle's factory system before initial operation.

    Touchscreen & Remote Control

    6.95" Clear Resistive Touchscreen: The Kenwood DNR876S features a 6.95" widescreen (16:9) clear resistive touchscreen LCD with LED backlighting. The clear resistive touchscreen LCD provides a high contrast ratio, crystal clear display, and vivid text. The LCD touchscreen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000 total pixels. Touchscreen operations include tap, touch & hold, flick left or right, and swipe up or down.

    • Custom Home Screen & Shortcuts: You can customize the head unit's Home Screen by rearranging the icons and moving the icons of the twelve most sources you use most to the first page of the Home Screen. Four programmable shortcut source keys offer a quick jump to your favorite sources from almost any screen.
    • Background Color & Wallpapers: You can choose between nine preset background colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White. You can also choose to link the displays color with the unit's front-panel variable color illumination that you set. In addition, there are four preset background images (wallpapers) or you can download your own still image (800x600) for use as the unit's background from a connected USB thumbdrive.
    • Photo Frame Widget: You can even display a slideshow of images files (up to 500) stored on an inserted USB thumbdrive when on the Home Screen. Images must be JPEG (5000x5000), PNG (1000x1000), or BMP (1000x1000). Images remain on your USB device and are not downloaded to the head unit; the USB thumbdrive must be inserted for this feature to work.
    • Angle Adjustment: The bottom of the touchscreen monitor can be tilted upward at six different positions to provide the best visibility in your vehicle (you can save any one of these positions to the head unit's memory).

    Dual Core Processor: The Kenwood navigation receiver utilizes a Linux based system and dual core processor for faster operating speeds and enhanced stability. The unit has start-up time of approximately 25.7 seconds from OFF to the last source selected or navigation map screen.

    Split Screen AV Control: The Split Screen AV Control mode divides the head unit's touchscreen monitor into two screens, with navigation on the left and a source window on the right. With this Picture-in-Picture type function, the head unit can now display the navigation map screen, as well as song/artist information (including album art) and basic playback controls simultaneously - including CarPlay & Android Auto. You can also view the backup camera display along with the map screen. You can even display the navigation map screen and AV-IN video simultaneously with the vehicle's parking brake engaged.

    Front-Panel Controls w/ Variable Color Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons along the bottom edge of the screen. You can adjust the head unit's button illumination, as well as display background color from the following preset colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White or Scan (Scans through all preset colors). You can also select a custom "User" color that is adjusted between Red, Green, and Blue (values range: 0-31).

    Dimmer: The dimmer function will dim the head unit's display & front-panel illumination automatically when your vehicle's light switch is turned On, if you have the unit's orange/white "Illumination" wire connected to your vehicle's headlamp circuit. You can also choose to dim the display manually.

    Clock & Date: The navigation receiver offers a 12-hour clock & day/month/year display. The clock is visible from any source or menu screen. With your vehicle's key in the accessory or run position, the head unit will continue to display the LCD background image, clock, and button illumination during "Standby" mode. Pressing and holding the Power/Home button turns the unit off completely.

    Remote Control: The Kenwood DNR876S offers compatibility with factory steering wheel controls (adapter sold separately) and is compatible with Kenwood's IR wireless remote control (sold separately) for added convenience. Kenwood also offers a remote application which allows you to control the receiver from your smartphone device.

    • Steering Wheel Controls: The head unit features a factory steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
    • Optional Remote Control: The optional Kenwood KNA-RCDV331 IR wireless remote control (113RCDV331, sold separately) unit is designed to operate this Kenwood receiver. The wireless remote controller operates off of two supplied "AAA" batteries. The remote operates off of IR transmission so the KNA-RCDV331 must be pointed at the front-panel of the Kenwood head unit within direct line of sight.
    • Remote S App: The Kenwood Remote S (for Apple iOS 9.0+ and Android OS 5.0+) is an application that will connect and control the in-dash receiver from your compatible Apple or Android device via Bluetooth, like a wireless remote control. You can select source input, as well as command basic playback controls such as Play/Pause or Previous/Next Track from the touchscreen of your compatible smartphone. This application can also display the receiver's source and song/artist information on the screen of your compatible Apple iOS or Android device.

    Parking Brake Interlock: To prevent the display of video while the vehicle is in motion, the light green wire (within harness) must be connected to the vehicle's parking brake detection circuit. You cannot view video unless your vehicle's parking brake is engaged. If you attempt to view video without the parking brake engaged, the unit's LCD touchscreen will simply display a blue screen and "Parking Off". While your vehicle is in motion (parking brake off), you can still view all of the head unit's menu screens/settings, source information, metadata, and album artwork; as well as the built-in Navigation, CarPlay, and Android Auto.

    Note: The parking brake wire must also be connected and the parking brake engaged for certain setup functions and menu options.

    Loading accessories...

    Customer Q&A

    18 questions already asked

    Q
    Can you watch cable tv on this unit from your iPhone 10 dnr87s6??
    vitor  Jan 19, 2021
    1 answer
    A
    We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
    thomas  Feb 08, 2021 (Staff)
    Q
    Dnr876s can you down load movies and watch them on this unit??
    victor  Dec 28, 2020
    2 answers
    A
    Unfortunately movies can't be downloaded to the unit itself. You can however watch a movie that is downloaded to a thumbdrive or from another external AV source.
    allison  Jan 14, 2021 (Staff)
    A
    Legally, the car would need to be parked. I have not installed my unit yet, but reading through the owner's manual I believe there are two auxiliary A/V outputs that can send video to remote displays located elsewhere in the vehicle.
    james  Jan 08, 2021
    Q
    i have a dnx371, would it be the same harness thats already wired into my truck?
    jason  Dec 27, 2020
    2 answers
    A
    Not sure.
    charles  Dec 27, 2020
    A
    I'm sorry I don't know the answer to that.
    roger  Dec 27, 2020
    Q
    Dnr876s is this a high definition screen?
    victor  Dec 27, 2020
    3 answers
    A
    Unknown, check Kenwood's website for detailed product info.
    william l  Dec 28, 2020
    A
    It is 1080p from my experience but given its size it looks HD
    austin  Dec 27, 2020
    A
    No, but there is no way to play movies or games so it's not important to me.
    kenny  Dec 27, 2020
    Q
    has anybody tried to plug a 5th gen ipod into this and see if it works, i know it says it doesnt. but my old unit said that it didnt work with the newer ipods but it does?
    samuel  Dec 14, 2020
    1 answer
    A
    We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
    thomas  Dec 29, 2020 (Staff)
    Q
    Is the dnr8706 receiver have a high definition screen ?
    yolanda  Nov 28, 2020
    1 answer
    A
    Dont know, haven't finished the customization of my truck yet..
    jose  Nov 28, 2020
    Q
    Does this unit look like a factory install or does it look like an add on? I have a 2009 MB SLK 350. Thanks
    edwin  Nov 24, 2020
    10 answers
    A
    It looks just like it was manufactured with the car my son just put it in
    nathaniel  Nov 28, 2020
    A
    In my opinion the finish look appears factory, I was very pleased and happy with mine. However, the install appearance will probably differ based on the install kit and not the radio so I can't say what it will look like in your vehicle, mine is a 2011 Ford F250. Good luck!
    william l  Nov 26, 2020
    A
    I have a 2019 Sienna LE and the factory stereo was flush on the dash. When I replaced it with this, it was flush minus a tiny bit of the bottom bar on the stereo sticking out slightly. I'd say the new face plate that is surrounding it to replace the factory one looks more aftermarket than the stereo. But that was specifically for my Sienna... it might be different in your car.
    daniel  Nov 24, 2020
    A
    With the proper harness for your vehicle, it's a very clean install. Wiring for mic, gps, and dual USB's should be planned minimize however.
    roland  Nov 24, 2020
    A
    If Scosche makes a mounting bezel for your model buy it ! My vehicle is a 2012 Benz Sprinter I purchased the Scosche kit and you can't tell it from factory and simple.... Make sure you get the correct FM antenna adaptor I wasn't aware I needed that set my project back by 2 days after my stock radio was out and dash ripped apart ugh !
    todd  Nov 24, 2020
    A
    The head unit itself looks smooth as a factory install. I went with the Scosche Dash kit, and there is a very slight gap between the unit and the bezel, but that's necessary since the screen tilts to accommodate different viewing angles. In my 2010 Tacoma, I'd call this a long overdue upgrade to a less than ideal factory design.
    roy  Nov 24, 2020
    A
    Mine was installed in a 2001 F350 because of age the technology wasn't available then so it looks like an up grated system and the installation looks clean. As for the DNR876S for me was a huge upgrade the old head ( factory stock am, fm cd and a cassette tape player). I imagine that in a newer vehicle it will look more natural depending on the installation kit needed. Hope this helps the DNR876S is a great head unit I'm very happy with the purchase I matched up 4 infinity 6x8 speakers that are installed in factory location no amps and it sounds great.
    jeffery  Nov 24, 2020
    A
    I liked this unit because it installed very clean. I put it in a 04 Chevy avalanche and it looks like it could have been stuck. I put a Chevy wallpaper on the screen which makes it fit the truck very well.
    joshua  Nov 24, 2020
    A
    I haven't installed it yet but it looks nice when I pulled it out
    nathaniel  Nov 24, 2020
    A
    Lools like it belongs there. Get a trim piece with the unit and Crutchfield sends one too so you'll have 2 choices. I out it in a 2013 GMC Sierra 1500. Wish I could add a pic. Looks awesome. And I'm picky. Good luck
    mark  Nov 24, 2020
    Q
    What is the cost of Map Updates? My standalone Garmin units have lifetime updates. Is this unit the same?
    jonathan  Oct 14, 2020
    4 answers
    A
    I have an old Garmin that came with life time upgrades unfortunately it's only for that unit. The update is $60 from Garmin
    jeffery  Nov 24, 2020
    A
    It should tell you online for whatever product your interested in. Mine is.
    michael  Nov 09, 2020
    A
    for 2 years updates are free
    william duane  Nov 09, 2020
    A
    I have no idea haven't had a need or tried to, for all I know its free. Sorry can't help you there, but I can say I love the unit works great, installed it myself. Crutchfield was great, teck support was awesome!!! Good Luck!
    daniel  Nov 07, 2020
    Q
    I have a 2020 ford xl regular cab.Is this compatible with steering wheel controls and FordPass?
    lacy g  Oct 02, 2020
    1 answer
    A
    I purchased the wiring harness from Crutchfield. I have a 2013 GMC Sierra. I didnt loose any controls from my steering wheel. They'll hook you up
    mark  Nov 24, 2020
    Q
    Is the 2nd screen lost on a 2013 Honda Accord?
    john  Sep 15, 2020
    1 answer
    A
    The display at the top of the dash will continue to work but will no longer show any of the radio information. It will work for the rest of the information/vehicle controls including the factory backup camera if its installed into your Accord
    jason  Sep 30, 2020 (Staff)
    Q
    I have a 2004 MazdaSpeed Miata with the Double DIN Bose system. The "installation kit" says I need the Scosche SLC4 Line Output Converter, but the DNR-876S instruction manual shows that there are RCA PreOuts for the MidRange Speakers, and Tweeters. So it would seem to me I don't need the SLC4 - what am I missing?
    james  Sep 14, 2020
    2 answers
    A
    On the back of the head unit there 3 sets of RCA Pre outs they are marked tweeter mid and sub the instruction shows them front, rear and sub.
    jeffery  Nov 24, 2020
    A
    If you are speaking in reference to factory amps. You have two choices. 1. Bypass the factory amps and install an aftermarket amp in order to power your speakers. 2. Use the line-out converter in order to use your factory amp.
    kristen  Sep 14, 2020
    Q
    I just ordered this for my 2009 Sierra with the RES. I just realized the DVD player slot is actually part of the Infotainment system. I ended up paying for the wiring kit as well, which states I would retain the RES. How am I going to retain that functionality with no DVD player?
    jared  Sep 13, 2020
    1 answer
    A
    This unit can play videos from USB drives as well as SD memory cards. It also has an AV input that can be used to get an A/V signal into it. All three of these inputs can be used to zone two output that is used for the rear seat entertainment system. However, if you will be relying on DVD's, I recommend contacting an advisor using 1-800-324-9695 to get help make arrangements to change the receiver to one that meets all your goals.
    jason  Sep 27, 2020 (Staff)
    Q
    what is the difference between DNR876S and DDX8906S besides playing dvds?
    kerry  Aug 11, 2020
    1 answer
    A
    Thanks for your question. For information on comparing two or more models I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences and help you make the best choice for your system and your budget.
    kristina  Aug 25, 2020 (Staff)
    Q
    Who would you recommend to install this into my car? I don't live near your area. Also, this does have built in WiFi correct? Thanks
    gina  Jul 31, 2020
    2 answers
    A
    No built in wi-fi hotspot. I used a local radio shop to install mine. Major electronics retailers have install shops and do a good job. I have a problem with my unit in that is more advanced than my wireless telephone supplier and the radio cannot not connect to android auto by punching the button on the radio. I have to bring up Android auto on my phone manually at the phone keypad. I have looked into adding a wi-fi hotspot by adding another line from my wireless supplier, $15/mo. plus the cost of the hardware which is not outrageously expensive. To get all google assistant capability and voice dialing etc. can be, a wi-fi hotspot would make it easy.
    james  Dec 30, 2020
    A
    Any reputable mobile audio center near you can likely install this unit. If you went with the ReadyHarness, it's an incredibly easy installation, and can easily be done in a few hours at most. The unit does have built-in WiFi as well as Bluetooth.
    roy  Nov 24, 2020
    Q
    Two questions. One, does this system work with an iPhone 10+? Second, It is recommended that I not change my radio, why is that? I have a 2016 BMW 320i. Thank you..
    gina  Jul 31, 2020
    3 answers
    A
    I use iPhone X and it works fine for us. Not sure about the second part of your questions. Crutchfield techs are very helpful and I would trust what they recommend. Hope everything works out for you!
    darryl  Aug 03, 2020
    A
    The iPhone 10+ will work with this stereo. I can not answer your second question.
    kristen  Jul 31, 2020
    A
    Works great with iPhone 11 Pro I have a Ford F-250 so don't no about bmw
    bryan  Jul 31, 2020
    Q
    Will wireless Android Auto actually work with phones other than Google phones unlike the Pioneer units?
    tomas  Jun 23, 2019
    2 answers
    A
    I just put this in. I have an Android. Works great
    mark  Nov 24, 2020
    A
    Wireless apple CarPlay works well. It's is supposed to do the same with android, but I have not tried
    eric  Jun 23, 2019
    SHOW MORESHOW LESS

    Loading articles...

    Compare the sound
