Metra 70-1761 Receiver Wiring Harness

Connect a new car stereo to the factory wiring in select 1987-up Toyota, Lexus, Scion, Subaru, and Geo vehicles

Item # 120701761

This vehicle-specific wiring harness adapter makes connections between your new car stereo and your car's...

Find what Fits your car

This vehicle-specific wiring harness adapter makes connections between your new car stereo and your car's...

Top seller

Item # 120701761

In stock
C$10.99

About the Metra 70-1761 Receiver Wiring Harness

Metra 70-1761 receiver wiring harness

This vehicle-specific wiring harness adapter makes connections between your new car stereo and your car's electrical system. It works with select 1987-up Toyota, Lexus, Scion, Subaru, and Geo vehicles.

Metra 70-1761 receiver wiring harness

This vehicle-specific wiring harness adapter makes connections between your new car stereo and your car's electrical system. It works with select 1987-up Toyota, Lexus, Scion, Subaru, and Geo vehicles.

First, attach the color-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness saves installation time since you won't have to cut factory wires individually, and it also enables you to re-install the factory radio if needed. A detailed instruction sheet comes with the harness. Warranty: 60 days.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.

Connections:

  • 12V constant power
  • 12V switched power
  • chassis ground
  • power antenna turn-on
  • dimmer
  • left front speaker +/-
  • right front speaker +/-
  • left rear speaker +/-
  • right rear speaker +/-
READ LESS

What's in the box:

  • 8" Power/front-speaker harness
  • 7.5" Rear speaker harness
MFR #70-1761

Customer reviews

Loading reviews...

Metra 70-1761 Receiver Wiring Harness reviews

Average review:

1,592 reviews

Filter by rating

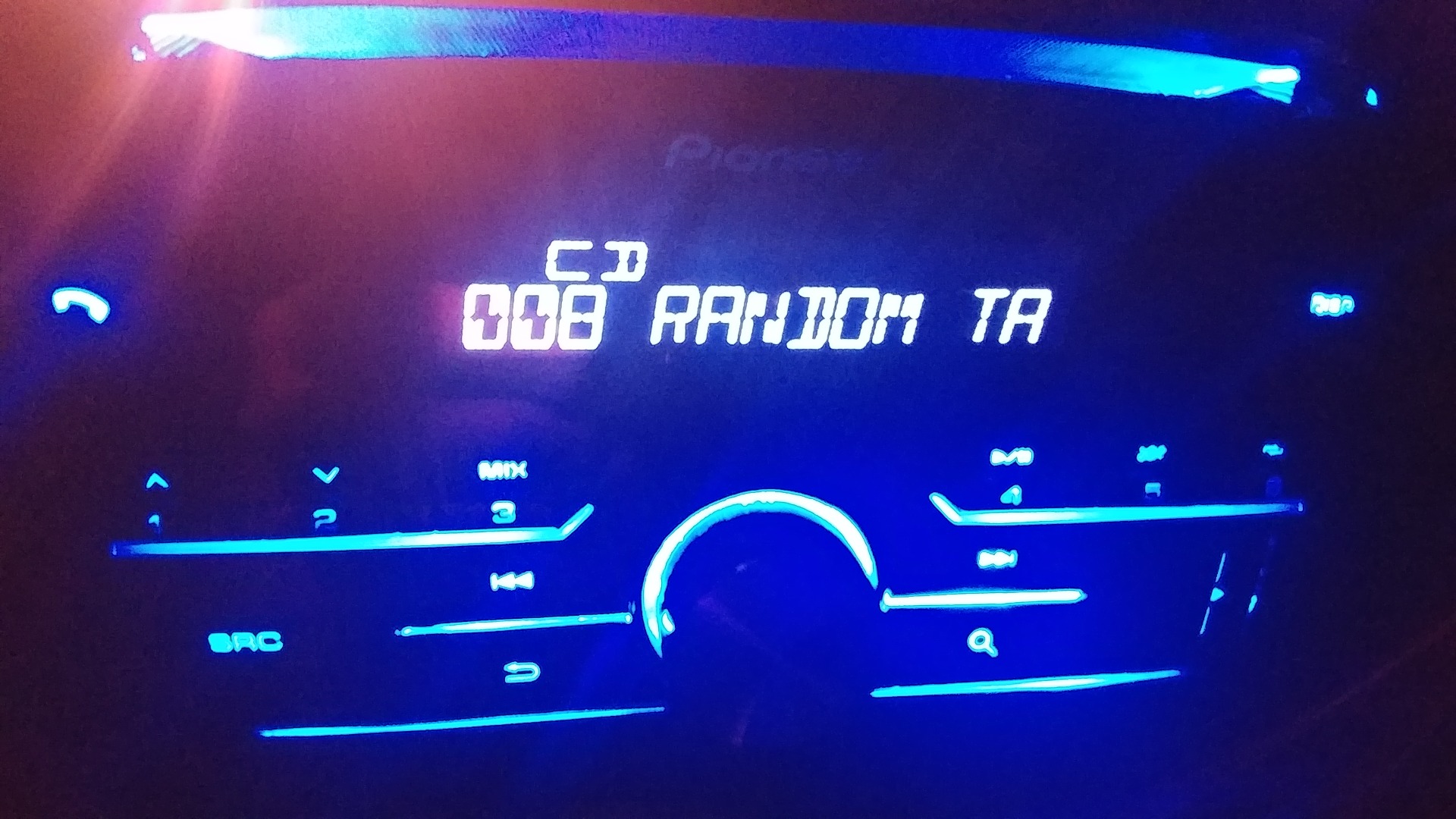

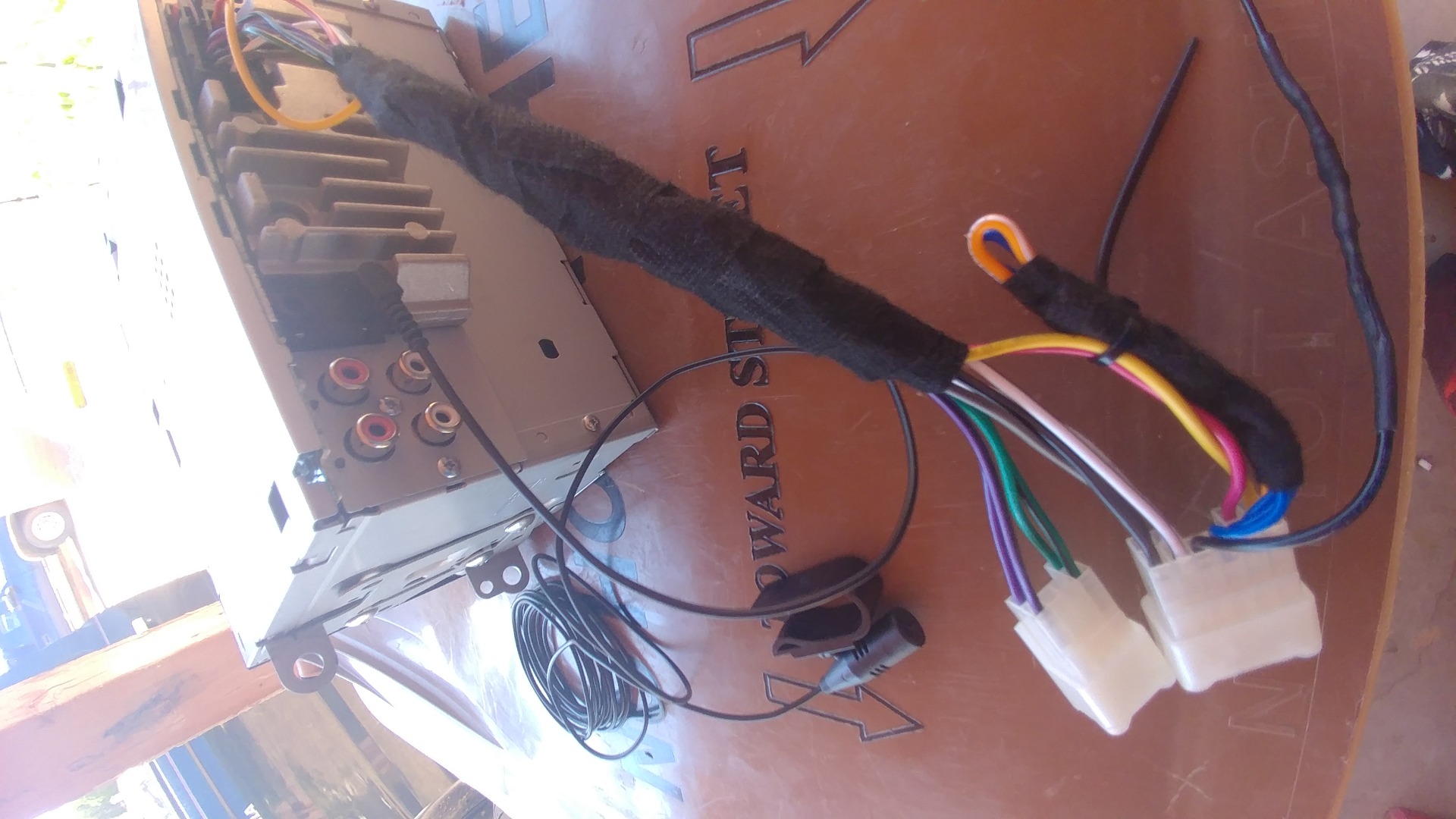

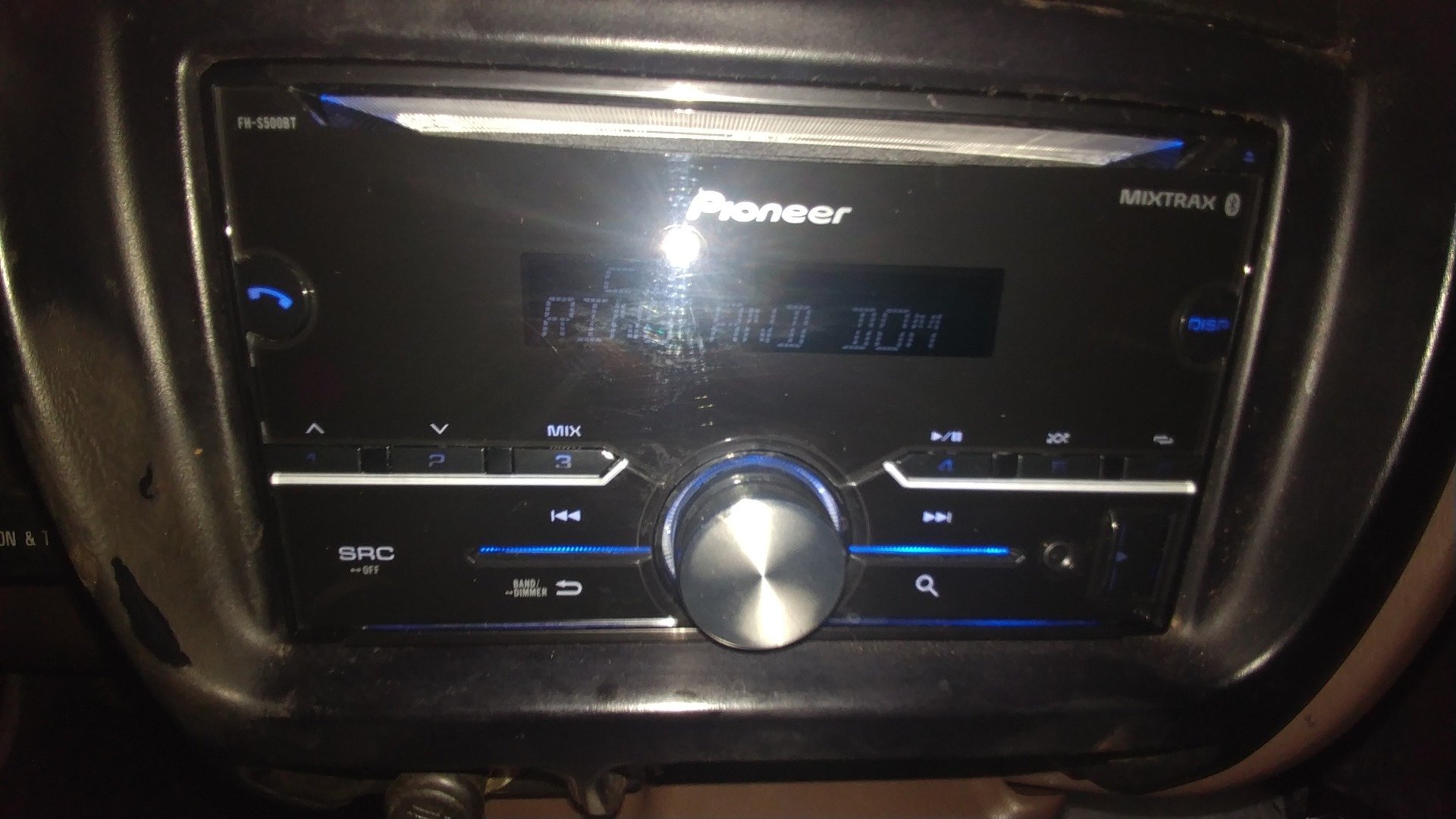

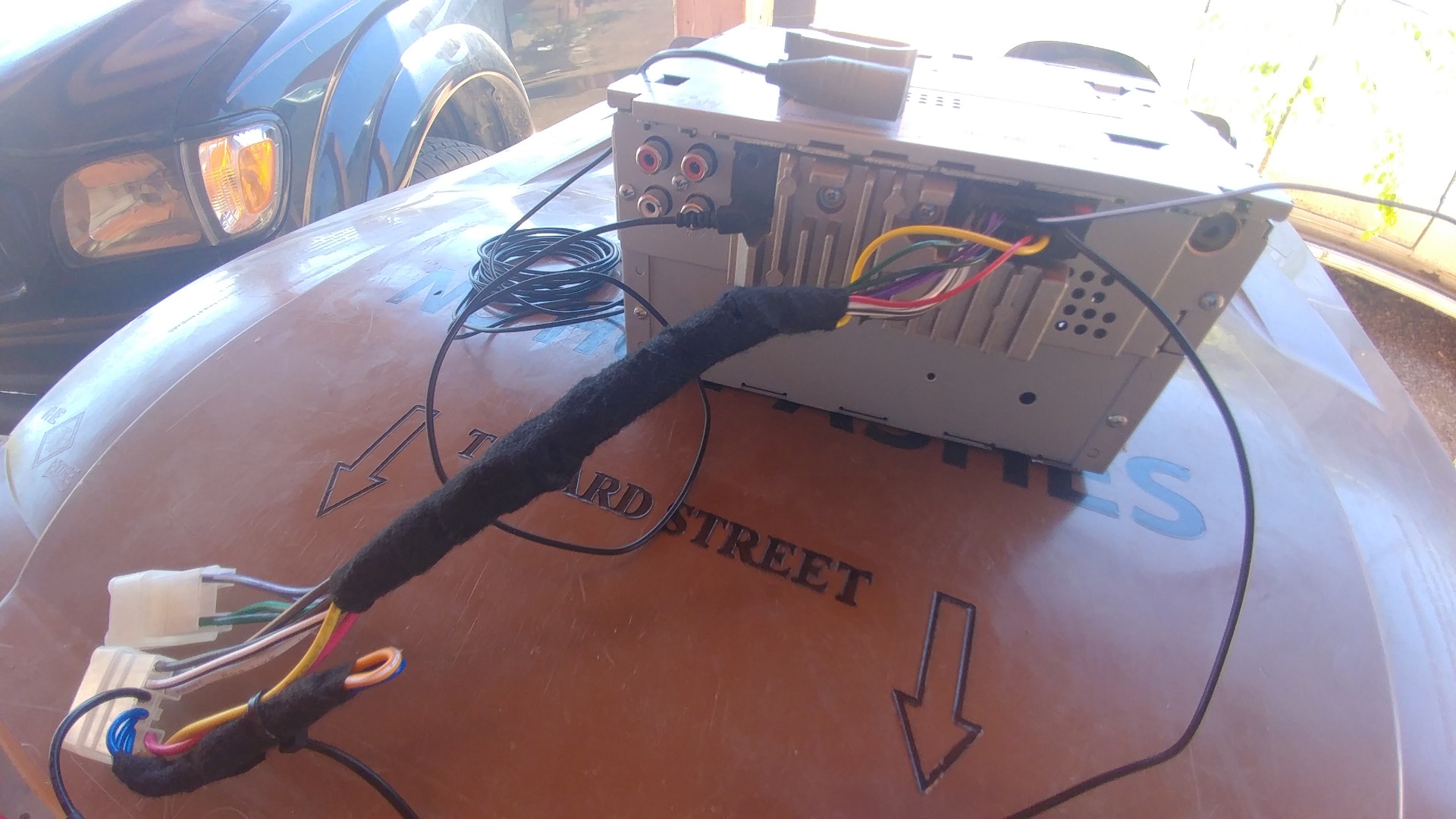

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Metra 70-1761 Receiver Wiring Harness

Stacey B.

Product Research

Features

Metra Wiring Harness: Metra wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Metra wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Metra wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the Metra wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.

Wire Code Chart:

(Power/Front Speaker Harness)

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Black Ground
Blue Power Antenna
Orange/White Dimmer
White Left Front Speaker +
White/Black Left Front Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -

(Rear Speaker Harness)

Wire Color Function
Empty (none)
Green Left Rear Speaker +
Green/Black Left Rear Speaker -
Violet Right Rear Speaker +
Violet/Black Right Rear Speaker -

Loading accessories...

Customer Q&A

31 questions already asked

Q
Will this harness work on a Lexus sc400 with a upgrade pioneer stero with no CD player??
[ Josh  May 07, 2020 ]
2 answers
A
You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Calvin  May 27, 2020 ]  Staff
A
Don't know
[ Yoshifumi  May 22, 2020 ]
Q
Will these work on 2010 year tacoma? I read somewhere its for only 87-07s
[ Ethan  Jul 13, 2019 ]
1 answer
A
Hi Ethan, thanks for your question! Depending on the trim level of your truck, this harness may be an option for you. Chat with an Advisor online or by phone at 1-800-324-9695. They will be able to pull up the exact info on your truck, go over your factory features that you would like to retain, and insure you're purchasing the correct gear for your install.
[ Jess  Jul 19, 2019 ]  Staff
Q
Will this allow me to retain the factory Sub in my 2009 FJ Cruiser?
[ Tommy  Mar 28, 2019 ]
2 answers
A
My guess is that it would not play your new receiver through that sub without adding a separate amp - your factory srereo probably has a direct sub-out lead. These harnesses provide basic speaker , antenna, power, memory and ground connections, as that is what replacement radios need. Your new radio (not specified) probably has some low level outs that could feed a separate little amp for the sub - check directly with C'field tech guys - they probably can tell you which wires in the car harness will get it hooked to your sub - good luck, it can be doe...
[ Bruce K.  Apr 04, 2019 ]
A
I believe it did have connection for sub but not positive as I added an external sub that I powered separately and used sub output from stereo
[ mark  Mar 28, 2019 ]
Q
Wiring diagrams To pioneer x6500bt ?
[ fawn  Nov 29, 2018 ]
1 answer
A
You'll find the wire code listing for the harness by clicking the "Details" tab on it's main webpage. You can also download a PDF copy by clicking the link for it under the "Overview" tab and the heading "What's in the Box". You'll find the Pioneer's wire code listing in it's owner's manual (Available as a PDF under the "What's in the Box" heading on it's main page): www.crutchfield.com/p_130X6500BT/item.html For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
[ Ryan  Dec 12, 2018 ]  Staff
Q
Will this adapter work on 2003 Toyota Tacoma and a Pioneer AVH-X2800BS with Bluetooth?
[ jbaum  Nov 19, 2018 ]
2 answers
A
It is the harness we recommend for connection to the factory wiring in the 2003 Tacoma, yes. You can connect the leads of the Metra harness to the leads of the Pioneer stereo's harness (packaged with the stereo) for power (both constant & switched), ground, dimmer, power antenna, and all of the positive and negative speaker connections. A multi-media receiver (like the AVH-X2800BS) will have additional leads in it's harness you'll have to hardwire to the factory wires in your truck (parking brake sensor, reverse trigger). For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx
[ Ryan  Nov 24, 2018 ]  Staff
A
I dont know. Crutchfield should know.
[ Vicki  Nov 19, 2018 ]
Q
metra 70-1761 wire harness dose not match the color wires on the factory harness 2007 Tacoma non JBL. It dose match the harness coming from the new head unit made connections but was hesitate to plug into factory harness. Is that normal? thanks in advance
[ Nicholas  Aug 12, 2018 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
[ Krissy  Aug 20, 2018 ]  Staff
Q
Does this retain the factory AUX input in a 2009 Toyota Tacoma?
[ Darius  Feb 10, 2018 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Krissy  Feb 14, 2018 ]  Staff
Q
Does this retain the factory AUX input in a 2009 Toyota Tacoma?
[ Darius  Feb 10, 2018 ]
1 answer
A
Hey Darius, I used the harness in my 2000 Tacoma exchanging the factory stereo/cassette for an Alpine CD/BT with Aux input and it works great! Easy connection and perfect functioning. Crutchfield matched the harness to the Alpine I purchased. Hope the helps. Joe
[ Joseph  Feb 10, 2018 ]
Q
does the black wire on pioneer harness connect to black wire on metra harness?
[ jake  Oct 12, 2017 ]
2 answers
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer, or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Oct 17, 2017 ]  Staff
A
Yes
[ Sherman  Oct 13, 2017 ]
Q
Is this what I need to install my Sony in an 09 camry? Replacing the Jbl without navigation
[ Jsd0125  Oct 08, 2017 ]
2 answers
A
I used it to replace a radio in a 2002 Rav4. Made for an easy installation, however,don't know about the camry
[ ANTONIO  Oct 08, 2017 ]
A
It fit on my 07 camry.
[ Jin Hwan  Oct 08, 2017 ]
Q
if running my own speaker wire do i not use the supplied wires and use rca's in the head unit instead?
[ chris  Sep 18, 2017 ]
1 answer
A
The aftermarket stereo will still need to connect to the vehicle harness for power (both constant & switched), ground, power antenna, and dimmer leads.
[ Ryan  Sep 20, 2017 ]  Staff
Q
Would it work on a 2013 4runner with the " party mode option button" or I will loose this feature ?
[ e  Jul 24, 2017 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Kenny  Jul 25, 2017 ]  Staff
Q
I need to know if it fits for a 96 Toyota Avalon?
[ Adam  Mar 12, 2017 ]
1 answer
A
You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Kenny  Mar 13, 2017 ]  Staff
Q
Will this work on my 2015 WRX Limited and retain the Harmon Kardon amplifier?
[ n7slc  Feb 20, 2017 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Kenny  Feb 20, 2017 ]  Staff
Q
Will it work on an fj cruiser 9 speakers?
[ Jose  Jan 14, 2017 ]
1 answer
A
You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Krissy  Jan 16, 2017 ]  Staff
Q
Is this the correct harness for a 2007 Toyota Land cruiser Prado VX?
[ Paul  Dec 20, 2016 ]
1 answer
A
I'm not seeing this harness related to the vehicle you listed. For full information on this type of integration (including the parts you will need) please contact an Advisor by phone (1-800-324-9695) or online chat.
[ Kenny  Dec 21, 2016 ]  Staff
Q
Does this support the 6 speakers on a 2008 double cab Tacoma? There is a tweeter and door speaker in front doors and a single door speaker in rear door. So needs total of 6 speakers ?
[ Daniel  Oct 30, 2016 ]
1 answer
A
This is the recommended stereo wiring harness for connecting an aftermarket stereo to the stock wiring in a 2008 Toyota Tacoma without the premium JBL sound system. The stock tweeters are wired in parallel with the door woofers and will continue to play if left connected when the new stereo is installed, yes. I hope that helps! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
[ Ryan  Nov 04, 2016 ]  Staff
Q
does this harness support steering wheel controls?
[ Matt  May 21, 2016 ]
1 answer
A
The ability to retain steering wheel controls with aftermarket receivers will be determined by the receiver you are using and the vehicle you have. For full information on this type of integration (including the parts you will need) please contact an Advisor by phone (1-800-324-9695) or online chat.
[ Kenny  May 21, 2016 ]  Staff
Q
I was sent the Metra 70-1761 wiring harness for my 2003 Toyota Camry XLE without JBL audio or Navigation (a 2 adapter kit). I have a single adapter in the car which is slightly wider with what appear to a tighter pin configuration. Is there something I'm missing and are there multiple adapter types for the 2003 Camry?
[ TahoMike  Mar 24, 2016 ]
1 answer
A
For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on what you will need for an installation in your vehicle.
[ Kenny  Mar 25, 2016 ]  Staff
Q
I'm installing a powered subwoofer. What wire should I connect my subs remote turn on wire to? (07 Yaris)
[ Sam  Mar 11, 2016 ]
4 answers
A
Blue, labeled remote I think. You can also use power antenna
[ Matthew  Jun 04, 2017 ]
A
I believe its the solid blue wire labeled power antenna, it should have 12 volts dc when you turn on the radio.
[ charles  May 22, 2017 ]
A
I'm not sure, but I remember seeing it in the installation instructions.
[ Nelson  Nov 30, 2016 ]
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Mar 11, 2016 ]  Staff
Q
I have the original factory set up of 1" tweeters mounted separate from 5" speakers on the front doors and of course the 6x9s in the back. Is the jvc kd-r470 with this harness compatible?
[ Richard  Jan 16, 2016 ]
1 answer
A
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Krissy  Jan 17, 2016 ]  Staff
Q
Will this fit a 2001 Toyota solara with Jbl audio?
[ Charles  Jan 14, 2016 ]
1 answer
A
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Jeff  Jan 15, 2016 ]  Staff
Q
Does this really work for a Lexus ls400?
[ Jamand  Dec 03, 2015 ]
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Jeff  Dec 03, 2015 ]  Staff
Q
What size crimp caps should I buy for this harness? What gauge is the wire? I want to make sure to have a solid connection. Thanks.
[ Jesse  Nov 26, 2015 ]
3 answers
A
The red butt splice connectors will fit all the wires
[ James  Dec 16, 2015 ]
A
I think it is 14ga but not positive. Get a good crimp or solder the joints ??
[ John  Nov 30, 2015 ]
A
It is 22 gauge wire so choose caps that are appropriate for that size of wire to make a solid connection.
[ JAMES  Nov 27, 2015 ]
Q
I use this for my 2012 Toyota Tundra. On my harness there is a wire for the rear view camera but there is not a matching wire for it. were is this wire suppose to go ?
[ Ricardo23  Nov 20, 2015 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Nov 20, 2015 ]  Staff
Q
I purchased the Metra 70-1761 for my 2002 Toyota Solara. The connector (male end) is smaller than the stock connector and doesn't fit. Now what?
[ Karen  Jul 14, 2015 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Jul 14, 2015 ]  Staff
Q
I have a 1989 Toyota Camry with am/fm radio, but no tape deck. What do I need to play music from my cell through car speakers?
[ David  May 24, 2015 ]
3 answers
A
you can use Bluetooth if your phone has it.
[ Nelson  Nov 30, 2016 ]
A
A radio that has Bluetooth built-in or use the auxiliary if you have one on the radio.
[ MIGUEL A  May 24, 2015 ]
A
Change out your whole system. I went with a alpine bluetooth deck. It comes with all the wiring harnesses needed for your camry. Just filter down to the specific car u have. If you don't change your deck you'll have to buy a seperate fm transmitter unit
[ JAY R  May 24, 2015 ]
Q
Okay so i just bought a 1992 geo prizm and it already has a radio Kenwood installed the wires were cut and i was needing to know the color codes to the car wiring cause its wrong when lights are turned on the radio goes to pretect mode if its lights off after reset it works also when left blinker it turned on it also quits working and kills lights also have to reset radio could someone please tell me the car wiring color code?
[ Chris  Apr 09, 2014 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Apr 10, 2014 ]  Staff
Q
I have a 1998 Toyota Camry and I just bought this harness to connect my new radio. Do I connect the ground wire of the new radio to the ground wire of this wire harness OR do I crimp a ring terminal connector to this wire and screw the ring terminal to metal inside the vehicles dash??
[ M  Mar 05, 2014 ]
1 answer
A
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the install. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.
[ Krissy  Mar 05, 2014 ]  Staff
