Metra 70-5517 Receiver Wiring Harness

Connect a new car stereo in select 1998-03 Ford, Lincoln, Mercury, and Nissan vehicles

Item # 120705517

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Find what Fits your car

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Item # 120705517

In Stock
C$16.99
Add to wishlist

About the Metra 70-5517 Receiver Wiring Harness

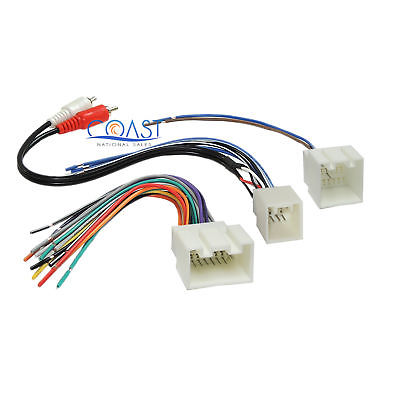

Metra 70-5517 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

Metra 70-5517 Receiver Wiring Harness

Installation Note: This harness uses your factory amplifier; your new stereo must have one pair of preamp outputs to connect this harness.

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

First, attach the color-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness makes installing your new stereo easier, and allows you to put the factory radio back when you sell your vehicle or return it at the end of the lease. A detailed instruction sheet comes with the harness. Warranty: 60 days.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.

READ LESS

What's in the box:

  • Receiver wiring harness
  • Subwoofer wiring harness

Customer reviews

Loading reviews...

Metra 70-5517 Receiver Wiring Harness Reviews

Average Customer Review(s):

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

More details on the Metra 70-5517 Receiver Wiring Harness

Stacey B.

Product Research

Features

Wiring Harness: This wiring harness prevents you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required and sold separately.

Wire Code Chart:

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Black Chassis Ground
Orange Illumination
Orange/Black Not used (tape off)
White Left Front Speaker +
White/Black Left Front Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -
Green Left Rear Speaker +
Green/Black Left Rear Speaker -
Violet Right Rear Speaker +
Violet/Black Right Rear Speaker -

Subwoofer Amplifier Harness

Wire Color Function
Black/White Amplifier Ground
Blue/White Amplifier Turn-on
White RCA Subwoofer Input
(plugs into receiver's subwoofer preamp output)

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Need it [ Andrew  Apr 12, 2019 ]
A
i have the Ford premium sound system and wanted to take advantage of the built in amp and sub. might upgrade the speakers later. [ Robert  Mar 25, 2019 ]
A
Because I needed it, for ma expedition [ Trevor  Mar 21, 2019 ]
A
Previously purchased one from Crutchfield [ Eduardo  Feb 19, 2019 ]
A
This is the recommended one [ Kevin  Feb 10, 2019 ]
A
Recommend [ James Keith  Feb 01, 2019 ]
A
The harness is exactly what I need to hook up the radio with a minimal of issues. The connection to the truck and the radio I selected are exact. No cutting, splicing and screwing up the wires possible with this harness. You could go cheaper but $17 for the face plate and the wiring harness. It is a perfectly cheap quick install. Original price was $57. I have no complaints [ William  Nov 07, 2018 ]
A
ease of install [ SUE M  Oct 31, 2018 ]
A
yes [ Gene Leonard  Sep 12, 2018 ]
A
Came with install kit [ Jonathan  Aug 16, 2018 ]
A
Free [ Omar  Aug 13, 2018 ]
A
Clean install [ Raymond  Jun 21, 2018 ]
A
fitment [ James  Jun 13, 2018 ]
A
This aftermarket receiver,needs to hook-up to factory vehicle.This will be the connection needed. [ Michael Allan  May 29, 2018 ]
A
Need it for my vehicle [ Eduardo  May 23, 2018 ]
A
New stereo needs new harness. [ Rene  Apr 10, 2018 ]
A
Crutchfield does a good job of making sure to send you the right part, instead of chopping up the factory harness this allows you to have a custom pigtail harness to leave the factory harness unmolested. [ JEREMIAH  Mar 30, 2018 ]
A
I'm assuming after buying 3 different ones that supposedly fit my ford this one has to be the right one! [ Zach  Mar 23, 2018 ]
A
This is our 3rd stereo upgrade purchased from Crutchfield. I don't have to run around looking for the harness I need. They picked it out and included in the installation package. What more can you ask? [ Susan  Mar 16, 2018 ]
A
Made a smooth hook-up!! [ Sonny  Dec 27, 2017 ]
A
recommended by Crutchfield [ William  Nov 27, 2017 ]
A
Crutchfield recommendation [ Jordan  Oct 23, 2017 ]
A
It was required according to you vehicle type/chart. [ Michael  Oct 08, 2017 ]
A
To hook up my stereo [ RICHARD  Sep 30, 2017 ]
A
A wiring harness is a must have if one expects to properly hook up their new receiver. [ Paul  Sep 28, 2017 ]
A
For my stero [ Amber  Sep 27, 2017 ]
A
You say it fits and that I will need it according to your site [ BRIAN  Aug 27, 2017 ]
A
Plugs radio into factory ford plugs. [ michael  Aug 23, 2017 ]
A
Great price! [ Delfino  Aug 04, 2017 ]
A
makes connecting the radio easier. [ Peter  Jul 04, 2017 ]
A
Easiest way to connect to factory wiring harness [ CHRIS  Jun 30, 2017 ]
A
Discounted price [ GERARDO  Jun 11, 2017 ]
A
Snip snap done [ mitch  May 24, 2017 ]
A
ease of installation [ SHARON  Mar 17, 2017 ]
A
Perfect match for my truck [ Stephen  Mar 12, 2017 ]
A
Needed for car [ James  Mar 10, 2017 ]
A
Makes connecting the unit quick and easy. [ Jonathan  Mar 08, 2017 ]
A
Needed for installation [ William  Feb 08, 2017 ]
A
To connect the car stereo to the factory wiring harness. [ Steven  Feb 08, 2017 ]
A
Required for installation [ Scott  Dec 07, 2016 ]
A
Came with install kit [ Paul  Dec 03, 2016 ]
A
great service great prices [ Francisco  Nov 27, 2016 ]
A
Came with the offered kit. Can't find the sub adapter locally. [ Jacob  Nov 08, 2016 ]
A
Needed [ eric  Oct 30, 2016 ]
A
Recommended [ Mark A  Oct 24, 2016 ]
A
Recommendation from Larry on chat [ Hugh  Sep 28, 2016 ]
A
Idk. [ Dennis  Sep 13, 2016 ]
A
It was needed for after market install [ DIONTE  Sep 09, 2016 ]
A
Crutchfield recommended item and really made it easy to connect our aftermarket receiver to the stock wiring. : ) [ Carolyn  Sep 05, 2016 ]
A
recommended by crutchfield [ Edward  Aug 29, 2016 ]
A
Have had great experience with crutchfield [ Mario  Jul 26, 2016 ]
A
This connector is necessary to install the new radio. [ Ken  Jul 18, 2016 ]
A
i wanted it [ Tena  Jul 03, 2016 ]
A
Car kit [ ALAN  Jun 01, 2016 ]
A
Supposed to custom fit factory connectors. [ Thomas  Apr 18, 2016 ]
A
Easy website navigation and comprehensive explanation of product. [ Jude  Apr 16, 2016 ]
A
Why play with the wiring and take a chance at damaging something? I use the harness to make installation easier. [ Raymond  Apr 09, 2016 ]
A
Needed for install [ Don  Apr 01, 2016 ]
A
Clean install [ Paul  Mar 21, 2016 ]
A
required for ease of operation [ M  Mar 04, 2016 ]
A
Cost and fit [ carl  Feb 26, 2016 ]
A
I bought a radio from you several years ago, but I didn't know then my car had a subwoofer. I had to get some touch-up paint and while I was researching that, I found I had installed the wrong wiring harness. I am hoping to improve the bass now. [ Allen  Feb 19, 2016 ]
SHOW MORESHOW LESS

1 question already asked

Q
Would I need this kit for a 2002 Sport trac? To my knowledge, there is no subwoofer. Wouldn't the 70-1771 kit from Metra work instead?
[ mike  Dec 31, 2016 ]
1 answer
A
For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Kenny  Dec 31, 2016 ]  Staff
