About the Axxess ASWC-1 Steering Wheel Control Adapter
Keep your steering wheel audio controls
Keep your steering wheel audio controls
The ASWC-1 adapter from Axxess allows you to connect your vehicle's steering wheel controls to almost any brand of aftermarket stereo, including Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, and more. (Note: your new stereo must have a 3.5mm steering wheel control or wired remote control input.)
Installation is a straightforward process. You usually have to connect a few wires to your factory wiring. In most cases, the adapter automatically recognizes the vehicle it's been connected to. If not, you can manually program the adapter for your vehicle by following a step-by-step process with LED confirmation. Once connected, the adapter's memory retains its programming even if battery power is interrupted. A USB slot allows you keep the ASWC-1 current when updates become available. Warranty: 1 year.
Installation Note: This adapter will not retain your vehicle's factory Bluetooth functionality. Please identify your vehicle or call an Advisor at 1-888-955-6000 to see if the ASWC-1 adapter is compatible with your vehicle.
Wiring Advisory: You'll usually have to tap or splice into one to three wires in your vehicle at the radio location to connect this interface. If you're using a Metra Axxess OEM integration adapter to connect your new car stereo to your vehicle, then it most likely will have a prewired connector for this Axxess ASWC-1 adapter. In these cases, no additional wiring in required. Axxess does provide custom wiring instructions for all confirmed compatible vehicles on their website.
What's in the box:
- Steering wheel control interface module
- 11" Twelve-pin harness (with male 3.5mm connector)
- Female 3.5mm connector (with attached 9" brown and brown/white wires)

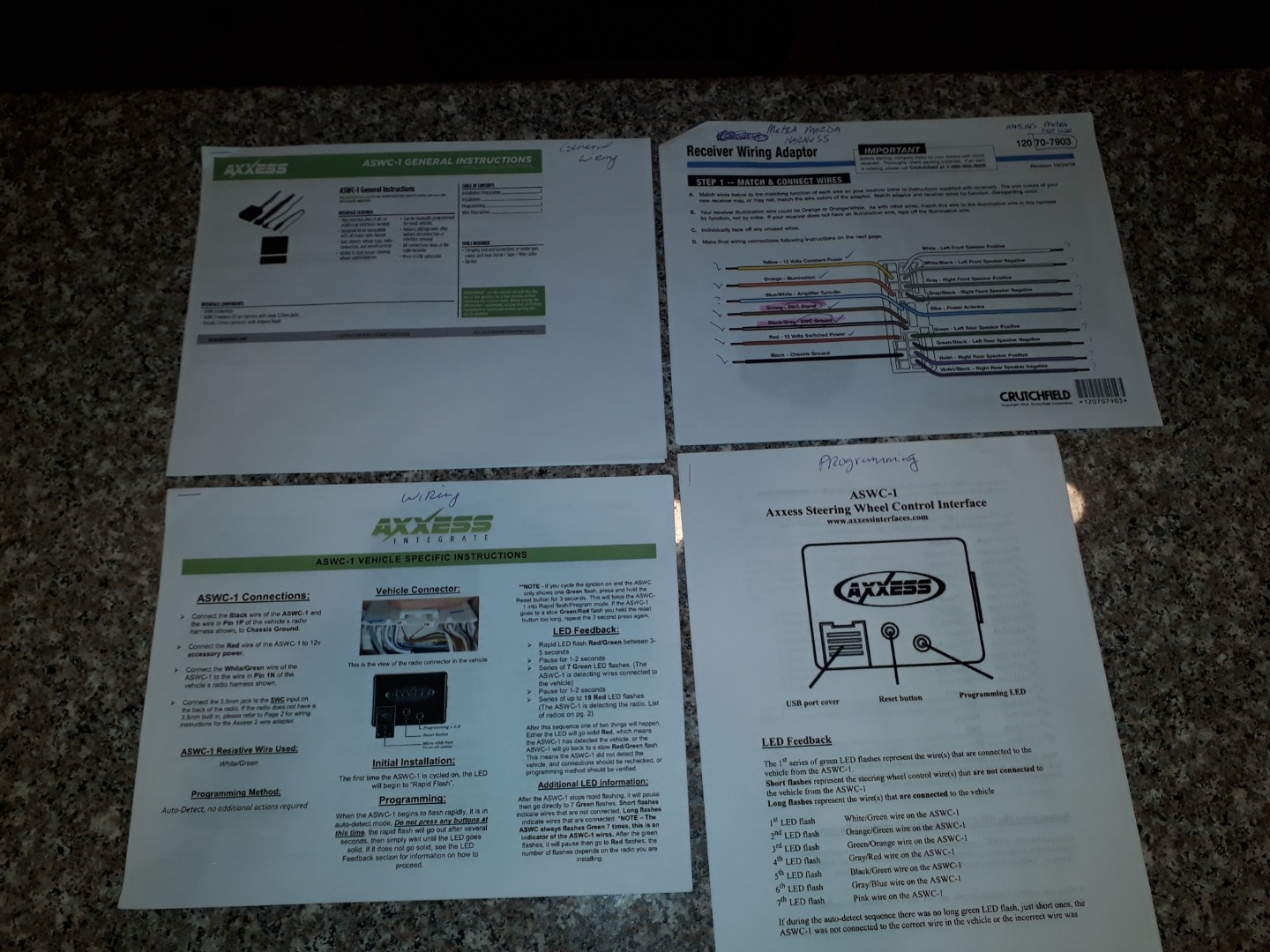

- Installation Manual
- Application Chart
More details on the Axxess ASWC-1 Steering Wheel Control Adapter
Overview: The Axxess Steering Wheel Control Interface (ASWC-1) lets you retain your vehicle's OEM steering wheel controls when replacing the factory radio with an SWC-compatible aftermarket radio.
Wiring Advisory: You'll usually have to hardwire this adapter into your vehicle's wiring. In most vehicles, the factory radio plug does not have a wire dedicated to the steering wheel audio controls, so splicing & soldering is often required. Metra does provide custom wiring instructions for all confirmed compatible vehicles on their website.
Compatibility: The Axxess Steering Wheel Control Interface is universal and can be used in most vehicles with factory steering wheel controls. The Axxess ASWC-1 supports the following aftermarket head unit manufacturers - Pioneer, Sony, Alpine, Kenwood, Eclipse, Jensen, JVC, Clarion, Dual (Axxera), *Parrot, Visteon, and Valor. The aftermarket head unit must have a SWC (Steering Wheel Control) 3.5mm input or steering wheel remote control input wire (blue/yellow).
Note: *Parrot head units require the Axxess AX-SWC-PARROT steering wheel control harness (120AXSCPRT, sold separately). The ASWC-1 is not compatible with Rosen or CarShow receivers. Please enter your vehicle information to confirm compatibility.
Programming: The ASWC-1 can be programmed in one of three ways:
- Flashing the Module: The interface can be "flashed" using a Windows computer and a USB cable (not included) to update the firmware and program the steering wheel buttons.
- Auto Detection: The Axxess Steering Wheel Control Interface has the ability to auto-detect certain vehicles and aftermarket radios. It will preset the steering wheel controls to the aftermarket radio automatically, so no programming is required.
- Manual Programming: If your vehicle is not auto-detection compatible, you can still manually program the ASWC-1 to your vehicle's factory steering wheel controls and aftermarket head unit.
Reconfiguring Controls: If desired, the ASWC-1 can be manually programmed so you can make your vehicle's steering wheel controls function the way you want them to. You can also assign a secondary press & hold feature to the buttons. Limited only by the functions of the aftermarket radio.
LED Feedback: The steering wheel control interface features an integrated LED to indicate programming status.
Non-Volatile Memory: The Axxess ASWC-1 has a non-volatile memory, which means the steering wheel control interface will remember the programming even if the device is disconnected from your vehicle.
