Pioneer AVH-2440NEX DVD receiver

Item # 1302440NEX

I expect a lot from my smartphone, and I don't want to expect any less when I'm in the car.

Find what Fits your vehicle

Remove

Checking fit...

I expect a lot from my smartphone, and I don't want to expect any less when I'm in the car.

Item # 1302440NEX

About the Pioneer AVH-2440NEX

Ken Nail

Smartphone compatibility that rules

I expect a lot from my smartphone, and I don't want to expect any less when I'm in the car. Pioneer's AVH-2440NEX DVD receiver offers what I want — nearly seamless integration with my phone, with easy access to navigation, music, podcasts, contacts and more. And you don't have to be an iPhone® user like me — your Android™ will feel right at home too. Check out these options:

Smartphone compatibility that rules

I expect a lot from my smartphone, and I don't want to expect any less when I'm in the car. Pioneer's AVH-2440NEX DVD receiver offers what I want — nearly seamless integration with my phone, with easy access to navigation, music, podcasts, contacts and more. And you don't have to be an iPhone® user like me — your Android™ will feel right at home too. Check out these options:

  • Apple CarPlay — CarPlay is an iOS user's dream. Plug in your iPhone and you'll access a super user-friendly iOS styled interface with voice control that lets you quickly jump into your music, podcasts, messages, streaming music and more. CarPlay's a no-brainer for me — it's the safest and easiest way to use your iPhone in the car, hands down.

  • Android Auto™ — Your media, nav, phone, apps, and more are organized in a simple, clean interface with voice control that gives Android users an easy way to hit the road.

  • AppRadio Mode+ — Pioneer's AppRadio Mode+ provides additional flexibility when your iPhone is attached, letting you tap into apps like Waze for navigation, and providing easy access to some video content through AppRadioLIVE.

"Pioneer gets high marks from me for ease of use, and this model keeps that tradition going."

Intuitive, customizable interface

The AVH-24400NEX boasts a bright and crystal-clear VGA display with plenty of customization options. You can set your home screen to display your favourite sources, and then switch between them with just a single touch, letting you pay more attention to the road, and less to operating your stereo. Pioneer gets high marks from me for ease of use, and this model keeps that tradition going.

Spotify and Pandora® control

If you're like me and use streaming services a lot, you'll appreciate how you can control your Pandora and Spotify accounts from the receiver. Just connect your iPhone via USB or Bluetooth®, or pair up your Android with Bluetooth and you're all set. You can even create new Pandora stations on the fly just by pressing a button.

Bluetooth wireless command

The AVH-2440NEX is ready to roll with hands-free calling with your compatible phone, plus the ability to wirelessly stream and control music. Plus, with your compatible iPhone, you can take advantage of Siri Eyes Free functionality, using your voice to place calls, select music, hear notifications, add reminders — even compose and listen to text messages.

Awesome A/V

The receiver's LCD screen plays DVDs and other video content in bright, clear detail when you're parked. You can keep your passengers entertained by sending video from the receiver to a rear-seat screen — that sure helps to minimize wars in the back seat. And you can play it safe when you throw it into reverse by plugging in a rear-view camera.

iDatalink Maestro lets you keep your factory extras

The AVH-2440NEX offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle info on the Pioneer's screen. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to the Shopping Cart if it's compatible.

Want to keep your car's steering wheel audio controls?

In most cars, you'll need an adapter to retain those controls with this car stereo. Connect a few wires, then program the adapter for your particular car and radio, and you'll retain the convenience of your steering wheel controls. You'll see the adapters that work with your vehicle when you add this receiver to your cart.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

Smartphone note: If you're going to use your smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

    General Features:
    • DVD/CD receiver
    • 7" motorized VGA touchscreen
    • Bluetooth hands-free calling and audio streaming
    • HD Radio tuner
    • customizable touchscreen interface
    • multi-color illumination
    Smartphone Features:
    • Apple CarPlay compatible
    • Android Auto compatible
    • AppRadio Mode+ for smartphone integration with Pioneer app
    • built-in iPod, iPhone, and iPad control
    • playback and control of music files on compatible Android devices
    • Siri Hands Free compatible with compatible iPhones
    • Pandora and Spotify control with iPhone and Android
    Audio/video Features:
    • plays audio/video content from CDs, DVDs, and USB memory devices
    • plays lossless FLAC audio files (up to 192kHz/24-bit) from flash media
    • 13-band graphic equalizer with 7 preset EQ curves
    • high- and low-pass filters
    • Advanced Sound Retriever
    • Auto-EQ equalizes for your car interior automatically (optional mic required)
    Expandability:
    • works with SiriusXM tuner
    • works with AVIC-U280 navigation module
    • inputs: rear USB port, dual rear audio/video inputs (minijack, RCA), rear-view camera input
    • outputs: video output, 6-channel preamp outputs (4-volt front, rear, subwoofer)
    Other Information:
    • built-in amp (14 watts RMS CTA-2006/50 peak x 4 channels)
    • CTA-2006 compliant
    • compatible with most factory steering wheel audio controls (adapter required)
    • MIXTRAX for a DJ-inspired audio/visual experience
    • fits double-DIN dash openings
    • remote control
    • compatible with iDatalink Maestro module
      • retains factory features for a variety of vehicles
      • displays engine performance data and other info on touchscreen
    • warranty: 1 year
    • MFR # AVH-2440NEX

    What's in the box:

    • DVD receiver w/ motorized 6.94" touchscreen monitor (10A fuse inserted in chassis)
    • Wiring harness
    • Remote control (CXE5116)
    • CR2025 3V lithium battery (installed in remote)
    • 58" USB extension cable
    • Microphone w/ visor-bracket (attached 13' cable terminated by a right-angled 2.5mm connector)
    • Two-sided tape
    • 6 Pan-head ISO screws (M5 x 6mm)
    • 6 Flat-head ISO screws (M5 x 6mm)
    • Installation Manual
    • Quick Start Guide
    • Warranty Sheet

    Featured video:

    Customer reviews for Pioneer AVH-2440NEX

    Loading reviews...

    Average review:

    4.5 out of 5 stars
    237 reviews

    Filter by rating

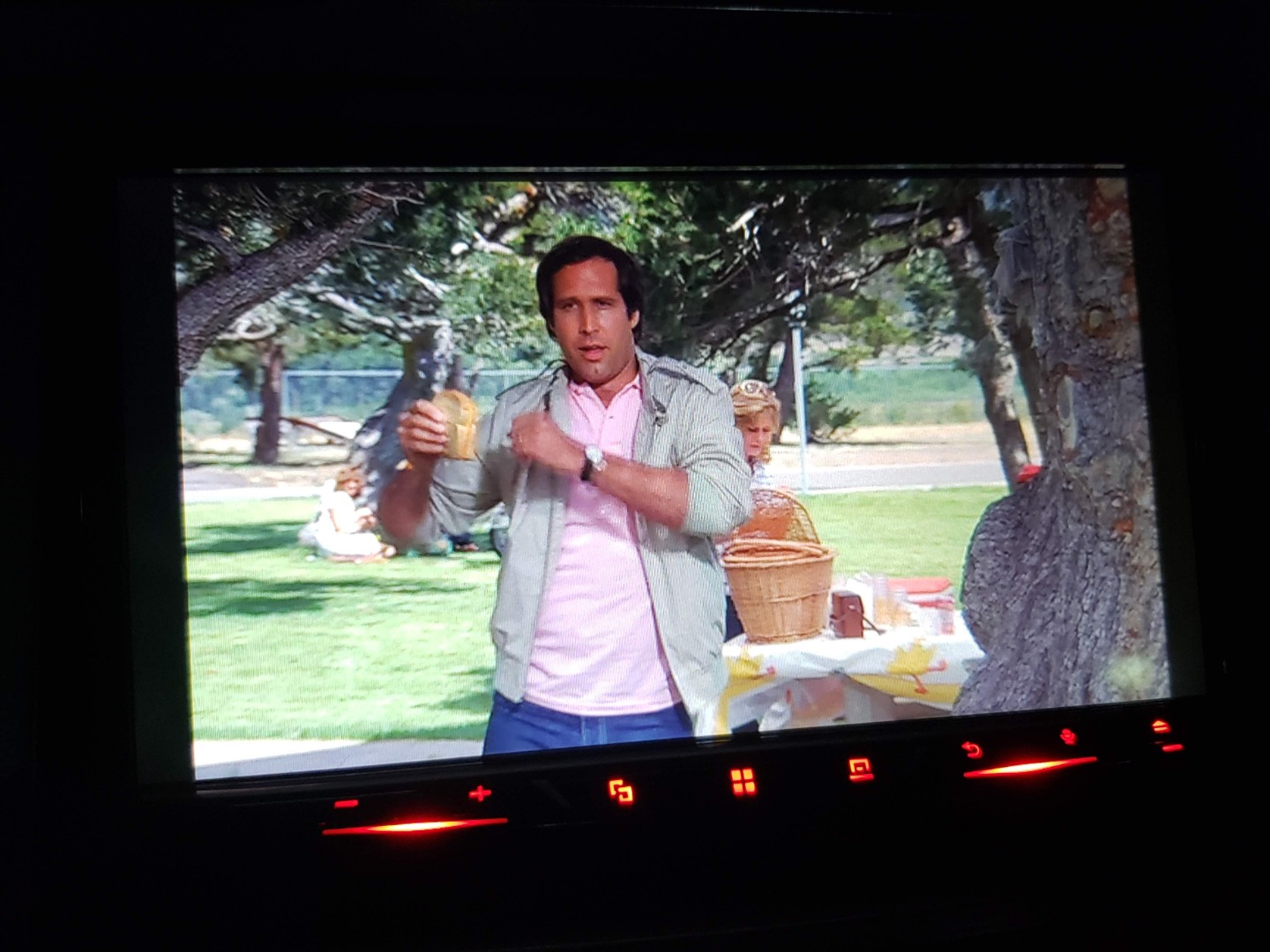

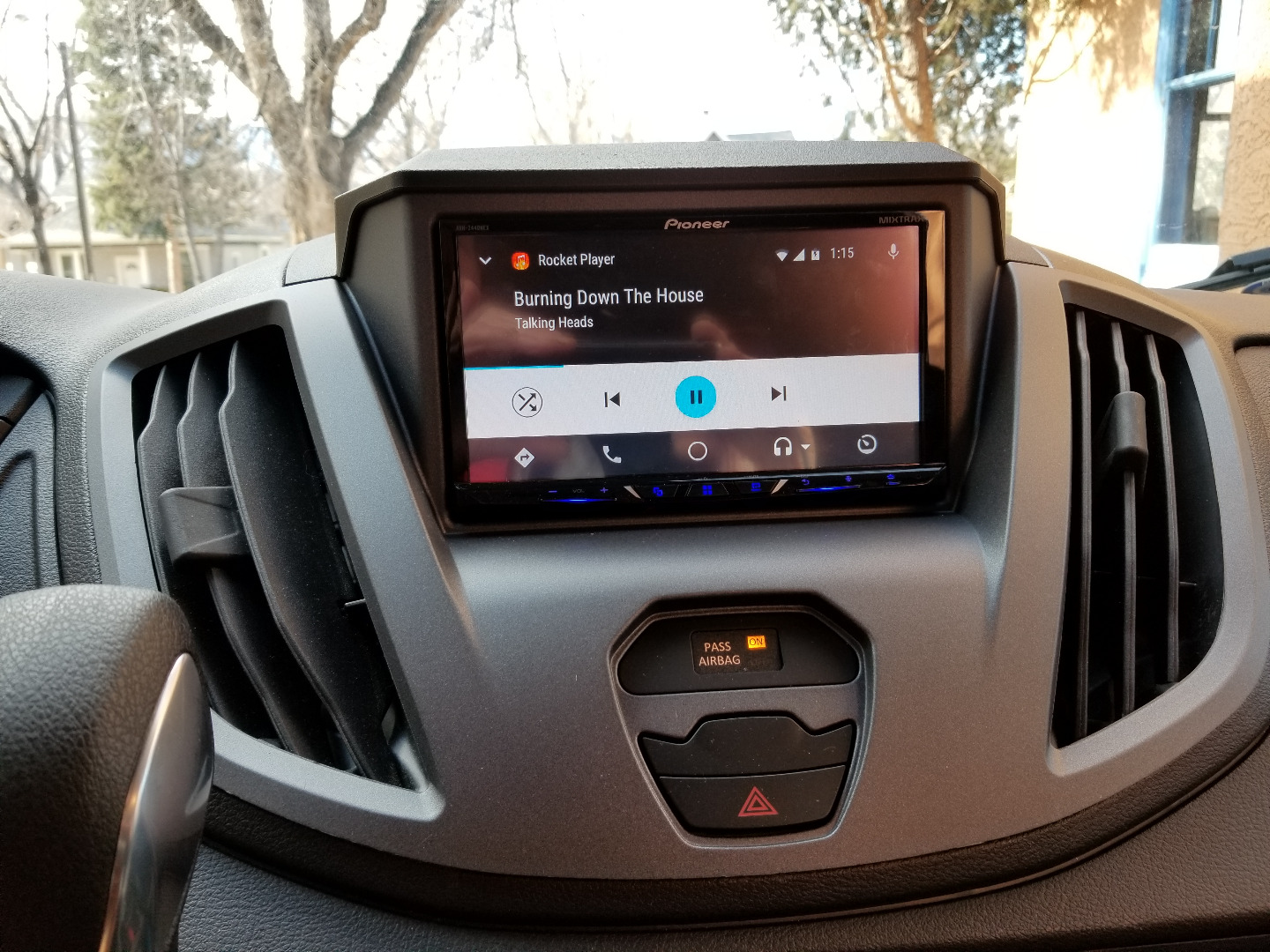

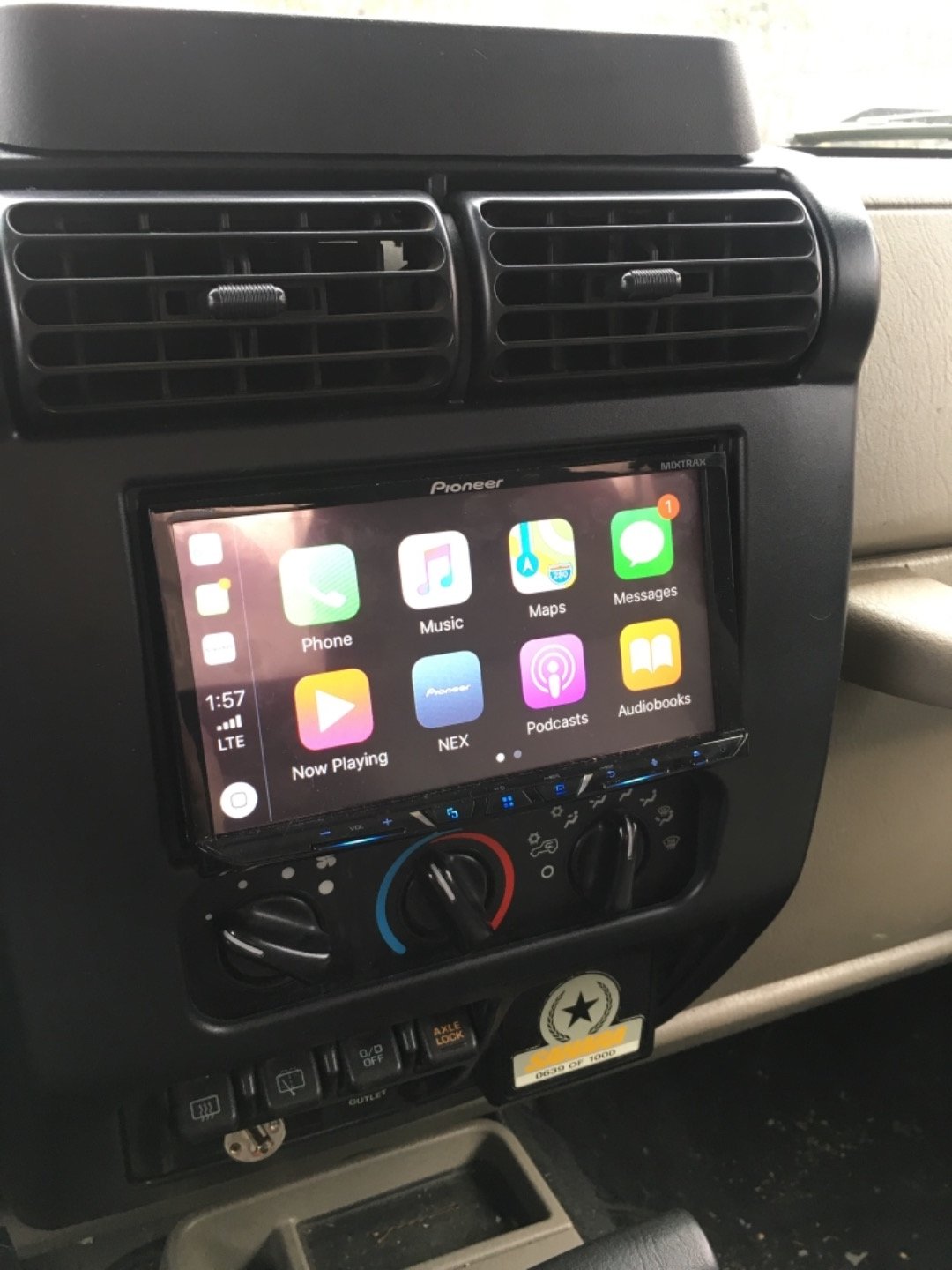

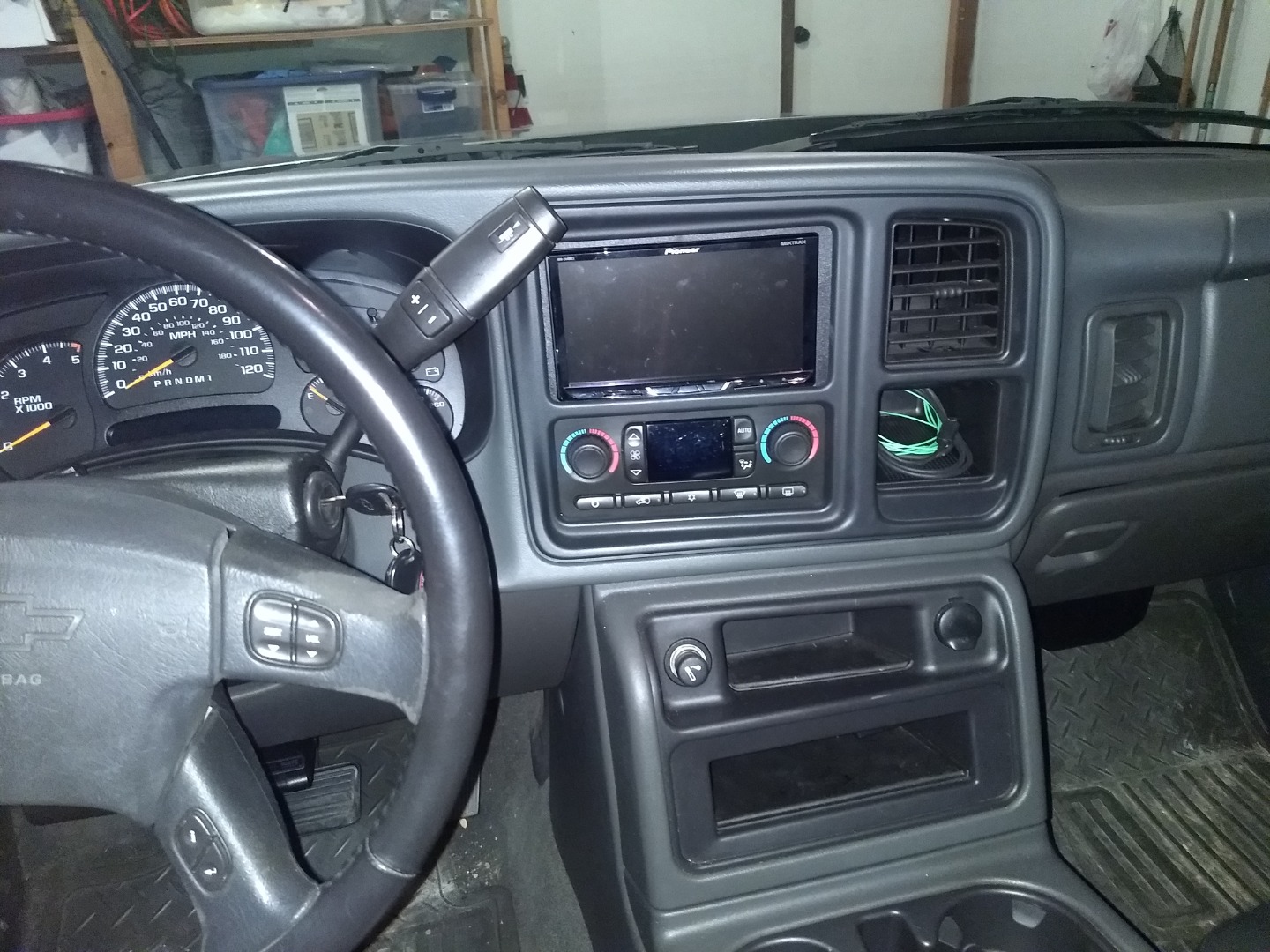

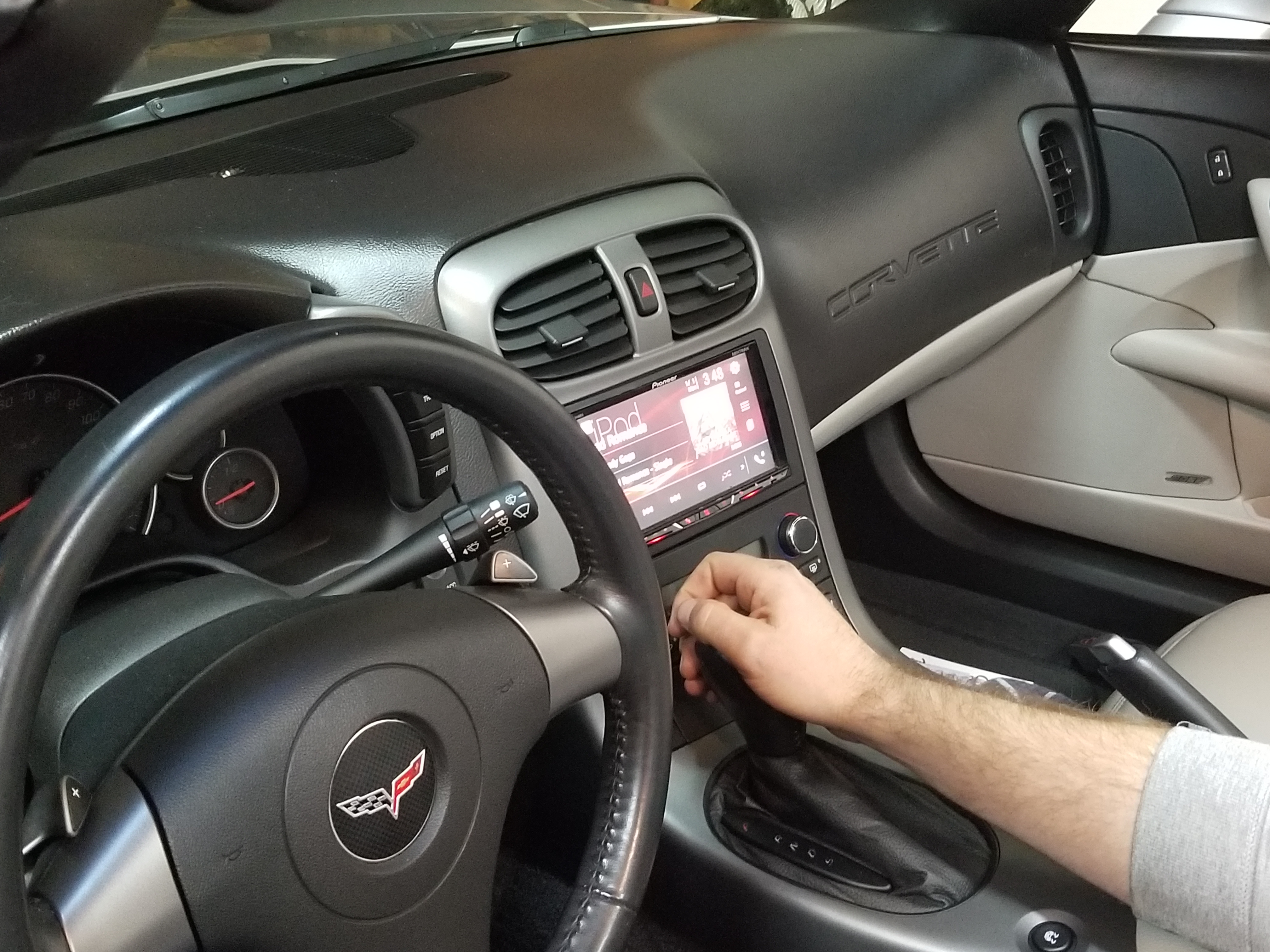

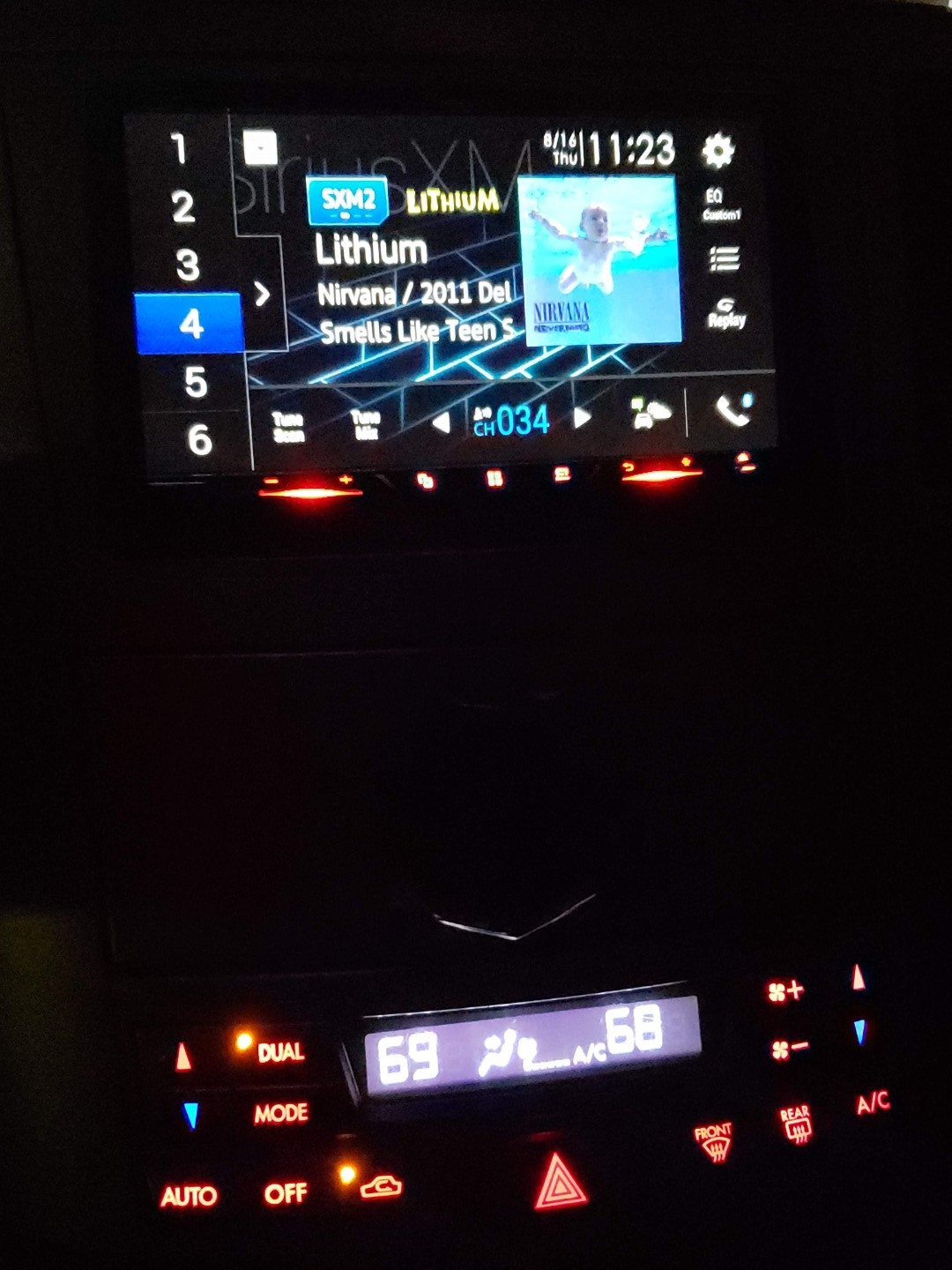

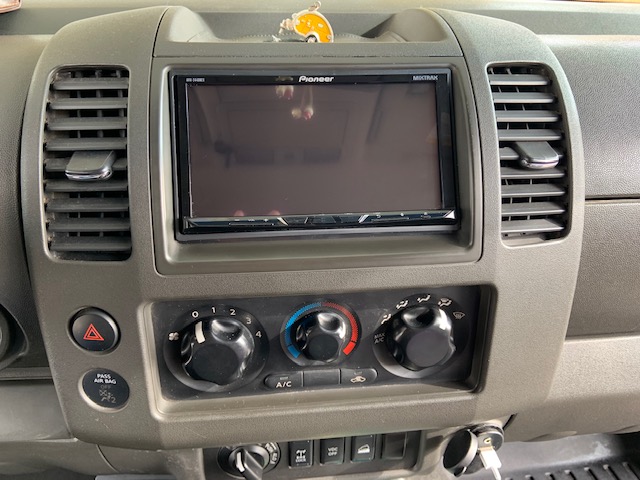

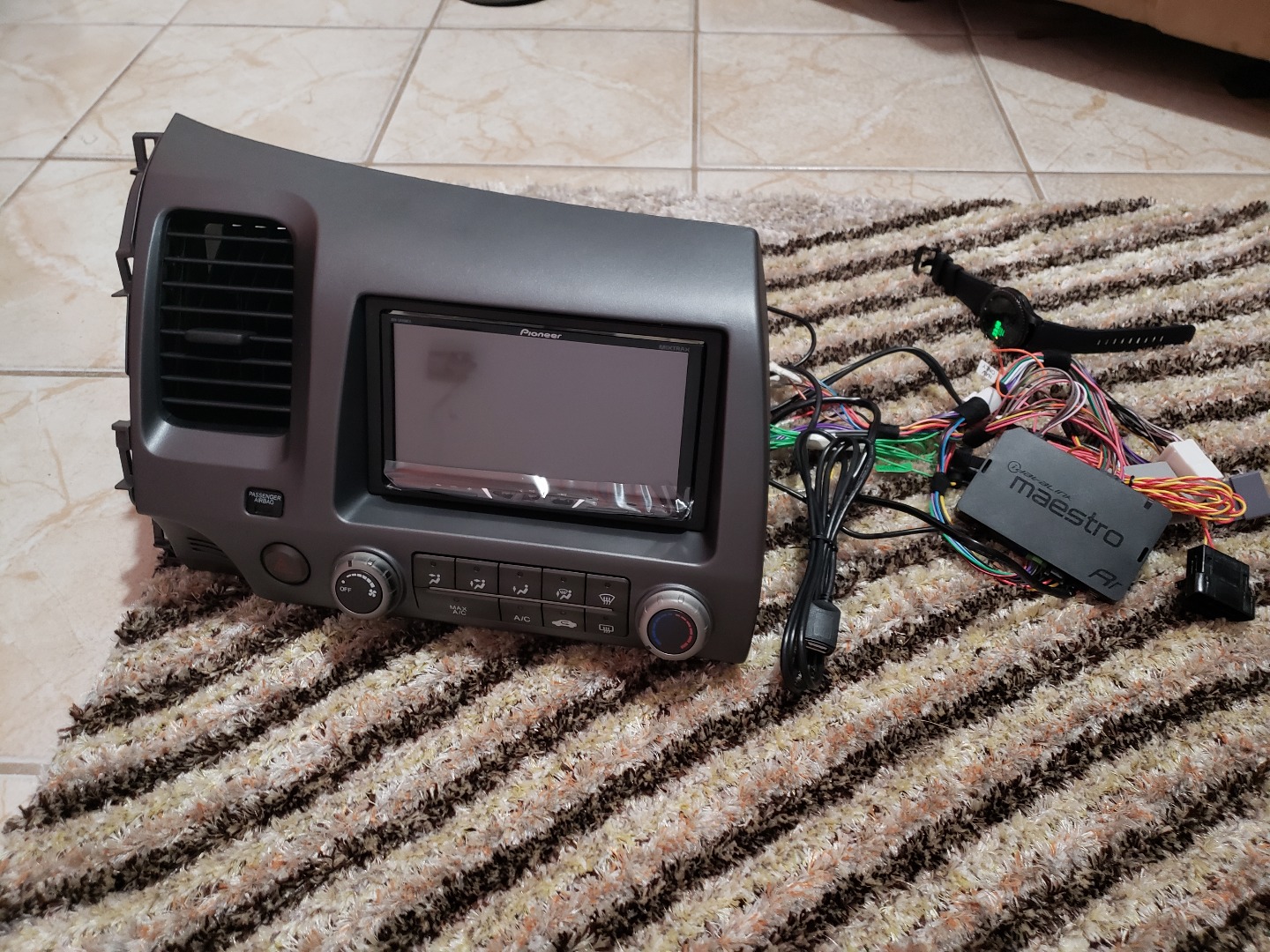

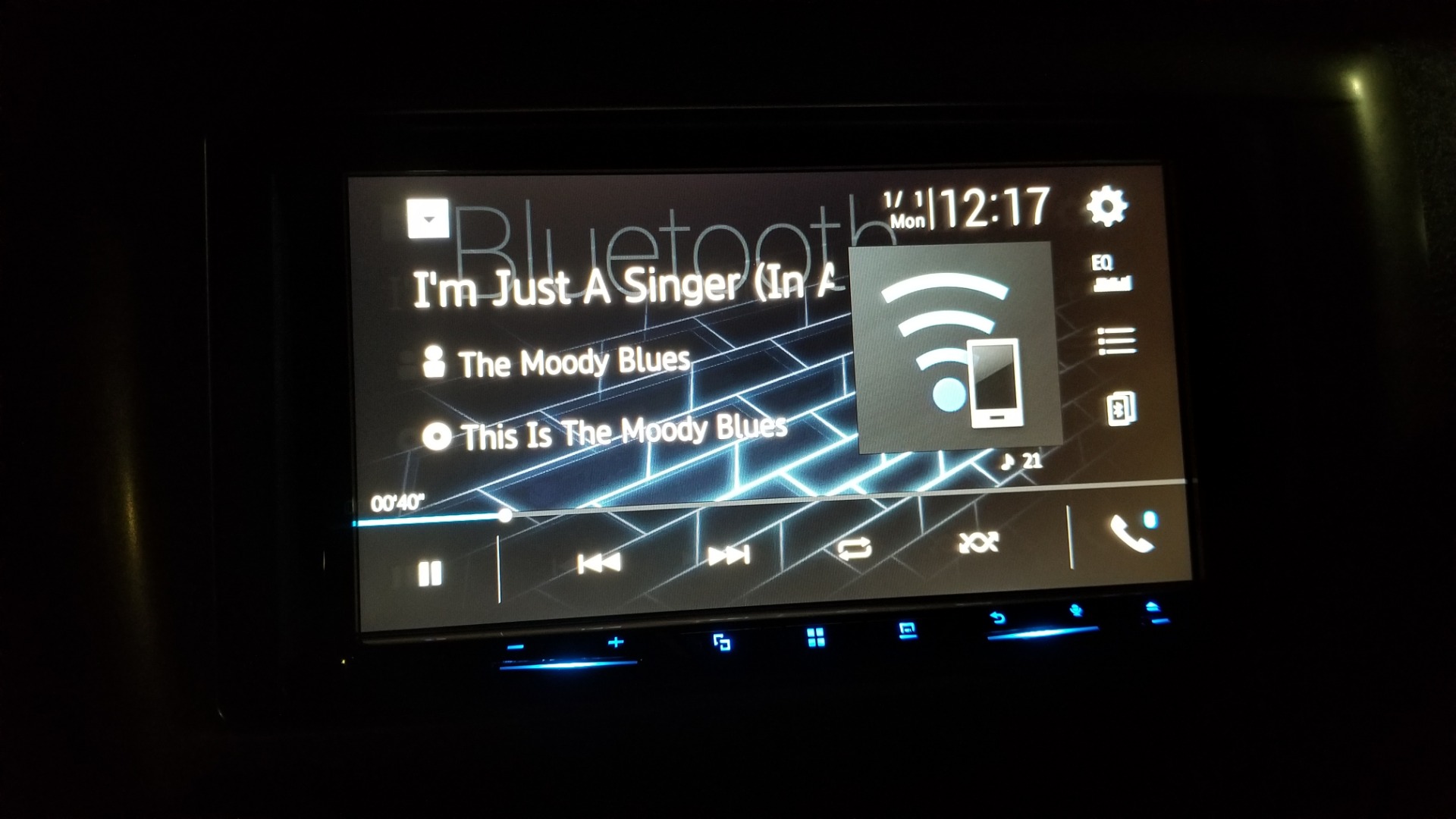

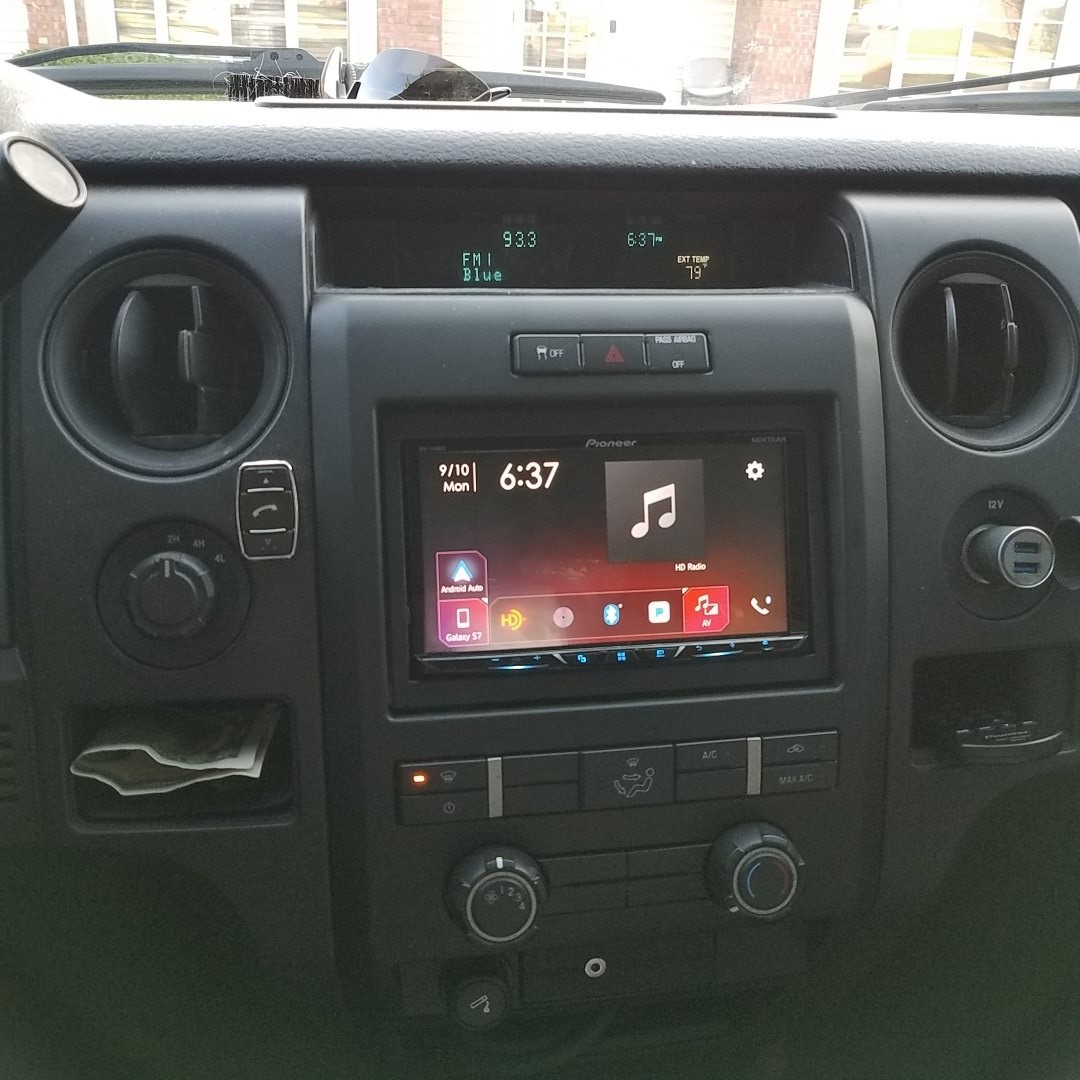

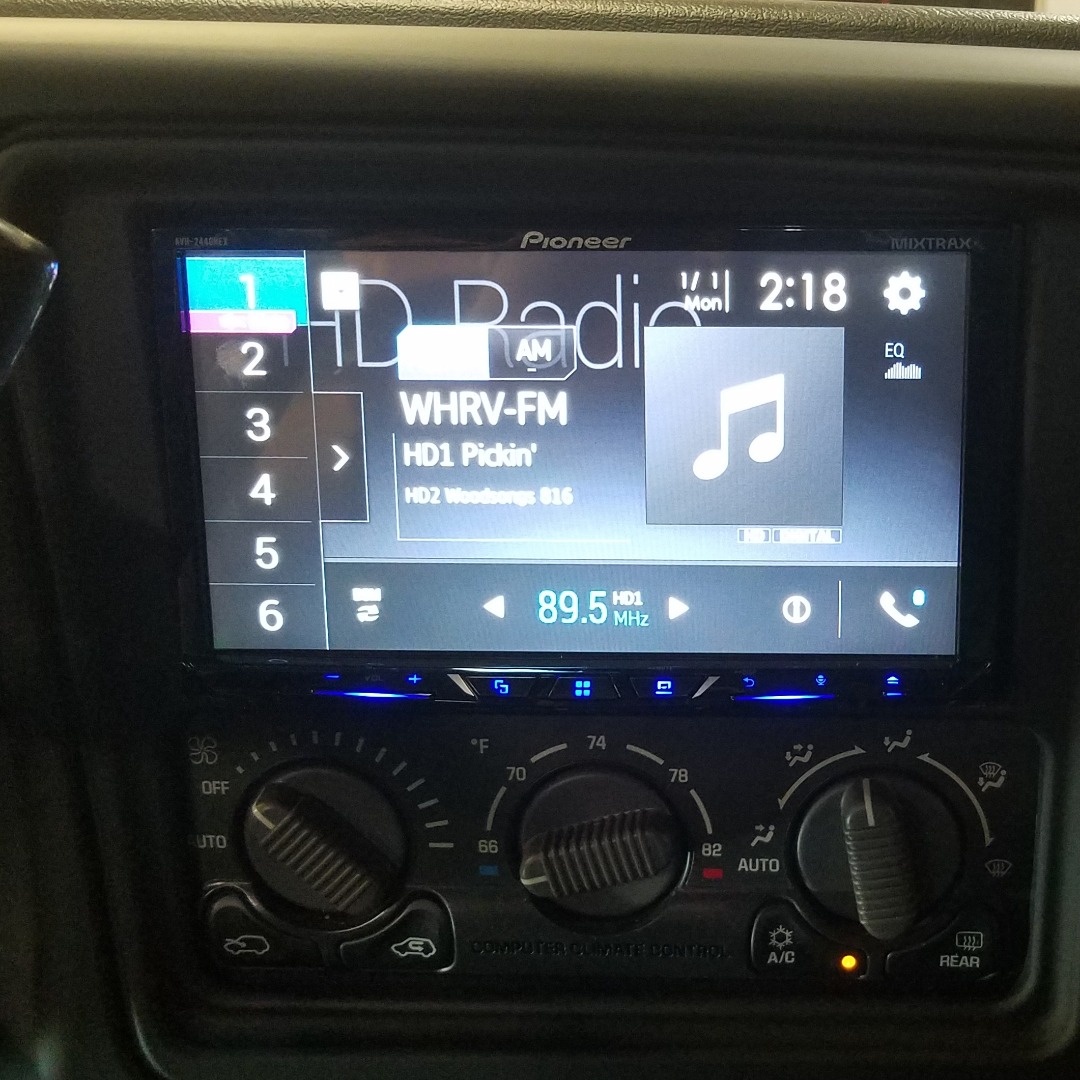

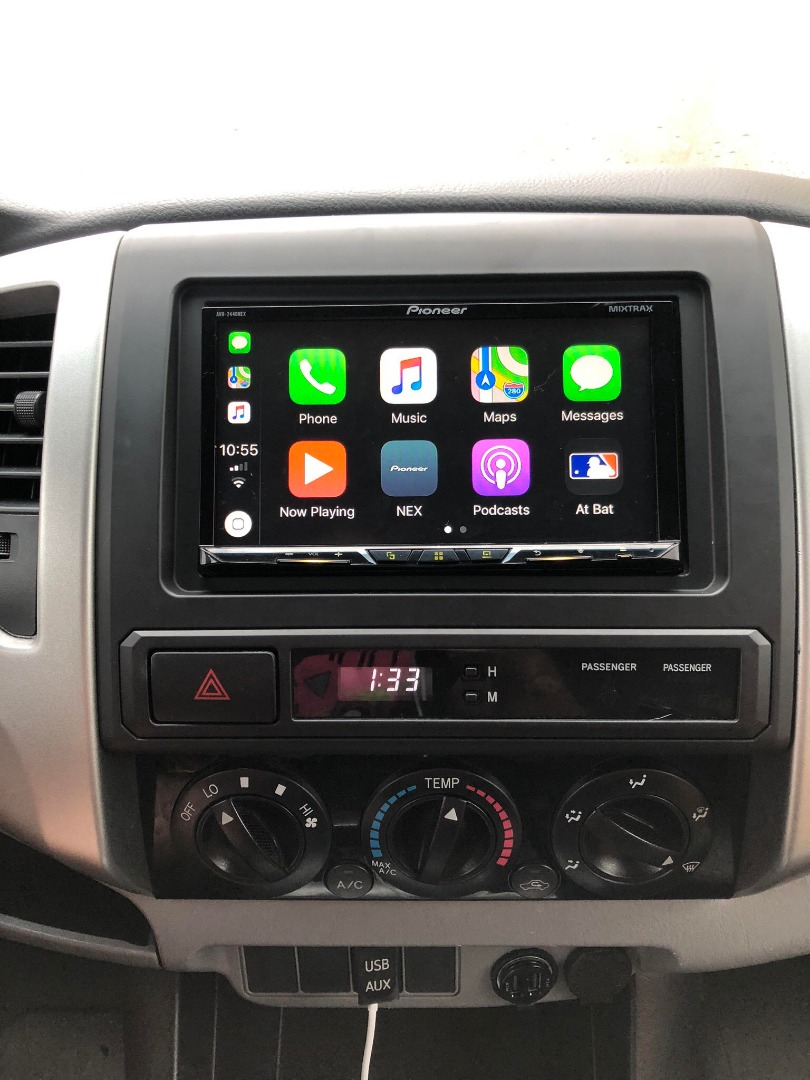

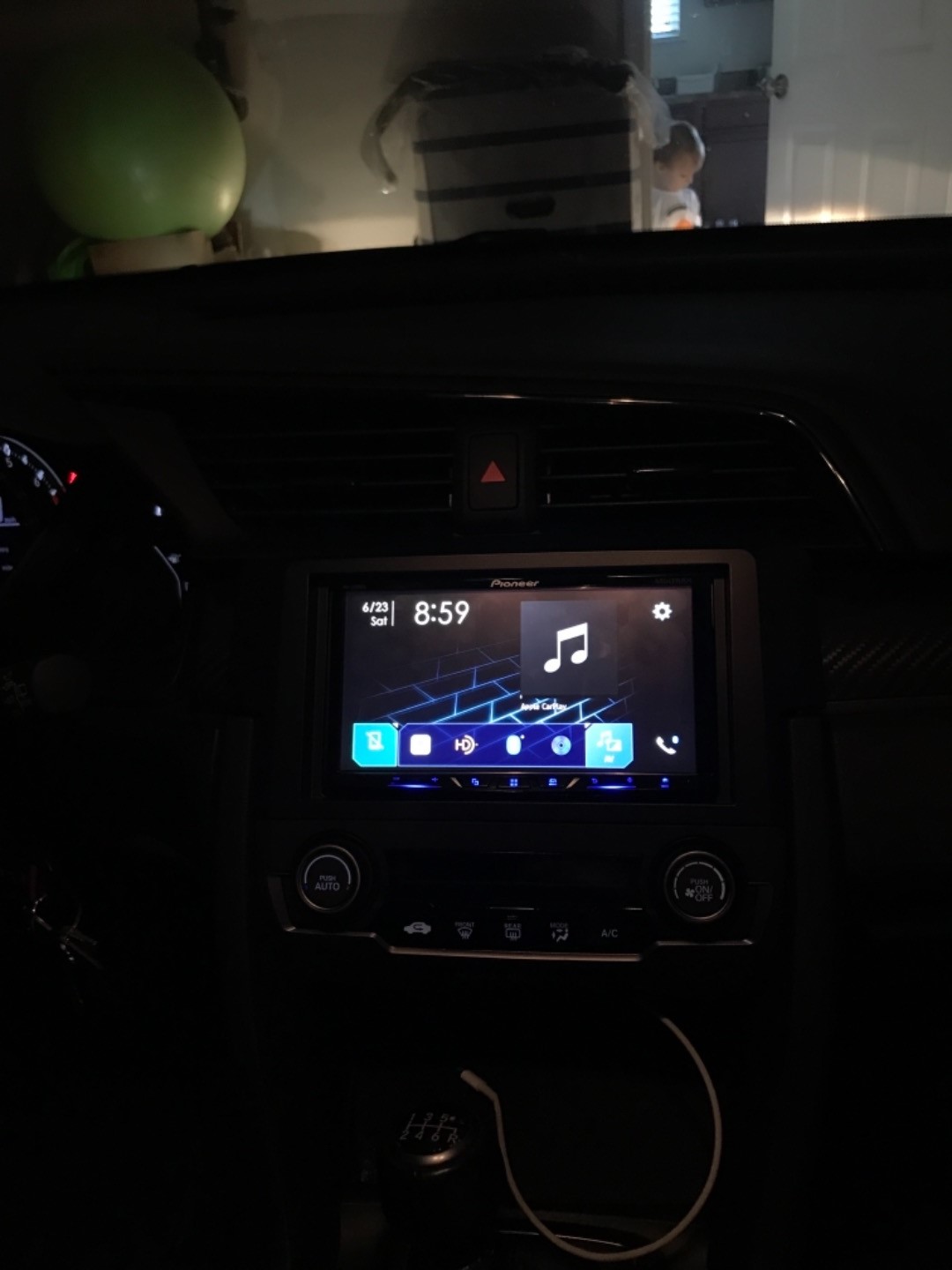

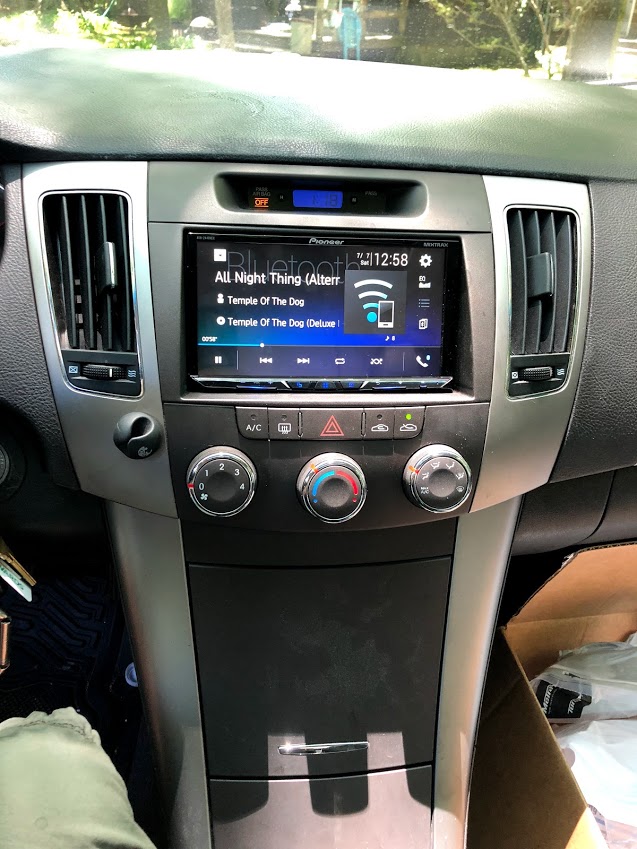

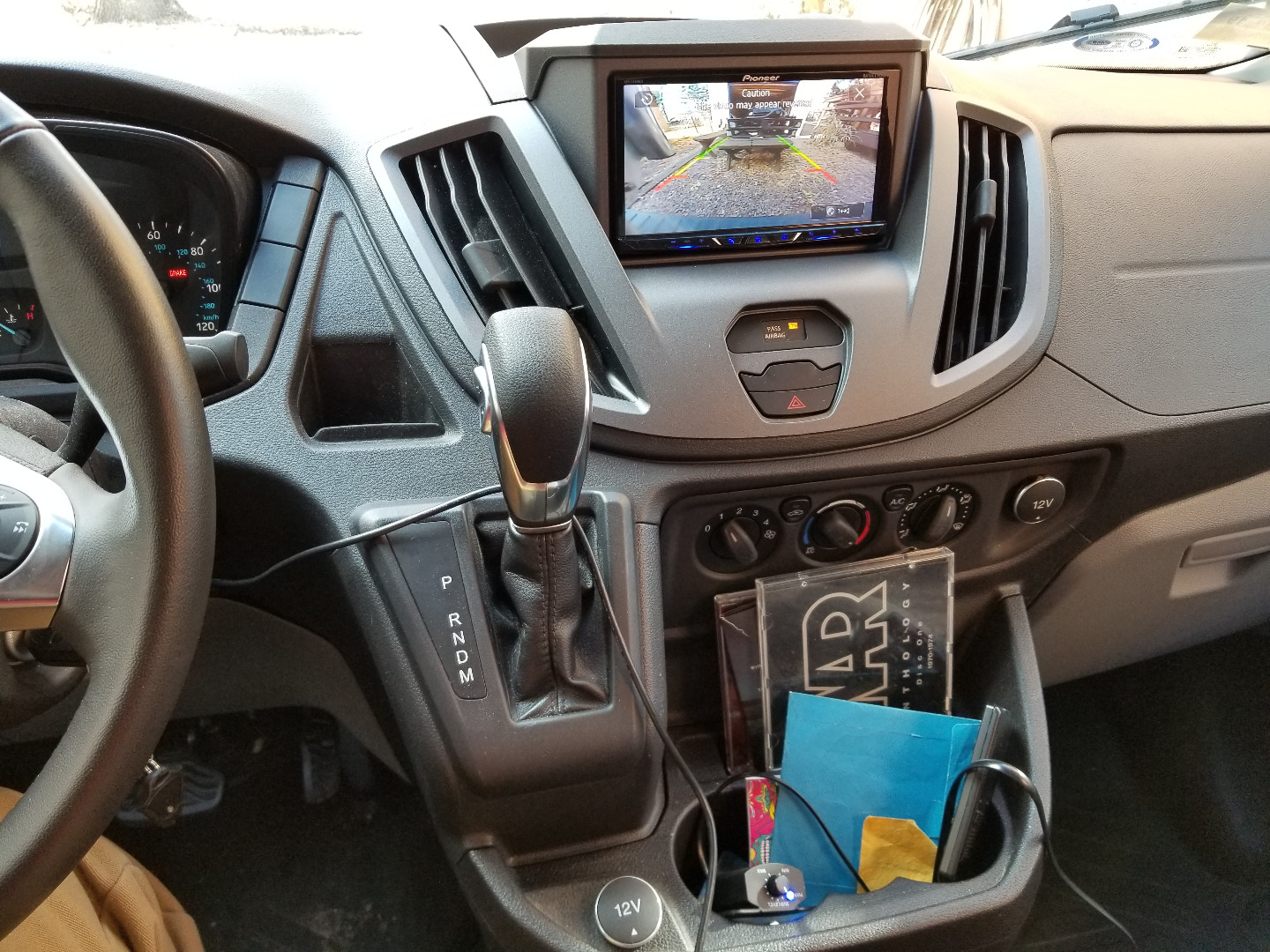

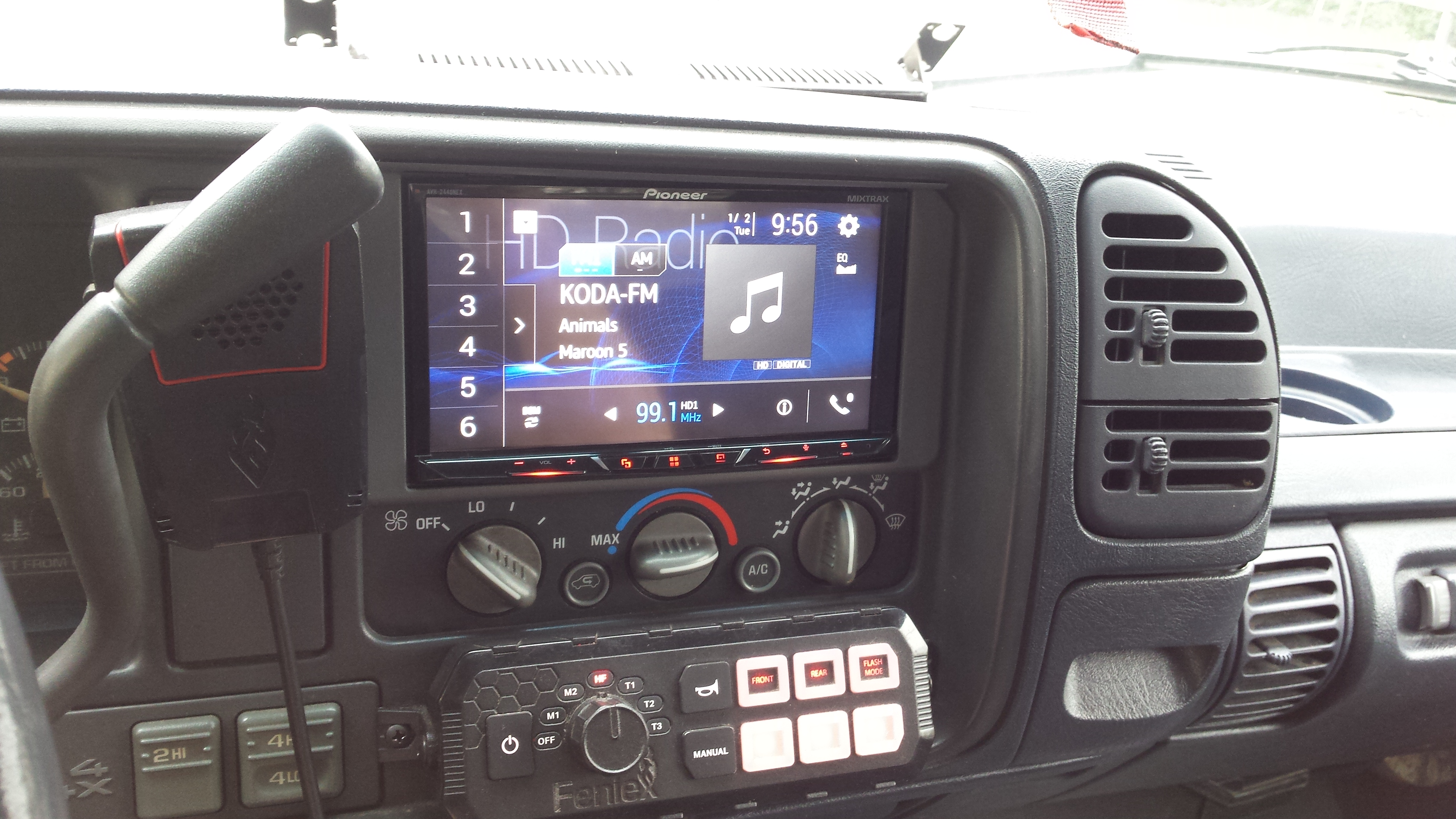

    Customer photos

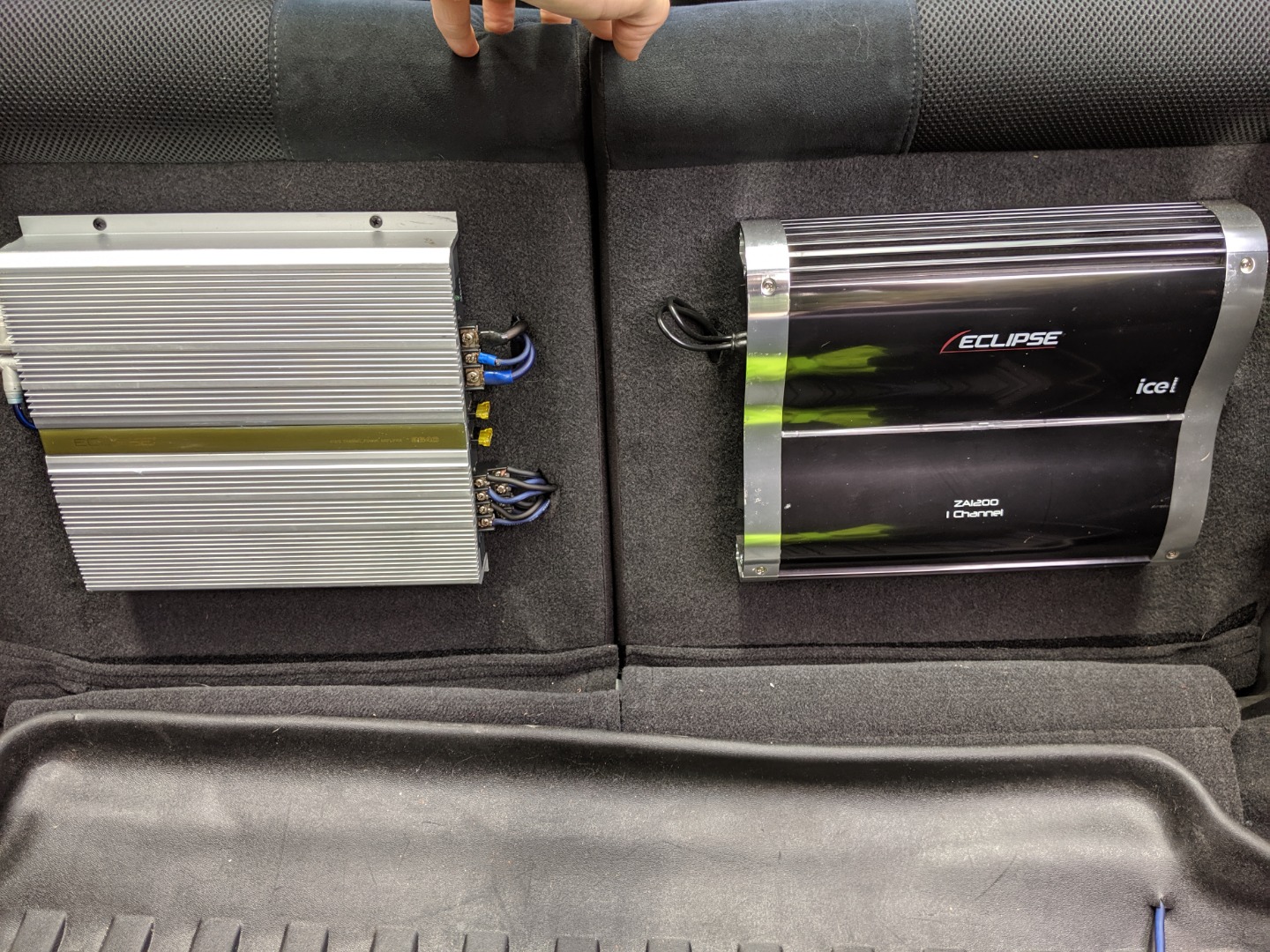

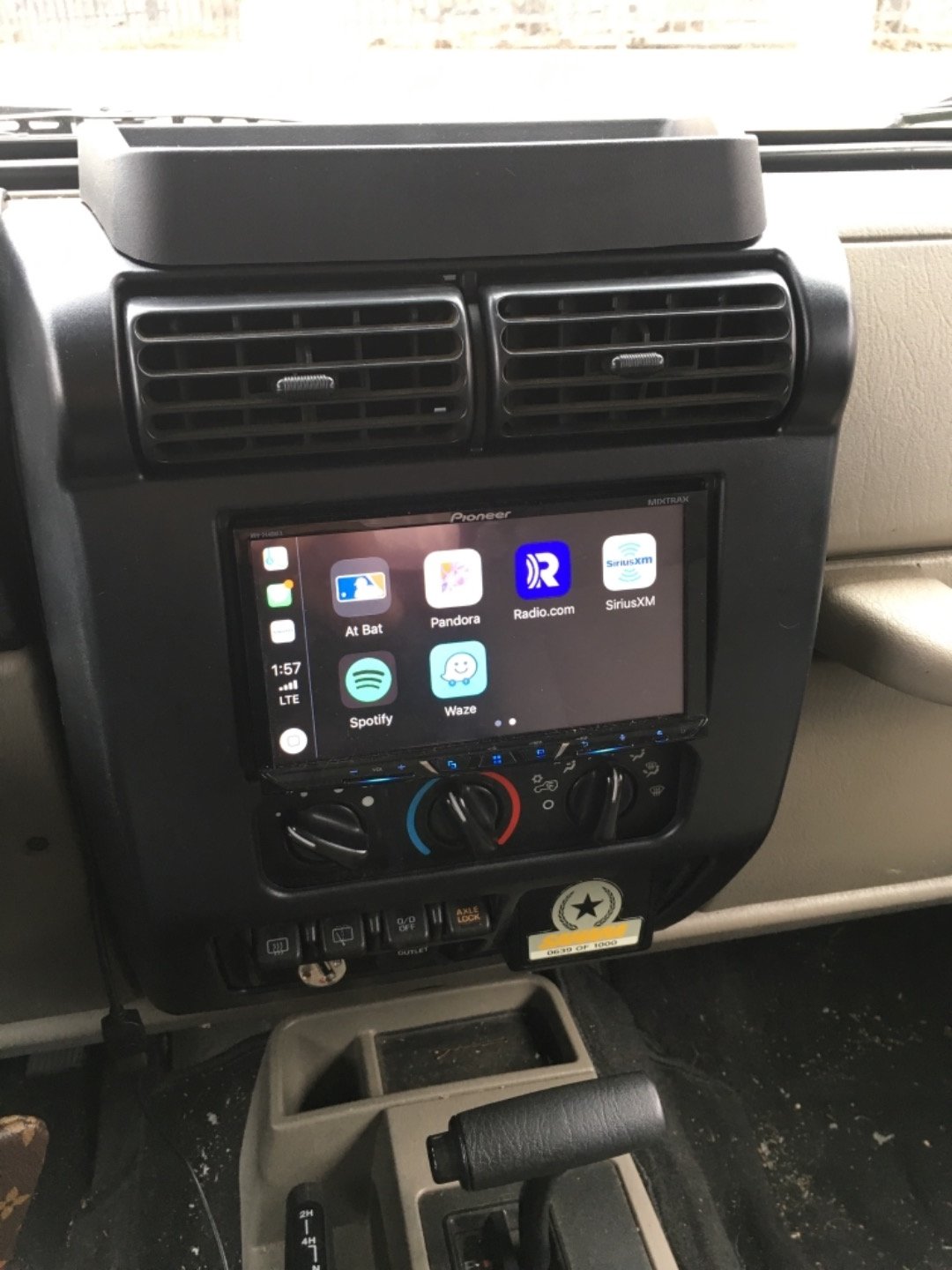

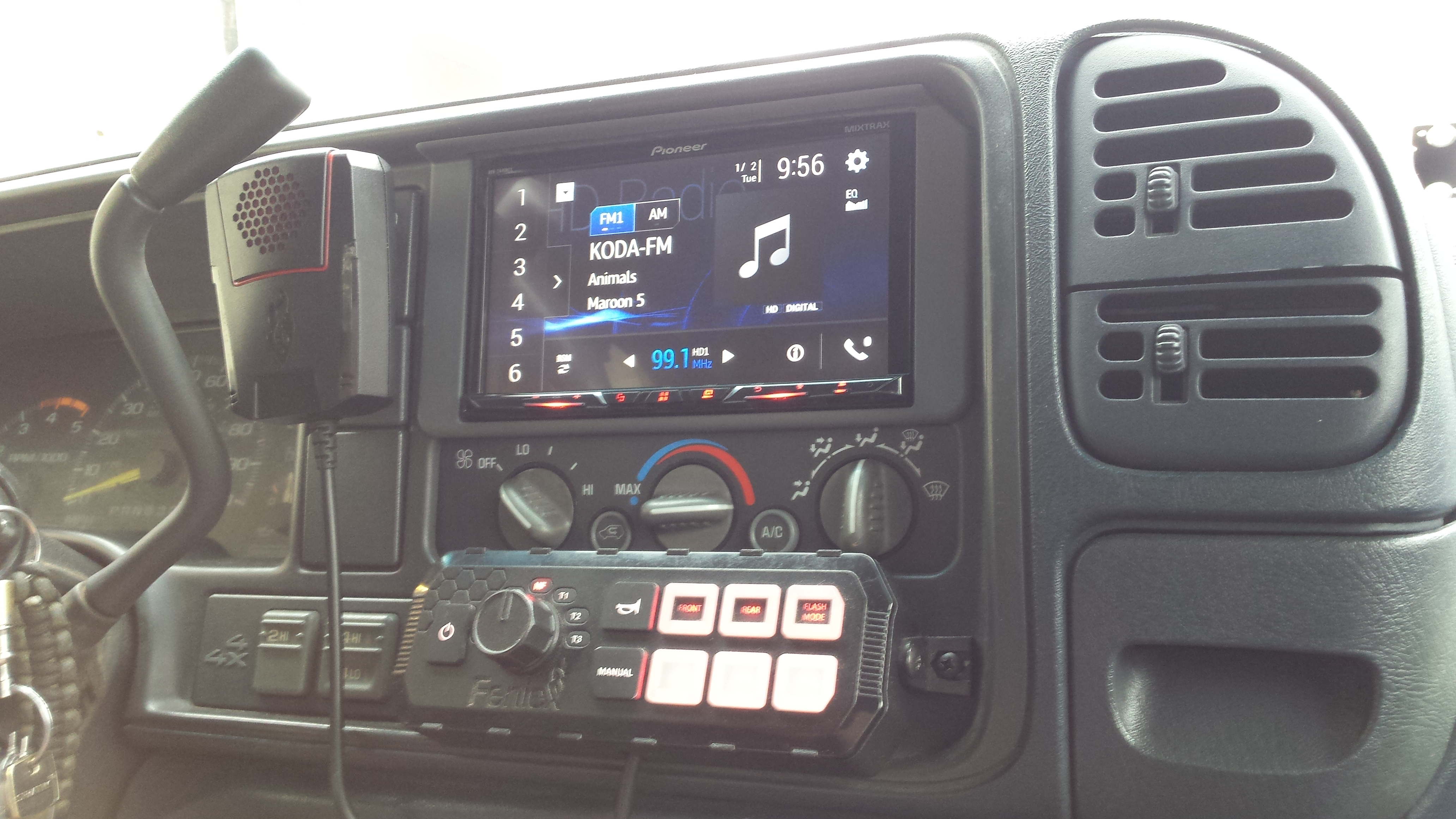

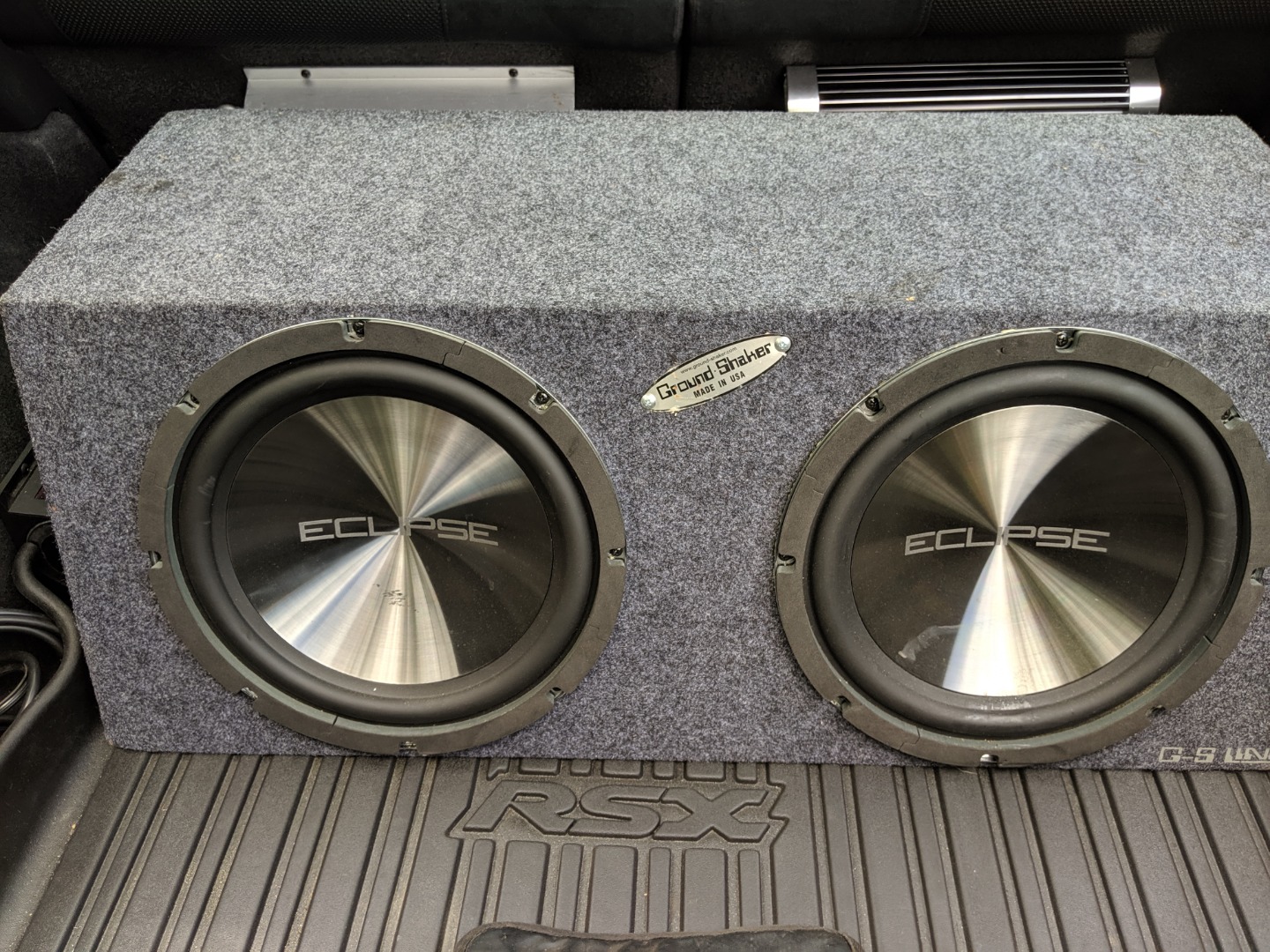

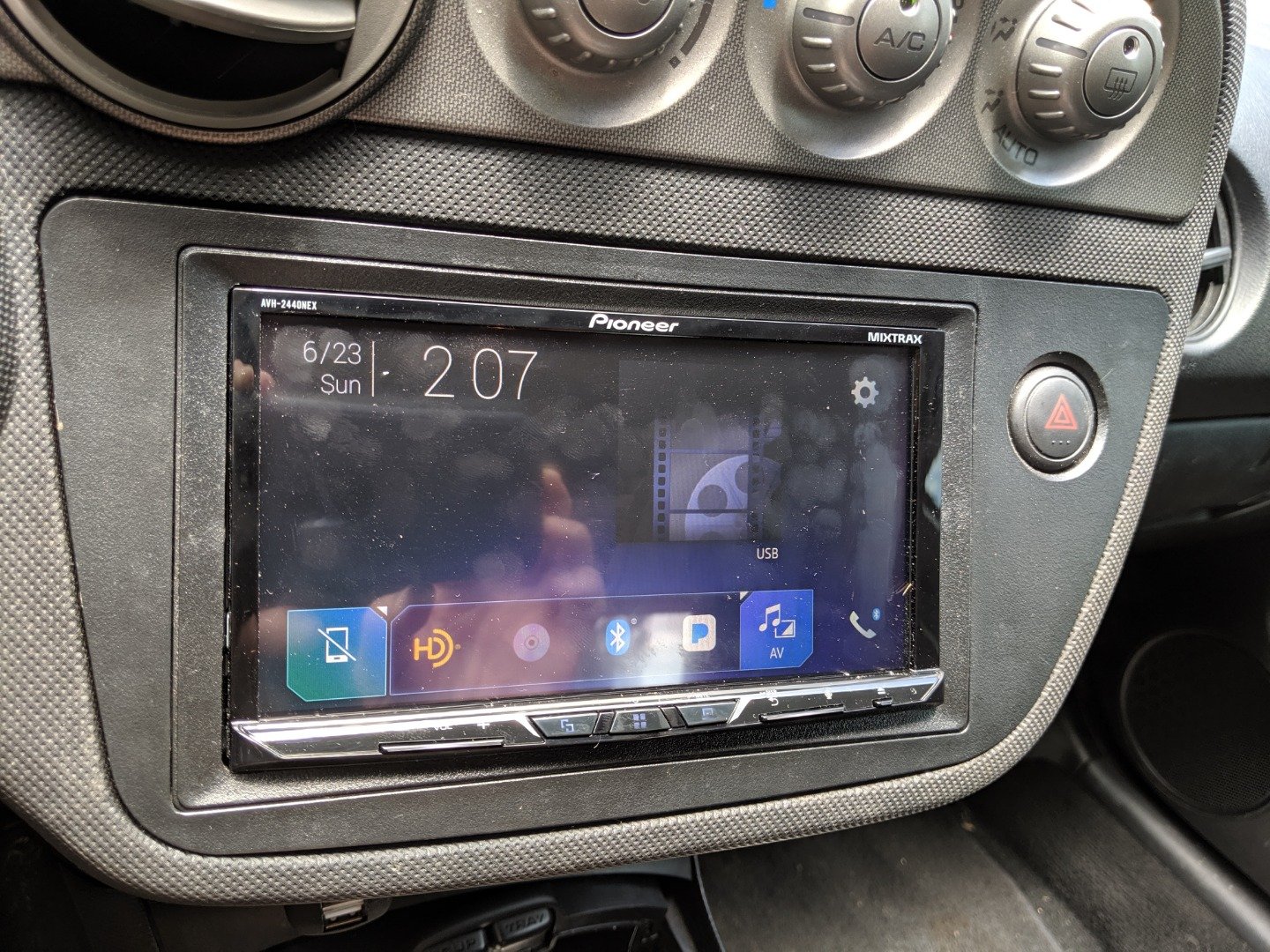

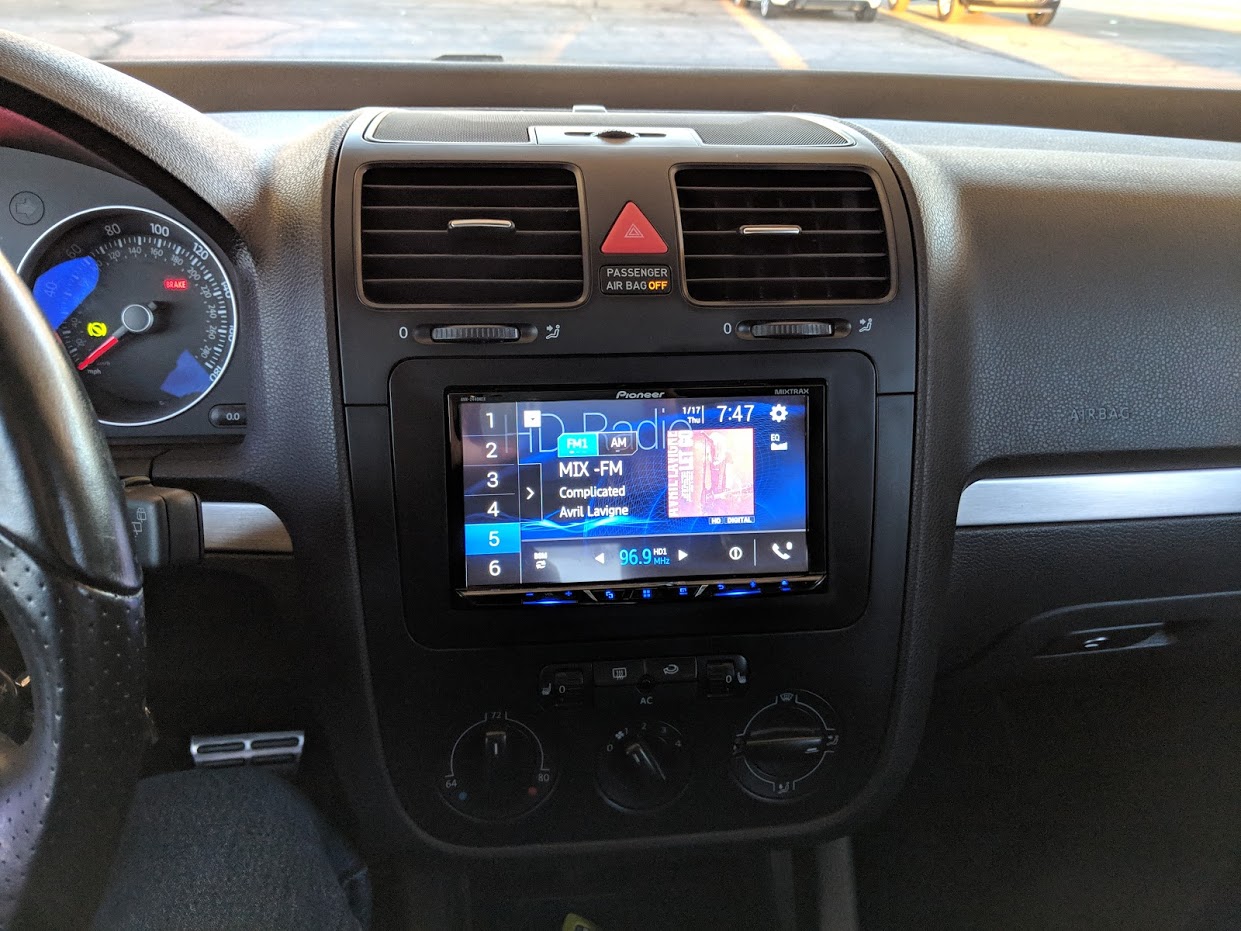

    Customer provided image, click to load a larger version.
    Customer provided image, click to load a larger version.

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee review (What's this?)

    Reviewed on Samsung.com

    This review was collected as part of a promotion

    Pros:

    Cons:

    Crutchfield response
    Customer provided image, click to load a larger version.
    << >>

    More details on the Pioneer AVH-2440NEX

    Stacey B.

    Features & specs

    Expandability
    AUX Input Mini (rear), RCA (rear)
    Audio/video Input Mini (rear), RCA (rear)
    USB Input Rear
    USB Port Power ---
    Backup Camera Input Yes
    Second Camera Input Yes
    CarPlay Yes
    Android Auto Yes
    Siri Control Yes
    Alexa Voice Control
    Android Control Yes
    Memory Card Slot USB memory
    Bluetooth Compatible Built-in
    Satellite Radio Ready SiriusXM 3.0
    HD Radio Built-in
    Navigation Optional
    iPod Compatibility
    Full size No
    Nano 7
    Touch 6/5
    iPhone X/8+/8/7+/7/6S+/6S/6+/6/5S/5C/
    General
    RMS Power (CTA-2006) 14 watts
    RMS Power (Manufacturer) 22 watts
    Peak Output 50 watts
    RMS Power Bandwidth 20-20kHz
    Preamp Outputs 6-channel
    Sub Preamp Outputs Yes
    Switchable Rear Preamp Outputs No
    Video Screen Yes
    Navigation App Compatible (iOS) Apple, Google, Waze, Inrix
    Navigation App Compatible (Android) Google, Waze, Inrix
    Preamp Voltage 4 volts
    Screen Size 6.94
    Screen Type Basic (Resistive)
    Display Color
    Key Button Color Variable
    EQ Bands 13
    Wireless Remote Yes
    Steering Wheel Control Compatible Adapter required
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Tuner
    FM Sensitivity 12 dBf
    European Tuning No
    Seek/Scan Seek
    Radio Data System Yes
    File Playback
    Music File Playback MP3, WMA, AAC, FLAC, WAV
    High-res Playback FLAC (192kHz)
    The Pioneer AVH-2440NEX replaces these items:

    Product Research

    Android (Android Auto) & iPhone (CarPlay) Integration
    Built-in Bluetooth
    Internet+SiriusXM+HD Radio
    Disc & USB Playback
    Audio & DSP Section
    AV + OEM Connectivity
    Touchscreen & Remote Features

    Android (Android Auto) & iPhone (CarPlay) Integration

    Android Auto: The Pioneer NEX receiver supports the Android Auto app for Android smartphones running OS Lollipop (5.0 or newer). Your compatible Android smartphone must be connected to the NEX receiver's rear-panel USB port via the included USB extension cable and your phone's USB cable, plus be paired via Bluetooth (your vehicle's parking brake needs to be engaged to initially setup Android Auto). Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into simple on-screen "card-style" pop-ups that appear just when they're needed. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include:

    • Google Assistant: The Pioneer receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, or listen to music.
    • Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
    • Phone & SMS: With Android Auto you get access to your contacts and messages through the Pioneer NEX receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
    • Music: Access your Android smartphone's music library through the Pioneer receiver via Google Play Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Pandora, Spotify, iHeart Radio, Slacker Radio, & Tune-In. Music apps include song and station browsing, plus song/artist information and album art or station logo.
    Notes:
    • Android smartphones with a USB Type-C connector (including the Pixel) may not function without appropriate USB Type-A to USB Type-C cable. Click here for more details.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Android Auto is being used with a connected Android smartphone.
    • Use a USB cable that is under 6' long and avoid using any extension cable other than the one supplied.

    Apple CarPlay: The Pioneer AVH-2440NEX features Apple CarPlay, the smarter and safer way to use your iPhone in the car. The Pioneer AVH-2440NEX supports Apple CarPlay through your USB-connected iPhone (iOS 7.1+) with Lightning connector. Your iPhone can be connected to the NEX-series head unit's rear-panel USB port via the included USB extension cable and a Lightning-to-USB cable. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages through Siri voice control and the Pioneer receiver's touchscreen controls.

    • Maps: Apple CarPlay brings the power and simplicity of Apple Maps to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. You can even listen to music from your Apple CarPlay device or other connected source device while using Apple Maps.If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze (coming soon), you can choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have there own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
    • Phone & Messages: Via Apple CarPlay, you'll be able to make calls, return missed calls, and listen to voicemails through the Pioneer receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
    • Music Library: Through Apple CarPlay, you can access your artists, song, playlists, and iTunes Radio on your iPhone using the Pioneer head unit's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
    • Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks. Control them from the head unit's touchscreen just like you would from your iPhone. Apple continues to add more apps to CarPlay. Current supported apps include (fees may apply) -

    Notes:

    • Use the included USB extension cable and an "Apple Certified" Lightning-to-USB extension cable (not included) for connection. Any other USB extension cable or non-certified cable can cause CarPlay to malfunction.
    • Bluetooth hands-free phone and wireless music streaming cannot be used while Apple CarPlay is being used with a connected iPhone.

    AppRadio Mode+: The Pioneer DVD receiver features AppRadio Mode+ for Apple iPhones (iOS 9.0+) with Lightning connector and select Android (OS 4.4+) smartphones. AppRadio Mode+ gives you the ability to view and control compatible iPhone and Android smartphone apps from the receiver's touchscreen using a one-cable USB connection. You'll need to download Pioneer's AppRadio app (for Apple iOS 7.0-up / Android OS 4.4+) and the AppRadioLive app (Apple iOS 9.0-up / Android OS 4.4+) onto your compatible iPhone or Android smartphone. Once you have downloaded the apps, your compatible iPhone or Android smartphone simply connects to the Pioneer DVD receiver's USB input using the cable that came with your mobile device. Now that the AppRadio and AppRadioLive apps are downloaded, and your compatible Apple iPhone or Android smartphone is connected the DVD receiver, you have access to maps, media, news information, and your events calendar through the receiver's intuitive touchscreen interface.

    • Maps: AppRadio Mode+, along with AppRadioLive use the native maps from your smartphone overlaid with INRIX live traffic data to provide live traffic and incident information to give you an estimated time of arrival at your chosen destination. Once you select your destination, you'll be guided along your route via an on-screen map and audible voice prompts. Selected destinations can also be sent to popular compatible apps like Waze, Navmii, or Genius Maps. You can even use Yelp to find points of interest along the way, including restaurant ratings and reviews.
    • Media: AppRadio Mode+ and AppRadioLive let you play your stored music library directly from your smartphone through the Pioneer DVD receiver. And, you can access over 60,00 internet radio stations from Radionomy. Or, you can access over 25,000+ radio shows and podcasts from your Stitcher account.
    • Events: In addition, AppRadio One and AppRadioLive keep you up-to-date on the latest news stories, RSS feeds and weather information with Feedly and Open Weather Map. With text-to-speech technology, the Pioneer receiver will even read you the latest news stories from the internet.
    • Calendar: The AppRadio One and AppRadio Live applications also keep your life organized and makes it easier to stay in touch and have fun. With multiple viewing options within its sleek, simple user interface, you can access your smartphone and Facebook calendars in one place, RSVP to Facebook events and use EventSeeker to find nearby concerts and events based on your personal interests and location.

    Android MTP Playback: The receiver supports MTP for playback & control of stored music files on your Android (OS 4.0+) device through the Pioneer receiver's rear-panel USB port. In this mode, you get basic playback control (like Play/Pause & Previous/Next Track), plus song/artist information on the receiver's LCD screen. During MTP connection, you cannot use your Android smartphone's touchscreen to control music playback and you cannot select music apps from your smartphone for playback. However, you can continue to listen to stored music on your Android smartphone through the head unit while you check your Calendar, Facebook, Texts, etc on your phone. You smartphone's battery will also be charged while connected via USB (5V/1.5A).

    iPod Direct Connect: The Pioneer AVH-2440NEX's rear-panel USB port can be used to connect your Lightning Apple device or 30-pin iPhone 4S to the head unit. You'll need a Lightning-to-USB cable to connect your Apple device with Lightning connector, or a 30-pin to USB cable to connect your iPhone 4S. The USB connection allows for audio playback, music navigation, information display (including album art), and charging of your compatible iPhone or iPod.

    • Audio Control: From the head unit's touchscreen, you can search your iPod/iPhone's audio content by Playlist, Artist, Album, Song, Podcast, Genre, Composer, or Audiobook. You can also select Random & Repeat functions for a certain song or specific folder. You'll still be able to control your iPod or iPhone from the device's touchscreen too.
    • Song/Artist/Album Info: In addition, the head unit will display your iPod/iPhone's stored music information including Elapsed playing time, Artist name, Song & Album title, as well as Album Art.
    Note: If there are 10,000 songs or more on your iPod/iPhone, it will require almost one hour to fully populate the song list.

    Apple Device Compatibility Chart: The Pioneer AVH-2440NEX supports the following iPod/iPhone model functions (as of 3/27/2018):

    Apple Device Generation Tested Version Media Type Control Type Compatible Apps Display Type Bluetooth Charge
    Audio Video CarPlay Head Unit iPod/iPhone AppRadio Spotify Pandora Song/Artist Text Track Info Album Art Phone Audio Siri
    iPhone
    4S 9.3.5 Y N N Y Y N Y N Y Y Y Y Y Y Y
    5/5C 10.3.3 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    5S 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    SE 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    6/6+/6S/6S+ 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    7/7+ 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    8/8+ 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    X 11.2.6 Y N Y Y Y Y Y Y Y Y Y Y Y Y Y
    touch
    5th 9.3.5 Y N N Y Y N N N Y Y Y N Y Y Y
    6th 11.2.6 Y N N Y Y N N N Y Y Y N Y Y Y
    nano
    7th 1.02 PC Y N N Y N N N N Y Y Y N Y N Y

    Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

    Data Plan Required: Your iPhone or Android smartphone will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi for CarPlay, Android Auto, & AppRadio to function. Access to CarPlay, Android Auto, & AppRadio's online app services will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. App services may not be available in all regions.

    Built-in Bluetooth

    Bluetooth 4.1: The AVH-2440NEX is equipped with built-in Bluetooth (4.1), allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles -

    • Hands-Free Communication: HFP 1.6 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile).
    • Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.6 (Audio/Video Remote Control Profile).
    Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Pioneer AVH-2440NEX.

    Multi-Device Pairing Dual Phone Connection: Up to 5 Bluetooth-compatible devices (2 phones/1 audio player) can be paired to this head unit. You are even able to keep two Bluetooth-enabled smartphones connected at the same time, so you can switch between phones from the head unit's touchscreen, without having to connect or re-connect devices.

    • SPP (Secure Simple Pairing): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the AVH-2440NEX without having to enter pin codes or go through complicated settings.
    • Auto Re-Connection: Once an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically links the head unit and device together. If two Bluetooth devices were connected the last time, the two devices are connected to this unit automatically in the order that they are registered in the device list.

    Hands-Free Communication (w/ External Mic): The PioneerAVH-2440NEX supports wireless hands-free communication for your Bluetooth enabled mobile phone. Thanks to the latest Hands-Free Profile (HFP 1.6) with wideband speech capability, the AVH-2440NEX provides more natural sound quality and details during wireless calls. The AVH-2440NEX allows you to carry on a phone conversation from your Bluetooth enabled mobile phone using the head unit's external microphone and your car audio speakers. During a conversation you can adjust the volume, as well as switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.

    • Answering A Call: During an incoming phone call, the head unit will display the caller's information and an audible ring tone will be heard through your vehicle's speakers. You can manually answer an incoming call or have the unit automatically answer the call.
    • Making A Call: The AVH-2440NEX offers a variety of ways to make call using the in-dash receiver.
      • Direct Dialing: You can make a call by entering the phone number using the head unit's touchscreen keypad.
      • Preset Dialing: You can store up to six phone numbers as presets for quicker dialing.
      • Phone Book: The phone book (up to 1000 contacts) in your Bluetooth enabled mobile phone will be transferred automatically when the phone is paired to this unit. After finding the number you want to call in the phone book from the head unit, you can select the entry and make the call. If a lot of numbers are registered in the phone book, you can search for a phone number by the contact person's name alphabetically.
      • Call Log: The 80 most recent calls dialed, received, and missed are stored in memory. You can browse them and call numbers from these lists.
      • Voice Dialing via Siri: When paired and connected with an iPhone 4S or later via Bluetooth, the Pioneer head unit has the ability to access Siri through its touchscreen controls and external microphone. You'll be able to dial a phone number or contact via voice command.
    Note: Advanced phone operations that require attention, such as dialing numbers on the touchscreen monitor or adjusting Bluetooth settings, are prohibited while driving. The vehicle's parking brake must be engaged to access these functions.

    Wireless Audio Streaming: The Pioneer AVH-2440NEX also supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth enabled audio player or smartphone. The head unit can stream music stored on your Bluetooth enabled device or music apps you have downloaded on your device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call.

    • Advanced Music Navigation: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the AVH-2440NEX lets you browse your stored music by Playlist, Artist, Album, Song, etc.. (AVRCP 1.4 phones only; which includes Android 4.0+ and iPhone 5.0+).
    • Song/Artist Info: The head unit will also display your stored music's and music app's song information; such as Artist name and Song/Album title (app must also support). Album Art not supported.

    Siri Eyes-Free Functionality: When paired and connected to an iPhone (iOS 6.1+) with Siri via Bluetooth, the Pioneer AVH-2440NEX has the ability to access Siri through its touchscreen and external microphone for Siri Eyes-Free functionality. When activated, Siri voice prompts play through the vehicle's speakers and the user's commands and questions are received and transmitted to the receiver using the external microphone. Siri Eyes-Free provides access to many iPhone Siri functions such as music selection, making phone calls, and audible navigation (map will be displayed on iPhone); as well as listening to text messages, calendar information, and reminders. The head unit's audio is muted while Siri provides audible voice prompts.

    Note: The head unit's touchscreen monitor will only indicate hands-free calling and song/artist information (all other functions of Siri are only audible through the Pioneer AVH-2440NEX ; visual data will still need to be viewed from your iPhone device).
    Internet+SiriusXM+HD Radio

    Spotify Online Music Service: The Pioneer AVH-2440NEX has the ability to playback & control content from the Spotify music app (for Apple iOS 9.0+ or Android OS 4.0+) on your USB or Bluetooth connected iPhone, or Bluetooth connected Android smartphone. Your Apple iPhone must be connected to the AVH-2440NEX via a Lightning-to-USB cable or paired via Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the Pioneer AVH-2440NEX . Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi. If you are a Spotify Premium user (requires a monthly paid subscription), you can enjoy ad-free, high quality music even when there is no internet connection.

    • Playback & Search Control: You can play, pause and skip tracks, browse playlists, albums and radio stations through the Pioneer receiver's touchscreen controls.
    • Song/Artist Info + Album Art: You also get song/artist information and album art on the unit's LCD touchscreen.

    Pandora Internet Radio: The Pandora App (for Apple iOS 10.0+ or Android OS 4.0+) lets you play music from the Pandora music service through the Pioneer AVH-2440NEX using your USB or Bluetooth connected Apple iPhone, or Bluetooth connected Android smartphone. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi. The Pioneer AVH-2440NEX will provide control over the Pandora music service & display Artist, Album, & Song information; as well as Album art.

    • Station List + Presets: You can select Pandora stations from your Station List by date or alphabetically. You can also store six Pandora Radio preset stations for even easier recall.
    • New Stations: New stations can be created based on the current songs or artists playing.
    • Shuffle: You can also listen to songs played randomly from various stations within your Station List.
    • Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
    • Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
    • Bookmarking: The song/artist currently being played can be bookmarked & stored in your Pandora account.

    Apple Music Radio: You can playback Apple Music Radio on your USB-connected Apple iOS device through the Pioneer AVH-2400NEX. With a WiFi or cellular connection, you can listen to Beats 1 and other live radio stations. Apple Music subscribers can also listen to on-demand stations for every genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations, playback songs similar to the current song, stop playback of the current song, and add the current song to your iTunes wish list. Apple Music Radio playback is compatible with the following Apple iOS devices -

    • iPhone: X, 8+/8, 7+/7, 6S+/6S/6+/6, 5S/5C/5, SE, & 4S - running iOS 9.3.5 or newer
    • iPod: touch (6th, 5th generation) - running at iOS 9.3.5 or newer
    Note: Your Apple iOS device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

    SiriusXM 3.0 Ready: The Pioneer AVH-2440NEX is SiriusXM 3.0 Ready so you can listen to commercial-free music, all your favorite sports, exclusive talk and entertainment, comedy, news, traffic, weather, and more. Simply activate a SiriusXM Radio subscription (fees will apply) and connect the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately) to the dedicated port on the rear of the receiver for playback and control of satellite radio. Check out the most popular SiriusXM subscription packages here.

    • Channel/Category Lists + Song/Artist/Album Info: The Channel List displays a list of all available channels. The Category List displays all available categories and stations within those categories. Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's LCD touchscreen. You also get station logo identification and album art.
    • Category Scan + Instant Replay: During Category Scan, the live broadcast for each channel in the current category plays for six seconds at a time. The SiriusXM Instant Replay function lets you pause, rewind, and replay up to 60 minutes of live content from the station that you are currently listening to.
    • SmartFavorite Presets + Featured Favorites: You can store up to 18 SiriusXM Satellite Radio Station Presets with special tuning features such as TuneStart, TuneScan, & TuneMix (see below). Featured Favorites are groups of channels that are created by the SiriusXM Programming department allowing to discover new channels. Featured Favorite channels are dynamic and can change often, allowing you to discover new channels.
    • TuneStart, TuneScan, & TuneMix: TuneStart automatically start songs from the beginning when you tune to one of your SmartFavorite music channels stored on the current band of presets. TuneScan lets you scan through short previews of songs you may have missed on music channels stored on the current band of SmartFavorite presets. TuneMix plays a unique blend of songs from music channels stored in the current SmartFavorite preset band.
    • Traffic, Weather, & Sports: You can tune in and listen quickly to information pertaining to weather and traffic from a particular city you have specified. You can also be alerted when your favorite sports teams are playing so you can tune to the appropriate station quickly.
    • Parental Control: The SiriusXM Parental Control feature allows you to control access to channels that you consider inappropriate for younger listeners. When enabled, The Parental Control feature requires you to enter a 4-digit passcode to tune to the locked channels.

    HD Radio: The Pioneer AVH-2440NEX 's built-in HD Radio tuner lets you listen to the radio with the same fidelity as your digital music. HD Radio features high quality audio, FM multi-casting, and data services. With HD Radio, your FM stations offer near CD-quality sound, AM stations provide FM-like sound, and there is crystal-clear reception with no audio distortion. Best of all, HD Radio is 100% subscription free. The unit's tuner also supports analog AM/FM broadcasts.

    • Supertuner IIID: The Supertuner IIID features Feed Forward Control, which avoids multi-path interference. This pre-detection of interference enables quick filter control and results in less distortion. In addition, the Supertuner IIID creates enhanced stereo during multi-path interference, unlike conventional tuners that collapse to mono. Digital processing reduces distortion, and improves Signal-to-Noise Ratio and stereo separation. Advanced analog technology improves signal processing sensitivity.
    • Station Text/Album Art + RDS: AM/FM digital stations can offer text and data such as artist names and song titles. The head unit also supports Album Art from select HD Radio stations. For analog FM stations, the Radio Data System (RDS) feature displays radio broadcast information such as song/artist information when listening to compatible RDS FM stations.
    • Multicasting: In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 3 multicast programs (HD1 to HD3, and analog). There are also data programs for each program.
    • Reception Blending: If a digital broadcast reception condition gets poor, this unit automatically switches to the analog broadcast of the same frequency level. If this function is set to "On", the tuner switches between digital broadcast and analog broadcast automatically. If this function is 'Off', reception will be conducted within a digital broadcast.
    • BSM (Best Stations Memory): The BSM (Best Stations Memory) function lets you automatically store the six strongest analog or HD stations under preset buttons 1-6 of the currently tuned band. The tuner has 3 FM banks and 1 AM bank. You can store 6 presets for each bank giving you a total of 18 FM presets and 6 AM presets.
    • Local Tuning: Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. There are 4 levels of sensitivity for FM and two levels for AM. The higher settings allow reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

    Note: HD Radio is the system for digital AM and FM broadcasting in the U.S. More than 2,000 radio stations are broadcasting their primary signals in digital HD Radio technology, as a free service. Go to www.hdradio.com to check for HD Radio stations in your area.

    Disc & USB Playback

    Compatible Discs: The 6.95" touchscreen display electronically slides down to load and eject your DVD/CD discs. The AVH-2440NEX supports playback of DVD-Video, DVD-R/RW, CD-Audio, and CD-R/RW discs with a variety of music and video files.

    • Direct DVD Search: During DVD playback, you can go directly to a specific Title or Chapter by entering the number using the unit's touchscreen numeric keypad.
    • Parental Lock: This unit features an 8-level Parental Lock system protected by a user-selected 4-digit password to prevent certain DVD's from being played back on the AVH-2440NEX .
    • Installation Angle: Optimum disc playback performance is obtained when the unit is installed at an angle of less than 30-degrees.

    USB Mass Storage Class (MSC) Device Compatible: The unit's rear-panel USB (type-A) port and 58" USB extension cable allows you to connect a USB Mass Storage Class (MSC) device; such as a USB thumbdrive or portable digital audio player. The USB port enables playback & control of music, video, and photo files stored on your portable USB MSC device through the Pioneer AVH-2440NEX . USB devices that can be charged via USB will be charged when plugged into the DVD receiver 's USB port (5V/1.5A) and the vehicle's ignition switch is set to ACC or On.

    • Music Browsing: Music Browsing which lets you browse your USB memory device's music library by Artist, Album, Song, or Genre from the head unit in alphabetical order.
    • Link Play: Link Play allows you to play songs related to the currently playing song. Link Play lets the head unit create an album list of the currently playing artist, a song list of the currently playing album, or an album list of the currently playing genre.
    • Song/Artist/Album Info: The head unit will display your USB device's stored music information - including Elapsed playing time, Artist name, Song & Album title, as well as Album Art.
    Note: The head unit's USB port does not support USB hubs or USB card-readers.

    Compatible Media Files: The Pioneer AVH-2440NEX supports the following types of audio, video, and photo files recorded onto a disc or inserted USB device.

    Media Type Disc (CD-R/RW, DVD-R/-RW/-R DL) USB (MSC/MTP)
    File System ISO9660 Level 1 or 2, Romeo, Joliet, UDF FAT 12/16/32
    Playable File Types Audio

    MP3: 8-320kbps; 16-48kHz
    WMA: 5-320kbps; 8-48kHz
    AAC: 8-320kbps; 11.025-48kHz

    MP3: 8-320kbps; 8-48kHz
    WMA: 8-320kbps; 8-48kHz
    AAC: 16-320kbps; 8-48kHz
    WAV: 8 or 16-bt; 16-48kHz
    FLAC (High Resolution): 24-bit; 8-192kHz
    Video MPEG 1/2/4: 720 x 576/30 fps (4GB)
    DivX: 720 x 576/30 fps (4GB)
    AVI: 1920 x 1080/30fps (4GB)
    MPEG4: 1920 x 1080/30fps (4GB)
    MKV: 1920 x 1080/30fps (4GB)
    MOV: 1920 x 1080/30fps (4GB)
    FLV: 1920 x 1080/30fps (4GB)
    WMV: 1920 x 1080/30fps (4GB)
    DivX: 720 x 576/30fps (4GB)
    Photo N/A JPEG: 32 x 320 - 8192 x 7680
     PNG:
    32 x 320 - 720 x 576
    BMP:
    32 x 32 - 1920 x 936
    Maximum # of Folders/Files

    700 folders/999 files for CD (700 folders/3,500 files for DVD)

    1,500 folders/15,000 files
    Song/Artist Info MP3 ID3 tags, WMA-tags, AAC-tags, FLAC-tags, & Album Art
    Note: Videos and Photos can only be viewed when the vehicle's parking brake is engaged.
    Audio & DSP Section

    24-Bit/192kHz DAC: The Pioneer AVH-2440NEX is equipped with a 24-bit/192Hz digital-to-analog converter for superb quality audio playback from disc, USB, iPod/iPhone, Android, and Bluetooth.

    MOSFET50 Internal Amplifier: The Pioneer AVH-2440NEX is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

    • CTA-2006 Specs: 14 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
    • Continuous Power Output: 22 watts RMS x 4 channels (at 4 ohms, 50Hz-15kHz, 5% THD)
    • Maximum Power Output: 50 watts x 4 channels (or 50 watts x 2 channels at 4 ohms + 70 watts x 1 channel at 2 ohms for subwoofer)
    Note: The power specifications for the AVH-2440NEX are compliant with the CTA-2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Technology Association (CTA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.

    4V/6CH Preamp Outputs + Sub Control: The Pioneer AVH-2440NEX features three pair of 4.0-volt preamp outputs (Front/Rear/Subwoofer). The unit's front and rear preamp output can be faded (front/rear), while the subwoofer preamp output is non-fading. The Pioneer AVH-2440NEX lets you adjust the subwoofer preamp output's phase (normal/reverse) and volume (+10 to -24).

    Crossovers: The AVH-2440NEX employs high-pass and low-pass crossovers to tailor the head unit to your connected speaker setup.

    • Standard: Allows you to set the high-pass and low-pass crossover network for a standard Front, Rear, and Subwoofer speaker setup using either speaker-level or low-level outputs.
      • HPF: The head unit's -6 to -24dB/octave high pass filter only allows frequencies higher than those in the selected range (50, 63, 80, 100, 125, 160, 200Hz) to your front and rear speakers through the unit's speaker-level or line-level outputs.
      • LPF: The subwoofer preamp output features an -6 to -24dB/octave low pass filter so only frequencies lower than those in the selected range (50, 63, 80, 100, 125, 160, 200Hz) are output to your connected subwoofer.
    • Network: Allows you to set the high-pass and low-pass crossover network for a complex 3-way speaker system with Highs, Mids, and Sub using low-level outputs only.
      • Highs: The high-pass crossover for your tweeters can be set to 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, or 12.5 kHz with a -6 to -36dB/octave roll-off.
      • Mids: You can set a high-pass and low-pass crossover from your midrange/midbass drivers. The high-pass crossover can be set to 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, or 12.5 kHz with a -6 to -36dB/octave roll-off. The low-pass crossover can be set to 26, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz with a -6 to -36dB/octave roll-off.
      • Lows: The low-pass crossover for your subwoofers can be set to 26, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz with a -6 to -36dB/octave roll-off.

    EEQ (Easy EQ) w/ 13-Band Graphic EQ: There are seven stored equalizer curves which you can easily recall at any time. You can choose from - Powerful, Natural, Vocal, Super Bass, Flat, Custom 1, or Custom 2. The Custom 1 and Custom 2 EQ modes allow you to manually adjust the level (+/- 12dB) of each band of the head unit's 13-band graphic equalizer (50, 80, 125, 200, 315, 500, 800, 1.25k, 2k, 3.15k, 5k, 8k, and 12.5k Hz).

    Auto EQ (Optional): The auto-equalizer automatically measures your car's interior acoustic characteristics, and then creates an auto-equalizer curve base on that information. The Pioneer CD-MC20 Auto-EQ microphone (130CDMC20, sold separately) is required to use this function. The Pioneer CD-MC20 Auto-EQ microphone plugs into your compatible Pioneer A/V receiver's rear-panel AUX 3.5mm input. The Auto-EQ microphone should be placed in the center of your vehicle's driver seat headrest facing forward for EQ measurement.

    Audio Settings: The head unit provides further sound adjustments for your car audio system.

    • Listening Position & Time Alignment: For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right, or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-200") for each individual speaker in the vehicle compared to your listening position.
    • Advanced Sound Retriever: The Advanced Sound Retriever automatically enhances compressed audio and restores the original richness of the recording. When the Advanced Sound Retriever is on, the high frequency range is compensated to match the frequency response curve to the original sound. There are two available levels of the Advanced Sound Retriever effect.
    • Bass Boost: You can easily boost the subwoofer bass level by using the Bass Boost function. The Bass Boost feature allows you increase the subwoofer level from 0 to +6 (12dB).
    • Loudness: The Loudness function compensates for deficiencies in the low- and high-frequency ranges at low volume. You can set the Loudness to High, Mid, Low, or Off.
    • Speaker Level: You can adjust each speaker and sub channel independently from +10 to -24 to best even out the sound in your vehicle.
    • Source Level Adjustment (SLA): This function lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. Settings are based on the unit's FM volume level, which remains unchanged. Each source can be independently adjusted from -4 dB to +4 dB.
    • Auto Level Control (ALC): This function automatically corrects the audio level difference between the music files and/or the sources.

    Rear Speaker Setup: The rear speaker outputs can be set to provide full range output with full fading capability, or they can be set to provide non-fading subwoofer (low-pass) output. When the rear speaker outputs are set to subwoofer mode, the rear preamp outputs also switch from full range to subwoofer outputs. When set for subwoofer operation, you can connect the rear speaker leads directly to two small 4-ohm passive subwoofers or a dual voice coil sub with 4-ohm voice coils. If you prefer to use a single 2-ohm subwoofer, you can connect the woofer to one set of speaker leads, leaving the other set of rear leads disconnected. The maximum output provided when a 2-ohm load is connected to one set of leads is 70 watts.

    MIXTRAX: Drawing from Pioneer's rich DJ heritage and passion for music, MIXTRAX delivers a unique DJ infused listening experience to listeners in the car. MIXTRAX is an innovative Pioneer technology that creates a non-stop mix of your music library complete with a range of DJ-inspired effects. MIXTRAX takes your typical music listening experience and creates a non-stop mix of your music with 6 random DJ effects and transitions, by removing the breaks and pauses normally introduced between tracks and replacing them with various beats. MIXTRAX is compatible with USB-connected iPhone, iPod, USB MSC device, and select Android devices. There is also a Short Playback option which limits the amount of time each track plays.

    Note: The MIXTRAX function does not work with CarPlay, Android Auto, AppRadioLive, Pandora, or Spotify.

    Beep Tone: The in-dash head unit provides an audible beep to confirm button operation. You can turn this feature on or off.

    AV + OEM Connectivity

    Dual AV Inputs: The Pioneer AVH-2440NEX has dual AV inputs to connect two external audio/video sources. The head unit has a rear-panel 3.5mm minijack AV input for connecting a portable audio/video device. There is also a rear-panel composite video/stereo RCA AV input for connecting a video component such as a mobile TV tuner or game console.

    Video Output: A single RCA composite video-output jack allows you to an add external monitor, such as rear headrest or overhead monitor (sold separately). The video output can display a USB or AV-input video signal when its selected as the receiver's source, regardless if the vehicle's parking brake is engaged or not.

    Note: CarPlay, Android Auto, & AppRadio are not supported by the video output.

    Camera Input: The AVH-2440NEX is equipped with a composite video rear-view camera input for the addition of an optional backup camera (130NDBC8, sold separately). You can also turn the unit's composite AV input into a second camera input for adding a front camera (sold separately). The dedicated rear-view camera input offers two view modes -

    • Auto View: The unit features a function that automatically switches to the rear camera image. When the vehicle's transmission is put in reverse, the screen automatically switches to the rear view camera (violet/white wire of the harness must be connected to the vehicle's reverse lamp circuit for automatic video switching). Automatic video switching takes approximately 0.8 seconds.
    • Camera View: There is also a Camera View mode which allows you to manually bring up the rearview camera image on the receiver's touchscreen monitor to check what is behind you while driving. You can leave the Camera View mode on if you want to see the rearview image at all times; for instance when towing a trailer.
    Note: The rear view camera feature is meant as a back-up aid only; never solely rely on the rear-view camera when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

    iDatalink Serial Port: This Pioneer DVD receiver is compatible with the iDatalink Maestro RR (794ADSMRR, sold separately); a web programmable module that will permit the aftermarket Pioneer receiver to work with select Ford/Lincoln/Mercury vehicles that feature the factory SYNC system, select GM vehicles with factory OnStar, select Chrysler/Dodge/Jeep vehicles with U-Connect, plus select Honda/Acura, Toyota/Scion, Volkswagen & Subaru vehicles with factory digital amplifiers.

    • Retained Features: The Pioneer DVD receiver lets you retain select factory functions. Retained features will vary by vehicle via the iDatalink Maestro RR. Retained proprietary factory systems can include Ford Sync, GM OnStar, and Chrysler/Dodge/Jeep U-Connect. Other retained factory features may include Steering Wheel Controls, Aux Input, USB Port, Hands-Free Bluetooth, Voice Commands, Satellite Radio, Secondary Display, and more.
    • Extra Features: In some installations, the iDatalink Maestro RR let you configure the Pioneer receiver's touchscreen monitor to operate interior climate controls and provides extra visual data; such as User Selectable Gauges, Vehicle Info (Tire Pressure/Battery Voltage/Check Engine Codes/Door Ajar Warning), and Visual Park Assist. These extra features will vary by vehicle.

    Note: The iDatalink Maestro RR is web programmable, which means you'll need to flash the iDatalink Maestro RR interface module with the correct firmware from iDatalink's website. In addition to flashing the iDatalink Maestro RR module, you'll also need a vehicle specific harness (sold separately). The Pioneer receiver's OEM Setup menu must also be configured with your compatible vehicle's factory system before initial operation.

    Navigation Ready: The Pioneer AVH-2440NEX allows you to connect the Pioneer AVIC-U280 add-on navigation unit (130AVIC280, sold separately) through its RGB Input. This versatile hideaway unit allows you to switch to navigation mode with the touch of a button. Get to your destination by inputting an address or search through the POI library while enjoying whatever source is currently playing.

    Touchscreen & Remote Features

    Motorized Clear Resistive LCD Touchscreen: The Pioneer AVH-2440NEX features a 6.94" clear resistive LCD touchscreen display with a resolution of 2520 x 480; for a total of 1,209,600 pixels. The clear resistive panel is designed to enhance the visibility of on-screen graphics and images, making them appear clear and crisp. The touchscreen display allows you to control this unit and a connected component such as an iPod/iPhone, Android smartphone, Bluetooth phone, or USB mass storage class device. Menus appear on screen for making function choices, audio adjustments, and setting up the system. The angle of the touchscreen display can be adjusted to five different positions to meet your viewing needs in the car.

    • Favorites: You can register the desired menu items on the AVH-2440NEX 's "Favorites" menu screen. Registering your favorite menu items allows you to quickly jump to the registered menu item by a simple touch on the favorites menu. Up to 12 menu items can be registered as a "Favorite".
    • OSD + Backgrounds: The color of the on-screen display can be set to red, amber, green, blue or white. The background display can be selected from 5 different preset displays for the AV Operation screen and 8 different preset displays for the Home Menu screen. In addition, you can change the background display to other images imported from an external USB device.
    • Widescreen Modes: You can choose from the following widescreen modes when playing back video - Full (4:3 picture is enlarged in the horizontal direction only; enabling you to enjoy a 4:3 picture without any omissions), Zoom (4:3 picture is enlarged in the same proportion both vertically and horizontally; ideal for a 16:9 screen), Normal (4:3 picture is displayed as it is).
    • Picture Adjustments: You can store numerous video settings for the head unit's video sources and rear-view camera; including brightness (adjusts the black intensity), contrast (adjusts contrast), color (adjusts color saturation), hue, (adjusts color tone), temperature (adjust the color temperature), and Dimmer (adjusts brightness).

    Variable Illumination: The AVH-2440NEX offers custom illumination for the front-panel controls so you can match your vehicle's interior, plus MIXTRAX Illumination for DJ-style illumination in your vehicle.

    • Front-Panel Control w/ Custom Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons along the bottom edge of the screen. The color of the button illumination can be set to red, amber, green, blue, white, or scan (constantly cycling through the color spectrum). You can also create a custom color to match your vehicle's interior lighting (112 colors to choose from).
    • MIXTRAX Illumination: MIXTRAX features a club-style illumination that enhances the mood with a dynamic dance club-like lighting effect. As MIXTRAX begins, lights start pulsing to the beat of the music, adding an extra level of entertainment. You can choose among twelve patterns of lighting variations from sound pressure level or low-pass synchronization modes. The lighting effects work like a spectrum analyzer, reaching peak colors based on the intensity of the music.

    Dimmer: The receiver's touchscreen display & button illumination can be dimmed manually, automatically or via a timer. You can set the unit's LCD touchscreen & button illumination to automatically dim when your vehicle's headlights are turned on (this function requires that the orange/white illumination wire in the wiring harness is hardwired to the vehicle's headlight circuit). You can also set a specific time and duration for unit's LCD & button illumination to dim.

    Remote Functions: The Pioneer AVH-2440NEX DVD receiver includes a wireless remote control and offers steering wheel control capability (adapter required).

    • Wireless Remote Control: The Pioneer AVH-2440NEX includes an IR remote control (CXE5116) for wireless operation of the DVD receiver and your connected devices. The included remote does offer Bluetooth phone functions.
    • Optional Steering Wheel Controls: The head unit features an OEM steering wheel remote control input on the rear of the unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).

    Parking Brake Interlock: This unit has a parking brake interlock system that prohibits viewing of video programming and operating certain controls when the vehicle is in motion. In order to watch video on the in-dash monitor, the vehicle must be stopped with the parking brake engaged. The head unit's light green wire must be connected to your vehicle's parking brake detection circuit. The head unit's touchscreen will display "Attention! Viewing of front seat video source while driving is strictly prohibited", if you try to watch a video when your vehicle is in motion.

    Loading accessories...

    Customer Q&A

    26 questions already asked

    Q
    Does this radio show parking grid lines for the camera? Can you turn off parking grid lines if so. My camera displays them, don't need the radio to show them.
    john  Feb 15, 2019
    2 answers
    A
    I purchased the radio and a back up camera. The parking line grids do show up on the screen, however you can turn them off so they do not appear on the screen. I had the camera professionally installed by an electronics store that specializes in car accessories. You can probably Google the answer to turn off the grid lines or ask a Crutchfield representative.
    michael  Feb 15, 2019
    A
    I bought a camera for mine. There is only one set of grids, I am pretty sure they are from the camera
    wayne  Feb 15, 2019
    Q
    When using the factory backup camera, does the camera come on automatically putting the car in reverse or do you have to turn the camera input on, as I've seen on some other stereo receivers?
    chris  Feb 12, 2019
    3 answers
    A
    I have an aftermarket backup camera and it comes up automatically. I'm sure once you set up the camera it will turn it on automatically once you select Reverse. There is also a button to turn the camera on even if it's not on reverse.
    hauner  Feb 17, 2019
    A
    You have to go into the settings menu and turn on the camera.
    robert e  Feb 15, 2019
    A
    You have to go into the settings menu and turn the camera on.
    robert e  Feb 15, 2019
    Q
    Is there a way to turn off the equalizer?
    eric  Feb 10, 2019
    2 answers
    A
    You would change the settings to flat if you want the music not to be affected by the equalizer. There is no dedicated EQ off setting
    correy  Feb 11, 2019
    A
    Yes, there's a setting named "flat" where the levels are all set to 0.
    ken  Feb 10, 2019
    Q
    With this model, can I listen to music from my Android phone through bluetooth?
    mjrodg3n88  Jan 23, 2019
    5 answers
    A
    Very much so or through the usb via carplay! Its a awesome radio
    pharao  Jul 08, 2020
    A
    Yes
    darrel  Jan 25, 2019
    A
    Yes , you can listen to your music via Bluetooth. I always use pandora and it works fine using Bluetooth
    oriela  Jan 25, 2019
    A
    Yes, absolutely. It works great
    brian  Jan 25, 2019
    A
    Yes, it has both a Bluetooth option to play music currently playing on your phone through whatever app, and it also has a Spotify option to play music in your Spotify account via Bluetooth.
    jeremiah  Jan 25, 2019
    Q
    How responsive is the screen?
    john  Jan 22, 2019
    3 answers
    A
    It's pretty good. Better than the old SWA checkin kiosk and almost as good as the newer ones if that helps. You'll find you don't use the screen that much as "ask Google" to do most everything works pretty well. The sound quality of this unit is simply outstanding....and I'm an old school audiophile.
    shawn  Jan 23, 2019
    A
    It's pretty good. Never had any problems.
    jake  Jan 22, 2019
    A
    The screen is responsive and the unit charges screens quickly. I've been very happy with this unit!
    josh  Jan 22, 2019
    Q
    I have had Android Auto stock in previous vehicles. How long does it take from car start to have AA up and playing a song? Wondering how speedy it is.
    john  Jan 22, 2019
    6 answers
    A
    Takes 15 seconds from key on to Google music autoplay starting with a Moto X4.
    dylan  Jan 29, 2019
    A
    I would say it takes about a minute or maybe a little more. I never timed it personally though.
    ryan  Jan 23, 2019
    A
    I rarely use the Android Auto app, but I set my phone to automatically connect to Bluetooth when I get in and it links quickly (probably 3 seconds once the radio has booted up) and Spotify has a song in as soon as I open the app on my phone.
    caesar  Jan 23, 2019
    A
    Hey John. Sorry I use an iPhone but for a song to start is less than ten seconds.
    guy  Jan 23, 2019
    A
    It takes about 15 seconds
    kenneth  Jan 23, 2019
    A
    It is under 10 seconds for sure around 8 is what i would say. once I plug in the dashboard pops right up and it is right where i left off when i got out. I use spotify and have a galaxy note 7
    chad  Jan 23, 2019
    Q
    Can I re-use the factory mic in 2016 Traverse?
    m  Jan 21, 2019
    1 answer
    A
    Yes if it has the same end that you plug in to the unit
    kenneth  Jan 21, 2019
    Q
    will this work with a factory bose system in a 2004 GMC Yukon?
    mac  Jan 17, 2019
    1 answer
    A
    Yes, and quite well. I noticed a big difference in sound quality from the Bose speakers in my Avalanche. The sound adjustability of the Pioneer is awesome. The factory stereo head unit does not even come close to this Pioneer head unit. You wont be sorry !!
    bruce  Jan 17, 2019
    Q
    can you do a dual camera input?
    anonymous  Jan 09, 2019
    2 answers
    A
    Yes you can front and rear camera this was installed in 2005 f 350 and it is a outstanding unit pioneer AVH 2440nex crutchfield also outstanding if have any problems they will help you it a little work running camera wires but it wasn't bad after doing some utubing
    melvin jerry  Jan 11, 2019
    A
    I know backup camera is 1 imput but you may be able to do a second always on camera you will need to manually switch inputs
    coty  Jan 10, 2019
    Q
    will this work with my existing factory rear entertainment system?
    brandt  Jan 08, 2019
    2 answers
    A
    This unit has a single RCA video output (composite) on the rear. If your factory rear entertainment system has an RCA video input, then you should be good to go.
    louis  Jan 08, 2019
    A
    Hi Brent. No....it does not seem to interface with the rear entertainment system. The rear entertainment system does seem to work just fine but you cannot get the sound out of the car speaker system through the radio any longer. It does work with the headsets though. Hope that helps you.
    chris  Jan 08, 2019
    Q
    It says it supports DVD playback, but I do not see anywhere to insert a DVD or CD on the image. Does this unit actually allow me to use CDs or is this a misprint?
    dan  Jan 04, 2019
    7 answers
    A
    The faceplate tilts down, it is located behind the faceplate
    james  Jan 04, 2019
    A
    The screen flips down to insert cds
    crystal  Jan 04, 2019
    A
    Yes you can. The screen flips down for CD / DVD insertions.
    jonathan  Jan 04, 2019
    A
    Yes, there is a button on the face that'll drop the screen down and allow to you to put in CDs
    jared  Jan 04, 2019
    A
    The whole front of the unit slides open to reveal the cd/DVD slot. Ive only used a CD in it, and only once. I normally use BT for music off my phone and music from the HD channels. Pleased with the head unit, but the steering wheel adapter along with the programming for it is a little buggy (toyota tacoma).
    jon  Jan 04, 2019
    A
    The screen moves to allow a CD or DVD to be placed in it
    anthony  Jan 04, 2019
    A
    It is a motorized display. The screen flips down to reveal the slot for discs.
    matt  Jan 04, 2019
    Q
    Is there a way to retain factory USB in the car to use with Android Auto?
    fabio  Jan 01, 2019
    7 answers
    A
    no you will have to replace factory usb
    jeffrey mark  Jan 02, 2019
    A
    Depends on your vehicle. I was able to do this in a 2012 Buick Enclave - simply attached the factory usb to the new stereo with an adapter. Was not able to do it in a 2009 Cadillac because of the custom factory wiring
    kristian  Jan 02, 2019
    A
    The likely answer to this is yes. I was able to retain it in mine, but it could depend on your vehicle. I'd recommend chatting with Crutchfield support. They usually know for sure.
    william  Jan 01, 2019
    A
    I'll sell u mine. Brand new never used hit me up
    trevor  Jan 01, 2019
    A
    Not sure it depends on your car or truck. Pac audio or idatalink may have something to make the factory usb work. Crutchfield advisor will know for sure.
    robert e  Jan 01, 2019
    A
    I never found away to use the factory usb, I ran mine through the glove box, I use apple but same premise
    benjamin  Jan 01, 2019
    A
    I don't know
    kenneth  Jan 01, 2019
    Q
    To set this up for both Android and Apple, do you route an extension cable out from the rear USB port, then plug the correct cable for the phone into the extension?
    matthew  Jan 01, 2019
    8 answers
    A
    Yes, exactly, and I had a 4-foot (I think) extension included in the package. You can also look up YouTube videos on how to cut a spare USB cable and splice it into existing ports on your dash, if you have a USB port in your car already, and depending on the make & model. I plan on doing this "someday." :)
    gabriel  Jan 02, 2019
    A
    Yes, but it is easy to do. It is pretty easy to run a wire into the center console or to just drop it on the floor behind the dash.
    wayne  Jan 02, 2019
    A
    You can but I was just use Bluetooth
    kenneth  Jan 01, 2019
    A
    That is how I did mine. I ran it into the center console and bought the cable for each phone.
    jeremy  Jan 01, 2019
    A
    To use car play features you need to connect a cable to the USB port for the phone that you want to use. To use the Bluetooth features for either you just need to pair the phones.
    david  Jan 01, 2019
    A
    Yes, that is correct. I used a "bukhead mount extension" to bring the USB and AUX connections out to a convenient place. However, the unit seems to be picky about the USB connection. Keep the total cable length short and use good quality cables.
    jerry d  Jan 01, 2019
    A
    Yes, ou use the usb extension to place the port in a convenient location. Then from there, you would use whatever associated cord is necessary to connect your device.
    grant  Jan 01, 2019
    A
    Yes, that's what the extension cable in the box is for.
    shawn d  Jan 01, 2019
    Q
    what kind of input jack is for the camera?
    karl  Dec 28, 2018
    2 answers
    A
    Single RCA female Jack
    brian  Jan 25, 2019
    A
    Rca video
    kenneth  Jan 01, 2019
    Q
    My 2015 nissan sentra already came with a back up camera, will it still work with this unit?
    kevin  Dec 18, 2018
    3 answers
    A
    It works perfectly with my aftermarket camera - cannot think of a reason it would not unless the Nissan uses a proprietary cable
    harold  Dec 18, 2018
    A
    sorry I can t help ya, I have been overseas, still haven't got around to install. Check out Pioneer web site, still it $100.00 cheaper then what I paid back in March, the manual on web site around 100 pages. It's really has a lot of features. Have a good hoilday?. Terry
    terry l  Dec 18, 2018
    A
    Yes if it is compatible meaning if will unplug from your factory stereo and has the end to plug into the pioneer
    kenneth  Dec 18, 2018
    Q
    Is Waze supported on this unit with Apple CarPlay now?
    will  Oct 26, 2018
    4 answers
    A
    I know it works with my android but dont knoe if apple carplay sorry
    juan  Oct 26, 2018
    A
    Waze on Apple CarPlay requires iOS update 12. This unit is compatible with Apple CarPlay, so as long as your iPhone used iOS 12 you should be good.
    zanoni  Oct 26, 2018
    A
    Yes. But, the voice search does not work yet. So, if it's a frequent search you can find it in the destination menu but there's no way (that I found) to enter a new destination. But that's simply going to the iPhone app and enter it there and start the route there. It then also appears on the receiver.
    klaus-michael  Oct 26, 2018
    A
    I don't know. I use Android
    ken  Oct 26, 2018
    Q
    Can you listen to the radio while using CarPlay for navigation?
    michael  Oct 25, 2018
    6 answers
    A
    Yes you sure can, I do it all the time. I use Android auto but they work similarly, you can shift back and forth (between the audio source and Android auto/Carplay) with the push of a button. I'm very happy with this unit.
    anthony  Oct 26, 2018
    A
    I get poor radio reception in my Jetta with this head unit, and use TuneIn internet radio instead. That works well with CarPlay.
    adam  Oct 25, 2018
    A
    Yes, all music sources are available when using car play
    bryan  Oct 25, 2018
    A
    Yes you can listen to music while using navigation
    luis  Oct 25, 2018
    A
    Yes. You can use the radio,bluetooth and cds just not the ub as it is use for the car play
    chris  Oct 25, 2018
    A
    Yes you can. When each new direction comes on, the music stops long enough to give directions, and then resumes when it's finished.
    jonathan  Oct 25, 2018
    Q
    Does this unit send power to the back up camera ?
    bryan  Oct 12, 2018
    3 answers
    A
    In my fit i hooked the cameras power to my reverse light and it auto detects when the camera has power and swaps to display camera automatically.
    coty  Jan 10, 2019
    A
    No. The camera is either always on or powered by the reverse lights, depending on your set up.
    jason  Oct 16, 2018
    A
    Most if not all head unit just enables your camera acting as a switch to turn on display. Camera is usually powered by your accessories or some wire the to the reverse light. Rear camera has video, power wire and ground wire. Hope this helps.
    fredly  Oct 16, 2018
    Q
    When the vehicle is in reverse, can you switch between the 2 camera inputs?
    eddy  Aug 25, 2018
    1 answer
    A
    The short answer is no. by default the reverse camera is the primary output. however there is a way to toggle between the two camera views.
    correy  Aug 30, 2018
    Q
    Firmware what changes from version Version v8.08 to Version v8.09?
    clay  Aug 20, 2018
    2 answers
    A
    According to the notice (I never got the notice), it states: "This firmware update corrects the display of album cover art when music is played from an iPhone or iPod (iOS 11.3 or later)." I have experienced this issue, so I updated the firmware yesterday. I haven't checked to see if it corrected the issue or not yet.
    jason  Aug 22, 2018
    A
    not sure but upgrade did not do any harm
    sam  Aug 20, 2018
    Q
    What's the difference between avh440nex and avhw4400nex?
    matthew walker  Aug 06, 2018
    2 answers
    A
    I believe the AVHW4400NEX is the one that allows you to use android auto wirelessly, this one you have to plug the phone in via USB to use android auto.
    nathan  Dec 24, 2018
    A
    Thanks for your question. For information on comparing two or more models I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences and help you make the best choice for your system and your budget.
    kristina  Aug 17, 2018 (Staff)
    Q
    Is this an enhanced version of the 1440NEX, where it has all of its features plus a few more, or are some features lost?
    garyk  Jul 09, 2018
    1 answer
    A
    Thanks for your question. For information on comparing two or more models I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences and help you make the best choice for your system and your budget.
    kristina  Jul 12, 2018 (Staff)
    Q
    Using android auto or apple CarPlay, can I use Waze instead of google maps or apple maps?
    dave  Jun 17, 2018
    4 answers
    A
    Can confirm it works now just update ios and waze
    coty  Jan 10, 2019
    A
    Waze and Google Maps are coming to CarPlay end of 2018
    clay  Aug 20, 2018
    A
    I use Andiod Auto on the same head unit and can use either waze or google maps. Google maps is installed by default on Android phones, to use waze it would need to be downloaded and installed on your phone.
    anthony  Jun 18, 2018
    A
    No you can't. When you're in Waze you're basically locked into it. You also can't listen to music while Waze is working - only the radio. This is a huge inconvenience as far as I'm concerned
    austin  Jun 17, 2018
    Q
    AVH-2440NEX. using Android Auto, I own a Samsung S8. What is the charging output in amperage? I rent car and have notice not all Android Auto chargers are the same. Some can keep my phone charged up, while others drain my phone.
    ruben  Jun 08, 2018
    1 answer
    A
    here is a listing of s8 quick charge via wall power draw. note usb 2.0 is 5v at 500 Ma so unless Pioneer setup some power step up on the usb it may be a slow charge a full charge or no charge / drain depending on the usb connection. They do make usb cables like on the go cables where it can take a power input separate from its data line so you can charge faster while playing. I recommend contacting pioneer first before attempting as you dont want to push voltage back to the head unit by mistake. hope this helps.
    coty  Jul 21, 2018
    SHOW MORESHOW LESS

    Loading articles...

    Compare the sound
