About the JL Audio CP110-W0v3
JL quality at a great price
JL quality at a great price
JL Audio built the BassWedge CP110-W0v3 enclosure to make car-rattling bass for a reasonable price, without the need for a ton of power. The enclosure's designed to match the 10" sub loaded into it, so you know you'll get every ounce of performance out of this enclosure.
An excellent combination
The CP110-W0v3 BassWedge contains one 10" W0v3 subwoofer that handles up to 300 watts RMS, and is loaded into a specially built slot-ported enclosure. The enclosure can be placed with the woofer firing downwards, or in typical front or rear firing applications, giving you immense bass regardless of how you place it.
Solid MDF enclosure
JL Audio uses state-of-the-art automated woodworking equipment to fabricate the high-quality MDF enclosure with rugged automotive carpeting, nickel-plated push terminals, and solid internal wiring.
Need an amp for this sub? Check out this Crutchfield-approved bass package.
- slot-ported enclosure with one 10" W0v3 subwoofer
- 5/8" medium density fiberboard construction covered with dark gray carpet
- 4-ohm impedance
- power handling: 75-300 watts RMS (600 watts peak power)
- frequency response: 25-250 Hz
- sensitivity: 84 dB
- 15-5/8"W x 14"H x 17-5/8"D1 x 13-5/8"D2
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # 93264
What's in the box:
- Slot-Ported BassWedge enclosure containing one 10" W0v3-4 Subwoofer
More details on the JL Audio CP110-W0v3
Features & specs
|Woofer Size (inches)||10|
|Speakers Per Box||1|
|Pieces in System||1|
|Second Depth (inches)||13-5/8|
|Connector Type||Spring post|
|Frequency Response||25-250 Hz|
|Power Range (Watts RMS)||300|
|Parts Warranty||2 Years|
|Labor Warranty||2 Years|

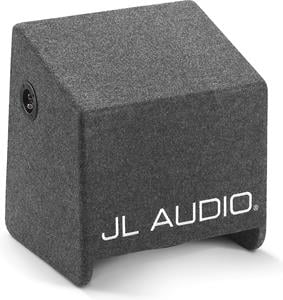

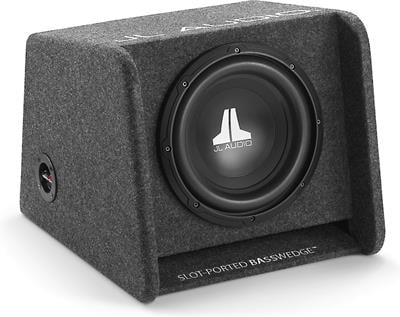

Overview: The JL Audio slot-ported BassWedge subwoofer enclosure is designed around JL Audio's 10" W0v3-4 (4Ω) subwoofer. Aggressive tuning delivers powerful bass without the need for a huge amplifier. The MDF enclosure is covered with gray carpet and has JL AUDIO logos embroidered across the top and front. The enclosure design offers a variety of installation options: forward, rear or down firing. The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer; the port mouth is flared to minimize air-flow noises.
Speaker Terminal: The enclosure uses one pair of nickel-plated, high current spring posts. The posts are located on the left side of the box and will accept pin connectors, single or dual banana plugs, or bare wire up to 10 gauge.
W0v3 Woofer Features:
- Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the 10W0v3-4 motor displays linear force over a long excursion range, and also maintains a stable fixed magnetic field in the gap over a wide power range. The result is a reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
- Elevated Frame Cooling: The elevated frame design of the 10W0v3-4 delivers cool air through slots directly above the top plate to the voice coil. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
- Rear Gasket: The woofer has a rear gasket to provide an optimal seal when installing into the enclosure.
- Long Excursion: The subwoofer has an Xmax of 11.4mm, giving you louder bass with less distortion.
Optional Grille: The optional SGRU-10 grille (item number 136SGR1031, sold separately) can be added to protect the woofer cone.
Dimensions: The CP110-W0v3 enclosure isn't symmetrical; it's approximately 15-5/8" wide, 14" tall at its tallest point (toward the front), 12" tall at its shortest point (toward the back), 17-5/8" deep at the base, and 13-5/8" deep at the top.
