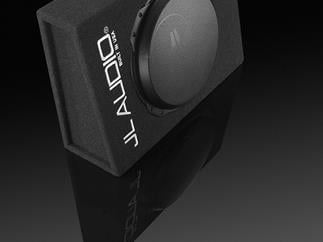

JL Audio CS112TG-TW3

Sealed PowerWedge™ truck-style enclosure with one 12" TW3 subwoofer

Item # 136112TGW3

The PowerWedge CS112TG-TW3 truck-style enclosure pumps out signature JL Audio bass from a small sealed box.

The PowerWedge CS112TG-TW3 truck-style enclosure pumps out signature JL Audio bass from a small sealed box.

Item # 136112TGW3

In stock
C$719.99

About the JL Audio CS112TG-TW3

JL Audio Built In USAJL Audio quality in a thin package

The PowerWedge CS112TG-TW3 truck-style enclosure pumps out signature JL Audio bass from a small sealed box. Install it anywhere that you might have a little room, like behind a seat or in the trunk, add an amp, and enjoy the extra depth that good bass will add to your system.

JL Audio Built In USA JL Audio quality in a thin package

The PowerWedge CS112TG-TW3 truck-style enclosure pumps out signature JL Audio bass from a small sealed box. Install it anywhere that you might have a little room, like behind a seat or in the trunk, add an amp, and enjoy the extra depth that good bass will add to your system.

Immense bass

JL Audio used their extensive engineering know-how to build a super-thin TW3 subwoofer that offers big performance. This PowerWedge handles up to 400 watts RMS, housing one 12" TW3 subwoofer that pounds out impressive low end. The enclosure is matched to the sub for optimum output, and the airtight sealed design delivers powerful, accurate bass.

JL Audio PowerWedgeCS112TG-TW3 Single 12" 2 Ohm Sealed Truck Sub

JL Audio made this sub to go behind a truck seat and deliver big bass.

Solid MDF enclosure

JL Audio uses state-of-the-art automated woodworking equipment to fabricate the high-quality MDF enclosure, then finishes it with rugged automotive carpeting, nickel-plated push terminals, and solid internal wiring. The enclosure is inspected by hand at the manufacturing facility in Florida to ensure that you get the bass that you expect from JL Audio.

READ LESS

Product highlights:

  • sealed enclosure with one 12" TW3 subwoofer
  • 5/8" medium density fiberboard construction covered with black carpet
  • steel-mesh grille
  • 2-ohm total impedance
  • power handling: 125-400 watts RMS
  • frequency response: 22-200 Hz
  • sensitivity: 82 dB
  • 21-1/4"W x 14-5/8"H x 4-1/2"D1 x 7"D2 (without grille)
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # 93303

What's in the box:

  • CS112TG-TW3 Sealed subwoofer enclosure (loaded with one 12TW3-D4 woofer)
  • Black metal grille (installed)
  • Warranty information

Customer reviews

Loading reviews...

JL Audio CS112TG-TW3 reviews

Average review:

21 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the JL Audio CS112TG-TW3

Pat M.

Features & specs

General
Woofer Size (inches) 12
Speakers Per Box 1
Woofer Material Mica-filled Poly
Enclosure Type Sealed
Color Black
Pieces in System 1
Width (inches) 21-1/4
Height (inches) 14-5/8
Depth (inches) 7-3/4
Second Depth (inches) 4-1/2
Connector Type 5-way post
Frequency Response 22-200 Hz
Power Range (Watts RMS) 400
Maximum Wattage 800
Sensitivity 82 dB
Impedance 2 ohms
Parts Warranty 2 Years
Labor Warranty 2 Years

Product Research

Features

Overview: The CS112TG-TW3 PowerWedge subwoofer system is a compact bass solution for vehicles with limited space. This sealed enclosure is loaded with one 12TW3-D4 subwoofer. The sub's dual 4Ω voice coils are internally wired in parallel to present a 2Ω final impedance.

Enclosure Design: The enclosure features top-quality MDF (medium-density fiberboard), constructed using state-of-the-art CNC woodworking equipment, and covered with high-grade automotive carpeting. The driver is protected by a black steel-mesh grille. One pair of 5-way binding posts is on the left side of the enclosure.

Dimensions:

  • Width: 21-1/4"
  • Height: 14-5/8"
  • Depth:
    • 4-1/2" (at the top)
    • 7" (at the bottom)
    • 7-3/4" (including grille)

Loading accessories...

Customer Q&A

4 questions already asked

Q
Will this fit 2012 Silverado 1500 crew cab under the back seat? Thanks
[ Otroman5  Jul 18, 2020 ]
1 answer
A
We do not have the measurements of the space under the seat to check if it can fit. I wish I had different news for you there. We do have the measurements of this box on its page should you get the measurements of the space under that back seat
[ Paul  Aug 04, 2020 ]  Staff
Q
If I'm hooking this sub up to a JX 500/1D amp, what power wire gauge and speaker wire gauge should I be using?
[ Jon  Jan 22, 2020 ]
1 answer
A
4 gauge, as it's the largest that the amp's power and ground terminals will accept.
[ David  Feb 19, 2020 ]
Q
Will this fit under a 2015 Silverado Crew Cab sear?
[ Lklynch  Nov 11, 2017 ]
3 answers
A
How much clearance do you have? It easily fits under my 2013 Nissan Titan Crew back seat. With a little room to spare as well. If it fits, it's a great sub.
[ Bret  Nov 12, 2017 ]
A
Very likely. I have mine under the rear seat of my 2012 silver 2500HD and it fits perfectly.
[ David  Nov 11, 2017 ]
A
It fits under my 2011 perfectly..I know a 15 and 11 are different body styles..I would check the measurements..thats what I did with mine before I bought it.
[ Phillip  Nov 11, 2017 ]
Q
What is the best amp for this sub and what all do I need in order to hook it up in my truck?
[ Wade  Sep 24, 2014 ]
1 answer
A
Thanks for your question. For information on selecting the best amp for your subs I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
[ Krissy  Sep 25, 2014 ]  Staff
