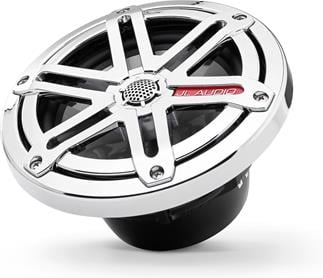

About the JL Audio MX650-CCX-SG-CR
Cool looks, hot sound
Great-looking chrome sport grille
Cool looks, hot sound
Get more out of your maritime music experience with high-performance JL Audio marine audio gear. These MX650-CCX-SG-CR 6-1/2" marine speakers combine durable design and outstanding sound reproduction. You can mount them in your boat's cockpit or bulkhead walls, either as stand-alones or in conjunction with a subwoofer.
The chrome-plated grilles look terrific, of course, but they're also durable enough to survive in harsh marine environments. That's because the plastic grilles are carefully prepped, then coated with four layers of metal substrate before the chrome finish is applied. The result is a deep, rich look that will stand up to sun, sand, and spray.
Made for marine use
These rugged speakers deliver powerful sound that'll cut through the combination of wind, water, and engine noise. The weatherproof cone is suspended in a durable synthetic rubber surround for great sound and long life, and the UV-resistant polymer basket surrounds and protects the entire structure.
The 3/4" treated silk dome tweeters render brilliant highs, and they're mounted directly to the grilles for optimal sound radiation. You'll hear all the details of your music, even when the throttle is forward and you're skimming over the waves.
- 6-1/2" 2-way marine speakers (pair)
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- chrome grilles
- 3/4" silk dome tweeter
- 2-way crossover attached to the woofer basket
- UV- and corrosion-resistant Centrex polymer baskets and grilles
- designed for free-air applications (no enclosures needed)
- power range: 20-60 watts RMS (225 watts peak power)
- frequency response: 55-25,000 Hz
- sensitivity: 89 dB
- top-mount depth: 2-13/16"
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # 91881
What's in the box:
- Two 2-way marine speakers with attached chrome polymer grilles
- 6 Grille logo badges (2 Red/ 2 Blue/ 2 Black)
- Twelve 1-1/8" Stainless-steel self-tapping screws
- 12 Stainless-steel flat washers
- Owner's manual
- Mounting template
More details on the JL Audio MX650-CCX-SG-CR
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||3/4" Dome|
|Woofer Surround||Synthetic Rubber|
|Parts Warranty||2 Years|
|Labor Warranty||2 Years|
89 dB at 1 watt |
|Frequency Response||55 - 25k Hz|
|Max RMS Power Handling||60|
|Peak Power Handling (Watts)||225|
|Top-mount Depth (Inches)||2 13/16|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||5|
Marine Tested: JL Audio's marine speakers are built to exceed industry standards for Salt-Fog and UV exposure. They are exposed to ultraviolet testing chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments. Corrosion and UV-resistant materials are used throughout.
Woofers: The MX650-CCX-SG-CR speakers feature injection-molded, mica-filled polypropylene cone woofers with UV inhibitors, synthetic rubber surrounds, and precisely engineered dust cap profiles for smooth upper-end response. The woofers also use marine-grade synthetic fiber spiders with a progressive roll design to withstand high humidity.
DMA (Dynamic Motor Analysis): DMA is JL Audio's proprietary method of improving dynamic motor behavior. The DMA optimized, long-excursion design enhances output, bass extension, and power handling of the speaker.
Tweeters: The speakers feature 3/4" silk dome tweeters with a specially formulated treatment to withstand UV and salt-spray exposure. The dome tweeter uses a neodymium magnet for higher efficiency levels and is Ferrofluid-cooled and damped for improved response and power handling capabilities.
Crossover: The tweeters use 2nd order (12 dB/oct) crossovers with solid-state tweeter protection to prevent tweeter failure.
Polymer Basket and Grille: The specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
Infinite-Baffle Operation: The speakers are designed for infinite-baffle operation and can be installed in a variety of locations, without the need for a dedicated enclosure. The woofer is optimized to operate with a large volume of air behind it (at least 2 cubic feet); operating in less space will compromise low frequency performance.
