JL Audio MX600/3

Marine/powersports 3-channel amplifier — 75 watts RMS x 2 at 4 ohms + 400 watts RMS x 1 at 2 ohms

Item # 13698409

Few things are more pleasurable than playing loud music while you're out tearing it up off road or on the water.

Few things are more pleasurable than playing loud music while you're out tearing it up off road or on the water.

Item # 13698409

Ships from distributor

Out of Stock
C$619.99
Add to wishlist

About the JL Audio MX600/3

Power your music on water or land

Few things are more pleasurable than playing loud music while you're out tearing it up off road or on the water. JL Audio's MX600/3 compact 3-channel amplifier can send 75 watts RMS each to a pair of speakers, plus 400 watts RMS to a subwoofer, so you'll enjoy your music's clarity, rhythm, and impact over all the noise of you having fun.
JL Audio Built In USA

Power your music on water or land

Few things are more pleasurable than playing loud music while you're out tearing it up off road or on the water. JL Audio's MX600/3 compact 3-channel amplifier can send 75 watts RMS each to a pair of speakers, plus 400 watts RMS to a subwoofer, so you'll enjoy your music's clarity, rhythm, and impact over all the noise of you having fun.

Weatherproof

The MX600/3 comes equipped to overcome the dangers of weather, dirt, and corrosion, thanks to a tough aluminum chassis with gasketed control and connection covers. And you won't have to worry about getting caught in the rain — this amp carries a full IPX7 rating against water intrusion, so it'll play on through a storm. (It can survive being 39" underwater for up to 30 minutes.)

Compact technology

JL Audio's NexD™ Class D amp technology delivers full-range power efficiently and with low distortion. You'll get remarkable sound quality from an amp that fits into the kind of tight spots often found in marine applications. It's also ideal for your motorcycle, ATV, golf cart, tractor, or any other vehicle using a 12-volt charging system.

READ LESS

Product highlights:

  • marine/powersports 3-channel amplifier
  • 75 watts RMS x 2 + 250 watts RMS x 1 at 4 ohms
  • 100 watts RMS x 2 + 400 watts RMS x 1 at 2 ohms
  • 200 watts RMS x 1 bridged at 4 ohms + 300 watts RMS x 1 at 3 ohms
  • Class D amplifier design with NextD™ switching amp technology
  • front channels: variable high-pass filter (35-300 Hz, 12 dB/octave)
  • subwoofer channel:
    • variable low-pass filter (40-400 Hz, 24 dB/octave)
    • variable subsonic filter (20-40 Hz, 12 dB/octave)
    • variable bass boost (0-12 dB at 43 Hz)
    • polarity switch: 0-180°
  • corrosion-resistant cast aluminum chassis — IPX7 water-resistance rating
Connection Features:
  • differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • preamp inputs and outputs
  • speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
  • 9-3/8"W x 1-13/16"H x 4-1/2"D
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # 98409
KEEP READINGREAD LESS

What's in the box:

  • 3-Channel marine amplifier with 12" power/signal pigtails
  • 4 Self-tapping screws (1" length)
  • Owner's Manual

Customer reviews

Loading reviews...

JL Audio MX600/3 reviews

Average review:

4 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

C6 Corvette Convertible

Gary from Phoenix , Arizona on 5/28/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

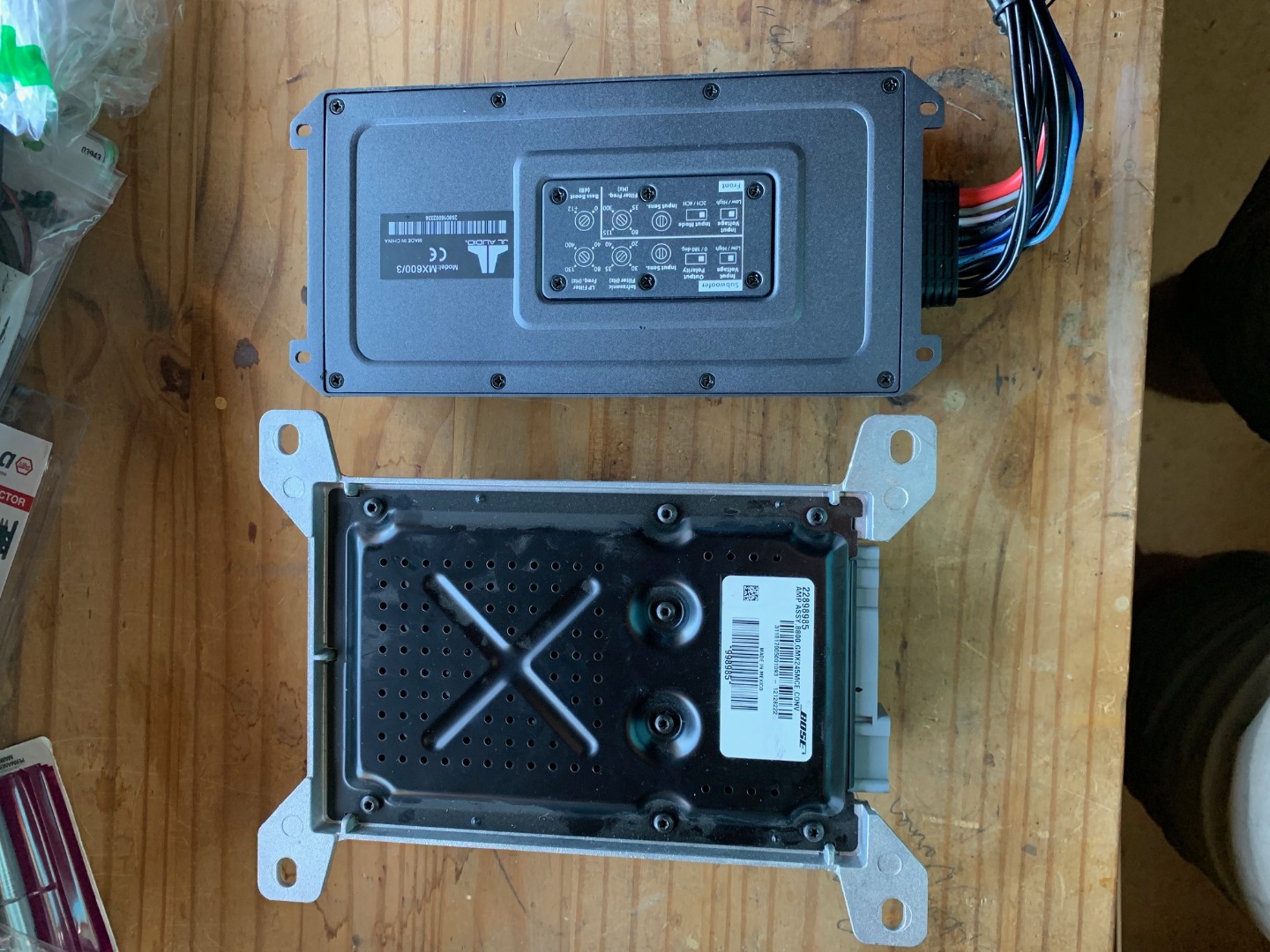

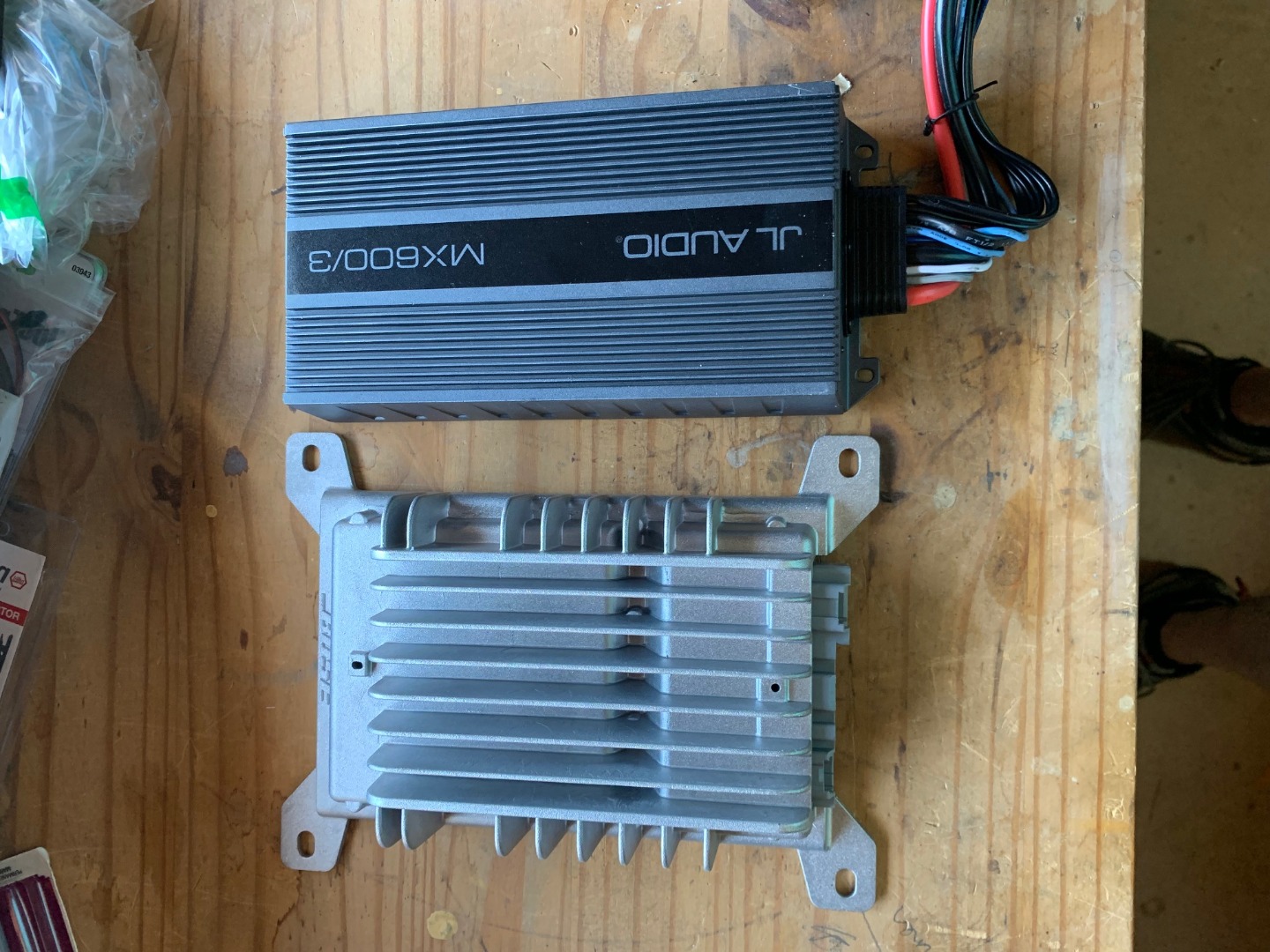

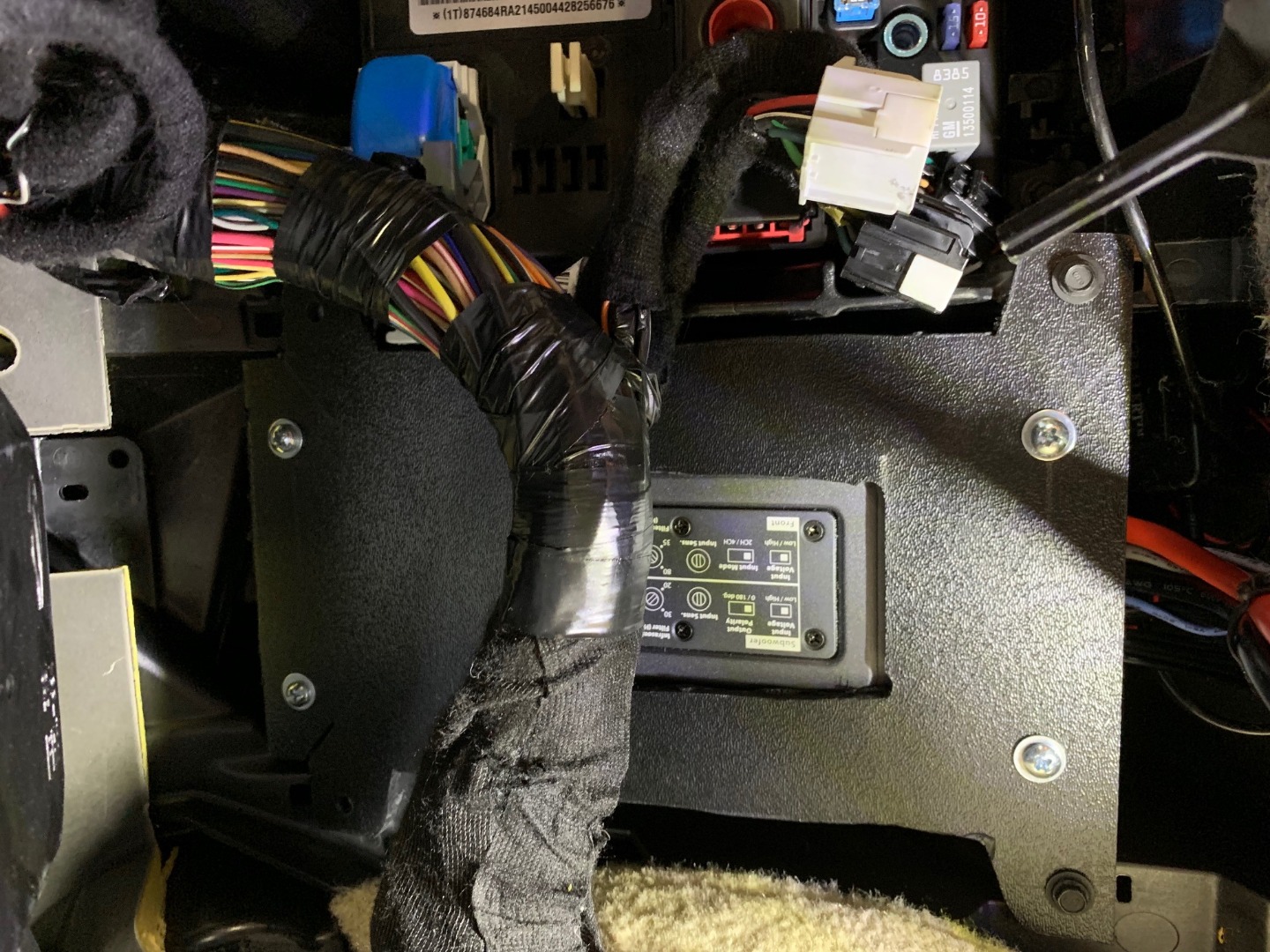

I am installing this in a 2013 C6 corvette convertible. It is installed in the factory Bose amp location under the passenger carpet. Traced the Bose amp onto 1/4" abs plastic to make a bracket leaving the upper end a little longer for the JL MX600/3 to attach to. I then cut a window into the bottom of the bracket so I could make amplifier adjustments once it is installed. My other componets are JL, C5 two way components in the doors with the JL Stealthbox 8" subwoofers behind each seat. The project is not completed yet but is going nicely and I am very pleased with the versatility in mounting the MX600 amp.

Pros:

Cons:

Crutchfield response on
Customer review photo Customer review photo Customer review photo

0 of 0 found this helpful

JL Audio MX600/3

Crutchfield customer from Snohomish, WA on 5/8/2019

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great for utv

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

JL Audio MX600/3

Crutchfield customer from New Iberia, LA on 12/13/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Great product and quick shipping

Pros:

Cons:

Crutchfield response on

0 of 0 found this helpful

JL Audio MX600/3

Jamie from Calhoun, GA on 4/2/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

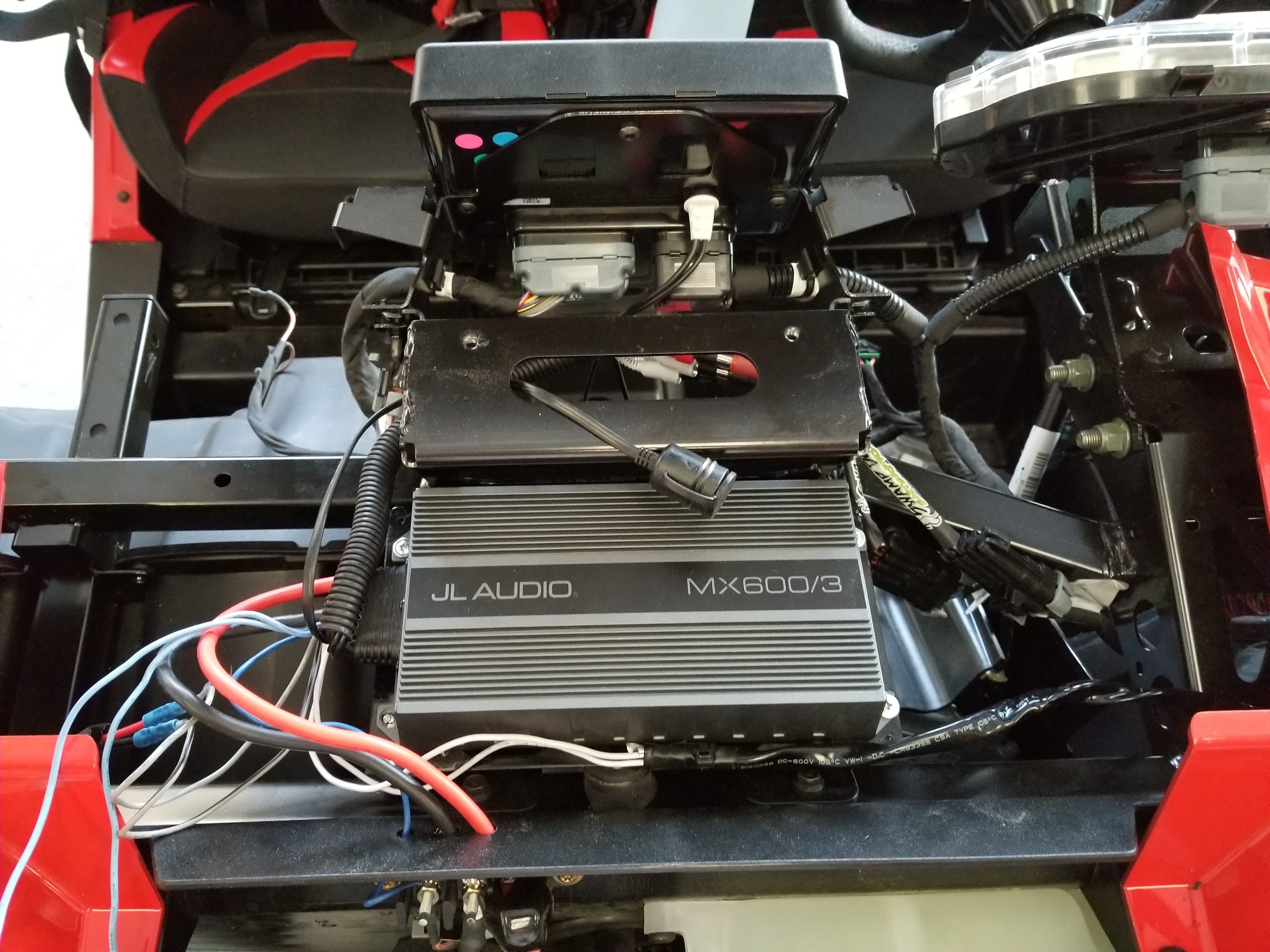

Perfect fit for RZR Turbo S. Powers 10" DVC and pair of 6.5" JL's with ease

Pros: Compact and loads of power.

Cons: Adjustments on the bottom of the amp.

Crutchfield response on
Customer review photo

0 of 0 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the JL Audio MX600/3

Mark G.

Product Research

Features
Controls
Connections

Features

3-Channel Amplifier: The JL Audio MX600/3 compact 3-channel Class D marine amplifier is designed for the harsh marine environment. Its IPX7 water-resistance rating (immersion up to 1 meter for up to 30 minutes) also makes it ideal for motorcycles, ATVs, or other utility vehicles. It can be used to drive a pair of full-range speakers and one (or two) subwoofers. You can also bridge the full-range channels to drive a second sub.

NexD Switching Technology: The MX600/3 employs an advanced, high-speed Class D switching design called NexD that allows the amp to produce serious power without overtaxing the battery and charging system.

Amplifier Ratings:

  • Rated Continuous (RMS) Power @ 14.4 V (<1% THD+N):
    • 75 watts RMS x 2 + 250 watts RMS x 1 @ 4 Ω
    • 100 watts RMS x 2 + 400 watts RMS x 1 @ 2 Ω
    • 200 watts RMS x 1 @ 4 Ω bridged (main channels)
    • 300 watts RMS x 1 @ 3 Ω (sub channel)
  • Rated Continuous (RMS) Power @ 12.5V (<1% THD+N):
    • 50 watts RMS x 2 + 200 watts RMS x 1 @ 4 Ω
    • 80 watts RMS x 2 + 300 watts RMS x 1 @ 2 Ω
    • 160 watts RMS x 1 @ 4 Ω bridged (main channels)
    • 250 watts RMS x 1 @ 3 Ω (sub channel)

Input Section: The MX600/3's input section accepts a wide range of input voltage levels. It can accept a line-level signal from 250 mV to 4 Volts, or speaker-level signals from 580 mV to 14 Volts. The amp is equipped with separate Input Voltage switches for the front and subwoofer channel that allows you to choose Low or High level input signals.

Protection Circuitry: The MX600/3's protection circuitry automatically shuts the amplifier down if thermal limits are exceeded, a short-circuit is detected in the speaker wiring, or if voltage or current levels are too high. The green Power LED and red Protect LED will indicate conditions by its on/off or flashing status.

Controls

Control Panel: The amplifier's control panel is located on the bottom of the amplifier. The removable cover is held in place by six Phillips-head screws, and features a rubber gasket that seals out moisture and dust. You will need a small flat screwdriver to set the five switches and four rotary dials. The Control Panel is divided into separate Front and Subwoofer sections. The following controls are located in the Control Panel:

  • Front Section: The two full-range channels have the following controls:
    • Input Voltage: You can select the type of input signal being used: High Level (speaker) or Low Level (line).
    • Input Mode: The Input Mode switch lets you select how the signal to the front and subwoofer channels is connected. If "2CH" is selected, all 3 channels are fed the signal from a single stereo input. If "4CH" is selected, the front channels receive the signal connected to the front RCAs, while the subwoofer channel gets its signal from the Sub RCAs.
    • Input Sensitivity: The Input Sensitivity Control is a rotary dial that lets you match your source unit's output voltage to the input stage of the amplifier for maximum clean output.
    • Filter Frequency: The front channels have a non-defeatable High-pass Filter (HPF) with a variable cutoff frequency. The rotary dial lets you set the frequency between 35 Hz and 300 Hz. The HPF has a slope of 12dB/Octave.
  • Subwoofer Section: The subwoofer channel features the following controls:
    • Input Voltage: You can select the type of input signal being used: High Level (speaker) or Low Level (line).
    • Output Polarity: You can switch the polarity of the subwoofer output from 0° to 180°.
    • Input Sensitivity: The Input Sensitivity Control is a rotary dial that lets you match your source unit's output voltage to the input stage of the amplifier for maximum clean output.
    • Infrasonic Filter: The Infrasonic Filter is a high-pass filter that lets you filter out extremely low frequencies that many subwoofers cannot cleanly reproduce. This prevents possible speaker damage and wasted power. The Infrasonic Filter can be set between 20 Hz and 40 Hz, and has a slope of 12dB/Octave.
    • LP Filter Frequency: The subwoofer channel has a Low-pass filter that is continuously variable from 40 Hz to 400 Hz, with detents at 80 Hz and 130 Hz. The HP/LP filter has a slope of 24dB/Octave.
    • Bass Boost: The amp features a variable Bass Boost circuit that lets you raise the level of the bass by up to +12dB. The center frequency of the Bass Boost is 43 Hz.

Remote Bass Controller: The amplifier's subwoofer output level can be controlled from the front the vessel/vehicle using an optional remote level controller. For marine installations, or for installations that may be exposed to moisture, the optional M-RBC-1 is recommended. For standard installations (not exposed to moisture), the RBC-1 can be used. Both controllers have a 16.5-foot cable with an RJ14 plug that matches the remote level controller jack on the amplifier.

Connections

Wiring: The MX600/3's wiring is internally connected and exits the amp through a waterproof opening. The following connections can be found, each with 12" pigtails:

  • Power: The power wire coming out of the amp is a single 8-gauge wire. JL Audio recommends a minimum of 4-gauge wiring for the power wiring. Since there is no fuse installed in the amplifier or on the power wire, you will need to install an appropriate fuse holder with a 50A fuse. Another fuse should be connected to the power wire within 18" of the battery.
  • Ground: An 8-gauge ground wire is connected to the amplifier. A minimum of 4-gauge wiring is recommended for the ground wire. You may need a ground distribution block to splice the ground wires together.
  • Remote Turn-On: A 16-gauge remote turn-on wire is connected to the amp. You should connect the turn-on lead to the remote turn-on output of your source unit. If the source unit does not have a dedicated remote turn-on output, the amp's turn-on lead can be connected to +12V via a switch that derives power from an ignition-switched circuit. Note: The amp does not have an audio signal-sensing turn-on, so the remote turn-on lead must be connected.
  • Signal Inputs: Four female RCA jacks are provided for the input signal--Front and Subwoofer channels. If the source unit does not offer preamp level outputs, you can splice the speaker output wires to a pair of RCA plugs, or use the JL Audio XD-CLRAIC2-SW RCA-to-Speaker Wire Adapter. The amp's RCA connectors have waterproof caps.
  • Speaker Outputs: Six 16-gauge speaker wires are provided on the amplifier for connecting to the wiring to your full-range speakers and subwoofer.
  • Remote:

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Pairs perfectly with 2 JL 6.5's and a 10" W3 [ Stephen  Sep 20, 2018 ]

1 question already asked

Q
Can channels 1 & 2 run at 4 ohm while pushing a sub at 2 ohm?
[ JAMIE  Mar 20, 2018 ]
1 answer
A
Yes. The speakers pair would get up to 75 watts RMS each while the sub would get up to 400 RMS. I hope that helps My bio: https://www.crutchfield.com/bio/Ryan
[ Ryan  Apr 04, 2018 ]  Staff
