JL Audio JX500/1D

Mono subwoofer amplifier — 500 watts RMS x 1 at 2 ohms

Item # 136JX5001D

JL Audio's JX500/1D mono amplifier will power your subwoofer with up to 500 watts RMS, so you can experience...

JL Audio's JX500/1D mono amplifier will power your subwoofer with up to 500 watts RMS, so you can experience...

Top Seller

Item # 136JX5001D

Ships from distributor

In stock

C$399.99 Sale: -C$60.00 off

C$339.99

About the JL Audio JX500/1D

Lots of power from a very small box

JL Audio's JX500/1D mono amplifier will power your subwoofer with up to 500 watts RMS, so you can experience thunderous bass in your music. A variable low-pass filter and bass boost help you tune your sub to fit your system and sound its best. An optional remote level control lets you turn the sub up or down from the front seat.

Lots of power from a very small box

JL Audio's JX500/1D mono amplifier will power your subwoofer with up to 500 watts RMS, so you can experience thunderous bass in your music. A variable low-pass filter and bass boost help you tune your sub to fit your system and sound its best. An optional remote level control lets you turn the sub up or down from the front seat.

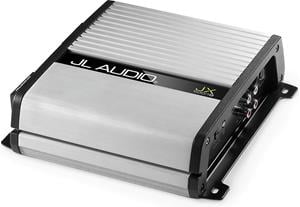

JL Audio's JX500/1D mono subwoofer amplifier

Compact, but beefy

You know you're holding a serious piece of sound equipment when you feel the heft of this tiny JX amp. JL Audio built it with sturdy, high-grade parts that ensure excellent heat management, provide high current flow, and deliver stable performance in almost any situation. You won't find blinking lights or meters on the outside of these amps, but you will find oversized output transistors and rugged MOSFET power supplies inside. The high-mass aluminum heatsink keeps things cool enough to virtually eliminate thermal shut-downs.

Confused about impedance? Check out our article on matching subs and amps.

READ LESS

Product highlights:

  • mono subwoofer amplifier
  • 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
  • Class D amplifier design
  • MOSFET switching power supply
  • frequency response: 10 Hz - 150 Hz
  • variable low-pass filter (50-200 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 45 Hz)
  • optional wired remote level control
  • preamp inputs and outputs
  • speaker-level inputs
  • 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
  • 7-7/8"W x 2-1/8"H x 7-11/16"D
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # 99400

What's in the box:

  • Monoblock subwoofer amplifier
  • 10" Speaker-level harness
  • 4 Mounting screws (M4 x 18mm)
  • 4 Flat washers
  • 2.5mm Allen wrench
  • Owner's Manual (En/ Ger/ Sp/ Fr)

Customer reviews

Loading reviews...

JL Audio JX500/1D reviews

Average review:

87 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

Product Research

Features
Controls
Connections

Features

Monoblock Amplifier: The JL Audio JX500/1D monoblock subwoofer amplifier that has been optimized for low-frequency (10-150 Hz) amplification of connected subwoofers.

Note: The JX500/1D is not designed for driving full-range speakers, midrange drivers, or tweeters.

Class D Amplifier Circuit: The JX500/1D employs an advanced Class D switching design that allows it to produce 500 watts of clean subwoofer power while drawing significantly less current from your electrical system and generating less heat than a conventional Class A/B or Class B design.

MOSFET Switching Power Supply: The JL Audio JX series monoblock amplifier employs a rugged MOSFET power supply for outstanding reliability and operational stability.

Amplifier Ratings:

JX500/1D Amplifier Specifications Ohms Watts
Rated Continuous (RMS) Power @ 14.4V
(10-150Hz, 90dB S/N, 1% THD+N)
300
400
500
Rated Continuous (RMS) Power @ 12.5V
(10-150Hz, 90dB S/N, 1% THD+N)
235
300
410

High-Mass Heat Sink: A heavy extruded aluminum heat sink is designed to keep the JL Audio JX series amplifier in a comfortable thermal range during demanding operation. This high-mass, extruded heat sink removes heat from the amplifier circuitry, extending high-power operation. This improves reliability and reduces the frequency of thermally related shut-down event.

Protection Circuitry: The JX500/1D's protection circuitry automatically shuts the amplifier down if thermal limits are exceeded, a short-circuit is detected in the speaker wiring, or if low supply voltage limits are reached.

Status Indicator Lights: There are two status indicator lights on the right side of the amplifier.

  • Power (Green): This LED lights green to indicate that the amplifier is turned on and operating normally.
  • Protect (Red): The Protection LED lights red to indicate the amplifier's protection circuitry has been activated to prevent product failure due to thermal overload, a short-circuit, or a dangerously low impedance connected to the amplifier's outputs.

Controls

Input Sensitivity: The Input Sensitivity Control is used to match your source unit's output voltage to the input stage of the amplifier for maximum clean output:

  • Low-Level Input Range: 200mV-4V (RMS)
  • High-Level Input Range: 2V-10V (RMS)

Low Pass Crossover: The JL Audio JX500/1D monoblock amplifier is equipped with a 12dB/octave Butterworth low-pass filter with variable frequency selection from 50 to 200Hz.

Bass Boost: The amplifier is equipped with a variable 0 to +12dB, 45Hz Bass Boost.

Remote Level Control: The JX500/1D is equipped with an RJ-25 connection for an optional wired RBC-1 Remote Level Control (sold separately) that allows volume level adjustment of the amplifier from the front of your vehicle.

Connections

Power/Ground/Turn-On Terminals: The monoblock amplifier features set-screw terminals for the power, ground, and remote turn-on connections. A 2.5mm hex-wrench is supplied for tightening/loosening the set-screws.

  • Power and Ground: The JL Audio amplifier's set-screw Power and Ground connections are designed to accept 8 to 4 AWG power wire.
  • Remote Turn-On: The JL Audio JX series amplifier's set-screw turn-on lead will accept 18 to 8 AWG  wire.
Note: The amplifier is not equipped with a fuse. An external 50-amp AFS, AGU, or MAXI fuse (not included) must be installed on the power wire. If a wiring kit is used which includes a fuse with a value other than 50-amps, the original should be replaced with a 50-amp fuse.

Speaker Output Terminals: The JL Audio JX500/1D features four set-screw speaker terminals for an easy parallel subwoofer connection. The monoblock amplifier's four set-screw speaker terminals will accept 16 to 8 AWG speaker wire. A 2.5mm hex-wrench is supplied for tightening/loosening the set-screws.

Preamp Inputs: The monoblock amplifier features one set of stereo RCA input jacks. The amplifier features a dedicated Input Sensitivity gain control for these inputs. These controls are designed to match the input sensitivity of the JX500/1D to the specific signal source that is feeding it. The amplifier's low-level input can be set between 200mV-4V RMS.

Speaker Level Inputs: The JL Audio JX500/1D also accepts speaker level signals, including those from factory systems (without the need for a line-output converter), via the supplied 10" speaker-level harness. The amplifier's high-level input can be set between 2V-10V RMS.

Preamp Outputs: The JX500/1D incorporates a pass-through preamp output sections, so that additional amplifiers can easily be connected to the same signal feeding the monoblock amplifier. The preamp output signal is buffered to prevent noise.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Because a have 2 15inch speakers and Alex said that this is the idea item for what I have and I truly believe that she is right. Thanks Alex your the greatest!!!! [ DEMOND  Nov 05, 2019 ]
A
Wanted something that could get me as close to the recommended rms of the sub without breaking the bank. This seems to be one of the highly recommended pairings for it. [ Ira  Aug 13, 2019 ]
A
Suggested amp by JL for most of their 10"and 12" built sub boxes [ Keith  Jul 30, 2019 ]
A
The JL Audio JX500/1D has a small foot print, and has the specs that matches the sub/setup that l'm looking for. It also matches my other amps in the JX family. [ SHAWN  Feb 20, 2019 ]
A
To power my JL 10" W3v3 subwoofer In my JL audio stealth box for my 07 Honda element [ Mike  Feb 19, 2019 ]
A
Great reviews and pictures helped in my decision. [ Amy  Feb 06, 2019 ]
A
Came with the sub [ Tony  Jan 22, 2019 ]
A
Perfect for my speaker [ Brock  Jan 20, 2019 ]
A
Good brand and was paired to my sub by crutchfield's experts. [ Wigberto  Dec 19, 2018 ]
A
Seemed like a reasonable price to test out what I want [ Dannie  Dec 02, 2018 ]
A
JL Rules and matches my new Subs at the right watts [ Ernest  Oct 15, 2018 ]
A
Advice from sale team. [ Kevin  Sep 27, 2018 ]
A
Got the 12" JL Audio Stealth box for 2016 Mustang GT, and this is the amp match for the sub [ S  Sep 26, 2018 ]
A
Quality products, excellent prices [ CODY  Aug 29, 2018 ]
A
It will be powering a JL Audio 10" sealed sub box. I like to use component from the same brand when possible. [ Jose  Aug 29, 2018 ]
A
JL Audio makes good stuff. [ Marlon  Aug 08, 2018 ]
A
JL Audio quality that fits my budget. Perfect rating for sealed sub. [ ANTONIO  Jul 26, 2018 ]
A
This was recommend to me crutchfield [ Joseph  Jun 02, 2018 ]
A
Looking to add more power to my system and this fits the bill. JL for the win. [ Nicholas  May 05, 2018 ]
A
Value [ Jason  Apr 26, 2018 ]
A
Suggested by tech [ TIMOTHY  Apr 22, 2018 ]
A
Appears to be suitable to power 1 12" JL sub woofer in Honda Civic LX 4DR [ charles  Feb 26, 2018 ]
A
I HAVE JX250/1D AND NEED MORE POWER [ juan  Feb 18, 2018 ]
A

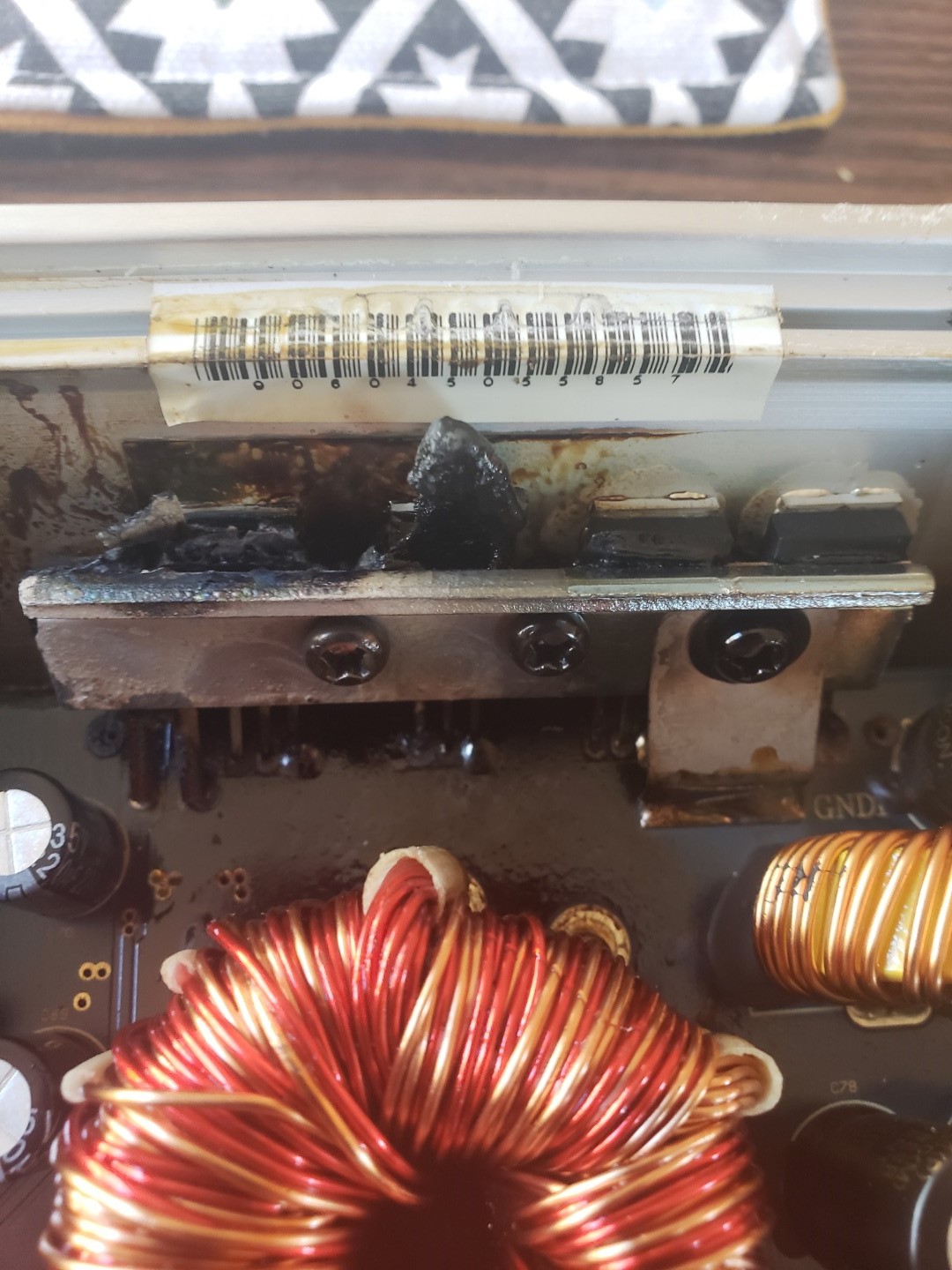

Had one, but it short circuited. [ Michael  Jan 11, 2018 ]
