About the Kicker VSS™ SubStage™ SF150S09
Custom-built bass for your vehicle
Custom-built bass for your vehicle
Are you disappointed with the level of bass your factory system provides, but don't like the idea of installing a universal subwoofer and wiring kit? The VSS SubStage powered subs by Kicker are made to fit in specific vehicles, so you get harnesses that connect to your factory wiring, and a sub that's made to mount where your particular vehicle has space. Each system comes with vehicle-specific instructions that guide you every step of the way. The package also includes all of the wiring and hardware you need to complete the installation — that means no running to the hardware store to find a part that you didn't know you'd need.
Ready to rumble
The SubStage doesn't skimp on power and performance — it comes equipped with a 10" sub powered by a perfectly matched 200-watt amp, all housed in a custom enclosure that's optimized for sound quality. You'll look forward to rumbling lows that can play back the biggest digital drum beat yet also deliver the low-frequency subtleties of a standup bass. Kicker's earned their reputation for making subs that crank out bass you can feel and the SubStage is no exception.
The SubStage SF150S09 fits the 2009-up Ford F-150 Super Cab, and the subwoofer installs under the driver's side of the rear seat. This kit will not install in 2009-10 models with the Sony factory audio system. It connects to the factory stereo via two wire taps for signal, and attaches to the battery for power. Please identify your car before purchasing to make sure it'll work with this package, or you can call one of our Advisors at 1-888-955-6000 to confirm fit.
- custom-fit powered subwoofer
- enclosure mounts under the rear seat on the driver's side
- molded plastic enclosure
- 10" woofer
- built-in amplifier (200 watts RMS)
- includes instructions for your F-150 and all installation parts
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # SF150S09
What's in the box:
- Subwoofer assembly (enclosure/ 10" subwoofer/ amplifier)
- 11' Wiring harness
- 8.5' Power harness (with in-line fuse holder)
- Three M8x35mm Bolts with flat washers attached
- Three M6x25mm Bolts with flat washers attached
- Three M8 Nut inserts
- Three M6 Speed clips
- 2 Wire taps
- 5" Adapter harness (speaker-level input)
- 15 amp mini blade fuse
- Six 6" Zip ties
- 3 Adhesive backed covers
- Installation instructions
- Warranty information
More details on the Kicker VSS™ SubStage™ SF150S09
Overview: Kicker's SoundGate SubStage factory audio upgrade kits are designed to fit in specific year/make/model vehicles. The SF150S09 is compatible with select 2009 and later Ford Supercab pickups (please confirm fit with the Crutchfield vehicle selector). Included with the system are a 10" subwoofer in a custom enclosure, subwoofer amp, and all the necessary cables to power the amplifier and connect to the factory radio.
Subwoofer: The custom enclosure is loaded with a single 10" Kicker subwoofer, powered by a 200-watt amplifier mounted to the enclosure. The included adapter harness taps into the factory wiring (for subwoofer signal input) behind the driver's side kick panel and the power cable is connected to the fuse box in the engine compartment. Specific wire routing instructions are included, as is all necessary mounting hardware.

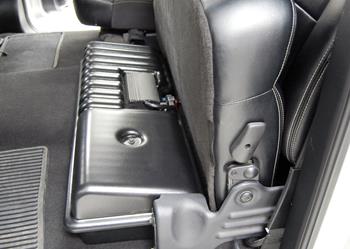

Note: The subwoofer is mounted under the rear seat on the driver's side, so the jack and tool bag are relocated to the passenger's side. The hardware to relocate the jack is included, but a nut insert tool is also necessary (and not included).
Electrical System: The amplifier is designed to have minimum impact on the truck's charging system.
Dimensions: The listed dimensions do not include the mounting brackets (regardless of these measurements, the subwoofer enclosure is custom built to fit under the rear seat):
- Width: 32"
- Height: 6-3/4"
- Depth: 12-1/2"
