About the Morel Supremo 602
Morel's flagship speaker system

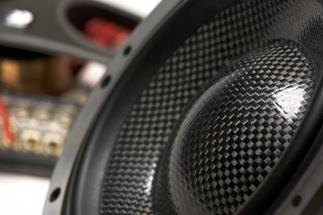

Morel uses an incredibly sturdy one-piece carbon fiber woofer cone
Morel's flagship speaker system
If you're looking for the best, why not go with the best of the best? The Supremo 602 6-1/2" component speakers, Morel's flagship system, offer a shining example of what can happen when a passion for superb sound meets the latest speaker technology. Morel makes every component in this system by hand and tests them to meet their premium standards.
The fat lady sings
This component speaker system takes full advantage of Morel's very best speaker technology. A version of Morel's famous "fat lady" mid-bass driver, the 6-1/2" Supremo woofer uses a sturdy yet responsive one-piece carbon fiber cone to deliver incredibly accurate and inspiring performance. And the innovation doesn't stop there — External Voice Coil (EVC™) technology maximizes voice coil size in these speakers for better heat dispersion and efficient performance.
Supreme Piccolo tweeter
Morel delivers the high frequencies with their Supreme Piccolo tweeter, a durable 1.1" silk soft dome tweeter that's coated in Morel's one-of-a-kind Acuflex™ compound to enhance damping for a cleaner, more natural sound. A perfect sonic match for the Supremo woofer, the tweeter comes with an elegant 2-5/8" aluminum faceplate to help with installation.
140 watts RMS
You can take advantage of every bit of this system's 140-watt RMS power rating, knowing that the system will perform flawlessly at high volume levels. Morel includes their latest MXR crossovers, engineered to integrate the woofer and tweeter perfectly for an incredible stereo image. Three levels of tweeter control let you dial in the sound to your car's environment. If you don't like anything getting between you and your music, this system will deliver the most natural, uncolored stereo image this side of the real thing.
- 6-1/2" component speaker system
- includes two woofers, two tweeters, and two crossover networks
- one-piece carbon fiber woofer cone with butyl rubber surround
- cast aluminum woofer basket
- 1-1/8" Acuflex coated dome silk tweeter
- external crossover with 3 tweeter level settings
- handles up to 140 watts RMS (600 watts peak power)
- frequency response: 30-25,000 Hz
- sensitivity: 89 dB at 2.83 V
- woofer mounting depth: 2-1/2"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 350536-300
What's in the box:
- 2 Woofers
- 2 Tweeters (with attached 9" length of speaker wire)
- 2 Crossovers
- 2 Lotus woofer grilles
- 2 Lotus tweeter grilles (installed)
- 2mm Allen wrench
- Eight 1-1/4" Screws
- Twelve 3/4" Screws
- 14 Speed clips
- Grille putty
- Four 0.25" Crimp-on female quick slides
- Four 0.110" Crimp-on female quick slides
- User guide
- Morel window sticker
- Genuine product verification instructions
- Tweeter "Birth Certificate" measurement verification
More details on the Morel Supremo 602
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||28mm Dome|
|Woofer Composition||Carbon/Rohacell Sandwich|
|Woofer Surround||Butyl Rubber|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||89|
|Frequency Response||30 - 25k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||140|
|Peak Power Handling (Watts)||600|
|Top-mount Depth (Inches)||2 1/2|
|Bottom-mount Depth (Inches)||2 11/16|
|Cutout Diameter or Length (inches)||5 5/8|
|Mounting Height (Inches)||0.415|
Woofer Size Classification Note: Some manufacturers, including Morel, call this size woofer a 6-1/2". Because it requires a larger cutout than a standard 6-1/2" speaker, Crutchfield has traditionally referred to this size woofer as a 6-3/4". Please enter your vehicle information to confirm fit.
Enclosure: If the woofer is mounted in an enclosure, Morel recommends a 0.14 ft³ sealed enclosure (0.11 ft³ to 0.35 ft³ is acceptable) or a 0.35 ft³ ported enclosure tuned to 65 Hz.
Tweeter Mounting: The tweeter is designed to be flush mounted; it is built on a flush mount frame. The dome is very delicate, so the mesh grille should always be used.
Crossover: The outboard crossovers' inputs and outputs are set screw terminals; they will accept bare wire up to 10-gauge. The crossover point is 2.2 kHz and the slope is 24 dB/octave. A jumper inside each crossover allows you to adjust the tweeter output level; choose -2 dB, 0 dB, or +2 dB. Each crossover has bi-amp inputs, one input for the tweeter and one for the woofer. When bi-amping the speakers, the input jumper wires need to be removed. Using four amplifier channels to bi-amp speaker typically improves the dynamic range and presents an easier load for the amp(s) to drive.
- Width: 6.885"
- Height: 1.875"
- Depth: 5.205"
