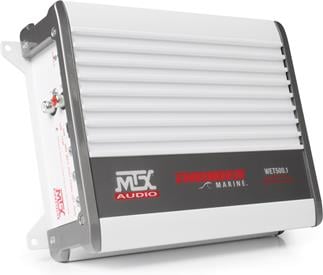

About the MTX WET500.1
MTX gets WET
MTX gets WET
MTX brings their years of land-based experience to the water with their WET Series marine components. Based on their Thunder Series amps, the WET500.1 mono amplifier is designed to power a subwoofer under seriously adverse conditions. Its weather-resistant features include a conformal coated circuit board, stainless steel hardware, rubber gaskets around the RCA connectors, and plastic control covers to keep moisture from getting to the amplifier. The 500.1 also features MTX's surface mount technology, which attaches critical components directly to the circuit board to minimize the effect of vibration.
This MTX mono amp will give you great bass in your boat for many years.
Power and control
Behind the weatherproofing and the construction, you'll find a Class D mono amplifier which delivers 300 watts RMS at 4 ohms, and a whopping 500 watts at 2 ohms — perfect for driving two WET Series subwoofers. The 500.1 features a low-pass crossover variable from 40 to 220 Hz, and a switchable bass boost that'll give your system that extra bit of punch. And MTX made this amp to fit the tight spaces in a boat, with a small footprint that allows it to go almost anywhere and an extruded heat sink that'll keep things cool. It's ready to make waves. Are you?
- mono marine amplifier
- Class-D design
- 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
- variable low-pass crossover: 40-220 Hz at 12 dB per octave
- bass boost control
- conformal-coated circuit board
- weather-resistant construction
- dimensions: 8-15/16"W x 6-3/8"D x 2-1/4"H
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # WET500.1
What's in the box:
- Mono subwoofer amplifier
- 4mm Allen wrench
- 2mm Allen wrench
- Four 5/8" Stainless steel self-tapping screws
- Owner's manual (English/ Spanish/ Portuguese/ French)
MTX WET500.1 reviews
Solid Amp for my single subwoofer application with a JL Audio M10IB5-CG-WH. The interface is simple to work with and provides plenty of power to send to the subwoofer for clear low tones. Nice to have the MTX remote to control the bass at the helm of the boat as well (even though Crutchfield does not carry it).
Pros: Easy Install, Simple Instructions, hook-ups are tight, perfect amount of power for my application. Mounts easy w/ 4 screws.
Cons: Screws on the cover for the amp gain, LPF, and subsonic are really small so be sure to have a steady hand when taking them off so you don't drop them!
1 of 1 found this helpful
Really like the design and setup of this Sub Amp. Super easy to install and adjust.
Pros: Size, Price, Quality
0 of 1 found this helpful
More details on the MTX WET500.1
Features & specs
|RMS Power Output (Watts x Channels)||300 x 1|
|Frequency Response at Rated RMS Power||---|
|THD at Rated RMS Power||0.3%|
|Signal to Noise Ratio||75 dB|
|Peak Power Output (Watts x Channels)||1000 x 1|
|Power at 2 Ohms (Watts x Channels)||500 x 1|
|Bridged Power (Watts x Channels)||N/A|
|Minimum Impedance Bridged||N/A|
|Minimum Impedance Unbridged||2|
|Low-Pass Crossover Frequency||40-220 Hz|
|Low-Pass Slope (dB/octave)||12 dB/octave|
|High-Pass Crossover Frequency||N/A|
|High-Pass Slope (dB/octave)||N/A|
|Bass Boost||0, 6, 12 dB|
|Bass Boost Frequency||50 Hz|
|Speaker Level Inputs||No|
|Parts Warranty||2 Years|
|Labor Warranty||2 Years|
Overview: The MTX WET500.1 is a mono Class D subwoofer amplifier designed for the harsh marine environment. The amp features a conformal coated PCB, covered controls, rubber gaskets around the RCA inputs, and stainless steel mounting hardware. The output power is 300 watts RMS x 1 at 4Ω and 500 watts RMS x 1 at 2Ω.
Note: The cover over the gain and crossover controls is held in place by two 2.5mm Allen head screws; no 2.5mm Allen wrench is included with the amp.
Gain: The amp's rotary gain control is continuously variable from 200mV to 5V to match the output of the source unit.
Protection Circuits: The WET500.1 provides protection against overheating, under/over voltage, and electrical short circuits.
Crossovers: The amp features a built-in low-pass crossover, with a variable cutoff frequency of 40-220Hz; the crossover cannot be bypassed. Additionally, the amp has a subsonic filter to remove ultra-low frequencies, thus minimizing wasted power and protecting speakers not capable of reproducing those frequencies. It has a variable crossover frequency of 20-50Hz.
Bass Boost: The WET500.1's bass boost circuit is centered at 50 Hz. It can be set to 0dB (flat), +6dB, or +12dB.
Electronic Bass Control (EBC): An Electronic Bass Control (EBC) module is available directly from MTX that allows you to adjust the bass output of the amplifier from a convenient location.
Power Terminals: The WET500.1 features set screw terminals for power, ground and remote turn-on. The power and ground terminals will accommodate up to 4 AWG wire, while the remote turn-on terminal will accept up to 10 AWG wire. The set screws are loosened/tightened with the supplied Allen wrenches. MTX recommends the use of 4 AWG power and ground wires.
Note: The Amplifier is not equipped with an internal fuse. An external 60-amp fuse (not included) must be installed on the power wire. If the system has only this amp and a wiring kit is used that includes a fuse with a value other than 60-amps, the original should be replaced with a 60-amp fuse.
Speaker Connections: The amplifier is equipped with two pair of set screw terminal speaker outputs. The outputs are internally wired in parallel, making it easy to connect two subwoofers. Each terminal will accommodate up to 10 AWG bare wire and is loosened/tightened with the supplied Allen wrench.
EBC Port: The amp has a 3.5mm mini-jack for plugging in an optional Electronic Bass Control (EBC) module, currently available directly from MTX (model MWA040).
