About the Rockford Fosgate P1683
Give your ride some Punch
Give your ride some Punch
Rockford Fosgate showcases their fanatical commitment to sonic excellence in the Punch Series of speakers, amps, and subs. If you like to listen to potent, powerful music — and feel it too — Punch components will give you impressive sound that'll stand out in a crowd.
Rockford Fosgate designed the Punch P1683 6"x8" speakers as a high-grade replacement for your factory speakers. Each speaker features a responsive polypropylene cone and butyl rubber surround that'll stand up to hours of high-volume jams. Rockford Fosgate uses a new technique to attach the surround to the cone that yields up to 25% more cone area, for fuller sound and stronger performance. The dome tweeter and supertweeter provide clear, extended highs that can hold their own when the bass gets heavy.
Grilles are not included; the factory grilles should be suitable for most applications.
- 3-way 6"x8" speakers (pair)
- mineral-filled polypropylene woofer
- butyl rubber surround
- 3/4" and 1/2" polyetherimide (PEI) dome tweeter and supertweeter
- Vertical Attach Surround Technique (VAST™) increases cone area
- power range: 6-65 watts RMS (130 watts peak power)
- frequency response: 65-24,000 Hz
- sensitivity: 90 dB
- top-mount depth: 2-5/16"
- grilles not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # P1683
What's in the box:

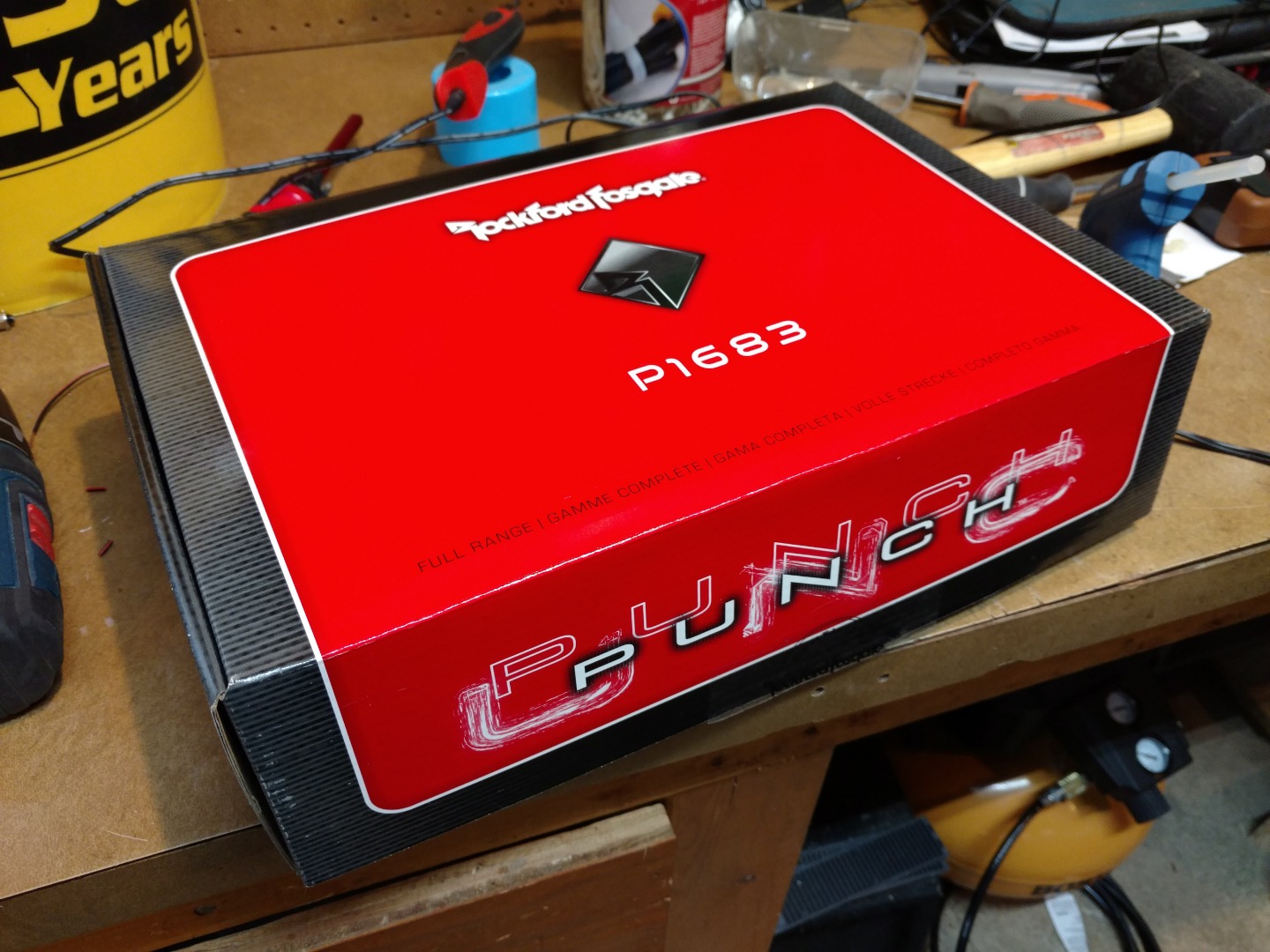

- Two 6x8 Three-way speakers
- Eight 1-1/4" Allen head screws
- 3mm Allen head bit
- 8 Speed clips
- Installation/Operation manual (English/ French/ Spanish/ German/ Italian)
More details on the Rockford Fosgate P1683
Features & specs
|Tweeter Design||1/2" & 3/4" Domes|
|Woofer Composition||Mineral filled poly|
|Woofer Surround||Butyl rubber|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||90|
|Sensitivity at 2.83 volts||N/A|
|Frequency Response||65 - 24k Hz|
|Minimum RMS Wattage||6|
|Maximum RMS Wattage||65|
|Peak Power Handling (Watts)||130|
|Top-mount Depth (Inches)||2 5/16|
|Bottom-mount Depth (Inches)||2 5/8|
|Cutout Diameter or Length (inches)||0|
|Mounting Height (Inches)||0.623|
Injection-Molded Polypropylene Woofers: The woofer cones are mineral filled, injection-molded polypropylene. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response.
Butyl Rubber Surrounds: The butyl rubber surrounds dampen unwanted harmonic distortion while maintaining linear geometry under extreme weather conditions. This leads to less distortion, superior frequency response, and superior durability.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Tweeters: Each speaker features two tweeters, 1/2" and 3/4" domes. The material used is PEI (Poly-Ether-Imide); PEI is a polymer film that produces a wide soundstage for superior imaging.
Speaker Terminals: These speakers have 0.25" wide positive (+) terminals and 0.187" wide negative (-) terminals, which are too large for the vehicle-specific speaker harnesses supplied by Crutchfield for many vehicle applications. It is recommended that a pack of assorted female quick slides (item number 120FQS10PK) be purchased and spliced to the harnesses to adapt them to the speaker terminals.
