About the Rockford Fosgate Punch P3S-1X10
Regular cab truck owners Rockford Fosgate feels your pain. They've designed their Punch Stage 3 shallow enclosures so you don't have to suffer without good bass. And they build these boxes for strength and durability, with a computer-optimized design that uses medium-density fiberboard and thick carpeting.
Slim box, big bass
The P3S-1X10 sealed enclosure measures only 6-1/4" deep at its bottom, so it'll fit in the space behind many regular truck cab seats. It comes preloaded with a single 10" Punch Stage 3 shallow dual voice coil subwoofer that'll handle up to 300 watts RMS. The enclosure's low 1-ohm total impedance means it'll drive your amp to its max just make sure you pair it with a 1-ohm stable amplifier. If you're looking to save space, Rockford Fosgate's super-small Punch PBR300X1 amp is a perfect match for this enclosure, generating 300 watts RMS at 1 ohm.
- sealed truck-style enclosure with one 10" Punch Stage 3 shallow dual voice coil subwoofer
- 1/2" medium density fiberboard construction covered with heavy-duty carpet
- 1-ohm total impedance
- power handling: 100-300 watts RMS (600 watts peak power)
- frequency response: 40-250 Hz
- sensitivity: 83 dB
- 19-1/8"W x 13-5/8"H x 6-1/4"D1 x 3-3/8"D2
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # P3S-1X10
What's in the box:
- Single 10" Punch Stage-3 shallow enclosure
- 2 Metal mounting brackets
- Four 5/8" Self-tapping mounting screws
- Installation/Operation manual
More details on the Rockford Fosgate Punch P3S-1X10
Features & specs
|Woofer Size (inches)||10|
|Speakers Per Box||1|
|Woofer Material||Anodized Aluminum|
|Pieces in System||1|
|Second Depth (inches)||3-3/8|
|Connector Type||Spring posts|
|Frequency Response||40-250 Hz|
|Power Range (Watts RMS)||300|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|

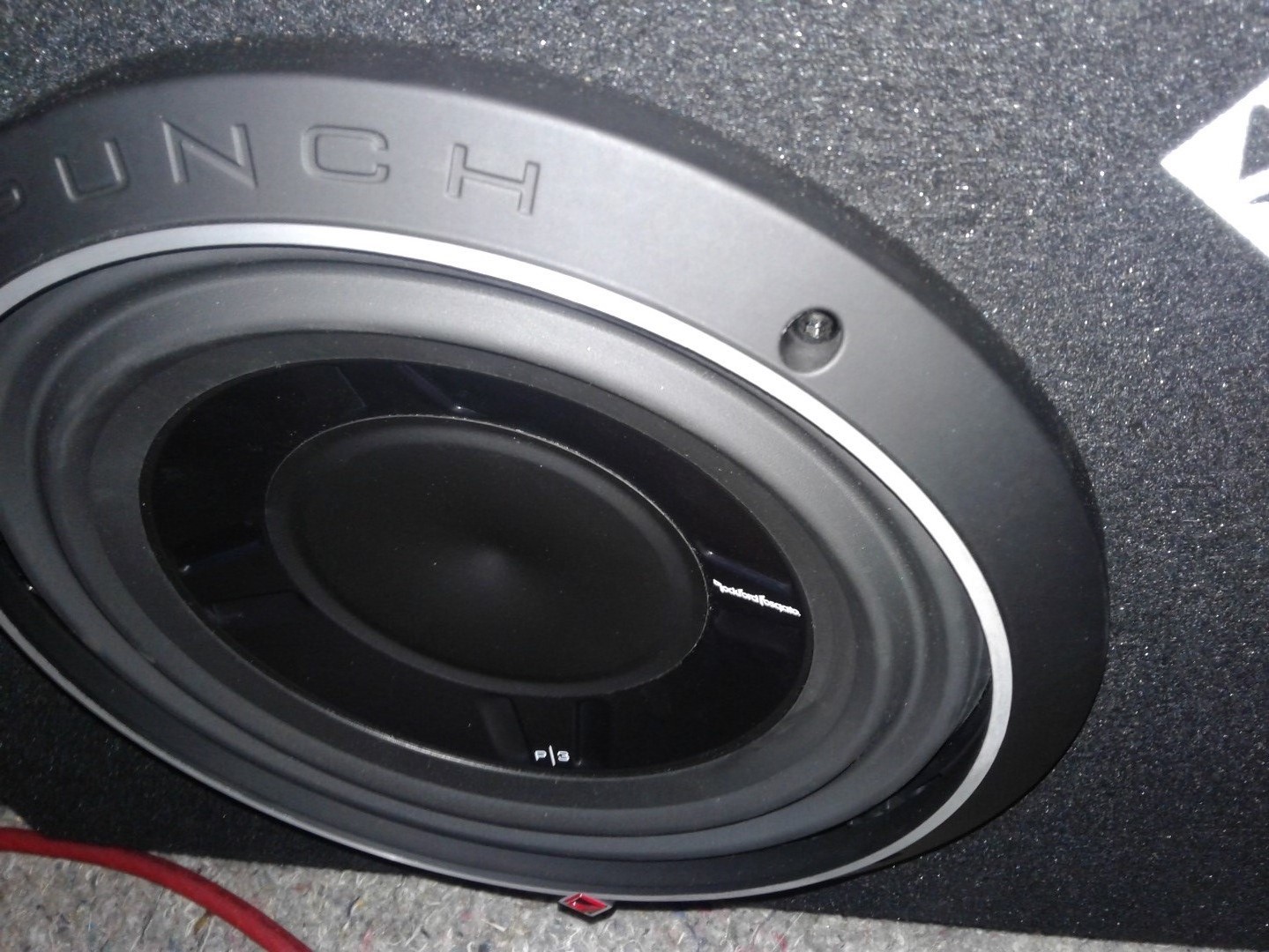

Punch Woofer: The enclosure houses one front-firing Rockford Fosgate Punch P3SD2-10 shallow mount 10" subwoofer. The dual 2-ohm voice coils are internally wired in parallel to present a 1-ohm load. The sub features a StampCast basket, an Anodized aluminum cone, and Santoprene surround. The integrated spider venting helps keep the subwoofer cool.

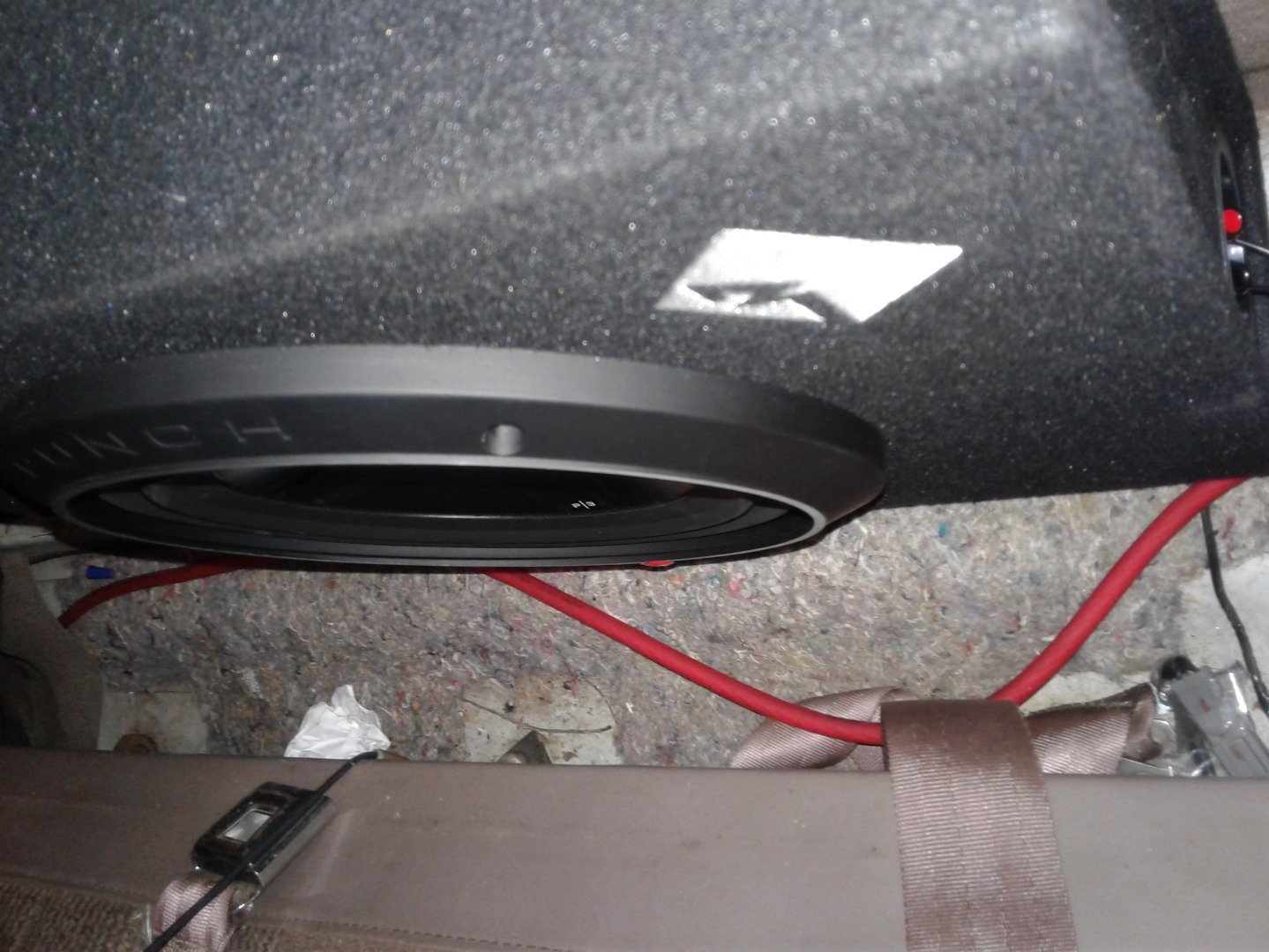

Enclosure: The truck-style sealed enclosure is constructed with 1/2" MDF and covered with high density black carpet. The enclosure features high current spring posts of the right side. The box is shallow enough to fit behind the front seat of many standard cab pickups.
Box Carpeting: The enclosure is finished with high-density black carpeting for superior durability.
Speaker Terminal: The subwoofer enclosure uses one pair of high current, spring loaded binding posts. The binding posts are located on the right side of the box and will accept pin connectors, single or dual banana plugs, or bare wire up to 10 gauge.
Power Handling: The subwoofer can handle up to 300 watts RMS, 600 watts peak.
CEA-2031 Compliant: Power handling on the P3S-1x10 conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle its rated power under continuous demand, not just for an instant.
Dimensions: The depth dimensions listed in Features and Specs include the subwoofer's trim ring, which adds approximately 1 inch. The depth of just the enclosure is 5-1/4 inches at the base and 3-3/8 inches at the top.
The Rockford Fosgate Punch P3S-1X10 replaces these items
10" Punch Stage 3 Shallow subwoofer
- sealed enclosure with one Punch Stage 3 Shallow dual voice coil woofer
- frequency response 45-250 Hz
- handles 300 watts RMS
