About the Rockford Fosgate PM300X1
Small wonder, big sound

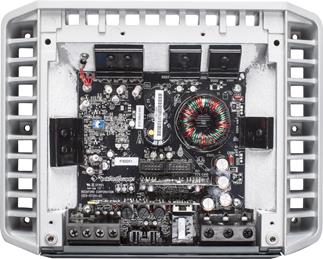

The PM300X1 features a conformal-coated circuit board
Small wonder, big sound
Rockford Fosgate's PM300X1 mono amplifier is a great choice if you're looking for a marine-rated subwoofer or center channel amplifier. Whether you use it to drive multiple speakers or just one, this compact amp delivers the power you need, plus it's built to handle the demands of boating and powersports applications.
The PM300X1 uses Rockford Fosgate's CLEAN level setting technology, so there's no more guesswork while setting your gain levels. Easy-to-see LED indicators identify clipping so you can set your amp up for maximum performance while eliminating distortion.
A tough amp that's easy to live with
Life on the water or out in the dirt isn't easy on electronics, so the PM300X1 is built tough. Conformal-coated circuitry withstands moisture and dirt, while the stainless steel hardware won't succumb to corrosion. Rockford Fosgate also uses the newest Maximum Efficiency Heat Sink Application (MEHSA3) construction process, which yields up to five times better heat transfer than traditional mounting techniques. As a result, this amp will rock out without overheating, even when tucked into a compact space. And you won't have to worry about cranking it up for long periods, thanks to tri-stage protection that covers thermal, over-current and short circuits.
- mono amplifier for marine/powersports applications
- 200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
- CEA-2006 compliant
- Class AB amp technology
- conformal-coated circuit board — suitable for powersports and marine applications
- marine-grade stainless steel hardware
- variable low-pass and high-pass filters
- speaker-level inputs (speaker wire to RCA adapter required)
- fuse rating: 50A x 1 (fuse not included)
- built-in Punch EQ with +18dB boost @ 45Hz
- C.L.E.A.N. setup technology with LED input/output indicators
- hidden top-mount control panel
- frequency reponse: 20-20,000 Hz
- dimensions: 9-15/16"W x 2-7/16"H x 8-13/16"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # PM300X1
What's in the box:
- Full-range mono amplifier (one channel)
- 2.5mm Allen wrench
- Four 1-1/2" Self-tapping screws
- Setup disc (CD)
- Setup guide
- Certificate of Performance Verification
Rockford Fosgate PM300X1 reviews
I was looking for a good strong amp to run my Rockford Fosgate PM282HW wake tower speakers. Being that I'm a person who like his stuff to match (brands), I looked for the right amp. I purchased Rockford Fosgate PM300X1 being that this amp would only run these tower speakers. I was very pleased with how easy it was to setup. Rockford has really got their stuff together making it easy to fine tune the amp with the speakers. Its all due to Rockford's C.L.E.A.N . setup
0 of 0 found this helpful
More details on the Rockford Fosgate PM300X1
Features & specs
|RMS Power Output (Watts x Channels)||200 x 1|
|Frequency Response at Rated RMS Power||20-20k Hz|
|THD at Rated RMS Power||1%|
|Signal to Noise Ratio||N/A|
|Peak Power Output (Watts x Channels)||N/A|
|Power at 2 Ohms (Watts x Channels)||300 x 1|
|Bridged Power (Watts x Channels)||N/A|
|Minimum Impedance Bridged||N/A|
|Minimum Impedance Unbridged||2|
|Low-Pass Crossover Frequency||50-250 Hz|
|Low-Pass Slope (dB/octave)||12 dB/octave|
|High-Pass Crossover Frequency||50-250 Hz|
|High-Pass Slope (dB/octave)||12 dB/octave|
|Bass Boost||0-18 dB|
|Bass Boost Frequency||45 Hz|
|Speaker Level Inputs||Yes|
|Preamp Outputs||1 pair|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
CEA-2006 Compliant: CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for determining an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured into a 4Ω load with 1% or less Total Harmonic Distortion plus noise (THD+N). CEA-2006 allows consumers to compare amplifiers and receivers under identical conditions. The CEA-2006-rated RMS power output is 200 watts RMS x 1 channel. Additionally the power output into 2Ω is 300 watts RMS x 1 channel.
Cast Aluminum Heatsink: The cast aluminum heatsink dissipates heat generated by the amplifier's circuitry. Casting improves cooling efficiency approximately 30% over conventional extruded heatsink designs.
Dynamic Thermal Management (DTM): DTM evenly distributes excess heat across the amplifier's entire heatsink.
MEHSA³ (Maximum Efficiency Heat Sink Application-3rd Generation): MEHSA is a Rockford Fosgate proprietary process that increases the heat transfer from the MOSFET devices to the heatsink. The multi-layer insulated metal MEHSA substrate operates with minimal thermal resistance, spreading heat both downward and outward to quickly dissipate heat from each device across the heatsink. This allows greater power output, enhanced thermal stability, and maximum reliability.
Trans-ANA (TRANSconductance Active Nodal Amplifier): Trans-ANA is a circuit that allows the audio signal to pass through the amplifier at low voltage. The signal is directly level-shifted to the fixed high voltage rails via a pair of drive transistors. Signal linearity is assured by an active node formed by the drive transistors at ultrasonic frequencies. The result is crystal clear sound quality.
NOMAD (NOn-Multiplying Advanced Decision): NOMAD is an intelligent protection circuit that uses an analog computer to make real time decisions regarding temperature, voltage, current and impedance. The amplifier is protected without limiting sound output unless needed.
DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches it's clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup.
Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables by measuring the voltage of both the (+) and (-) input signal, then subtracting the voltage common to both conductors (noise), resulting in only the clean signal entering the amplifier.
Input Level: To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input level is adjustable from 150mV to 12V.
Crossover: The amplifier's internal crossover slope is 12 dB/octave and it can be set to high-pass, all-pass (full range), or low-pass operation. The crossover point is variable from 50 Hz to 250 Hz.
Punch EQ: The function of the Punch EQ circuit changes with the crossover switch. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0-18 dB at 45 Hz. When the crossover is set to high-pass, the Punch EQ acts as a variable treble boost, 0-14 dB at 12.5 kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active.
Power Connections: The power and ground terminals are captive c-clamp wire connectors and will accommodate up to 4-gauge wire. An external 50-amp fuse (not included) must be installed on the power wire. The remote turn-on terminal will accept up to 14-gauge wire. A Phillips head screwdriver (not supplied) is required to tighten/loosen the terminals.
Fuse: The amplifier does not have an on-board fuse. A 50 amp fuse should be placed on the power wire within 18" of the battery.
Speaker Connections: The speaker output terminals are also captive c-clamps and will accept up to 8-gauge wire. A Phillips head screwdriver (not supplied) is required to tighten/loosen the terminals. There are two speaker outputs, internally wired in parallel, making it easy to connect two subwoofers.
Signal Input: The RCA inputs will accept either a line-level or speaker-level input. A speaker-level signal can be connected using a Speaker Wire to RCA adapter (sold separately). When using a speaker-level input signal, the auto turn-on feature is active and the remote turn-on terminal becomes a 12 volt output to turn on/off an additional amplifier or other component.
Line Level Output: The amplifier has a pair of RCA line level pass-thru outputs to feed another amplifier. The pass-thru output is passive (the same signal present at the amp's input) and the amp's crossover has no effect on the signal.
Punch Level Control (PLC): An RJ-45 jack is provided for connecting an optional wired remote PLC2 (item number 575PLC2, sold separately), allowing remote control of the output level of the amplifier. A second RJ-45 jack is the PLC output, used to daisy-chain additional amplifiers controlled by a single remote.
Note: Previous model PEQ, Punch Bass, and Para-Punch remotes will not work with this amp.
