About the Rockford Fosgate R500X1D
Rockford Fosgate power for your sub
Rockford Fosgate power for your sub
Rockford Fosgate performance in a small package – this Prime Series R500X1D mono amp can drive a sub with up to 500 watts RMS, so you can really feel your bass rockin'. You can use the low-pass filter and Rockford Fosgate's famous Punch boost to get the best possible bass from the sub and enclosure in your vehicle. A phase switch gets your subs firing along with your other speakers for maximum impact, while the speaker-level inputs let you hook this amp up to almost any system, even a factory stereo.
Rugged performance and value
The R500X1D's heavy cast aluminum chassis efficiently draws damaging heat away from its internal components, ensuring reliable, long-term play. The amp's built-in sensors keep track of the output current and power supply temperature, ensuring that plunging subwoofer impedances (they change constantly during play) or even a short circuit won't hurt anything. The included wired remote lets you control the amp's volume level from the front seat. Your driver's seat will become your favorite place for listening once this Prime amp goes to work.
- mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
- CEA-2006 compliant
- variable low-pass filter (50-250 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- phase switch
- wired remote Punch Level Control included
- Class-D amplifier design
- frequency response: 20-250 Hz
- MOSFET power supply
- preamp and speaker-level inputs
- preamp outputs
- 8-gauge power and ground leads and a 50-amp fuse recommended wiring and hardware not included with amplifier
- no onboard fuses when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and this amplifier is recommended
- 8-1/2"W x 2"H x 7-3/8"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # R500X1D
What's in the box:
- Mono subwoofer amplifier
- Remote Punch Level Control module
- 18' Remote Punch Level Control cable (RJ-25 connector on both ends)
- 6" Speaker level input harness
- 3mm Allen wrench
- Four 3/4" Self-tapping screws
- Two 1/2" Self-tapping screws
- 4 Flat washers
- Installation & Operation manual (English/ French/ Spanish/ German/ Italian)
- Amplifier verification certificate
More details on the Rockford Fosgate R500X1D
Features & specs
|RMS Power Output (Watts x Channels)||
300 x 1 |
|Peak Power Output (Watts x Channels)||N/A|
|Power at 2 Ohms (Watts x Channels)||500 x 1|
|Bridged Power (Watts x Channels)||N/A|
|Minimum Impedance Bridged||N/A|
|Minimum Impedance Unbridged||2|
|Best Frequency Response||20-250 Hz|
|THD at Rated RMS Power||1%|
|Signal to Noise Ratio||80 dB|
|Low-Pass Crossover Frequency||50-250 Hz|
|Low-Pass Slope (dB/octave)||12 dB/octave|
|High-Pass Crossover Frequency||N/A|
|High-Pass Slope (dB/octave)||N/A|
|Bass Boost||0-12 dB|
|Bass Boost Frequency||45 Hz|
|Speaker Level Inputs||Harness|
|Preamp Outputs||1 pair|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
Overview: The Rockford Fosgate Prime R500X1D Class D mono amplifier is designed to power subwoofers. The Class D design and extruded aluminum heatsink allows the amplifier to run cool and efficiently, and results in a small footprint.
CEA 2006 Compliant: The R500X1D's power ratings are measured according to the uniform standards advocated by the Consumer Electronics Association (CEA). These standards allow you to accurately compare the rated power output and signal to noise ratio of all CEA 2006-compliant amplifiers, even from different brands. Manufacturers who adhere to these standards can display the CEA 2006 logo on their products and packaging. CEA2006 Specifications for this amplifier are:
- 4 Ohms: 300 watts RMS x 1 at 4 ohms, 14.4 volts, and less than 1% THD+N
- 2 Ohms: 500 watts RMS x 1 at 2 ohms, 14.4 volts, and less than 1% THD+N
- S/N: 80 dB, measured at 1 watt output (100 dB measured at rated power)
LED Indicator: The amplifier is equipped with an LED power/protect indicator. The LED illuminates blue when the unit is turned on. It illuminates red if the thermal or short circuit protection circuit is engaged, and the amplifier will automatically turn off.
Mounting: The amplifier can be mounted vertically or horizontally using the supplied mounting screws. The amplifier should never be mounted in an engine compartment as this will void the warranty.

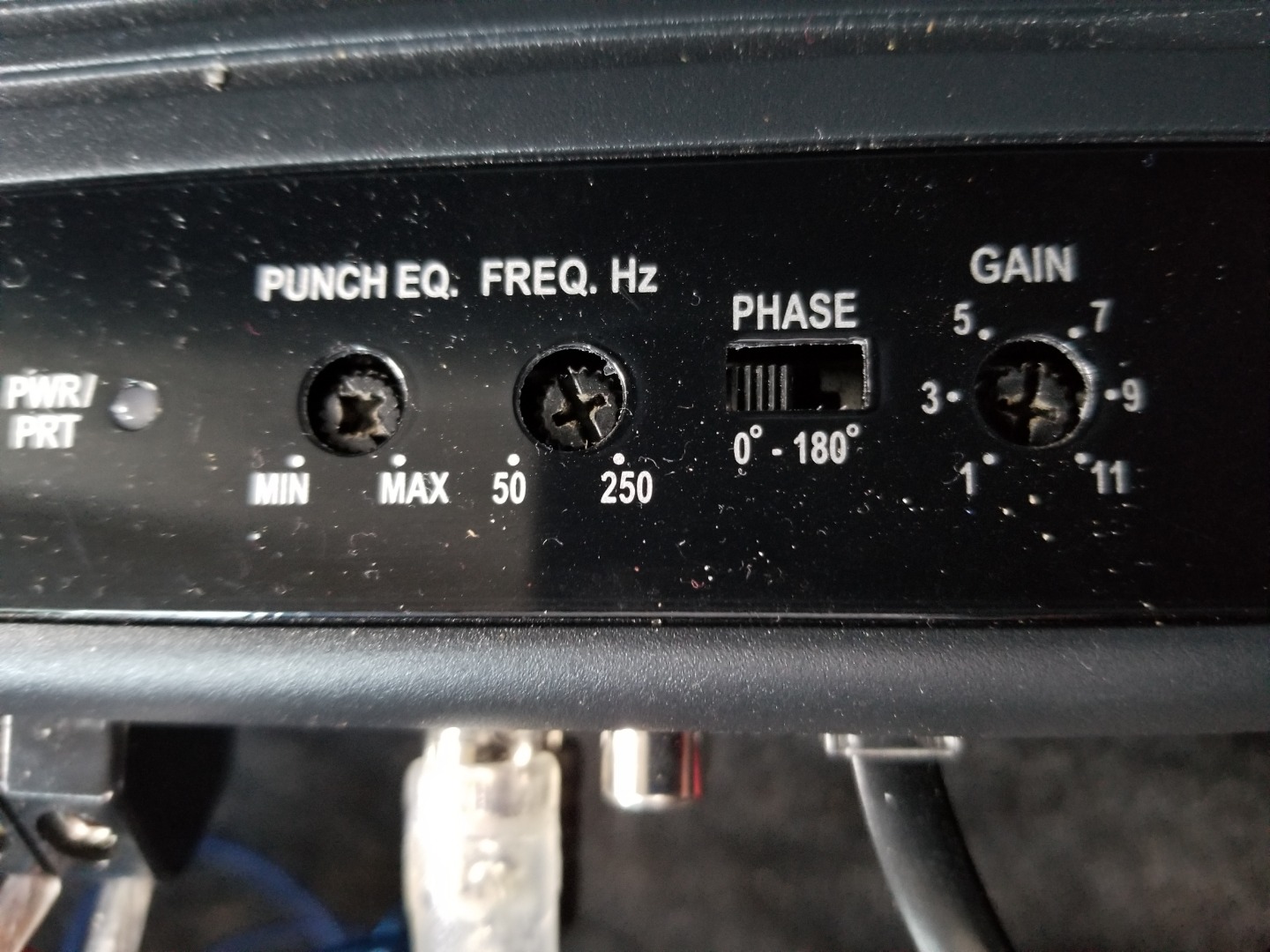

Gain Control: Use the amplifier's gain control to match the output of the source unit. The rotary gain control is labeled 1 to 11 and has a sensitivity range of 150mV to 4V when using a preamp level signal, 450mV to 12V when using a speaker level signal.
Remote Punch Level Control: The R500X1D includes a wired Remote Punch Level Control, linked to the gain control of the amplifier. The module allows you to remotely control the output level of the amplifier from the dash or center console. The Remote Punch Level Control features a rotary dial, and comes with mounting hardware and an 18' cable.
Note: The Remote Punch Level Control measures approximately 1-3/4" wide (2-5/8" including the mounting flange) x 3/4" high x 1-5/8" deep (2-1/8" deep including the knob and wiring).
Crossover: The amplifier is equipped with a 12dB/octave Butterworth low-pass crossover. The crossover point is continuously variable from 50 to 250 Hz. This being a subwoofer amp, the crossover is always engaged.
Phase: The 2-position phase switch allows you to easily reverse the output phase of the amplifier, choose 0° or 180° to match the rest of your vehicle's speaker system.
Punch EQ: The Punch EQ bass boost circuit is adjustable from 0 (min) to +12dB (max) and centered at 45Hz.
Power Terminals: The power and ground terminals are nickel-plated set screw terminals and will accommodate up to 4 AWG power and ground wires. (Rockford Fosgate recommends 8 AWG minimum.)
Fuse: An external 50-amp fuse (not included) must be installed on the power wire at the battery. If a wiring kit is used which includes a fuse with a value other than 50-amps, the original should be replaced with a 50-amp fuse. When not using a wiring kit, the v6-MANL fuse holder (item number 120MANL, sold separately) and MANL50 50-amp fuse (item number 120MANL50, sold separately) can be used.
Remote Turn-On Terminal: The remote turn-on terminal is a nickel-plated set screw terminal that will accommodate up to an 8 AWG wire. It's used to remotely turn the amplifier on and off.
Speaker Terminals: The amp has one pair of nickel-plated set screw speaker output terminals which will accommodate up to 8 AWG speaker wire.
RCA Input Jacks: The industry standard RCA jacks provide an easy connection for preamp level input. They are nickel-plated to resist signal degradation caused by corrosion.
Speaker Level Input: A speaker level input harness is included, making it easier to add the amplifier to a factory radio or to a receiver with no preamp outputs.
RCA Output Jacks: A pair of RCA pass-thru jacks provides a convenient source for daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of your vehicle to the amplifier location.
Wired Remote: An RJ-25 jack is used with the included Remote Punch Level Control.
