Rockford Fosgate RZR14RC-STG3

Stage 3 audio upgrade kit for select 2014-up Polaris RZR models with Ride Command: includes 6-1/2" speakers, 4-channel amp, and 10" subwoofer

Item # 575RZRC3G3

Bring great sound and cool lights to your Ride Command-equipped Polaris RZR.

Find what Fits your car

Bring great sound and cool lights to your Ride Command-equipped Polaris RZR.

Item # 575RZRC3G3

Ships from distributor

Temporarily out of stock
C$2,499.99

About the Rockford Fosgate RZR14RC-STG3

Big sound, cool lights, and Ride Command

This Rockford Fosgate Stage 3 audio upgrade kit will bring amazing sound and RGB LED lights to your Ride Command-equipped Polaris RZR. Designed to fit select 2014-up RZR models, this Element Ready kit includes a set of 6-1/2" Color Optix™ speakers, a 10" Color Optix™ subwoofer, a 4-channel amp, and a special interface harness that allows you to upgrade your sound while retaining your Ride Command system. Each Element Ready™ component is tough enough for trail duty, so whether you're racing up a sand dune or blasting through a mud pit, you won't have to worry about your gear getting swamped.

Big sound, cool lights, and Ride Command

This Rockford Fosgate Stage 3 audio upgrade kit will bring amazing sound and RGB LED lights to your Ride Command-equipped Polaris RZR. Designed to fit select 2014-up RZR models, this Element Ready kit includes a set of 6-1/2" Color Optix™ speakers, a 10" Color Optix™ subwoofer, a 4-channel amp, and a special interface harness that allows you to upgrade your sound while retaining your Ride Command system. Each Element Ready™ component is tough enough for trail duty, so whether you're racing up a sand dune or blasting through a mud pit, you won't have to worry about your gear getting swamped.

Bolt-in speakers look and sound great

The colorful M1-65B 6-1/2" speakers are designed for off-road and marine use, but they're also made to look cool and sound great in any environment. The treated cone withstands moisture and sunlight, as does the 1" balanced dome tweeter in the grille. These Color Optix speakers are really easy to install, too, thanks to the direct-fit speaker enclosures included in your RZR kit. Made from a fiber-reinforced composite blend, they bolt right in using the factory mounting holes. No drilling needed!

You can control the lighting in your speakers and sub using the included Rockford Fosgate Color Optix™ Controller and the RF Connect App.

Feel the beat with a 10" subwoofer

The marine-rated M1D2-10B 10" sub fits into your RZR with help from a direct-fit mounting kit that uses the factory glove box space to create a seamless, custom-looking installation. The bolt-on enclosure is made from a durable composite material that blends right into the interior. The Color Optix lighting will add serious style to your RZR.

A 4-channel amp with plenty of power

A system like this requires serious juice, and the 4-channel M5-800X4 has all you need for your speakers and sub. The kit includes mounting plates for this tough, trail-ready amp.

Designed for easy installation

Rockford Fosgate designed this upgrade kit to fit right into your RZR, with no cutting and no modification needed. It also comes with all the parts and pieces needed for a smooth, hassle-free installation, including front speaker enclosures, a sub enclosure, and a wiring kit and mounting plate for the amplifiers.

READ LESS

Product highlights:

  • system includes two 6-1/2" speakers, a 4-channel amp, and a 10" subwoofer
  • also includes speaker pods, sub enclosure, Ride Command interface, amp wiring kit and mounting plate, lighting controller
  • Element Ready design resists mud, muck, and moisture
Rockford Fosgate M1-65B 2-way Color Optix marine speakers
  • power handling up to 75 watts RMS (300 watts peak)
  • salt-, fog-, and UV-resistant Santoprene rubber surround
  • integrated 1" balanced dome tweeter
  • RGB LED lighting
  • warranty: 2 years
Rockford Fosgate M1D2-10B Color Optix 10" marine subwoofer
  • durable Santoprene rubber surround
  • RGB LED lighting
  • power handling: 300 watts RMS (1200 watts peak)
  • rugged, UV-stable injection-molded plastic construction
  • frequency response: 20-750 Hz
  • durable Santoprene rubber surround
  • warranty: 2 years
Rockford Fosgate M5-800X4 4-channel amp
  • 100 watts RMS x 4 at 4 ohms (400 watts peak)
  • 200 watts RMS x 2 at 4 ohms in bridged mode
  • variable low- and high-pass filters
  • Element Ready design with integrated harnesses for a watertight seal
  • twin cooling fans and real-time thermal sensing
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # RZR14RC-STG3

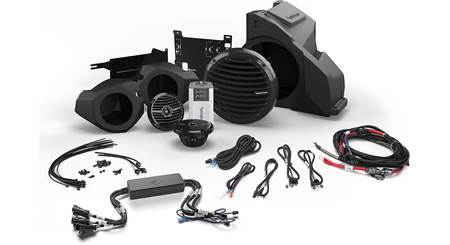

What's in the box:

  • This package contains 8 individually boxed items:
  • M5-800X4 Amplifier:
  • 4-Channel powersports amplifier
  • 11" Power/ground/turn-on & speaker output harness (installed on amp)
  • 11" Input harness (installed on amp)
  • Two 14" RCA-to-Molex input adapters
  • Power/ground/turn-on adapter plug
  • Two 7.5" speaker output harnesses
  • 3mm Allen key
  • Owner's manual
  • Performance certificate
  • Contact information
  • M1-65B 6.5" Speakers:
  • Two 2-way marine speakers
  • Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
  • Twelve 1-1/4" Stainless steel Allen head screws
  • Two 3mm Allen head bits
  • 3.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • Rockford Fosgate contact information
  • M1D2-10B Subwoofer:
  • One 10" marine subwoofer
  • One 11" LED power harnesses with 4-pin Deutsch connector on one end
  • Six 1-3/4" Stainless steel Allen head screws
  • 4mm Allen head bit
  • 4.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • Rockford Fosgate contact information
  • PMX-RGB Color Optix Light Controller:
  • LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
  • 6" Power/ground harness adapter
  • Two 3/4" machine-screws
  • 2 Nuts
  • 2 Lock-washers
  • Installation manual
  • RZR14-FWE Subwoofer Enclosure:
  • Subwoofer enclosure w/ attached 28" internal speaker wire
  • 30" Wiring harness
  • 1 Port plug
  • Two 1" screws
  • 2 Flat-washers
  • Two 1-1/2" adhesive foam pads
  • One 14" section of bare-ended red wire
  • Five 8" wire-ties
  • One 14" wire-tie
  • Contact information
  • RZR14-FSE 6.5" Enclosures:
  • 2 Empty speaker pods w/ attached 38" wire harness
  • 2 Threaded studs
  • 4 Mounting screws
  • 2 Mounting bolts
  • 6 Washers
  • Hex-head screwdriver
  • Five 8" wire-ties
  • Rockford Fosgate Contact information
  • RZR14-K8 Amplifier Wiring Kit:
  • 9.5' Power/ground/speaker harness (inline 60A Maxi fuse)
  • Two 30" RCA-to-Molex harnesses
  • 2 Amplifier mounting plates (large & small)
  • Two 25mm Torx-socket screws
  • One 12mm Torx-socket screw
  • Four 10mm Torx-socket screws
  • Twenty 8" Wire-ties
  • Four 6" zip-ties w/ push-fastener ends
  • Installation manual
  • RFPOL-RC34:
  • Polaris Ride Command interface (attached 12" input and 5" output harnesses)
  • Instructions

Customer reviews

We don't have any reviews, yet.
Be the first to review this product

Loading reviews...

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Rockford Fosgate RZR14RC-STG3

Stacey B.
The Rockford Fosgate RZR14RC-STG3 replaces these items:

Product Research

Compatibility
M5-800X4 Amplifier
M1-65B Front Speakers & Enclosures
M1D2-10B Subwoofer & Enclosure
PMX-RGB LED Controller

Compatibility

Polaris Compatibility: The Rockford Fosgate RZR14RC-STG3 audio system can be used with the following Polaris RZR vehicles:

Make Model Year
Polaris RZR 900 2014-2021
RZR 900 XC¹ 2015-2021
RZR 2 900 EPS¹ 2014-2018
RZR 4 900 EPS¹ 2014-2021
RZR RS1 Not compatible
RZR S 900 2014-2021
RZR S 1000¹ 2017-2021
RZR S4 1000 2019-2021
RZR XP 1000¹ 2014-2021
RZR XP Turbo¹ 2016-2021
RZR XP Turbo S² 2019-2021
RZR XP Turbo Dynamix Edition 2018-2021
RZR XP 4 1000¹ 2014-2021
RZR XP 4 Turbo¹ 2016-2021
RZR XP 4 Turbo S² 2019-2021
RZR XP 4 Turbo Dynamix Edition 2018-2021
RZR XP 1000 Trails & Rocks 2019-2021
RZR XP 1000 High Lifter 2014-2021
RZR XP 4 1000 High Lifter 2014-2021
RZR PRO (all models)³ Not compatible

¹ 2014-2018 Models only compatible with lower pocket assembly supplied with dash kit.
² The 2-seat Turbo S shipped in early 2018 and the 4-seat Turbo S shipped in October 2018, however both are considered 2019 models and are compatible.
³ The RZR PRO (2020-up) features a different chassis and body panels and is not compatible.
All Models: Included subwoofer not compatible with Polaris heater option (located where sub enclosure mounts).

RFPOL-RC34: The Rockford Fosgate RZR14RC-STG3 add-on speaker system has been designed for select 2014-2021 Polaris RZRs equipped with a Ride Command factory sound system. The included RFPOL-RC34 interface allows you to upgrade the sound system, while keeping the Ride Command headunit. The interface features pre-attached Molex harnesses that simply plug in-line with the output of the Ride Command, allowing the output signal to be fed to the included 4-channel amplifier and speakers. Other features include:

  • Noise Elimination: The RFPOL-RC34 features circuitry that's been engineered to eliminate the turn-on pop common with all Ride Command units. It also helps eliminate noise in UTVs equipped with Dynamix suspension systems caused by switching between Firm, Sport, and Comfort ride modes.
  • Crossover: The audio interface utilizes the built-in crossovers in the Ride Command, which include a 100Hz HP filter for the 4 main speakers, and a 100Hz LP filter for the subwoofer.
  • Headunits: The RFPOL-RC34 interface is compatible with both 5-button and 7-button Ride Command headunits.

M5-800X4 Amplifier

Overview: The Rockford Fosgate M5-800X4 is a 4-channel powersports amplifier with a rated power output of 100 watts per channel at 4-ohms or 2-ohms. This Element Ready amplifier can be used on motorcycles, ATVs, UTVs, or boats, and can withstand harsh environmental conditions. The amplifier's front channels will be used to power the four main speakers, while the rear channels will power the included subwoofer.

CEA-2006 Compliant: CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for determining an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured into a 4Ω load with 1% or less Total Harmonic Distortion plus noise (THD+N). CEA-2006 allows consumers to compare amplifiers and receivers under identical conditions. The CEA-2006-rated RMS power output is 100 watts RMS x 4 channels. Additionally the power output is 100 watts RMS x 4 channels into 2Ω and 200 watts RMS x 2 channels bridged (into 4Ω).

Element Ready: Rockford Fosgate's Element Ready Amplifiers are protected against dust, UV rays, and corrosion. Marine-grade, two-part epoxy-coated circuit boards are used to prevent corrosion due to exposure in moist and humid places. In addition, stainless hardware is used to help prevent rust and corrosion of all electrical connections. The M5-800X4 carries an IPX6 rating, making it impervious to water spray.

Class-AD: The M5-800X4 features Rockford Fosgate's proprietary Class-AD technology, which allows the amplifier to produce more power with less current draw from the vehicle's charging system.

MEHSA 4 Cooling: The amplifier features Rockford Fosgate's MEHSA 4 (Maximum Efficiency Heat Sink Application) technology that reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output circuitry's life span.

DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches its clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup.

PRESET: The M5-800X4 features Rockford Fosgate's PRESET setting (On/Off) that eliminates the need to set-up the amplifier when used with a compatible Rockford Fosgate ATV/UTV Stage 3 or Stage 4 audio kit (sold separately). When set to On, the PRESET circuitry automatically optimizes the front & rear input levels, Punch EQ, and crossover settings. If manually setting these adjustments, the PRESET switch should be set to the Off position.

Input Level: The amplifier has dual input level controls for the front and rear channels, conveniently accessible from the top. To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input levels are adjustable from 150mV to 12V. A small flat-head screwdriver (not supplied) is needed to adjust the levels.

Input Switch: With the input switch in the 2-channel position, connecting only the front inputs will send the signal to both the front and rear sections of the amplifier. In the 4-channel position, both front and rear inputs must be used.

Crossover: The amplifier has dual built-in crossovers for the front and rear channels, variable from 50Hz to 250Hz with a slope of 12dB/octave. They can be independently set to high-pass, all-pass (full range), or low-pass operation. The rotary frequency settings can be adjusted with a small screwdriver.

Punch EQ: The amplifier has dual Punch EQ functions that change with the crossover switches. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0 to +18dB at 45Hz. When the crossover is set to high-pass, the Punch EQ acts as a variable treble boost, 0 to +14dB at 12.5kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active.

Power Connections: The M5-800X4's power, ground, and remote turn-on terminals are located on a single 11" harness with matching adapter. The adapter accepts up to 8 AWG wire (recommended) and features set-screws for locking the wire in place. The power/ground harness is combined with the speaker output harness and attached to the amp in one large connector that's held in place with 2 hex-socket screws.

Fuse: The amplifier does not have an on-board fuse. A 60-amp fuse should be placed on the power wire within 18" of the battery.

Speaker Connections: The amplifier is equipped with two 11" speaker output harnesses which are combined with the power/ground harness to one connector at the amplifier. Two 7.5" speaker harnesses plug into the output harnesses and provide bare-ended wire for connection to your speakers. Speaker outputs can be bridged to provide two 2 x 400W @4Ω outputs, or be wired for a 3-channel mode with only 2 speaker outputs bridged.

Signal Input: The amplifier's Differential Inputs will accept either a line-level or speaker-level input on the Molex-style connectors. A single amp connector, secured with hex-socket screws to the amp, features two 4-pin Molex connectors on the other end for connecting the included input adapter harnesses. Each input adapter harness has a 4-pin Molex plug on one end and dual RCAs on the other end. Front and rear line-level signals can simply be connected via RCA cables from the source unit to each input harness. For a speaker-level signal, you can cut the RCA connectors from the input harnesses and splice the wires to the speaker wires of the source unit. When using a speaker-level input signal, the auto turn-on feature is active and the remote turn-on terminal becomes a 12 volt output, which can be used to turn on/off an additional amplifier or other component.

RZR14-K8 Amp Wiring Kit: The Rockford Fosgate RZR14-K8 amplifier wiring kit has been designed specifically for mounting a single M5-800X4 powersports amplifier into select 2014-2021 Polaris RZR UTVs, both 2-seat and 4-seat models. The wiring kit includes pre-cut and loomed 8 AWG power and ground wires along with signal input and speaker output leads that are designed to plug directly into an M5-800X4 amplifier, and the factory wiring. Two amplifier mounting plates are provided for mounting the amp under the dash (only one will be used, based on year/model).

Note: The included wire harnesses are pre-fitted with Molex plugs to directly fit a Rockford Fosgate M5-800X4 4-channel amplifier. Installation of any other amplifier will require modifications to the wire harnesses.

Note: The included mounting plates are pre-drilled to directly mount a Rockford Fosgate M5-800X4 amplifier. Installation of any other amplifier may require modifications for mounting.

Amplifier Mounting: Two amplifier mounting plates are provided, with only one being used depending on the year & model vehicle. Both plates have pre-drilled and tapped mounting holes.

M1-65B Front Speakers & Enclosures

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M1-65B speakers are durable in the difficult marine environment.

Tweeters: The 1" balanced dome tweeters are made of LCP (liquid crystal polymer), a high strength/light weight material. The tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.

LEDs: There are red, green, and blue LEDs in the back of the tweeter casing, to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. The LEDs can be controlled using the included Rockford Fosgate PMX-RGB LED Controller. Two LED power wire harnesses are included with 4-pin waterproof Deutsch DT Series connectors that plug into the speaker frames.

Speaker Terminals: In addition to standard male quick slide terminals, each speaker also has 2-pin waterproof Deutsch terminals. Speaker wire harnesses with 2-pin waterproof Deutsch DT Series connectors are not included.

ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover has a 6 dB/octave slope.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Stainless Steel: The mounting hardware is stainless steel to resist corrosion.

Front Speaker Enclosures: The Rockford Fosgate RZR14-FSE front speaker enclosures are designed to be a direct fit for select 2014-2021 Polaris RZR models. The enclosures are constructed of reinforced polymer along with a UV resistant finish and are roto-molded for a seamless speaker mount that's both lightweight and durable. The speaker enclosures are also color and texture matched to the vehicle's interior and are a direct bolt-in using the OEM mounting holes. Pre-attached wiring harnesses in each enclosure provide a direct plug-in to the factory wiring and to each speaker.

M1D2-10B Subwoofer & Enclosure

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M1D2-10B subwoofers are durable in the difficult marine environment.

Impedance Switch: A switch on the input terminal allows you to easily change the subwoofer's impedance between 1Ω and 4Ω, internally changing between wiring the dual 2Ω voice coils in parallel and in series. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 300 watts RMS/1200 watts peak.

LEDs: There are red, green, and blue LEDs on the back of the grille to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. The LEDs can be controlled using the included Rockford Fosgate PMX-RGB LED Controller. An LED power wire harness is included with a 4-pin waterproof Deutsch DT Series connector that plugs into the subwoofer frame.

Speaker Terminals: In addition to standard male quick slide terminals, the subwoofer also has a 2-pin waterproof Deutsch terminal. A speaker wire harness with a 2-pin waterproof Deutsch DT Series connector is not included.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Stainless Steel: The mounting hardware is stainless steel to resist corrosion.

RZR Subwoofer Enclosure: The RZR14-FWE 10" subwoofer enclosure is a roto-molded, composite-blend subwoofer enclosure which is designed to be a direct fit for select Polaris RZR model ATVs. The enclosure's texture and color is matched to the ATV's interior and is up to 40% lighter than previous generation enclosures. The subwoofer enclosure mounts under the passenger side dash, replacing the factory glove-box, and bolts directly to the factory mounting holes.

PMX-RGB LED Controller

Overview: The Rockford Fosgate PMX-RGB Color Optix controller lets you illuminate and control up to 8 Rockford Fosgate M1 & M2 Color Optix marine speakers and subwoofers. Featuring a completely encased housing, rubberized wiring, and Element Ready watertight connectors, the PMX-RGB is IPX7 waterproof certified, making it impervious to even the harshest marine environments.

App Control: The PMX-RGB can be controlled from your smartphone using Rockford Fosgate's proprietary RF CONNECT App, available from the Apple App and Google Play stores. After connecting your smartphone wirelessly to the PMX-RGB controller, you'll be able to choose from 30 different color scrolling options or choose a fixed color from the color wheel. Scrolling speed and brightness controls are also available for customizing the lighting.

Plug&Play: The Rockford Fosgate PMX-RGB controller features easy configuration and connection via proprietary Element Ready connectors that provide a secure, watertight seal. It features 8 individual 17" RGB output cables for lighting up to 8 Rockford Fosgate Color Optix marine speakers (maximum 2A total current draw).

Powering: The PMX-RGB controller includes a 17" power and ground harness with inline 2A fuse, and has an operating voltage range of 9-24VDC.

PMX-RGB Specifications:

  • RGB Control Outputs: 8
  • Maximum Amp Draw (Total): 2A
  • Operating Voltage: 9-24VDC
  • Waterproof Rating: IPX7
  • Control Module Dimensions: W = 2.411", H = 0.913", D = 5.050"
  • Overall Length: 38.5"
