Rockford Fosgate RZR-STAGE5

Stage 5 audio upgrade kit for select 2014-up Polaris RZR models: includes receiver, 4 Punch speakers, 2 Power amps, and a Power subwoofer

Item # 575RZRST5

If Rockford Fosgate's Stage 4 Polaris RZR audio upgrade kit is the “everything” bagel of Polaris...

Find what Fits your car

If Rockford Fosgate's Stage 4 Polaris RZR audio upgrade kit is the “everything” bagel of Polaris...

Item # 575RZRST5

Ships from distributor

In Stock
C$4,699.99
Add to wishlist

About the Rockford Fosgate RZR-STAGE5

The alpha dog of off-road audio

If Rockford Fosgate's Stage 4 Polaris RZR audio upgrade kit is the “everything” bagel of Polaris RZR audio, this Stage 5 system is all that and a side Caesar Salad. And since that's one of our favorite combos at a certain local restaurant, we mean it's amazingly good.

The alpha dog of off-road audio

If Rockford Fosgate's Stage 4 Polaris RZR audio upgrade kit is the “everything” bagel of Polaris RZR audio, this Stage 5 system is all that and a side Caesar Salad. And since that's one of our favorite combos at a certain local restaurant, we mean it's amazingly good.

With a digital marine receiver, four Punch speakers, plus a 4-channel amp, a 10" subwoofer, and a mono sub amp, this system takes ATV audio to levels no one even imagined possible just a few years ago.  Each component is tough enough for trail duty, so whether you're racing up a sand dune or blasting through a mud pit, you won't have to worry about your audio gear getting trashed.

Fits like a glove

Rockford Fosgate designed this kit to fit right into your RZR, with no cutting and no modification needed. It also comes all the parts and pieces needed for a smooth, hassle-free installation.

Rockford Fosgate PMX-2

Fits right into the dash

It all starts with the receiver

Rockford Fosgate's Punch PMX-2 digital media receiver packs a lot of features into a compact, water-resistant package. This trail-ready stereo features built-in Bluetooth®, so you can stream music stored on your phone, or tune into Pandora® and enjoy your favorite playlists. If you prefer to plug in, you'll find an aux input, plus a USB input that will charge your phone while you're playing music. Speaking of charges, the PMX-2 also has a low-voltage warning alert built-in, so you won't accidentally drain your battery.

Four Punch speakers for powerful sound

Rockford Fosgate's Punch PM2652B speakers are designed for ATV and boat installations, but they're also made to sound great in any environment. The treated poly cone withstands moisture and sunlight, as does the 1" bridge-mounted aluminum tweeter. They're really easy to install, too, thanks to the direct-fit speaker enclosures included in your RZR kit. Made from a fiber-reinforced composite blend, they bolt right in using the factory mounting holes. No drilling needed!

The Stage 5 package also includes a pair of Punch PM2652W-MB wakeboard tower speakers. These compact speakers feature 6-1/2" woofers and aluminum dome tweeters that together handle up to 85 watts RMS, delivering crisp, powerful sound. The adjustable clamps (included) rotate for perfect positioning on your RZR.

Thumpin' bass from a 10" sub

The Power Series T1S2-10 subwoofer fits into select RZRs, thanks to a remarkably efficient design. Rockford Fosgate engineers figured out how to fit a 3" voice coil into a shallow-mount 10" sub, then used their Vertical Attach Surround Technique (VAST) to increase the cone area for fatter bass. As a result, this sub will handle up to 500 watts RMS as it delivers some serious low end.

Two Power Series amps provide plenty of thrust

A system like this requires serious juice, and the Stage 4 package includes two compact amps that will give you all you need. The 4-channel Power TM400X4AD will take care of all your full-range speakers, while the Power TM750X1BD mono amp will power your sub. The kit includes mounting plates for these trail-ready amps.

Note: For RZR S 900 and RZR 4 900 installations, you will need a RZR 1000 center pocket. See Details for more information.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod®/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

READ LESS

Product highlights:

  • system includes marine digital media receiver, 2 sets of speakers, 4-channel amp, 10" subwoofer, and mono sub amp
Rockford Fosgate PMX-2 marine digital media receiver (does not play CDs)
  • built-in amplifier (20 watts RMS/50 peak x 4 channels)
  • works with Apple and Android smartphones
  • global AM/FM/Weather tuner
  • 2.7" color display
  • warranty: 2 years
Rockford Fosgate Punch PM2652B 6-1/2" 2-way marine speakers
  • power handling up to 85 watts RMS (170 watts peak)
  • UV-stable Centrex® injection-molded plastic parts
  • 1" bridge-mounted aluminum alloy tweeter
  • warranty: 2 years
Rockford Fosgate Punch PM2652W-MB 6-1/2" mini roll bar speakers
  • 1" bridge-mounted aluminum dome tweeters
  • true marine-grade design stands up to the elements
  • high-density sealed polyethylene enclosures with stainless steel grilles
  • warranty: 2 years
Rockford Fosgate Power T1S2-10 10" marine subwoofer
  • handles up to 500 watts RMS (1000 watts peak)
  • Vertical Attach Surround Technique (VAST) increases cone area
  • patent-pending motor technology
  • durable Santoprene rubber surround
  • impedance: 2 ohms
  • warranty: 2 years
Rockford Fosgate Power TM400X4AD 4-channel amp
  • 100 watts RMS x 4 at 4 ohms (400 watts peak)
  • variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
  • conformal-coated circuit board — suitable for power sports and marine applications
  • warranty: 2 years
Rockford Fosgate Power TM750X1BD mono subwoofer amplifier
  • 500 watts RMS x 1 at 4 ohms (750 watts x 1 at 2 ohms)
  • low-pass filter (50-250 Hz at 12 dB/octave)
  • twin cooling fans and real-time thermal sensing
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # RZR-STAGE5
KEEP READINGREAD LESS

What's in the box:

  • PMX-2:
  • Marine digital media receiver
  • Trim-ring
  • Mounting plate
  • Mounting bracket
  • Wiring harness
  • Backstrap
  • 4 Machine screws
  • 4 Hex-nuts
  • Installation/Operation booklet
  • RFRZ-PMX2DK:
  • Trim-panel
  • 2 Shoulder-head bolts
  • 4 Mounting screws
  • 2 Spring-clips
  • Power/ground harness
  • Hex-key
  • Installation Instructions
  • TM400X4ad:
  • 4-Channel moto-marine amplifier
  • Power/ground/turn-on plug (installed)
  • Two 8" Speaker output harnesses (bare wire to 4-pin Molex)
  • Two 14" Input harnesses (2 RCA to 4-pin Molex)
  • Setup Disc (CD)
  • Amplifier Quick Setup
  • Certificate of Performance Verification
  • TM7501X1bd:
  • Mono marine amplifier
  • 14" Input harness (4-pin Molex connector to 2 female RCAs)
  • Setup disc CD-ROM
  • Amplifier Quick Setup sheet
  • Certificate of Performance Verification
  • PM2652:
  • Two 2-way marine speakers
  • 2 Grilles
  • Eight 1-3/4" Stainless steel Allen head screws
  • Four 1" Stainless steel Allen head screws
  • 3mm Allen head bit
  • 8 Speed clips
  • Installation/Operation manual
  • PM2652W-MB:
  • 2 Wakeboard tower speakers
  • 2 Mounting couplers
  • Two 16" Speaker harnesses
  • 4 Plastic grommets
  • 4 Mounting bolts
  • 2 Security bolts (pre-installed)
  • 4 Nuts
  • 2 Safety lanyards
  • 2 Lanyard washers
  • 4 Threaded inserts
  • LOCTITE syringe
  • Torx wrench
  • Installation & Operation Manual
  • T1S2-10:
  • One shallow-mount 10" Subwoofer
  • 1 Trim ring (installed)
  • Twelve 1-5/8" Allen head self-tapping screws
  • 4mm Allen head bit
  • Installation and Operation manual
  • RFRZ-FSE:
  • 2 Empty speaker pods
  • 2 Threaded studs
  • 4 Mounting screws
  • 2 Mounting bolts
  • 6 Washers
  • 2 Self-adhesive pads
  • Installation Instructions
  • RM110D2B:
  • 10" Woofer
  • Grille
  • 8 Screws
  • Installation Instructions
  • RFRZ-FWE:
  • Sub enclosure
  • 3 Brackets
  • 15" Wiring harness
  • 5 Large screws
  • 2 Medium screws
  • 2 Small screws
  • 2 Nuts
  • Installation Instructions
  • RFRZ-RSW16:
  • 8' Left rear speaker harness
  • 8' Right rear speaker harness
  • 8 Wire-ties
  • Installation Instructions
  • PM-CL2B:
  • 2 Mounting clamps
  • RFRZ-K4D:
  • 9' Power/ground/speaker harness (inline 100A fuse inside fuse-holder)
  • 38" Power/ground harness
  • Three 28" RCA harnesses
  • 64" Speaker harness
  • Amplifier mounting bracket
  • 8 Machine screws
  • 8 Washers
  • 4 Plastic grommets
  • 8 Wire-ties
  • 2 Self-adhesive foam pads
  • Installation Instructions

Customer reviews

Loading reviews...

Rockford Fosgate RZR-STAGE5 reviews

Average review:

3 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Rockford Fosgate RZR-STAGE5

Crutchfield customer from Southaven, MS on 9/25/2018

2018 Polaris General

Verified customer (What's this?)
Verified employee purchase (What's this?)

Sounds awesome

Pros:

Cons:

Crutchfield response on

0 of 1 found this helpful

Rockford Fosgate RZR-STAGE5

Gunnerbill from Henderson, NV on 2/18/2018

Verified customer (What's this?)
Verified employee purchase (What's this?)

Rockford Fosgate RZR-STAGE 5, For my Polaris 1000XP Razor "Rock Climber edition", I originally had A complete MB Quarts Roof speaker, 10" POD, * Sound bar, and door speakers. Hoping it would work with the Polaris Command Ride Display. With the radio it sounded OK. But when I installed the Command ride I got static, crackling, popping. After several tries, Polaris couldn't correct it and got a refund. So I got the Rockford Fosgate RZR-STAGE5. I did the install my self, very easy (it took 5 hours). There is online videos to guide you. As soon as I opened the 102lb box, I was impressed. Professional packing, everything was protected. And it is packed to install as you remove from the packing. As soon as I finished installing the sound system, I had to try it. This baby can play loud. The only thing that I would recommend is get better zip ties, everyone that came with the kit broke (just old zip ties). Everything fits perfect. I was really impressed easy items went in and with how the amps were mounted and how the cables are routed. A very clean look (even no one can see them). Rockford Fosgate team really did a lot of research in making this system for the Razor. They really thought of everything to make this install perfect and sound amazing!. I wish there was a way to incorporate the Polaris Command Ride with the speaker system, Or have a larger display screen. I intend to purchase another set of the PODS and add them next to the other PODS installed.

Pros: Do-it-yourself, Easy install, Professionally packed, Quality product, Amazing look. Ordering from Crutchfield makes it painless. Crutchfield reps keep you updated all the way till the item arrives. And again afterwards to see if there was any problem with order. Very professional

Cons: A little higher cost speaker system (but well worth it in Quality), bad zipties (buy stainless steel retainers with chaffing protection

Crutchfield response on

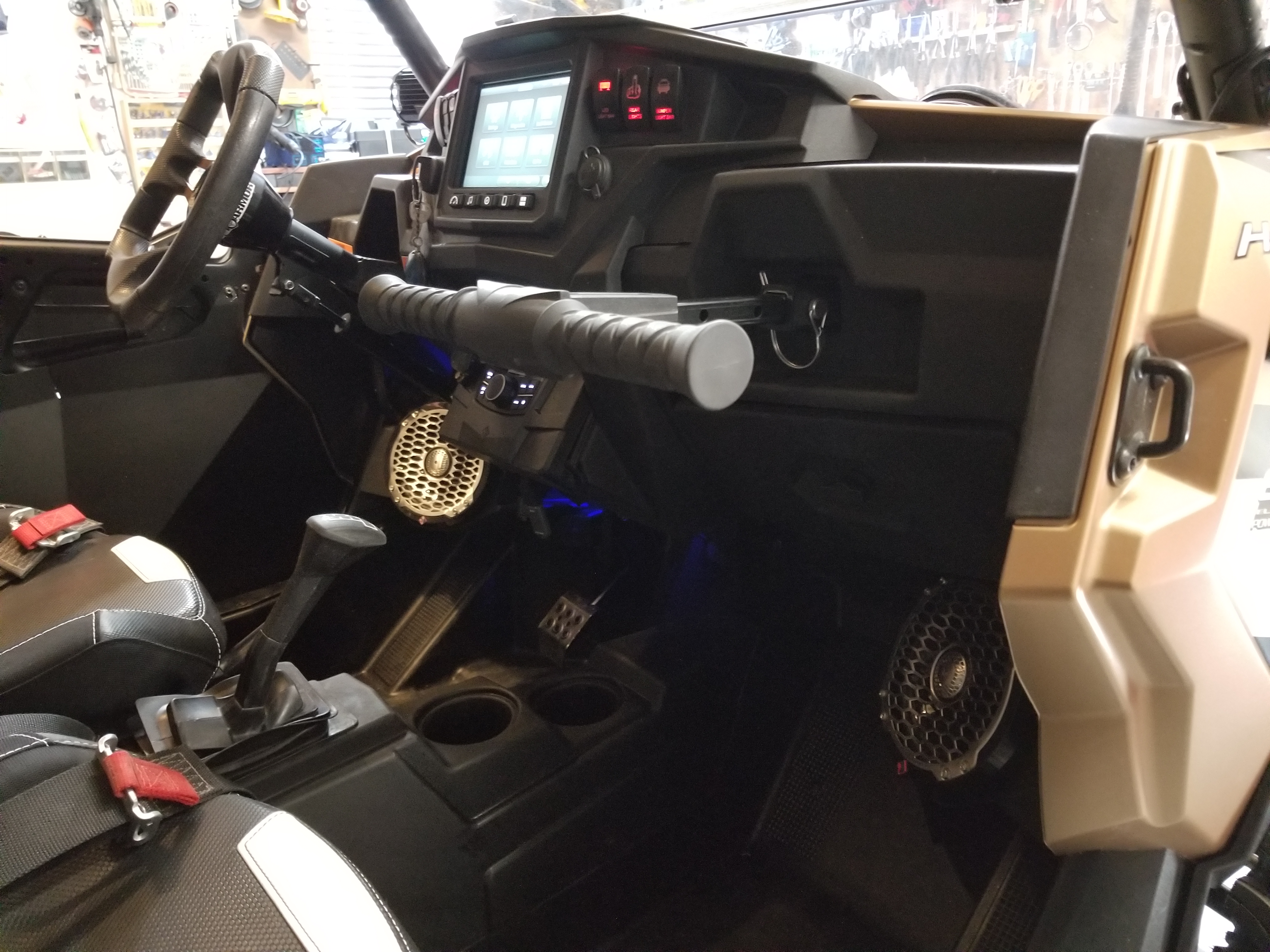

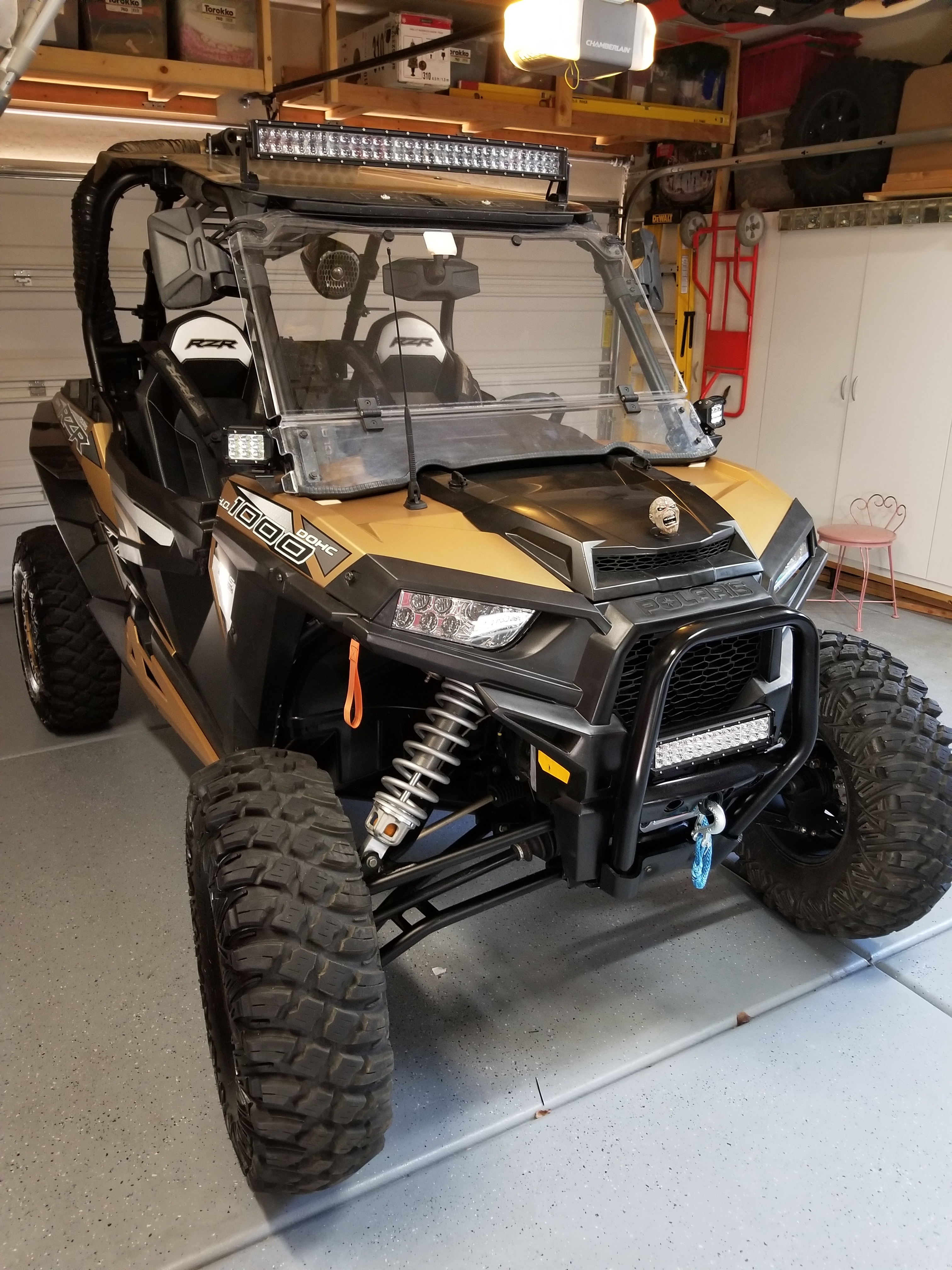

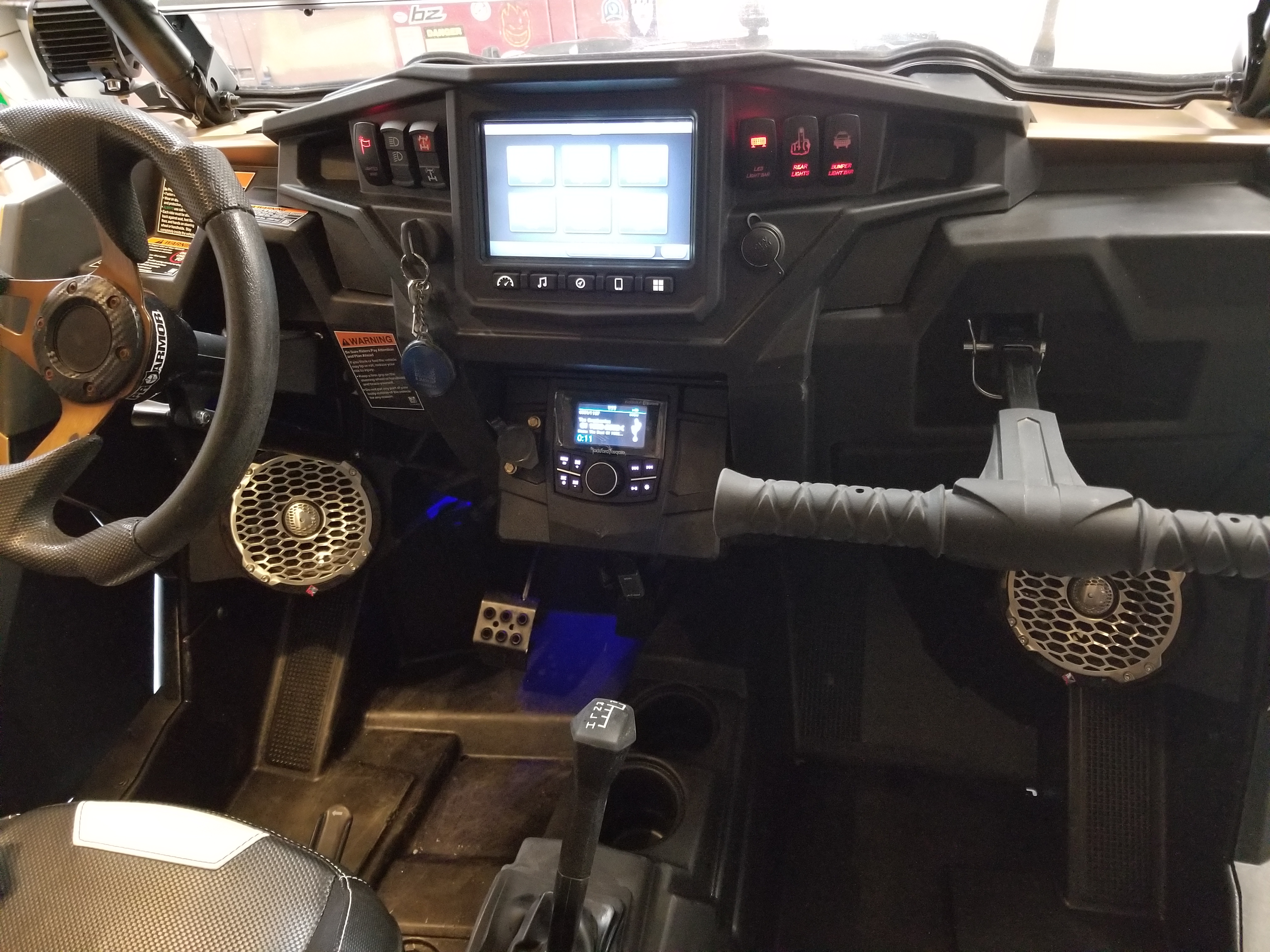

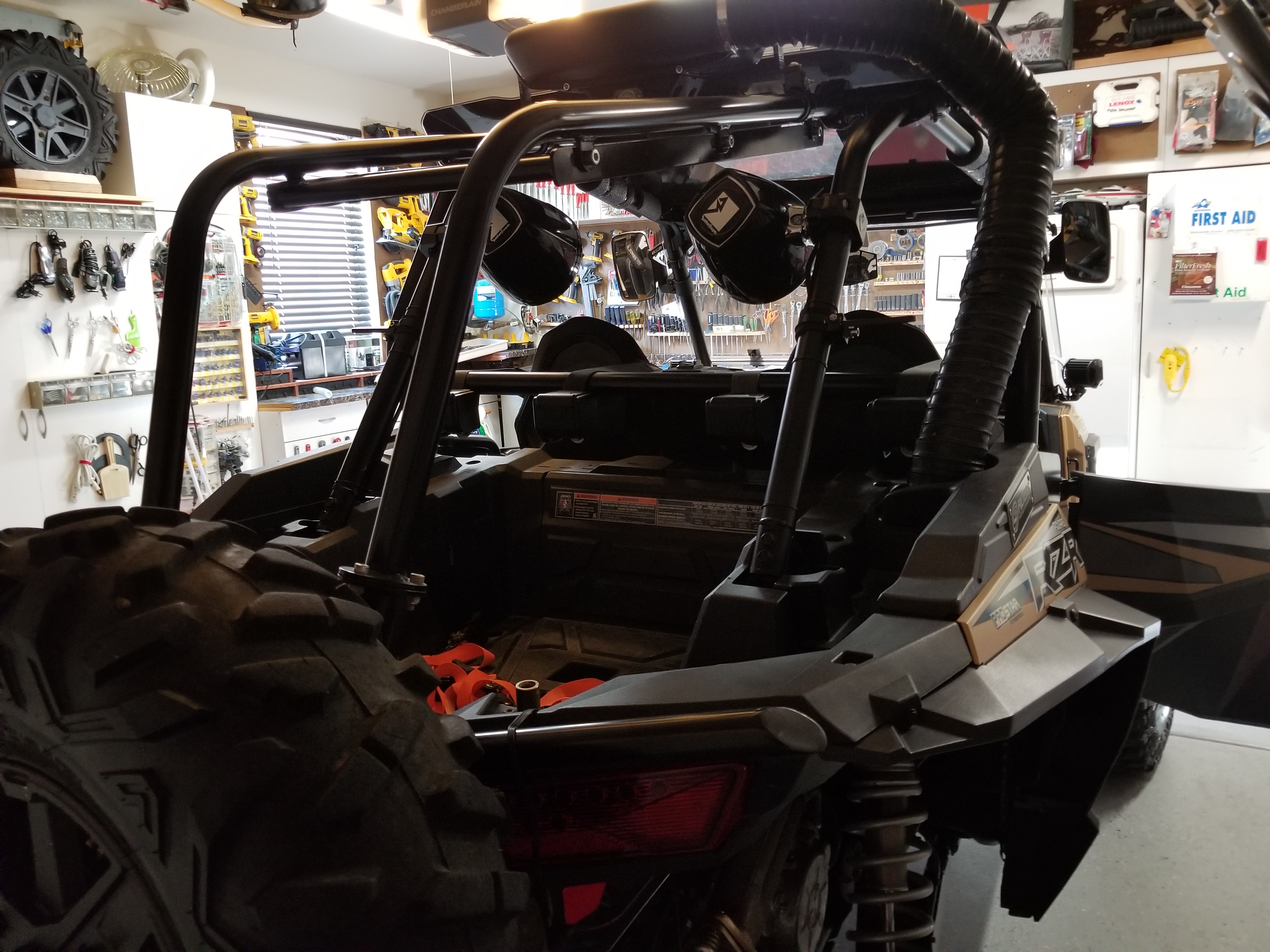

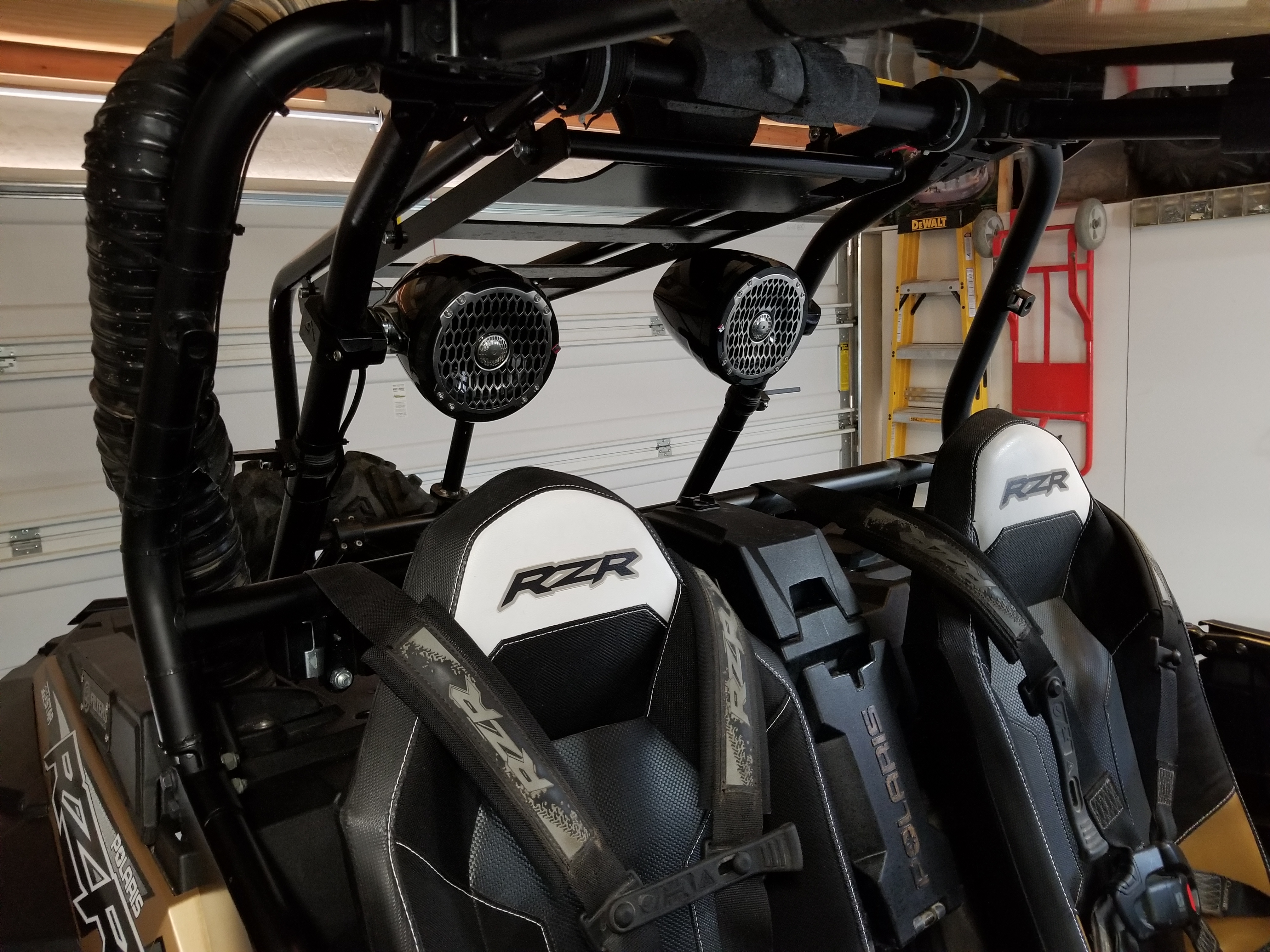

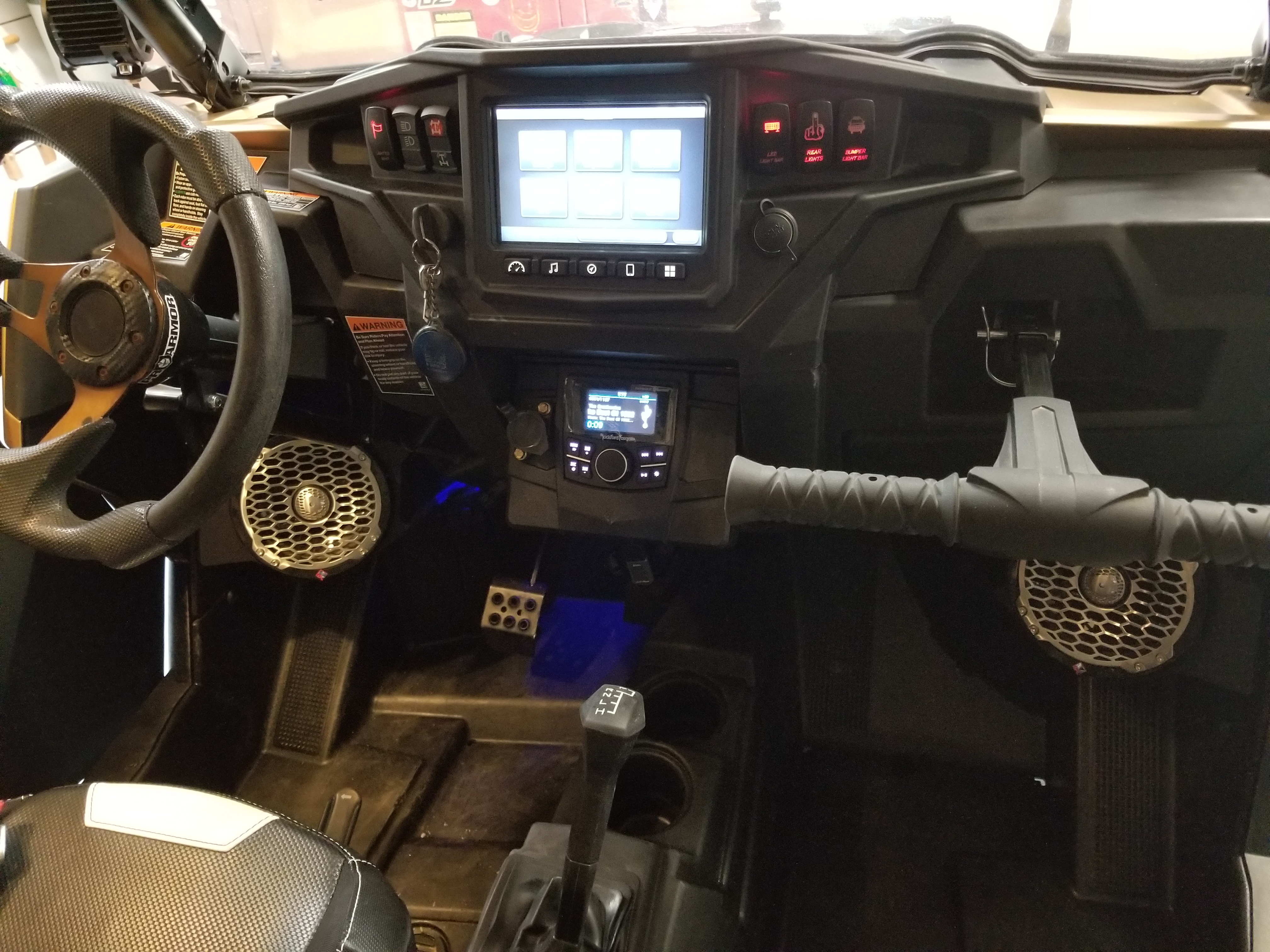

Customer review photo Customer review photo Customer review photo Customer review photo Customer review photo Customer review photo

0 of 0 found this helpful

impresssive

Crutchfield customer from Saint Joseph, IL on 10/31/2017

2016 Polaris RZR XP 1000

Verified customer (What's this?)
Verified employee purchase (What's this?)

I've ordered from Crutchfield before, and great service as always. I use to make fun of people with stereos in their SXS's, but now I have one. Only mine will probably blow most away. I was reluctant in getting one because I figure there is no way it would sound good in an open air vehicle? Well, this system sounds great and has a punchy bass that sounds great listening to some good ole rock n roll. It certainly doesn't have the booming bass that would would hear from a giant 12' subwoofer in an enclosed cab, but it does pretty good. Sounds better than most Jeep sound systems I've heard. It can get obnoxiously loud, so I have no problem hearing with helmet on, and foot on the gas pedal with aftermarket exhaust.

Pros:

Cons:

Crutchfield response on

2 of 2 found this helpful

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Rockford Fosgate RZR-STAGE5

Product Research

Digital Media Receiver & Installation Kit
4-Channel Amplifier + Front & Rear Speakers
Mono-Amplifier & Subwoofer

Digital Media Receiver & Installation Kit

Installation Kit: The included dash kit is designed to facilitate the addition of the Rockford Fosgate PMX-2 digital marine source unit into select Polaris RZR model ATVs. This kit is custom molded to match the existing dash and mounts in place of the center pocket door using the factory (OEM) mounting holes. All mounting hardware for the source unit and dash kit are provided.

Compatibility: The included dash kit is specifically designed for the following 2014-2018 Polaris RZR model ATVs.

Make Model Year
Polaris RZR XP4 Turbo 2016-2018
RZR XP Turbo 2016-2018
RZR XP4 1000 2014-2018
RZR XP 1000 2014-2018
RZR S 1000 2015-2018
RZR S 900 2015-2018
RZR 4 900 2015-2018
RZR 900 XC 2015-2018

Notes:

  • Kits featuring subwoofer are not compatible with Polaris DYNAMIX Active suspension (2018 models) or with Polaris heater option (all models).
  • RZR S1000, RZR S900, and RZR 4 900 requires purchase of center pocket from RZR 1000 (Part # 5439789-070 from Polaris) to mount Rockford Fosgate dash kit and PMX source kit.

Marine Receiver: Rockford Fosgate's PMX series of source units are fully tested against UV radiation degradation as well as tested to IPX water intrusion standards. They are also fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-2 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

  • Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
  • UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
  • Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
  • Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
  • Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
  • Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.

Bluetooth Music Streaming: The Rockford Fosgate PMX-2 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-2 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-2 will also display your device's song/artist information with album art.

Note: This unit does not support Bluetooth hands-free communication for phone calls.

Optional Wired Remotes: The PMX-2 features a wired remote input which is compatible with Rockford Fosgate's PMX-1R & PMX-0R wired remote controllers (both sold separately). In most cases you will need one of Rockford Fosgate's extension cables (sold separately) to connect a wired remote controller. Up to 3 remotes can be added to one marine receiver using PMXYC Y-cable (sold separately).

USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 music files loaded onto a USB MSC device. You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random.

Note: The unit's USB port is not compatible with Android.

iPod/iPhone Direct Connection: The Rockford Fosgate PMX-2's USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone to the head unit. Simply use the cable that came with your iPod/iPhone device or a 3rd party Apple certified cable (sold separately). The PMX-2 supports audio playback, music navigation, information display (including album art), and charging of your compatible Apple device.

  • Music Control: The PMX-2 lets you navigate your Apple device's stored music by Playlist, Artist, Album, Song, Genre, Podcast, Composer, or Audiobook. The head unit also offers basic playback functions like Play/Pause, Previous/Next Track, and Random/Repeat. Newer Apple devices with iOS 6.0+ will remain unlocked while connected, so you can access music apps on your device. Older Apple device's clickwheels & touchscreens will lock when connected to the PMX-2.
  • Song/Artist Info + Album Art: The head unit will display your iPod/iPhone's stored music file information; including Track number, Elapsed playing time, Song title, and Artist/Artist name. It will also display album art.
  • Charging: The head unit's USB connection provides 1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).

Pandora Internet Radio: The free Pandora App (either from Apple's App Store or Google Play) lets you play music from the Pandora music service through the Rockford Fosgate PMX-2 using your USB-connected or Bluetooth-paired Apple iPhone (iOS 9.0+), or Bluetooth-paired Android smartphone. Your Apple iPhone must be connected to the PMX-2 via the appropriate the Dock-/Lightning-cable that came with your iPhone or via Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the marine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. The PMX-2 provides control over the Pandora music service and displays Artist, Album, and Song information.

  • Station List: You can select Pandora stations from your Station List by date or alphabetically.
  • New Station: Based on a currently playing track or artist, you can create a new station and save it to your Pandora account.
  • Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
  • Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
  • Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.
Note: Access to these online service will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or smartphone to connect to the Internet. Pandora is not supported in Canada and only available in the United States.

Apple Device Compatibility Chart: The Rockford Fosgate PMX-2 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 4/6/2017):

Apple Device Generation Tested Version Media Type Control Type Display Type Bluetooth Charge
Audio Video Head Unit iPod/iPhone Pandora Album Art Artist/Song Text Track Info Phone Audio
iPhone
3GS 5.1.1 Y N Y N N Y Y Y N Y Y
4 7.1.2 Y N Y Y N Y Y Y N Y Y
4S 9.3.5 Y N Y Y Y Y Y Y N Y Y
SE 10.3 Y N Y Y Y Y Y Y N Y Y
5/5C/5S 10.3 Y N Y Y Y Y Y Y N Y Y
6/6+/6S/6S+ 10.3 Y N Y Y Y Y Y Y N Y Y
7/7+ 10.3 Y N Y Y Y Y Y Y N Y Y
touch
3rd 5.1.1 Y N Y N N Y Y Y N Y Y
4th 6.1.2 Y N Y Y N Y Y Y N Y Y
5th 9.3.5 Y N Y Y Y Y Y Y N Y Y
6th 10.3 Y N Y Y Y Y Y Y N Y Y
nano
6th 1.2 PC Y N Y N N Y Y Y N N Y
7th 1.02 PC Y N Y N N Y Y Y N Y Y
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

Aux Input: The Rockford Fosgate PMX-2 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom  name.

AM/FM Tuner: The PMX-2 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.

Weather Band: The Rockford Fosgate PMX-2 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.

MOSFET Amplifier: The PMX-2 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

  • Full Bandwidth Power: 25 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
  • Maximum Output Power: 50 watts x 4 channels (200 watts total)
Note: The power specifications for the marine receiver are compliant with the CEA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Electronics Association (CEA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers.

4V/4Ch Preouts + Sub Control: The Rockford Fosgate PMX-2 is equipped with two pair of 4-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps. When the sub out is activated, you can independently adjust its volume level from 0 to 40.

Equalizer: The PMX-2 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.

  • Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
  • 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
  • Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.

High-Pass & Low-Pass Crossovers: The PMX-2 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.

Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.

Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.

4-Channel Amplifier + Front & Rear Speakers

4-Channel Amp: The Rockford Fosgate TM400X4ad is a 4-channel Power Series "moto-marine" amplifier with a rated power output of 100 watts per channel at 4-ohms or 2-ohms. This Element Ready amplifier can be used on motorcycles, ATVs, or boats, and can withstand harsh environmental conditions. The CEA-2006-rated RMS power output is 100 watts RMS x 4 channels. Additionally the power output is 100 watts RMS x 4 channels into 2Ω and 200 watts RMS x 1 channel bridged (into 4Ω).

  • Features:
    • Element Ready: Rockford Fosgate's Element Ready Amplifiers are protected against dust, UV rays, and corrosion. Marine-grade, two-part epoxy-coated circuit boards are used to prevent corrosion due to exposure in moist and humid places. In addition, stainless hardware is used to help prevent rust and corrosion of all electrical connections.
    • Class-AD: The TM400X4ad features Rockford Fosgate's proprietary Class-AD technology, which allows the amplifier to produce more power with less current draw from the vehicle's charging system.
    • 3-Stage Airflow: The amp's 3-stage airflow method efficiently rids the chassis of heat to keep the amplifier running cool. Dual fan forced induction pulls in fresh air. The air flows over the MOSFET transistors to cool them down, and out through the exhaust channel. The top and bottom heat sinks are decoupled, which allows the top to remain cool to the touch. At least 2-3 inches clearance should be provided around the fan intake and the exhaust vents to optimize air flow.
    • DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
    • CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches its clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup
  • Controls:
    • Input Level: The amplifier has dual input level controls for the front and rear channels, conveniently accessible from the top. To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input levels are adjustable from 150mV to 12V. A small flat-head screwdriver (not supplied) is needed to adjust the levels.
    • Input Switch: With the input switch in the 2-channel position, connecting only the front inputs will send the signal to both the front and rear sections of the amplifier. In the 4-channel position, both front and rear inputs must be used.
    • Crossover: The amplifier has dual built-in Butterworth crossovers for the front and rear channels, variable from 50 Hz to 250 Hz with a slope of 12dB/octave. They can be independently set to high-pass, all-pass (full range), or low-pass operation. The rotary frequency settings can be adjusted with a small screwdriver.
    • Punch EQ: The amplifier has dual Punch EQ functions that change with the crossover switches. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0 to +18 dB at 45 Hz. When the crossover is set to high-pass, the Punch EQ acts as a variable treble boost, 0 to +14 dB at 12.5 kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active.
  • Connections:
    • Power Connections: The TM400X4ad's power, ground, and remote turn-on terminals are located on a single, removable plug. This allows you quickly and easily connect or disconnect the amplifier. Each individual terminal on the plug is a captive c-clamp connector which will accommodate up to 8-gauge wire. A Phillips- or flat-head screwdriver (not supplied) is required to tighten/loosen the terminals.
    • Fuse: The amplifier does not have an on-board fuse. A 60-amp fuse should be placed on the power wire within 18" of the battery.
    • Speaker Connections: The amplifier is equipped with two speaker output harnesses, which connects to the amplifier via 4-pin plugs. The speaker wires should be spliced to the 16-gauge bare wires on the 8" pigtails. To bridge the amplifier, you should use the left front and rear positive and right front and rear negative terminals.
    • Signal Input: The amplifier's Differential Inputs will accept either a line-level or speaker-level input on the Molex-style connector. The included input harnesses each have a 4-pin Molex plug and dual RCAs. Front and rear line-level signals can simply be connected via RCA cables from the source unit to the input harness. For a speaker-level signal, you can cut the RCA connectors from the input harness and splice the wires to the speaker wires of the source unit. When using a speaker-level input signal, the auto turn-on feature is active and the remote turn-on terminal becomes a 12 volt output, which can be used to turn on/off an additional amplifier or other component.

6.5" Front Speakers w/ Pods: The two fiber reinforced composite blend 6.5" front speaker enclosures are designed to be a direct fit for select Polaris RZR model ATVs. The included PM2652B marine speakers mount perfectly in these enclosures.  Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM D4329 sunlight, moisture, and heat) to ensure the PM2652B speakers will provide optimum performance in the difficult marine environment.  All necessary mounting hardware is included. The mounting hardware is stainless steel to resist corrosion.

  • Aluminum Alloy Tweeter: The 1" aluminum alloy tweeter produces crisp, clear highs. The tweeter is bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
  • Polypropylene Cone Woofer: The woofer is made of a mineral filled, injection molded polypropylene material and features integrated UV inhibitors protecting it from sun exposure. This is attached to the UV stable, Centrex plastic, injection molded frame assembly by a Thermo-Plastic Elastomer (TPE) surround designed for maximum cone control and excursion. The cone also attaches to a moisture, fatigue and tear resistant Aramid fiber spider for additional linear control while being driven by Rockford's high excursion, matched motor magnetic structure with IDHS which improves power handling.
  • ICC Crossover: The ICC (Integrated Concealed Crossover) protects the crossover by concealing it inside the basket. This Integrated 12dB/octave sealed crossover features a built-in protection circuit.
  • Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Wakeboard Tower Speaker: The Rockford Fosgate PM2652W-MB is a black 6.5" marine-grade speaker loaded into a sealed enclosure. The speaker features a 6.5" woofer and 1" bridge mounted tweeter, protected by a self-draining grille. Both speaker and enclosure are treated with UV inhibitors and conform to UV and Salt-Fog industry standards.

  • Punch Series Two-Way Design: The Rockford Fosgate PM2652W-MB wakeboard tower speaker comes loaded with Rockford's Punch Series PM2652 marine speaker. Both the tweeter and woofer have been treated for UV radiation and salt-fog resistance for maximum lifespan.
    • 1" Tweeter: The PM2652W-MB features a 1" aluminum alloy tweeter for crisp, clear highs. The tweeter is bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
    • 6.5" Woofer: The midrange is made of a mineral filled, injection molded polypropylene material and features integrated UV inhibitors protecting it from sun exposure. This is attached to the UV stable, Centrex plastic, injection molded frame assembly by a Thermo-Plastic Elastomer (TPE) surround designed for maximum cone control and excursion. The cone also attaches to a moisture, fatigue and tear resistant Aramid fiber spider for additional linear control while being driven by Rockford's high excursion, matched motor magnetic structure with IDHS which improves power handling.
    • ICC Crossover: The ICC (Integrated Concealed Crossover) protects the crossover by concealing it inside the basket. This Integrated 12dB/octave sealed crossover features a built-in protection circuit.
    • Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
  • Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM D4329 sunlight, moisture, and heat) to ensure the PM2652W-MB will provide optimum performance in the difficult marine environment.
    • ASTM B117 salt/fog test standard provides accelerated aging in a controlled corrosive environment to produce relative corrosion resistance information for specimens of metals and coated metals.
    • ASTM D4329 test standard is intended to induce property changes associated with end-use conditions, including the effects of sunlight, moisture, and heat.
  • Mounting Clamps: The Rockford Fosgate PM2652W-MB comes with cast-aluminum mounting hardware to mount the wakeboard tower speakers to your ATV's roll-bar.

Mono-Amplifier & Subwoofer

Mono-Block Amplifier: The Rockford Fosgate Power Marine TM750X1bd is an ultra-compact mono-block amplifier. Even though the amplifier is only 8-1/2" x 4-1/4", it puts out a full 500 watts x 1 at 4 ohms, 750 x 1 at 2 ohms, or 750 x 1 at 1 ohm.

  • Features:
    • Class BD: The amplifier features Rockford Fosgate's proprietary Class bd technology, which is more efficient than typical Class AB amplifiers, with lower distortion than Class D amps. Class AB amps typically have 20-60% efficiency, with the remaining power generating heat. Class bd amps are 75-80% efficient, creating more power to drive your speakers, and less creating heat.
    • Element Ready: This Rockford Fosgate Power Marine amplifier features a conformal coated circuit board that provides protection against exposure to the elements. This marine-grade two-part epoxy coating on the circuit board resists moisture and corrosion from the harsh marine environment. The amp is also protected against dust and UV rays, and features stainless hardware to resist corrosion.
    • Constant Power: Rockford Fosgate uses a patented circuit design to gain up to 25% more output power. Constant Power actively increases the voltage and current in direct relationship to the rise and fall of music signals to provide additional power.
    • Fan Cooled: The TM750X1bd features extruded aluminum heat sinks and dual fans to keep the amp running cool. Dual Fan Forced Induction pulls in fresh air, which pulls heat off of the MOSFETs, and directs airflow into the exhaust channel and out of the amplifier. Since the top and bottom heat sinks are decoupled, the top remains cool to the touch. When installing, you should leave at least 2-3" of clearance around the ends of the amplifier to optimize air flow to the fan intake and exhaust vents.
    • C.L.E.A.N. Technology: Using Rockford's C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) technology, you can easily and precisely set up the amplifier levels to eliminate distortion from damaging your speakers. Simple LED indicators are used, instead of test equipment, to identify signal clipping at both the input and output, and to match the audio source to the amplifier.
  • Controls:
    • Input Level: This rotary control lets you match the output of the audio source to the amplifier.
    • Punch EQ: The Punch EQ eliminates frequency shift with boost. It functions as a 0 to +18dB variable Bass Boost at 45Hz.
    • Frequency: The Butterworth crossover is internally set to Low Pass, and the cutoff frequency is constantly variable between 50Hz and 250Hz with a slope of 12dB/octave.
    • Infrasonic Filter: The 2-way switch lets you engage the built-in Infrasonic Filter. The filter has a fixed cutoff frequency of 28Hz, with a slope of 12dB/octave. The Infrasonic Filter cuts out frequency below 28Hz that cause distortion, and are difficult for speakers to reproduce.
  • Indicators:
    • Input Clip Indicator: The input clip indicator works in conjunction with the audio source's volume knob. It will illuminate red when the audio source reaches its clipping point.
    • Output Clip Indicator: The output clip indicator works in conjunction with the amplifier's input level knob. It will illuminate red when the output level has reached the clipping point. When setting the level using test tones, you should adjust the output level until the LED glows blue. If setting the output level using music, the LED should glow blue with only an occasional red indication.
    • Power/Protect: The Power LED illuminates blue when the unit is turned on. If the LED turns yellow, a short circuit or too low of an impedance has been detected at the speaker connections. If the LED turns red, the amp has overheated and has shut down.
  • Connections:
    • Power/Remote Terminals: The amplifier's Power, Ground, and Remote terminals are located in a separate plug-in quick connector. The connector has compression terminals that will accept up to 8-gauge wire. When utilizing high-level signals for the auto turn-on feature is active, and the Remote terminal can be used as an output to turn on/off up to two additional amplifiers or other accessories. A small screwdriver (not included) is required to tighten/loosen the compression terminals. Once the wires are installed in the quick connector, the connector can be plugged into the amplifier.
    • Inputs: The 4-pin Molex connector works with the supplied RCA Input Harness. The amp will accept signals from either high-level (speaker) or low-level (RCA) sources. If connected to a high-level input signal, the amp's auto turn-on feature is active. For high-level input, you can either splice RCA plugs onto the source unit's speaker wires, or cut the RCAs off of the supplied input harness and splice on speaker wires from the source unit using the standard wire color code (white=left, gray=right).
    • Speakers: The speaker output has removable compression terminals that will accept up to 10-gauge wire.
    • Remote Punch Level Control: This RJ45 jack lets you plug in the optional PLC2 Punch Remote Level Control. The control needs to be switched to the ON position in order to use the remote level control.
Note: The amplifier has no built-in fuses. It is recommended that a 100A fuse be placed on the power wire about 18" from the battery.

10" Woofer (2-Ohm): The power rating on the T1S1-10 subwoofer conforms to CEA-2031 industry standards, meaning it has the capacity to handle its rated power under continuous demand.

  • Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the sub's motor structure, voice coil alignment, and suspension to yield the best possible performance.
  • EVCC: Rockford Fosgate's Encapsulated Voice Coil Coupling (EVCC, Patent Pending) technology connects to the subwoofer's voice coil from both the top and bottom and provides a more secure mounting platform for both the dual spiders and cone assembly.
  • SYMS: Unlike a traditional motor assembly, Split Yoke Motor Technology (Patent Pending) moves the magnet inside the voice coil. This design allows greater excursion than typical shallow subwoofers.
  • VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
  • FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.
  • Anodized Aluminum Voice Coil Former: Aluminum voice coil formers offer superior heat dissipation over other commonly used materials. The hard-anodized finish increases the former strength. These two factors combine to improve the overall power handling characteristics of the subwoofer.

Subwoofer Enclosure: The T1S1-10 subwoofer mounts to the included fiber-reinforced, composite-blend subwoofer enclosure which is designed to be a direct fit for select Polaris RZR model ATVs. The enclosure's texture and color is matched to the ATV's interior. The enclosure bolts in directly to factory mounting holes and offers a stealth install once mounted and body panels are replaced.

Loading accessories...

Customer Q&A

Loading articles...

TOP
