About the Rockford Fosgate TMS6SG
Phenomenal sound for your fairings
Phenomenal sound for your fairings
Rockford Fosgate designed their TMS6SG 6-1/2" speakers specifically for the fairing speaker locations on 1998-2013 Harley-Davidson® Street Glide® motorcycles. These rugged, weather-resistant coaxial speakers will really boost your bike's audio quality, packing a lot of sonic punch into a compact package.
More cone means bigger tones
The big VAST (Vertical Attach Surround Technique) surrounds give the speakers 25% more cone area without compromising ease of installation. The result? You'll get more performance from a smaller speaker, which is pretty much the ideal for a motorcycle.
Ready for the road
The carbon-reinforced polypropylene cone, neodymium dome tweeter, and poly-cotton spider will withstand wind and weather, while the glass-reinforced polymer frame can stand up to rough roads or sizzling sunlight. Install these speakers using your Harley's factory hardware and the included grille assemblies.
Product highlights:
- 6-1/2" full-range motorcycle speakers
- designed for the fairing speaker locations on 1998-2013 Harley-Davidson Street Glide models
- Element-Ready design is weather and water resistant
- 25 mm neodymium tweeter with integrated phase plug and ASA grill
- carbon-fiber reinforced polypropylene cone
- Santoprene VAST surround
- Santoprene front isolation spider
- 35mm voice-coil
- neodymium ring magnet motor
- glass-reinforced polymer frame
- integrated spade terminals
- integrated 6 db crossover with polyester capacitor
- power handling: 75 watts RMS (150 watts peak)
- frequency response: 56-20,000 Hz
- sensitivity: 91 dB
- grilles and mounting hardware included
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # TMS6SG
What's in the box:
Rockford Fosgate TMS6SG owner's manual
- Two 2-way speakers
- 2 Grilles
- Four 1-3/4" Mounting screws
- Two 1" Mounting screws
- Installation manual (English/ French/ Spanish/ German/ Italian)
Featured review

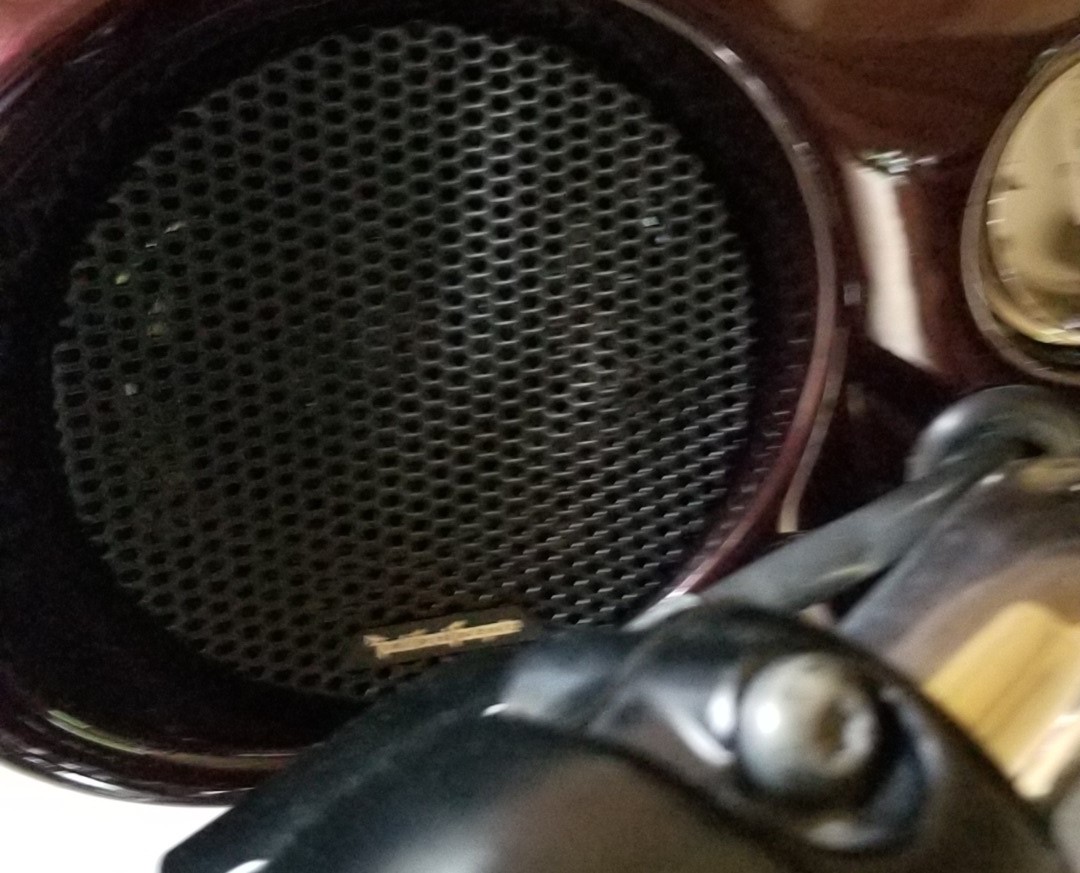

These speakers play loud and crystal clear at highway speeds and I don't even have an amp. My Harley is loud but these are still audible over my exhaust and road noise. In addition, I happen to think the grilles are sexy. Excellent product, highly reccommend!
Darrell from Blacklick, OH
10 reasons to shop with us
#8
Hands-on product research
The most accurate info around.
REVIEWS
Customer reviews
Loading reviews...
Rockford Fosgate TMS6SG reviews
Average review:
Customer photos
More details on the Rockford Fosgate TMS6SG
Features & specs
| General | ||
|---|---|---|
| Speaker Size | Vehicle-specific | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Film | |
| Woofer Composition | CarbonFiber/Polypropylene | |
| Woofer Surround | Santoprene Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 91 | |
| Sensitivity at 2.83 volts | 94 | |
| Frequency Response | 65 - 20k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 75 | |
| Peak Power Handling (Watts) | 150 | |
| Top-mount Depth (Inches) | N/A | |
| Bottom-mount Depth (Inches) | 2 13/16 | |
| Cutout Diameter or Length (inches) | 4 5/8 | |
| Mounting Height (Inches) | --- | |
Product Research
Features
Weather: The TMS6SG is made weather resistant by the Santoprene front isolation spider, connecting the tweeter housing and woofer cone assembly.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
CEA-2031 Compliant: The power handling specifications conform to the CEA-2031 industry standards; meaning the speaker has the capacity to handle its rated power under continuous demand, not just for an instant.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket. The surround is made of Santoprene rubber.
