About the Definitive Technology Mythos XTR®-60 Wallspeaker
Definitive's leading the way in ultra-thin speakers for flat-panel TVs
Definitive's leading the way in ultra-thin speakers for flat-panel TVs

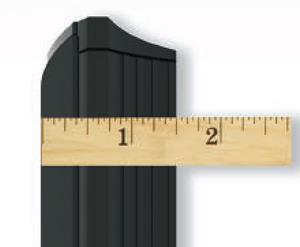

Big-time performance from a flat speaker? It's possible with Definitive's Mythos XTR-60. You'll be amazed when you hear the rich, realistic detail and wide soundstage that this super-thin speaker can produce. Use one each for your home theater's left, right, and center channels, and enjoy high-performance sound from clean-looking speakers that measure a mere 1-1/2" deep.
State-of-the-art driver design for impressively accurate sound
Using precise computer modeling and years of design experience, Definitive created incredibly thin, space-efficient "XTDD" drivers. These shallow drivers optimize every part of the speaker surface to maintain a high level of performance. The XTR-60 uses four 3-1/2" XTDD drivers, each one pressure-coupled to a low-bass radiator, for big sound from a total of eight dome woofers. And at the center of the baffle is the same pure aluminum dome tweeter used in Definitive's flagship Mythos ST SuperTower® speakers. It produces extended highs, revealing nuance and shimmer without a trace of edginess.
Flexible placement options
The Mythos XTR-60 comes with a wall-mounting bracket that allows for either vertical or horizontal placement, with a total installation depth of just 1-9/16 inches. It also comes with an attractive smoked-glass stand that lets you place it on a shelf or entertainment stand. The specially shaped enclosure is made of black hand-polished aluminum, and uses stiffing ribs and channels to make it rigid and resonance-free.
Building a system
Put together a complete home theater system using XTR-60 speakers for your front three channels. Add on Definitive's Mythos Gem or Mythos Gem XL surround speakers for wraparound sound. And for high-impact bass, check out these Definitive subwoofers.
Did you know?
Your new speakers will probably sound better after several weeks of use than they do right out of the box. That's because the material surrounding the woofers will loosen up, allowing the drivers to move more fully. Definitive Technology estimates a break-in period of 24 to 48 hours of playback before the speakers will deliver optimum sound quality. For more information and helpful tips, check out this article from Definitive's website about conditioning your speakers.
- matches ultra-thin TVs 60" and up
- frequency response 70-30,000 Hz
- sensitivity 92 dB
- 8-ohm impedance
- handles up to 200 watts
- one 1" pure aluminum dome tweeter
- four 3-1/2" XTDD aluminum dome midrange/bass drivers
- four 3-1/2" pressure coupled dome low-bass radiators
- one pair of 5-way binding posts
- aircraft-grade extruded aluminum cabinet
- gloss black finish
- includes wall-mounting bracket and glass base table stand
- dimensions: 6"W x 32-1/8"H x 1-1/2"D (without bracket)
- warranty: 5 years
- Our 60-day money-back guarantee
- MFR # VFJB
What's in the box:
- Black table-top/wall-mount loudspeaker (with removable cloth grille)
- Wall-mount bracket
- Pedestal shaft
- Pedestal base
- 2 Metal feet-stabilizers
- Plug-in speaker terminal
- Four 1-1/2" wood-screws
- Two 6mm x 13mm screws
- 6mm x 16mm screw
- 2 Self-adhesive rubber pads
- Owner's Manual
- 2 Templates (Horizontal/Vertical)
- Online Product Registration card
- Definitive magnetic logo (installed)
More details on the Definitive Technology Mythos XTR®-60 Wallspeaker
Features & specs
|Number of Speakers||1|
|Bipole or Dipole||No|
|Midrange size (inches)||N/A|
|Woofer size (inches)||3-1/2|
|Mounting Bracket Included||Yes|
|Parts Warranty||5 Years|
|Labor Warranty||5 Years|
Overview: The Definitive Technology Mythos XTR-60 loudspeaker offers maximum versatility for your home theater and flat-panel entertainment system (perfect size for 55"-65" TV); it can be used as an on-wall or shelf-mounted Front, Center, and Surround speaker. The Mythos XTR-60 features a high-gloss aircraft-grade extruded aluminum enclosure with proprietary damping technologies to ensure total rigidity and perfectly accurate sound. It also features four 3-1/2" XTDD anodized aluminum mid/bass drivers pressure-coupled to four 3-1/2" dome low-bass radiators, and a 1" (25mm) pure aluminum dome tweeter with an acoustically contoured faceplate for excellent high frequency extension, detail, and natural smoothness.
Pure Aluminum Dome Tweeter: The center-mounted 1" tweeter is the same hyper-definition pure aluminum dome tweeter found in Definitive's award-winning state-of-the-art Mythos ST SuperTower. The pure aluminum dome tweeter provides clarity, dynamic range, and extended high-frequency response.
XTDD Technology Drivers: The Definitive Technology Mythos XTR-60 loudspeaker utilizes Definitive's patent-pending XTDD technology anodized aluminum dome drivers for extraordinary performance. Using state-of-the-art computer modeling and decades of speaker design experience, Definitive engineers eliminated every inch of wasted space, optimized every part, and maximized the moving surface area of a dynamic driver to shrink it down to a very compact dimension without giving up ultra high performance audio fidelity. The XTDD drivers provide dynamic punch, a wide frequency range, and broad dispersion that flat vibrating membrane panel-type speakers simply cannot match.
Pressure Coupled Design: To extend and deepen the bass response of such a thin speaker, the four 3.5" XTDD drivers are pressure coupled to four anodized aluminum dome bass radiators.
Ultra-Thin Aluminum Enclosure: The Definitive Technology Mythos XTR-60 features an ultra-thin (1.5" deep) aircraft-grade aluminum cabinet that fits today's flat-panel televisions perfectly. By specially shaping the enclosure and incorporating stiffing ribs and channels, Definitive made the space-efficient extruded aluminum enclosure ultra-rigid and resonance-free. The magnets of the XTDD drivers protrude through the rear wall of the enclosure to further minimize depth. A thermally conductive gasket seals the enclosure/magnet interface and transfers heat from the driver's rare-earth magnet to the enclosure, making the whole enclosure a giant heat dissipater.
Magnetic Grille: The Mythos XTR-60 LCR speaker features a black cloth magnetic grille which easily attaches and detaches from the speaker.
Speaker Terminals: The Mythos XTR-60 is equipped with a plug-in C-clamp speaker terminal to attach your receiver's speaker wire (up to 14 AWG).
Applications: The Mythos XTR-60 can be used as left & right main, center, and surround speakers in your home theater audio system. The Mythos XTR-60 can be mounted on the wall or placed on a table-top vertically or horizontally as a left & right main speaker, center speaker, or surround speaker.
Tabletop Placement: The Mythos XTR-60 can be mounted vertically or horizontally on a tabletop or shelf. Two adjustable feet-stabilizers are supplied if you want to place the XTR-60 on a shelf as a center-channel speaker (horizontal orientation). The feet-stabilizers screw into the 1/4"-20 threaded inserts on the back of the speaker's enclosure. For vertical shelf or tabletop placement, the XTR-60 comes with a smoked tempered glass base. The bass assembly attaches to the speaker via the keyhole slots and threaded inserts on back of the enclosure.
Note: The XTR60 measures 35" tall x 9.625" wide x 6.1875" deep when attached to the included pedestal base.
Wall Mounting: The Definitive Technology Mythos XTR-60 can be mounted directly to the wall using the two key-hole slots on the back of the enclosure and the included wall-mount bracket (mounting screws sold separately). The Mythos loudspeaker can be mounted on the wall horizontally or vertically. The speaker measures 1.5625" deep with the wall-mount bracket attached.
Note: A horizontal and vertical template is supplied to help with installation.
