iDatalink ADS-SW-HD1 Wiring Interface

Install a new radio and retain handlebar audio controls in select 1996-13 Harley-Davidson motorcycles

Item # 794ADSHD1

This two-piece iDatalink combo kit allows you to install a new radio in select 1996-2013 Harley-Davidsons.

Find what Fits your car

This two-piece iDatalink combo kit allows you to install a new radio in select 1996-2013 Harley-Davidsons.

Item # 794ADSHD1

Ships free

In stock
C$94.99

About the iDatalink ADS-SW-HD1 Wiring Interface

iDatalink makes it easier to upgrade your Harley's audio

This two-piece iDatalink combo kit allows you to install a new radio in select 1996-2013 Harley-Davidsons. iDatalink's HRN-SW-HD1 wiring interface works in conjunction with their Maestro ADS-MSW module to retain the use of your handlebar-mounted audio controls, including the Push-to-Talk and Squelch buttons (if present).

iDatalink makes it easier to upgrade your Harley's audio

This two-piece iDatalink combo kit allows you to install a new radio in select 1996-2013 Harley-Davidsons. iDatalink's HRN-SW-HD1 wiring interface works in conjunction with their Maestro ADS-MSW module to retain the use of your handlebar-mounted audio controls, including the Push-to-Talk and Squelch buttons (if present).

The magic of the Maestro

Before you start your installation, you'll need to visit the iDatalink site to program the Maestro adapter to work with your motorcycle and your new stereo. Using the intuitive web programming interface, each factory button can be assigned a specific radio function, so you can control your tunes without taking your eyes off the road ahead.

And here's a great feature that's unique to this adapter — you can also choose and assign a secondary "press and hold" radio function to each factory button, effectively doubling what can be controlled. For example, touch the "Volume Up" button, and it'll turn up the music. Hold down the "Volume Up" button, and you can switch on the loudness on your car stereo (or any other secondary function you choose).

The ADS-MSW works with a variety of aftermarket receivers, and you can install the ADS-MSW yourself if you have some experience installing audio gear. You'll usually have to tap or splice into one to three wires in your motorcycle to connect this adapter.

An essential adapter

The HRN-SW-HD1 wiring adapter plugs right into the ADS-MSW module, which then plugs into the steering wheel control input or wired remote input on your new radio. You'll need to splice the bare-end wires on this iDatalink harness to the wires on the harness that plugs into your new radio.

Once you've installed the adapter and module, you'll be able to program short- and long-hold audio functions to each handlebar button. You can only retain your handlebar audio controls with radios by Alpine, Blaupunkt, Clarion, Dual, Eclipse, JVC, Kenwood, Pioneer, or Sony.

READ LESS

Product highlights:

  • wiring adapter/module combo for Harley-Davidson motorcycles
  • install a new radio in select 1996-2013 Harleys
  • works with a wide variety of aftermarket radios
  • retains the use of your handlebar audio controls with radios by Alpine, Blaupunkt, Clarion, Dual, Eclipse, JVC, Kenwood, Pioneer, or Sony
  • assigns a secondary "press and hold" radio function to each factory button
  • warranty: 1 year
  • Our 60-day money-back guarantee
  • MFR # ADS-SW-HD1

What's in the box:

  • Steering wheel control interface module
  • T-harness
  • 4-pin to 3.5mm harness
  • 7" miniUSB-to-USB cable
  • Quick Start Guide
  • Sticker

Customer reviews

Loading reviews...

iDatalink ADS-SW-HD1 Wiring Interface reviews

Average review:

29 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the iDatalink ADS-SW-HD1 Wiring Interface

Stacey B.

Product Research

Features

Harley Davidson SWC Package: The iDatalink Maestro ADS-SW-HD1 includes the Maestro ADS-MSW steering wheel control module and the HRN-SW-HD1 T-harness in one package. The ADS-SW-HD1 lets you retain your Harley Davidson's handlebar buttons and program them to control your new radio when replacing the factory stereo with an aftermarket head unit.

Vehicle Compatibility: The iDatalink Maestro ADS-SW-HD1 is compatible with the following Harley Davidson motorcycles.

Make Model Year
Harley Davidson Electra Glide 1996-2013
Road Glide 1998-2013
Street Glide 2006-2013

Downloadable Firmware: The supplied USB cable plugs into your Windows PC and allows you to flash (program) the Maestro SW with the appropriate Harley Davidson firmware (SI-HD01-AS) to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware. System requirements include -

  • Windows PC (10/8.1/8/7/Vista/XP/2000) or Mac OS X (Mojave [10.14], HighSierra [10.13], Sierra [10.12], El-Capitan [10.11])
  • Available USB port (version 2.0 or 3.0)
  • 4GB RAM or more
  • 200MB available space on HDD
  • Internet connection

Note: Not compatible with Chromebook and other operating systems not listed above.

T-Harness: The included T-harness features a molex connector which will plug into your Harley Davidson motorcycle's factory radio connector, and bar wires which will need to be hardwired to your aftermarket head unit's wiring harness.

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Black Ground
White Left Front Speaker +
White/Black Left Front Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -
Note: The wiring harness only includes leads for the front left & right speakers. If your motorcycle has rear speakers, they will need to be hardwired.

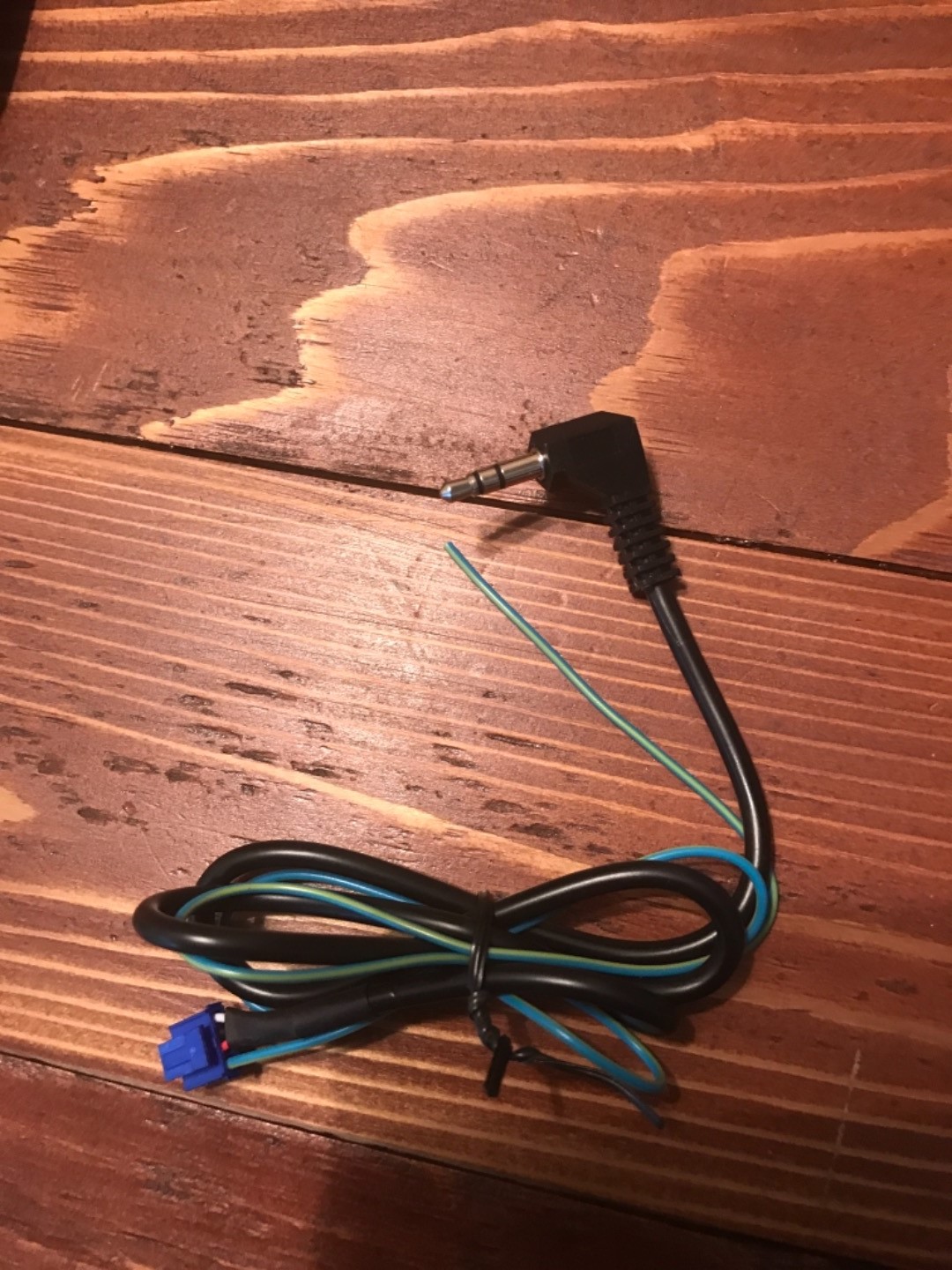

SWC Jack & Wire: The ADS-SW-HD1 features a right-angle male 3.5mm jack and a blue/yellow remote wire for compatibility with a variety of aftermarket head units features a SWC input or SWC wire connection. Compatible aftermarket head units include Alpine, Blaupunkt, Clarion, Dual, Eclipse, JVC, Kenwood, Pioneer, and Sony.

Loading accessories...

Customer Q&A

Q
Crutchfield asked: Why did you buy this?
A
Needed it for my harely [ byron  Feb 28, 2018 ]
A
recommended [ Benjamin  Feb 06, 2018 ]
A
Terrific product to connect stereo to handlebar controls on Harley touring models. [ Tom  Dec 05, 2017 ]
A
Required accessories for installation [ Cesareon E.  Sep 17, 2017 ]
A
To maintain handlebar controls [ Jeffrey  Sep 15, 2017 ]
A
To operate my hand controls on my harley. [ C  Aug 11, 2017 ]
A
I chose this wire harness because it works with my handle bar controls [ victor  Jul 22, 2017 ]
A
to retain handlebar controls [ Jerry  Jul 16, 2017 ]
A
Need it to hook up stereo [ Brian  Jun 01, 2017 ]
SHOW MORESHOW LESS

5 questions already asked

Q
What wire harness do I need for a 99 Harley Electra glide police edition with no handle bar controls?
[ Patrick  Nov 01, 2018 ]
1 answer
A
All the wiring harnesses we carry come with the ability to keep those handle bar controls working with a new radio. I should also mention that this harness still works even if you don't use the handle bar control part. My Bio: https://www.crutchfield.com/bio/Paul
[ Paul  Nov 07, 2018 ]  Staff
Q
Do you have this for a 2015 road glide?
[ Txrider  May 18, 2018 ]
1 answer
A
For the 2015, we recommend the Axxess ASWC-1 for retaining the handlebar controls with compatible aftermarket stereos: http://www.crutchfield.com/p_120ASWC1/item.html
[ Ryan  May 30, 2018 ]  Staff
Q
Will I still need a wiring harness for hooking up all the other connections between the stereo and the bike? Looking at the harness pictured it looks like it's all there.
[ Chris  Mar 20, 2018 ]
4 answers
A
May need very few coupling splice , but not a harness
[ michael  Apr 03, 2018 ]
A
Everything is I needed was in that kit.
[ Charles  Apr 03, 2018 ]
A
This will hook into your stereo wire harness, that's all that is needed
[ RANDALL  Apr 03, 2018 ]
A
Comes complete
[ Jamie  Apr 03, 2018 ]
Q
Does this unit have automatic volume control?
[ Jim  Nov 09, 2017 ]
4 answers
A
this allows thumb controls, does not have automatic control
[ Jamie  Nov 10, 2017 ]
A
I don't think it does. I have to adjust the volume with my head unit, or use the mute button, which is pressing the volume control in. Shane
[ Shane  Nov 10, 2017 ]
A
No. You will lose avc when replacing the stock head unit
[ Andrew  Nov 09, 2017 ]
A
No, you will lose your speed compensated volume, plus, when you program it for your bike, make sure you use internet explorer or it won't work
[ Salvatore  Nov 09, 2017 ]
Q
Will this work with a 4 speaker system (2 front 2 rear) on my 2013 Ultra Classic ?
[ Norm  Oct 05, 2017 ]
4 answers
A
This unit does not have anything to do with your speakers. It operates the radio function via the handlebar controls
[ Dirk  Oct 05, 2017 ]
A
It will I put on 01 classic!
[ Alan  Oct 05, 2017 ]
A
Yes it works perfect on my 2006 Electra Glide Ultra, I run 2 8's in bags, 2 6.5's and 2 horns upfront
[ Badboy65  Oct 05, 2017 ]
A
I took all the radio stuff cruthfield sold me to the dealer and the couldn't get it to work with my 2008 CVO anniversary ultra. Returned the radio and all the add ons
[ Sam  Oct 05, 2017 ]
