About the iRV iRV6500BT
Bluetooth in your RV
Bluetooth in your RV

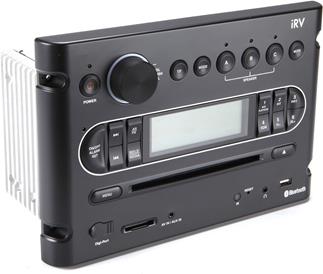

This sharp-looking receiver plays movies and streams music in your RV.
Do you need more entertainment options for your RV? Would you like to stream music from your Bluetooth devices? Do you want app control via Apple or Android? Then the iRV6500BT DVD receiver from iRV could be for you. In addition to an AM/FM tuner and CD/DVD capability, this receiver also offers Bluetooth streaming and plays MP3, WMA, and JPEG files. The front panel features an SD card slot, a USB port, an audio/video input, and an earphone jack.
Three speaker zones
The iRV6500BT's built-in amplifier delivers 45 watts by 6 channels to three different speaker zones in your RV, so everyone can get in on the entertainment. With two composite video outputs, you can send movies and video to a couple of screens in your vehicle. And you can control everything with the included multi-function wireless remote control. Bring your RV up to date with this full-featured entertainment center.
- DVD receiver for RVs
- built-in amplifier (45 watts peak x 6 channels)
- Bluetooth audio streaming
- AM/FM tuner
- CD/DVD drive
- plays MP3, WMA, and JPG files
- App control via Apple and Android
- 3-zone output
- inputs: front aux in, USB port, SD card slot, rear audio input
- outputs: earphone jack, two video outputs, one set of RCA preamp outputs
- wireless remote control
- mounting dimensions: 9-3/4"W x 5-1/4"H
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # iRV6500BT
What's in the box:
- DVD receiver (15A fuse)
- Wiring harness
- Remote control (w/ CR2025 3V battery installed)
- 4' AV male minijack to female RCA cable
- Four M3 x 30mm screws
- 4 Flat washers
- 4 Lock washers
- Instruction Manual
More details on the iRV iRV6500BT
Disc Player: The iRV6500BT's built-in disc player will support playback of CD-audio and DVD-video discs. It also supports playback of MP3 and WMA music files recorded onto CD-R/RW discs. In addition, the unit will play back finalized DVD-R/RW and DVD+R/RW discs. DVD-video will be played back on a connected external monitor (sold separately).
SD Card Slot: The unit's front-panel SD card slot supports playback of MP3/WMA music files, MP4 video files, and JPEG photo files loaded onto a SD or SDHC memory card (up to 32GB). Photos and video will be played back on a connected external monitor (sold separately).
USB Port: The iRV6500BT's front-panel USB (type-A) port supports playback of MP3/WMA music files, MP4 video files, and JPEG photo files stored on a USB mass storage class device, like your USB thumbdrive (up to 1TB). Your USB thumbdrive must be formatted in FAT or FAT32. Photos and video will be played back on a connected external monitor (sold separately). The unit's USB port (5V/0.5A) will also charge many USB-enabled devices.
Bluetooth Audio Streaming: The unit features built-in Bluetooth (v2.0), so you can wirelessly stream stored music and music apps from your Bluetooth-enabled smartphone or tablet (like Apple iPod/iPhone/iPad or Android) to the iRV6500BT. From the iRV6500BT's front-panel controls, you can operate basic playback functions such as Play/Pause and Previous/Next Track. Advanced music navigation and song/artist information is still done from your Bluetooth-enabled mobile device.
Note: This unit does not support Bluetooth hands-free phone communication. This unit may not be compatible with all Bluetooth audio devices.
AV Input: The iRV6500BT is outfitted with a front-panel AV input which consists of a 3.5mm minijack. This allows connection of an external portable audio/video device. A minijack-to-RCA adapter cable is provided for added convenience. Audio is heard through the speakers connected to the iRV6500BT, while video is seen through an external monitor (sold separately) you have connected to the iRV6500BT.
Dual Composite Video Outputs: The unit's dual composite video outputs allow you to playback video from the iRV6500BT's built-in disc player, USB port, SD-card slot, or AV input on an external monitor (sold separately). The two composite video outputs share a stereo RCA output.
AM/FM Tuner: The unit's built-in AM/FM tuner provides 3 FM bands and 2 AM bands. Each band can be manually or auto programmed with 8 stations presets; giving you a total of 24 FM presets and 16 AM presets. The unit also offers manual tuning, seek tuning, and preset scan. You can select "Local" tuning in areas with strong signals to let the radio stop at only strong stations during manual tuning. Select "Distant" tuning in area with weak signal to listen to all stations. When reception of an FM station is week, listening quality can be improved by switching to "Mono" mode. The unit can be switched to USA or European tuning.
3 Speaker Zones: The iRV6500VT provides 3 stereo speaker zones. 45 watts (peak) x 6 channels is distributed between the zones. You can listen to all zones or turn on only one or two of the zones. The same source will be played back in each zone and the volume level is the same for each zone. The head unit is also fitted with a 2Ch/2V RCA output for adding an external amplifier.
- EQ Modes: The unit offers preset EQ modes to tailor the sound to your type of music and taste. Choose from Flat, Classic, Pop, Rock, or Off.
- Bass & Treble: When the preset EQ mode is set to "Off", you can adjust the head unit's bass & treble manually (-10 to +10).
- Loudness: The Loudness function enhances the unit's bass & treble at lower volumes.
- Key Beep: A beep sound indicates button operation. This can be turned on or off.
Single-Line Display: The iRV6500BT's front-panel, single-line display indicates source selection, station identification, track & elapsed time, volume level, menu settings, and clock. The unit will not display song/artist information.
Remote Control: The unit comes with an IR remote for complete wireless operation of the iRV70. In addition, the free iRV app (for Apple iOS and Android OS) can be used to control the iRV70 from your compatible Apple iOS or Android device.
Installation: The iRV6500BT mounts in your recreational vehicle with the four included screws that secure the unit to the dash. A color-coded wiring harness is included to hardwire the iRV6500BT in your recreational vehicle.
- Front-Panel Dimensions: 10.435" (w) x 7.005" (h) x 1.5" (d)
- Chassis Dimensions: 9.145" (w) x 5.115" (h) x 5.125" (d)
