Dynamic Audio Amplification: Rated at 100 watts (8 Ohms, 20
Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC), the TX-8270 is Onkyo's best
stereo receiver for driving speakers. This amp system generates high current
with a massive transformer and audio-grade capacitors. Circuitry features
discrete output transistors for low distortion and effortless driving power.
High current assures accurate control, restoring energy and vitality to your
music. Non-phase-shift circuitry, meanwhile, focuses the audio image and
reproduces a wide frequency bandwidth to maximize Hi-Res Audio and vinyl
- Massive Hi-Current EI Transformer: The Massive Hi-Current EI
Transformer delivers large amounts of power necessary for reproducing the
wide dynamics of movie soundtracks and the detail and clarity of your music.
- Non-Phase-Shift Amp Design: The receiver employs a
Non-Phase-Shift amp design which prevents phase shift by pushing the
roll-off point higher than the listening-level frequency. This creates a
well-focuses and realistic audio image.
- Optimum Gain Volume Circuitry: Optimum Gain Volume
Circuitry adjusts the gain so that less than half the amount of attenuation
is needed, ensuring the signal never comes close to the noise floor. This
protects the signal against noise, resulting in a dramatically clearer
384kHz/32-Bit Hi-Grade DAC: The Onkyo TX-8270 utilizes one
premium-quality AK4438 digital-to-analog converter from AKM ideally suited to
DSD 5.6 MHz and PCM signals up to 192 kHz/24-bit.
Vector Linear Shaping Circuitry (VLSC): Onkyo developed
Vector Linear Shaping Circuitry (VLSC) to reassemble the signal in its original
form following processing. Unlike conventional filters, VLSC removes pulse noise
generated in D/A conversion, allowing the sound wave to be reproduced with
extremely high fidelity for a smooth analog signal. The signal's data is
converted between sampling points and joined with analog vectors in real time to
produce a smooth output wave form. The result is a virtually noiseless, smooth,
analog signal that brings out even the most subtle of nuances in music sources.
Audio Settings: The Onkyo TX-8270 stereo receiver provides
various audio enhancements to deliver a high-quality listening experience every
- Music Optimizer: The Music Optimizer function enhances
the sound quality of compressed music files. The Music Optimizer function
only works with PCM digital audio input signals with a sampling rate below
48kHz, analog input signals, and Bluetooth audio.
- Double Bass: You can also activate the Double Bass
function in order to boost bass output even more by feeding bass sounds to
the stereo speakers and powered subwoofer.
- Tone Controls: You can independently adjust the Bass
(90Hz) and Treble (7.5kHz) of the receiver's Front L/R channels from -10 to
- Direct Mode: In
Direct mode, the receiver outputs pure sound as it was intended by bypassing
the tone control circuits during playback.
Analog & Digital Audio Inputs: The Onkyo TX-8270 stereo
Receiver is outfitted with both analog & digital audio inputs.
- Analog Inputs + Phono (MM): There are four stereo RCA
inputs, including a Phono (MM) input with ground terminal.
- Digital Inputs: The Onkyo stereo receiver features
digital audio inputs. There are two optical (toslink) digital inputs and one coaxial (RCA) digital input. The receiver's digital inputs support 2ch PCM
audio signals only. Supported sampling rates include 32kHz, 44.1kHz, 48kHz,
88.2kHz, and 96kHz; with a bit-depth of 16-bit, 20-bit, or 24-bit.
Note: The receiver also features 4 HDMI inputs which support up to
2 PCM @ 24-bit/192kHz and 2ch DSD up to 5.6Mhz. Not compatible with Dolby Digital, DTS, or other
multichannel audio formats.
Analog Audio Outputs: The Onkyo TX-8270 is outfitted with
the following analog audio outputs.
- Binding-Post A-B Speaker Terminals: There are
binding-post terminals for the A-B speaker terminals. The binding post
terminals will accept bare-wire, pin-connectors, and banana plugs (single
only). Use 4- to 16-ohm speakers.

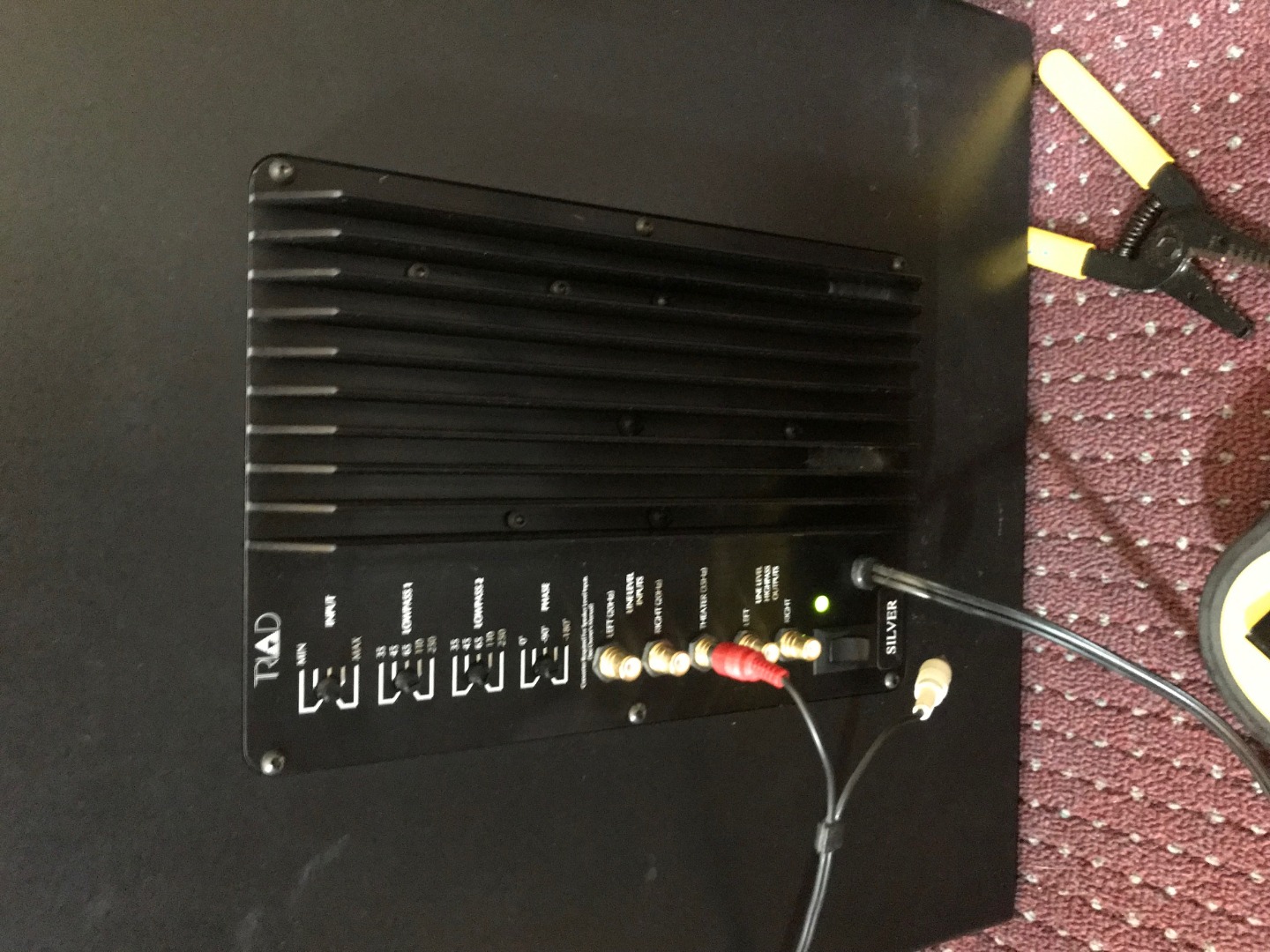

- Dual Subwoofer Outputs: The receiver is fitted with two
subwoofer outputs to connect dual powered subs for extra bass. The dual
outputs are wired in parallel and share the same input signal (the are not
- Headphones: When headphones are plugged into the
full-size 1/4" jack on the front panel, all the main speakers are automatically
Impedance Switch: If you're using only one of the speaker
sets (A or B), choose the 4Ω setting if each speaker's impedance is 4Ω to less
than 6Ω, or choose the 6Ω setting if each speaker's impedance is 6Ω or more. If
you're using both of the speaker sets (A & B), choose the 4Ω setting if each
speaker's impedance is 8 to 16Ω.
Volume Setup: The Onkyo stereo receiver provides the
following volume settings.
- IntelliVolume: With IntelliVolume, you can set the
input level for each input (+/-12dB) selector individually. This is useful
if one of your source components is louder or quieter than the others. This
function does not work in Zone 2.
- Maximum Volume: Use this feature to set the receiver's
maximum volume level. This feature is useful to avoid turning the volume too
loud by mistake. You can set the Max Volume from 50-99 (max), or Off
- Power On Volume: Use this feature to set the volume
level when the power is turned on. You can choose between Last (same as the
volume when the unit was turned off), Min (0.5), Custom (0.5-99.5), or Max
- Mute Level: Set the volume lowered from the listening
volume when "Mute" is selected. Choose from 0, -40dB, or -20 dB.
- Headphone Level: With this setting, you can specify the
headphone volume (+/-12dB) relative to the main volume. This is useful if
there's a volume difference between your speakers and your headphones.
HDMI 2.0a: The Onkyo TX-8270 has four HDMI 2.0a inputs and
one HDMI (ARC) 2.0a output. Thanks to the latest HDMI 2.0a specification, the
receiver can support 4K/60 Hz Ultra-HD video, HDCP 2.2 compatibility, High
Dynamic Range (HDR), 4:4:4 color sub-sampling, and BT.2020 Wide Color Gamut.
- 4K/60Hz: The TX-8270 supports up to 4K (3840x2160
pixels) video @ 60 frames per second on
all of its HDMI inputs and outputs. It will also pass a 480i, 480p, 720p,
1080i, or 1080p video signals via HDMI
- HDCP 2.2: The receivers HDMI 1-3 inputs and both HDMI
monitor outputs support HDCP 2.2, which fully complies with the latest
copyright protection standard for 4K video transmission.
- HDR (High Dynamic Range): The TX-8270 offers support
for HDR 10 and Dolby Vision HDR (High Dynamic Range) formats. HDR provides
enhanced picture quality by simultaneously enabling greater detail for both
the dark and bright parts of an image. HDR reproduces a greater dynamic
range of luminosity or brightness levels, creating greater contrast. This
increased contrast reveals the subtle nuances of the image, from detailed
blacks and shadows to the brightest whites and colors, plus greater depth.
- 4:4:4 Color Subsampling: The receiver's HDMI inputs and
HDMI monitor output support RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
color subsampling (@ 60Hz or 50Hz). With 4:4:4 color subsampling, luminance
(brightness) and chroma (color) are sampled at the same rate; resulting in
an RGB color palette as big as the video sampling rate for a video image
with more colors, plus greater color accuracy and detail.
- Wide Color Gamut (BT.2020): The BT.2020 color standard
delivers a much wider color gamut and represents about 75% of the total
visual color spectrum, while the current Rec. 709 color standard selected as
the color space for HDTVs and early generation 4K Ultra HDTVs covers only
35% of the total visual color spectrum.
Note: Use a premium high-speed 18Gbps HDMI cable for the
best 4K/HDR performance.
Other HDMI Features: The TX-8270 stereo receiver's HDMI
connectivity also offers ARC (Audio Return Channel), 3D video pass-through, Deep
Color & x.v. Color support, as well as an auto LipSync function.
- ARC (Audio Return Channel): The receiver's main HDMI
output features ARC (Audio Return Channel). This feature allows audio to be
sent from your compatible HDTV to your receiver through the same HDMI cable
already being used to send audio and video to your HDTV. This eliminates the
need for extra cables connected to your television. The sub HDMI monitor
output does not support this feature.
- Auto Lip-Sync: The Lip-Sync function can automatically
synchronize HDMI audio and video (for any HDMI jack) that has gotten out of
sync due to the complex digital video processing being performed by your
HDMI-compatible TV. With HDMI Lip-Sync, the audio delay required to
synchronize the audio and video is calculated and applied automatically by
the stereo receiver. You can also manually correct the audio delay from 0 (no
delay) to 400 milliseconds; in 10 millisecond steps.
- 3D-Ready: All HDMI jacks will accept 3D video from your
3D-ready Blu-ray player and output the video signal in 3D to your 3D-ready
- Deep Color & x.v.Color Support: The stereo receiver
supports Deep Color and x.v.Color content, which can display a larger color
range than standard-definition schemes. The result is a more lifelike,
HDMI Standby Through: When enabling the HDMI Standby Through
function, regardless of whether the stereo receiver is "Off" or in "Standby", both
audio/video streams from an HDMI input will be output to your television, via
the receiver HDMI monitor output. You can select between three HDMI Through
- Auto: Detects the signal and automatically selects the
- Source: Selects the HDMI input source for which the
HDMI Through function in enabled.
- Last: The HDMI Through function is activated on the
input source selected at the time of setting the stereo receiver to the
Video Select: It is possible to play audio and video from
different sources. For example, you can play audio via Bluetooth and video from
your BD/DVD player. This function is only effective when an input with audio
only (Network, Bluetooth, or Tuner) has been selected initially.
Network & Tuner Functions
Wired or Wireless Network Connection: The Onkyo TX-8270
receiver supports a wired Ethernet (RJ-45) or wireless WiFi (802.11 a/b/g/n;
2.4/5GHz) network connection. Via the stereo receiver's network connection, you can
enjoy music files stored on your computer and listen to internet radio through a
variety of online music services.
- Ethernet (LAN) Jack: The Onkyo stereo receiver is equipped
with an Ethernet (RJ-45) jack for connecting the player to your home network
and computer. Connecting the A/V receiver's Ethernet port to a 100Base-TX
switched Ethernet network is recommended for best results. Use a shielded
CAT-5 Ethernet cable to connect the receiver to your home network.
- Built-in Wireless LAN: The stereo receiver also features
built-in WiFi that allows you to wirelessly connect to your home network, so
you can enjoy the benefits of a cable-free network environment. A wireless
connection requires a home network with a WiFi-enabled access point (IEEE
802.11 b/g/n; 2.4/5GHz). Supports WPS, WEP, and WPA security.
Note: Network setup requires that the receiver be connected
to your TV via HDMI for display of the on-screen menu. The receiver's
network setup cannot be accessed through its front-panel display.
DLNA Certified: Because the TX-8270 is DLNA (ver.15)
certified, you can play back music files stored on your Windows PC (w/ Windows
Media Player 11 or 12) or a DLNA compliant media server through the stereo
receiver. You can control basic playback functions of your music library from
the included remote control and receiver's on-screen menu; such as Folder/File
Select, Play/Pause, Stop, Fast Forward/Rewind, Previous/Next Track, and
Repeat/Random. Compatible music files include -
- Hi-Res Music Files: AIFF (8/16/24-bit; 44.1-192kHz),
FLAC (8/16/24-bit; 44.1-192kHz), WAV (8/16/24-bit; 44.1-192kHz), DSD (1-bit;
- Lossless: ALAC (16/24-bit; 44.1-96kHz)
- Low-Res Music Files: MP3 (8-320kbps; 44.1-48kHz), WMA
(5-320kbps; 44.1-48kHz), AAC (8-320kbps; 44.1-96kHz)
Built-in Online Music Services: The Onkyo TX-8270 offers several
built-in internet radio & online music services through its wired or wireless
- TuneIn: With more than 100,000 radio stations and 2
million on-demand programs registered,
TuneIn is a service where
you can enjoy music, sports and news from all over the world.
Pandora is a personalized Internet radio service that plays the music
you know and helps you discover music you'll love. You can select Internet
radio stations by Artist, Song, or Genre.
- Tidal: Tidal is
a global streaming service that offers over 30 million songs in
high-fidelity CD sound quality. Tidal has two pricing tiers; either $9.99 or
$19.99 a month. Both pricing levels allow you to access Tidal's entire music
library. The $19.99 tier has the added benefit of high-fidelity sound at
- Deezer: Deezer is an online music service offering over 43
million tracks starting at $9.99 a month. Discover the perfect playlist or
make your own, as well as browse curated collections by genre.
Spotify Connect: The integration of
Spotify Premium users to instantly select and wirelessly stream music to the
Onkyo stereo receiver from within the Spotify app (Apple
Android). Spotify is a digital music service that gives you on-demand access
to one of the largest music libraries in the world (over 15 million tracks and
counting). Spotify makes it easier than ever to discover, manage, and share
music with your friends. You can browse music by artist, album, track, or most
popular; and create your own music library with customized playlists.
Chromecast built-in lets you instantly stream a variety of music apps from
your Apple (iOS 7.0+) or Android (OS 2.3+) mobile device to the Onkyo stereo
receiver. Chromecast built-in works over WiFi and allows you to connect more than
one device at a time to the receiver, as well as control what's playing from
anywhere in the house with your compatible mobile device.
- Supported Content: Chromecast built-in offers Internet
Radio apps like TuneIn &
iHeart Radio; plus
online music service apps like
Premium subscription), Tidal,
Music, and more. Click
here for a complete list of compatible apps. You can even wirelessly
stream exactly what's playing on your Android phone or tablet through the
Onkyo receiver. Or, if you're on your laptop or computer, you can also cast
any music streaming website through the Chrome browser.
- Simple-to-Use: Simply tap the Cast button from a
Chromecast Built-in compatible music app to start streaming to the Onkyo
receiver. You can search, browse, play, skip, and turn up the volume
directly from the music apps you know and love on your compatible phone,
tablet or laptop. While you cast your music, you can still use your phone to
answer a phone call, play a game, send a text, and even leave the room, all
without interrupting what's playing on the receiver's speaker system or
draining your battery.
Note: Make sure the TX-8270 has the latest firmware/software update installed.
AirPlay Compatible: AirPlay lets you stream your favorite
songs directly from your Apple iOS (4.3.3+) device or from your iTunes (10.2.2+)
library on your Windows PC or Mac computer to the stereo receiver, over your home's
wireless network connection. From your Apple iOS device you are able to stream
stored music on your device, downloaded music apps, and music on your iCloud to
the stereo receiver. From your Windows or Mac you can stream your stored iTunes
music library on your computer to the stereo receiver; you can even download
Remote App onto your compatible iOS device to browse and control playback
functions of the music stored in your iTunes music library on your computer that
is being streamed to the stereo receiver. With AirPlay you also get to see
song/artist information and album art via the receiver's on-screen menu (via
AM/FM Tuner: With the built-in tuner you can enjoy AM and FM
radio stations. You can store your favorite stations as presets for quick
selection. You can store a combination of up to 40 of your favorite FM/AM radio
stations as presets.
Bluetooth & USB Integration
Built-in Bluetooth: The Onkyo TX-8270 features built-in
Bluetooth (version 4.1+LE) with support for profiles A2DP 1.2 and AVRCP 1.3.
You'll be able to wirelessly stream stored music and music apps from your
Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows
Phone/PC, & Mac laptop/computer, as well as other Bluetooth compatible devices
to the Onkyo receiver. The receiver has a 48' wireless Bluetooth range.
- SBC + AAC Codecs: In addition to support for the
standard SBC Bluetooth audio codec, the TX-8270 offers support of AAC. By
supporting AAC, the receiver offers better audio performance of the music
streamed from your Apple iPod, iPhone, or iPad.
- Playback Control: You can use the receiver's IR remote
control to operate basic playback functions, like Play/Pause & Previous/Next
Track. Advanced music browsing will still need to be handled from your
- Song/Artist Information: The receiver will display
song/artist information on its front-panel LCD and through its on-screen on
your HDMI-connected TV. Album Art is not supported.
Note: Due to the differences in Bluetooth technology, some
Bluetooth enabled devices may be incompatible, function improperly, or may
not support all features when used with the Onkyo receiver.
Dual USB Ports: This stereo receiver is equipped
with a front & rear panel USB (type-A) port that allows you to enjoy a variety of music
files from a USB mass storage class memory device, such as USB thumbdrive or
portable digital audio player. The unit will recognize USB MSC devices formatted
in FAT16 or FAT32 with up to 20,000 music files. You can control basic playback
functions of your music library from the included remote control and receiver's
on-screen menu; such as Folder/File Select, Play/Pause, Stop, Fast
Forward/Rewind, Previous/Next Track, and Repeat/Random. USB portable audio
players that can be charged via USB will be charged when plugged into the AV
receiver's USB port (Front = 5V/1A, Rear = 5V/0.5A); even in standby mode. Compatible music files
- Hi-Res Music Files: AIFF (8/16/24-bit; 44.1-192kHz),
ALAC (16/24-bit; 44.1-192kHz), FLAC (8/16/24-bit; 44.1-192kHz), WAV
(8/16/24-bit; 44.1-192kHz), DSD (1-bit; 2.8/5.6MHz)
- Low-Res Music Files: MP3 (8-320kbps; 44.1-48kHz), WMA
(5-320kbps; 44.1-48kHz), AAC (8-320kbps; 44.1-96kHz)
Notes: USB hubs and USB devices with hub functions are not
supported. MP3 players containing music files that are managed with special
music software are not supported. Apple iPod/iPhone/iPad and Android
devices are not supported via USB.
Zone 2: In addition to the main listening room, you can also
enjoy audio playback from a different source in another room of your home using
the receiver's Zone 2 line-level outputs. By using the Zone 2 line-level outputs
on the TX-8270, you can connect an external receiver or integrated amplifier in
a second room, allowing you to listen to 2ch stereo in the main room and play a
different 2ch audio source in another room of your home. The volume of Zone 2
can be controlled from the Onkyo receiver or from your add-on integrated
- Compatible Zone Sources: Tuner, Analog, Optical/Coax
Digital (2ch PCM only), USB, Network (not DSD), and Bluetooth audio sources
can be sent to Zone 2.
- Incompatible Zone Sources: HDMI sources cannot be
output to Zone 2.
Note: As for Network, USB, and Bluetooth sources; you
cannot select different inputs for the main room and Zone 2. For example, if
a Network source been selected in the main room and then Bluetooth is
selected as playback source in Zone 2, the input in the main room will also
change to the Bluetooth source. When listening to AM/FM radio, you cannot
select different stations for the main room and Zone 2.
Google Home Multiroom: Using the Google Home app for
Apple iOS 8.0+ and
Android OS 4.0.3+, you can sync multiple speakers with Chromecast built-in
in multiple rooms of your home to play the same song from a Chromecast built-in
music app throughout your house at the same time. Friends and family can even
use their own Chromecast compatible phone or tablet to cast music to your system
by connecting to your home's WiFi network.
FireConnect MultiRoom Audio: FireConnect powered by
Blackfire mirrors network audio sources and any external analog source playing
through the receiver (from streaming audio to vinyl) on optional FireConnect/Blackfire
wireless speakers (such as the Onkyo NCP-302, sold separately). Sampling rates up to 48 kHz are supported.
FireConnect powered by Blackfire is stable, fast, and easy to control
with Onkyo's Controller app for Apple iOS and Android.
Note: Make sure the Onkyo receiver has the latest
firmware/software update installed. Onkyo cannot guarantee the compatibility
with other devices featuring FireConnect or Blackfire.
DTS Play-Fi (Firmware Update Available): DTS Play-Fi
combines DTS and WiFi to wirelessly stream high quality audio through out your
home using the Play-Fi app for
Apple iOS 8.0+,
Android OS 4.0+,
& Windows 7 PC or
later. Supported music formats up to 24-bit/192kHz (including MP3, AAC,
FLAC, WAV) are wirelessly streamed to the receiver at up to 24-bit/96kHz
(Critical Listening Mode) or to multiple DTS Play-Fi players up to 16-bit/48kHz
(CD quality sound). You can connect multiple DTS Play-Fi products together from
different brands and manufacturers on the same home network to create a
whole-home streaming experience. Play the same source in every room or a
different song in each room. Due to the bandwidth limitations of most wireless
networks, no more than 16 wireless DTS Play-Fi products on a single WiFi network
at one given time is recommended. DTS Play-Fi
has a range of up to 100' from your wireless router. Compatible sources
- Source Devices: DTS Play-Fi provides you with the
ability to stream your music wirelessly in high-quality lossless audio from
Apple iOS & Android devices, Windows laptops & desktop computers, as well as
DLNA-servers on your existing home WiFi network to the Onkyo receiver. Up to
eight separate wireless source devices, each with its own source, are
supported simultaneously and any wireless source device can stream to eight
DTS Play-Fi playback devices.
- Online Music Services: DTS Play-Fi enables wireless audio
streaming from the world's most popular music services & internet radio,
Napster, & more.
Note: All DTS Play-Fi enabled products work seamlessly
together, so there's no hassle adding more components, or choosing more than
one audio brand like
Wren, etc..) in your home.
Sonos Connect Ready (Firmware Update Available): Instantly
upgrade the music streaming capability of your Onkyo receiver with
Sonos Connect (sold separately) and a free over-the-network firmware
update. With the Sonos Connect connected to the Onkyo receiver via a set
of stereo RCA cable, the audio system you've built around the receiver
can now be part of a
Sonos Wireless Multiroom Audio System (components sold separately).
After a simple set up, the Onkyo receiver will seamlessly tie into
Sonos, instantly turning on from network standby, changing inputs and
playing at the volume you command through the
Sonos controller app on your compatible Apple iOS or Android device.
- Functionality: Once the Onkyo receiver is connected to
the Sonos Connect you will be able to send any music or source on the Sonos
app to the receiver. You will also be able to group the receiver to other
Sonos devices on the network or use it independently. Whenever you start
playing music back from your Sonos app and the Onkyo receiver is selected,
the receiver will automatically turn on and switch to the correct input.
- Compatibility: The Onkyo receiver can be used with the
Play:5 or any combination of these speakers (all sold separately). You
can even use the Onkyo receiver with a
Playbase (sold separately) that is located in a different room. Just
remember that you need to have a Sonos Connect to connect the Onkyo receiver
to the Sonos multiroom audio system.
learn even more about Onkyo and Sonos working together to give you the ultimate
home theater and multiroom audio experience.
Remote & App Control
Onkyo Controller App: The Onkyo Controller app (for
Apple iOS 8.0+ &
Android OS 4.0.3) features an intuitive, user-friendly interface that allows
you to conveniently operate the Onkyo receiver from your compatible Apple iOS or
Android device. This app not only has the usual remote control functions, it
also has a multiroom functionality for Zone 2 and wireless multiroom audio
- Remote Control: You can operate general control functions
(play/stop, control the volume, select the input source, etc.) from your
compatible smartphone or tablet.
- Source Device Playback: Operation of connected products (like a
Blu-Ray player or TV) that are connected to the receiver via HDMI.
- Streaming Audio: Lets you play audio from built-in music
streaming services (such as Pandora, Spotify, TIDAL), the music library on
your Apple iOS or Android device, and your Windows PC or other
DLNA-compatible server. You can also access music from Bluetooth and
USB source devices.
- Multiroom Audio: Provides control over Zone 2 and wireless
multiroom audio (such as FireConnect by Blackfire).
Google Home Voice Commands: With the Google Home
voice-activated speaker (sold separately - see Accessories Tab) and the Google Home App (for
Apple iOS 8.0+ or
Android OS 4.2+), you can use your voice to control select functions of the
Onkyo stereo receiver. With a simple voice command, you can play music from Chromecast compatible music services by artist, song, genre, album, playlist,
mood or activity. You can also turn up the volume, skip to the next track, or
stop the music - all without lifting a finger.
IR Remote: The receiver comes with an IR remote control for
wireless operation of this receiver and other HDMI-connected sources (via HDMI
HDMI Control: This function allows HDMI-CEC compatible
components or RIHD-compatible components connected via HDMI to be controlled
with the TX-8270 . The stereo receiver offers the following HDMI-CEC controls.
- The stereo receiver will enter Standby mode when the power of the TV is
turned to Standby.
- You can set on the menu screen of the TV to either output the audio from
the speakers connected to the stereo receiver, or from the speakers of the TV.
- It is possible to output the audio/video from the antenna or from the
input jack of the TV from the speakers connected to the stereo receiver.
- Input to the stereo receiver can be selected with the remote controller of
- Operations such as volume adjustment or similar for the stereo receiver can
be performed from the remote controller of the TV.
Remote Jacks: The TX-8270 contains RI Control & IR Remote
connections. The 3.5mm IR input jack allows you to control the receiver without
line-of-sight access using an optional IR remote control system and locating the
remote sensor in sight. The 3.5mm IR output jack allows you to send the control
signals to an additional components. The 1/8" RI remote control jack allows you
to connect this receiver to other compatible Onkyo components.
Web Control: When connected to your home's wired or wireless
network, you can setup the Onkyo stereo receiver with the web control screen
displayed in your PC's web browser.
On-Screen Menu w/ Setup Assistance (HDMI only): The Onkyo
stereo receiver offers an on-screen (GUI) menu system through its HDMI output.
The simple on-screen display combines text and graphics that make setup and
other operations extremely easy. The initial setup assistant takes you
step-by-step through speaker configuration, source connection, remote
programming, and network connection.
Note: Initial setup requires that the receiver be connected
to your TV via HDMI for display of the on-screen menu. Many of the
receiver's setup functions can only be found via the on-screen menu and not
the front-panel display.
Gapless Playback: Many live and classical albums have no
gaps in the music. Gapless playback ensures that there are no pauses between
audio files. This provides playback with no interruptions, the way it was meant
to be heard. Compatible with WAV, FLAC, and ALAC music files via USB.
Name Edit: You can enter a custom name for each individual
input selector and radio preset for easy identification. When entered, the
custom name will appear on the display. This function cannot be used for the
Network and Bluetooth input selectors.
Display Dimmer: The front-panel display brightness has three
settings - Dim, Dimmer, and Normal.
Auto Standby & Sleep Timer: The stereo receiver will
automatically go into Standby mode, if there is no operation for 20 minutes with
no audio/video signal input. The Sleep Timer can be set to automatically turn
off the receiver after 30, 60, or 90 minutes.
Firmware Updates: Future firmware updates are available from
the Onkyo website through the receiver's Network or USB connection. Visit
Center for the latest firmware updates.
