Clarion CM1623RL 6-1/2" marine speakers with built-in RGB LED lights

Item # 0201623RL

Clarion's CM1623RL marine speakers will bring serious audio performance to your boat, plus RGB LED lighting that...

Clarion's CM1623RL marine speakers will bring serious audio performance to your boat, plus RGB LED lighting that...

Item # 0201623RL

About the Clarion CM1623RL

Jon Paul

Great sound and groovy lights

Clarion's CM1623RL marine speakers will bring serious audio performance to your boat, plus RGB LED lighting that will add light and good looks to any cabin. Like all Clarion marine gear, these 6-1/2" speakers are built tough for life on the water. High-impact grilles (both black and silver are included) and Clarion's exceptional waterproofing will ensure years of great sound.

Great sound and groovy lights

Clarion's CM1623RL marine speakers will bring serious audio performance to your boat, plus RGB LED lighting that will add light and good looks to any cabin. Like all Clarion marine gear, these 6-1/2" speakers are built tough for life on the water. High-impact grilles (both black and silver are included) and Clarion's exceptional waterproofing will ensure years of great sound.

Serious sound for fun in the sun

If you're going to invest in a set of marine speakers, you want to know that your new speakers can be heard over engine noise and wind roar. These powerful Clarions will do exactly that, and you'll also be impressed with the depth and detail they bring to your tunes.

These full-range speakers will handle up to 80 watts RMS (200 watts peak) and they're tough enough to handle high volume all day long. With mica-injected polypropylene woofer cones, 1" PEI dome tweeters, and big, brawny magnets, these speakers have heft and quality that you'll notice the moment you take them out of the box.

Welcome to the (light) show

LED lighting adds an undeniable cool factor to any vessel. You can wire the built-in RGB LEDs to provide a permanent colour scheme, or integrate them into your existing LED controller for a customizable look. The red, green, and blue lights can generate over 16 million colour combos, so you can create the look you like.

Made for marine use

Clarion designs their marine gear to stand up to broiling sun, driving rain, salt, spray, and the other realities of life on the water. With rugged, high-impact plastic baskets and waterproof audio and light connectors, these speakers are ready for anything. Clarion includes two sets of grilles – black and silver – inspired by the propeller design found on Virginia-class submarines! All Clarion marine speakers are designed to meet or exceed industry standards for UV-ray, salt, fog, and moisture resistance.

READ LESS

Product highlights:

    General Features:
    • 6-1/2" 2-way marine speakers with RGB LED lights (pair)
    • handles up to 80 watts RMS (200 watts peak power)
    • injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
    • 1" PEI dome tweeter
    Marine-Rated Features:
    • meets or exceeds ASTM D4329 standards for UV exposure
    • meets or exceeds ASTM B117 standards for salt/fog exposure
    • waterproof audio and lighting connectors
    • UV- and corrosion-resistant ASA plastic basket and grille
    • includes both silver and black grilles
    Other Info:
    • cutout diameter: 5.128
    • frame diameter: 6.68"
    • mounting depth: 2.803"
    • warranty: 1 year
    • MFR # 92782

    What's in the box:

    • Two 2-way speakers
    • 2 Black grilles
    • 2 Silver grilles
    • Two 6" Waterproof 2-pin male SuperSeal speaker harnesses
    • Two 6" Waterproof 4-pin male SuperSeal LED (RGB) harnesses
    • Ten 1-1/2" Stainless steel screws
    • 10 Plastic flat washers
    • Installation manual
    • Template

    Customer reviews for Clarion CM1623RL

    Loading reviews...

    Average review:

    5.0 out of 5 stars
    40 reviews

    Filter by rating

    Customer photos

    Customer provided image, click to load a larger version.
    Customer provided image, click to load a larger version.

    Sort reviews

    Sort by:
    Items per page:
    View page:

    Verified customer (What's this?)
    Verified employee review (What's this?)

    Reviewed on Samsung.com

    This review was collected as part of a promotion

    Pros:

    Cons:

    Crutchfield response
    Customer provided image, click to load a larger version.
    << >>

    More details on the Clarion CM1623RL

    Pat M.

    Features & specs

    General
    Speaker Size 6 1/2
    Design 2-way
    Tweeter Design 1" Dome
    Tweeter Composition PEI
    Woofer Composition Injection Molded Polypropylene
    Woofer Surround Santoprene Rubber
    Parts Warranty 1 Year
    Labor Warranty 1 Year
    Specifications
    Sensitivity 89 dB at 1 watt
    Frequency Response 50 - 20k Hz
    Max RMS Power Handling 80
    Peak Power Handling (Watts) 200
    Impedance (Ohms) 4
    Top-mount Depth (Inches) 2 13/16
    Bottom-mount Depth (Inches) N/A
    Cutout Diameter or Length (inches) 5 3/16
    Bolt Circle ---

    Product Research

    Features

    Marine Use: The speakers are tested to ensure they meet or surpass the ASTM-D4329 standard for UV stability and the ASTM-B117 standard for salt/fog resistance.

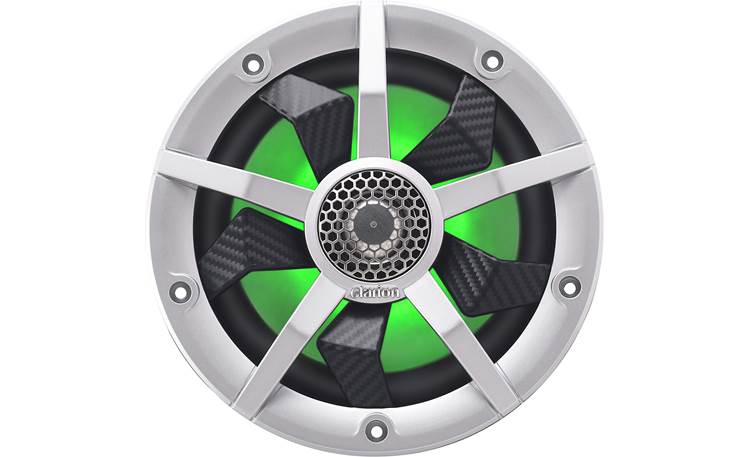

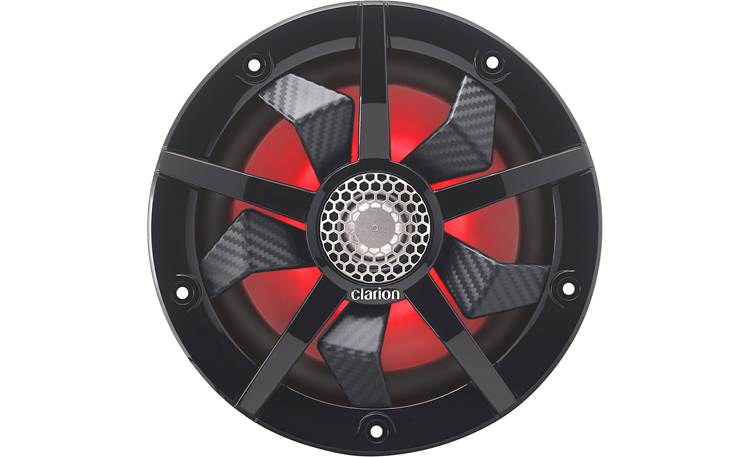

    LEDs: There are multi colored LEDs behind the tweeter casing, to create a glow on the woofer cone. Depending on what combination of the three LED wires is connected, they can light red, green, blue, yellow, magenta, light blue, or white. A 12 volt power supply is needed to turn the LEDs on.

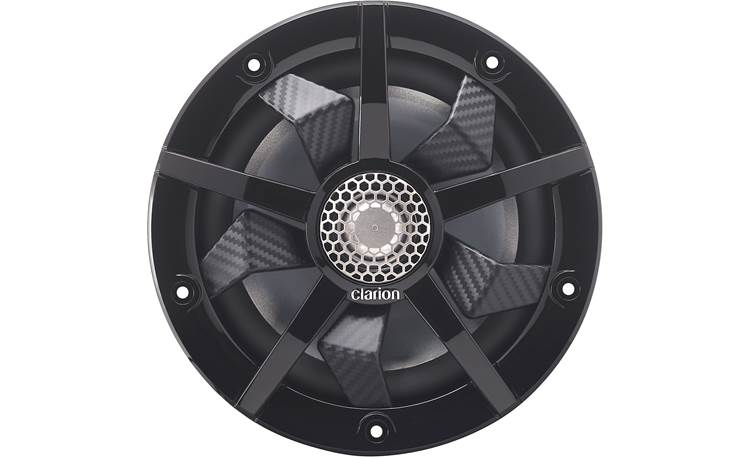

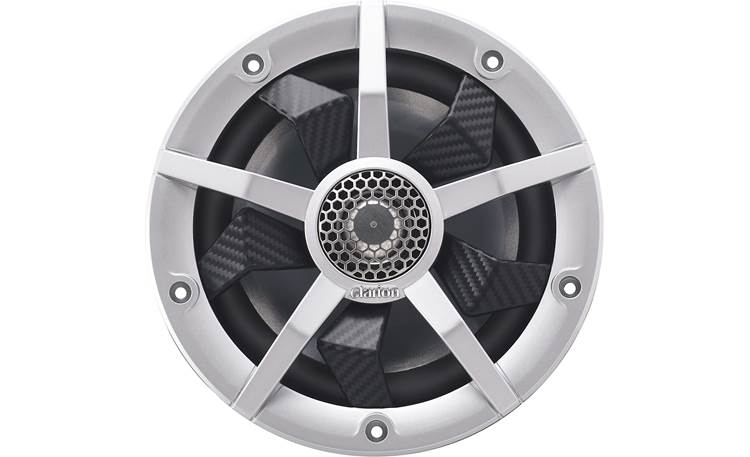

    Grilles: Two pair of grilles are included; choose black or silver.

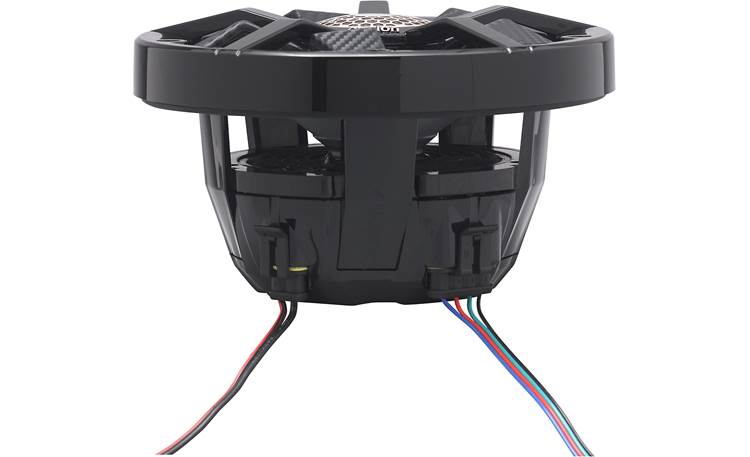

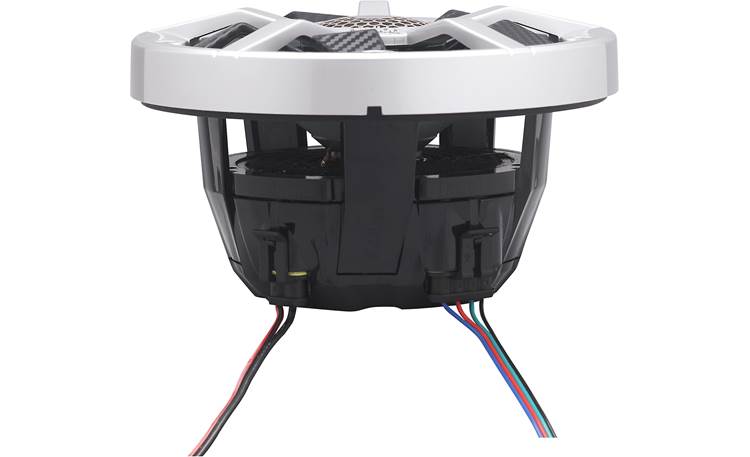

    Terminals: Both the signal (2-wire) and LED (4-wire) terminals use waterproof male SuperSeal 1.5 Series plugs, rated to IP67.

    Loading accessories...

    Customer Q&A

    8 questions already asked

    Q
    Can you connect one of the RBG wires (say blue) to the audio wire and have the speakers only light up blue?
    applemagic77  Aug 22, 2022
    1 answer
    A
    It would be possible to connect only one of the RGB wires in order to achieve a specific color. It's actually possible to connect two of them to create a different color (like red and blue for purple). However, we wouldn't connect to the audio wires. It would be necessary to run wires specifically for the lighting portion of the speaker.
    zachary  Aug 22, 2022 (Staff)
    Q
    what is the sensitivity in db?
    ty  Jul 08, 2021
    1 answer
    A
    I don't know the sensitivity. But I can tell you that the speakers really rock in my boat.
    bob  Jul 13, 2021
    Q
    Will these fit in my 2007 HD road glide ?
    erik  Jul 03, 2021
    1 answer
    A
    You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
    thomas  Jul 15, 2021 (Staff)
    Q
    Is there any options for a white grill on these?
    jeff  Apr 23, 2021
    2 answers
    A
    They come with black or silver grills. Good sound. FYI You need a control unit for the lights.
    ryan m  Apr 23, 2021
    A
    No just black and silver
    anthony  Apr 23, 2021
    Q
    if I buy the speakers do I have to get anything else to make them light up ?
    eric r  Apr 14, 2021
    2 answers
    A
    Yes they do not come with a controller or rgb module to hook them I was very displeased with that. Should have been provided I think
    adam  Apr 16, 2021
    A
    You will need the RBG wires running to them. They are 5 wires instead of 2, but if you run the 2 wires the speakers will still work they just won't light up. Then you need a controller to hook them to. I used the controller I already had that was running the deck lights.
    gordon  Apr 15, 2021
    Q
    Can you turn the LED lights off?
    margaret  Jun 15, 2020
    3 answers
    A
    The LEDs only function when power is provided, no power no light. The color of the light is controlled by which of the rgb wires are grounded.
    stephen  Jun 16, 2020
    A
    Yes, there are two connectors on the rear of the speaker, one for audio, one for light controls. Without input for the light controls there will be no light. In other words, leave the RGB LED input disconnected and the lights won't be activated.
    keith  Jun 16, 2020
    A
    With a toggle switch or https://www.crutchfield.com/p_917RGBRC/Fusion-MS-RGBRC.html
    gary  Jun 15, 2020
    Q
    What is the total outside diameter of these speakers (with grill on) ?
    nathan  May 18, 2020
    1 answer
    A
    It's in the instructions, there's a link on the page. Little over 7"
    matt  May 18, 2020
    Q
    Clarion CM1623RL- I would like to know if the 80w rms is per speaker or per pair?
    wade  Jun 20, 2019
    1 answer
    A
    Per speaker, very clear and very loud speakers but make sure you have the amp to push them
    tad  Jun 22, 2019
