About the MB Quart RK1-110

Historic sound
Historic sound

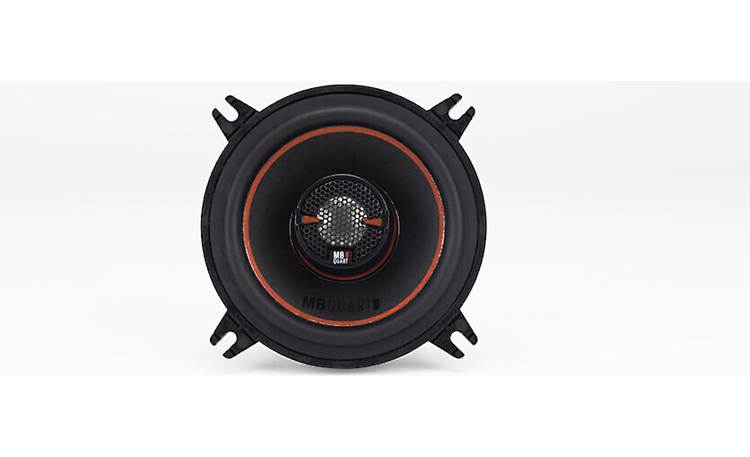

MB Quart's rich history as a German audio pioneer shines through with their Reference Series car speakers. The MB Quart RK1-110 4" 2-way speakers use an extremely lightweight pulp/bamboo hybrid woofer cone that delivers the lower and midrange frequencies with accuracy. MB Quart complements that natural, rich sound with precise high notes from the titanium dome tweeters, and WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.
Grilles are not included: factory grilles are suitable for most installations.
Product highlights:
- 4" 2-way car speakers
- pulp/bamboo woofer cone with butyl rubber surround
- 3/4" titanium dome tweeter
- 2-way crossover network
- special-design frame virtually eliminates resonance
- handles up to 40 watts RMS (80 watts peak power)
- frequency range: 80-20,000 Hz
- sensitivity: 84.5 dB
- woofer top-mount depth: 2"
- impedance: 4 ohms
- grilles not included
- warranty: 1 year
- MFR # RK1-110
What's in the box:
MB Quart RK1-110 owner's manual
- Two 2-way speakers
- Two 4x6 Adapters
- Eight 1-1/8" Screws
- 8 Speed clips
- Installation guide
- Template
- 2 MB Quart stickers
Reviews (1)
Customer reviews for MB Quart RK1-110
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MB Quart RK1-110

Features & specs
General | ||
---|---|---|
Speaker Size | 4 | |
Design | 2-way | |
Tweeter Design | 3/4" Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Titanium | |
Woofer Composition | Pulp/Bamboo Fiber | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 84.5 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 80 - 20k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 40 | |
Peak Power Handling (Watts) | 80 | |
Top-mount Depth (Inches) | 2 | |
Bottom-mount Depth (Inches) | 2 1/8 | |
Cutout Diameter or Length (inches) | 3 9/16 | |
Mounting Height (Inches) | 0.694 |
Product Research
Features

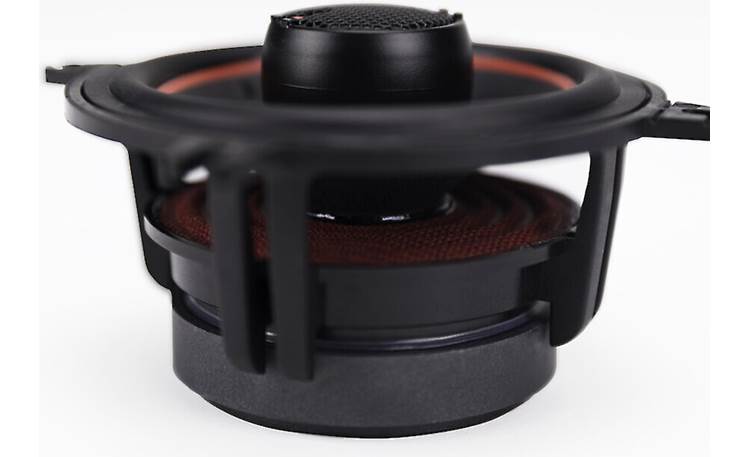

Basket: The speakers feature PA66 composite (plastic) baskets, reinforced with 30% glass fiber.
Mounting: The speakers can be mounted in most standard 4" speaker applications. They also include adapter plates for mounting in 4x6 speaker applications. Please enter your vehicle information to confirm fit.

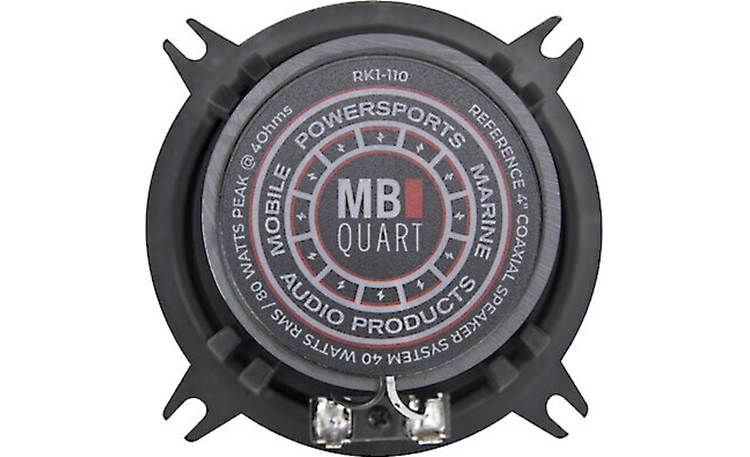

Removable Mounting Tabs: Most 4" factory speakers use four mounting screws. However, in some vehicles, only two mounting holes are used. The four mounting ears on the RK1-110 frame are scored; two can be broken off to mount the speakers in these applications that only use two mounting screws.
Loading accessories...
Customer Q&A
Loading articles...
These sound great in my Jeep gladiator put them in the roll bar crutchfield said they would not fit there. They fit plenty of room for speaker magnet could only use one of the original screws to mount had to use drill bits with threads to use the other two but worked perfect and are mounted solid
Douglas from Salisbury, MD
