About the Infinity 1060w
An Infinity Reference subwoofer makes every deep note of your music count. Whether you listen to jazz, rock, hip-hop, country, or all of the above, you'll hear and feel satisfying bass with this sub in your car.

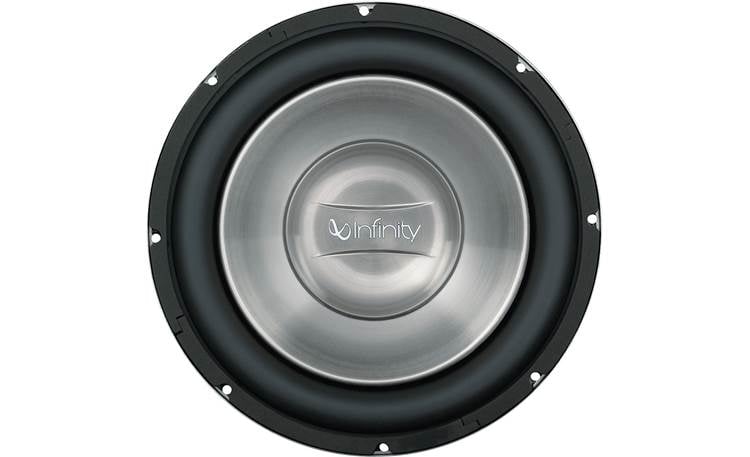

The Reference 1060w 10" sub offers a classy, no-nonsense look, with a high-gloss polypropylene cone that's accurate and hard-hitting. The durable large-roll rubber surround provides smooth, extended excursion with reduced distortion so you get impressive bass performance.
The 1060w's unique motor structure cuts down on the mounting depth, and this sub works in sealed, ported, and bandpass enclosures so you get bass the way you want it. And since you want your investment to last, the 1060w features plenty of internal cooling to protect the sub's inner workings and keep it performing at its peak.
Priced per speaker
Product highlights:
- 10" 4-ohm subwoofer
- polypropylene woofer cone with large-roll rubber surround
- progressive spider design for excellent cone control
- frequency response: 25-400 Hz
- power range: 100-275 watts RMS (1,100 watts peak power)
- sensitivity: 91 dB
- top-mount depth: 5-7/8"
- sealed box volume: 0.75 cu. ft.
- ported box volume: 1.75 cu. ft.
- warranty: 1 year
- MFR # 1060W
What's in the box:
- 10" SVC 4-ohm woofer
- Self-adhesive foam gasket
- Instructions
- Technical Data sheet
- Warranty card
Customer reviews for Infinity 1060w
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Infinity 1060w
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10 -inch | |
| Impedance (Ohms) | --- | |
| Cone Material | Polypropylene | |
| Surround Material | Rubber | |
| Port diameter (inches) | 3 | |
| Port length (inches) | 4.75 | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity |
91 dB at 2.83 volts | |
| Frequency Response | 25 - 400 Hz | |
| Max RMS Power Handling | 275 | |
| Peak Power Handling (Watts) | 1100 | |
| Top Mount Depth (inches) | 5 7/8 | |
| Bottom Mount Depth (inches) | 6 7/16 | |
| Cutout Diameter or Length (inches) | 9 3/16 | |
| Vas (liters) | 32.9 | |
| Fs (Hz) | 29 | |
| Qts | 0.42 | |
| Xmax (millimeters) | 13 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.75 | |
| Minimum Sealed Box Volume (cubic feet) | 0.75 | |
| Maximum Sealed Box Volume (cubic feet) | 0.75 | |
| Ideal Ported Box Volume (cubic feet) | 1.75 | |
| Minimum Ported Box Volume (cubic feet) | 1.75 | |
| Maximum Ported Box Volume (cubic feet) | 1.75 | |
Product Research
Features
Enclosure Compatibility
Features
High-efficiency Polypropylene Woofer Cone: This lightweight and popular material is used to ensure maximum woofer efficiency. The benefit is high output with modest amplifier power.
Large-roll Rubber Surround: The large-roll rubber surround provides optimum cone-edge suspension and absorbs distortion that may travel up the cone edge, ensuring clean, tight bass.

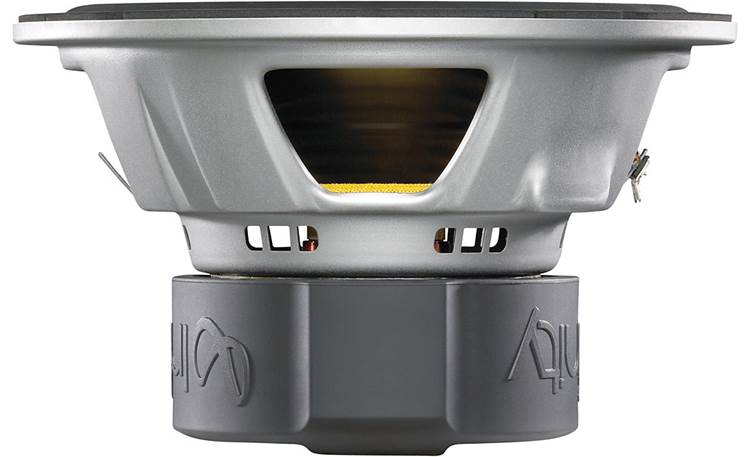

Proprietary Basket: The unique in-board motor structure reduces the overall mounting depth, without limiting enclosure options.
Vented Polepiece: The vented polepiece provides additional cooling of the motor structure, thus increasing power handling.
Progressive Spider: The subwoofer uses a progressive spider, which provides better control at excursion limits than more commonly used linear spiders. The result is reduced distortion at high output levels.
Enclosure Compatibility
Sealed Box Volume: Infinity recommends a sealed enclosure with an internal volume of 0.75 cu/ft. Sealed enclosures provide the most control over a woofer, will handle more power, and provide more accurate sonic reproduction, making them suitable to all types of music.
Ported Box Volume: Infinity recommends a ported enclosure with an internal volume of 1.75 cu/ft with one 3" diameter x 4.75" long port. Ported (or vented) enclosures provide better efficiency in the 40-50Hz range, and are suitable for use with small amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of sound quality at low frequencies (40Hz and below), and control.
Bandpass Box Volume: Infinity recommends a bandpass enclosure with an internal volume of 2.0 cu/ft. The enclosure has a sealed chamber volume of 1.0 cu/ft and a ported chamber volume of 1.0 cu/ft with one 4" diameter x 7.875" long port. Bandpass enclosures often provide the most output available from any amplifier and subwoofer combination at the expense of sonic accuracy. If sheer SPL is desired most, a bandpass enclosure is recommended.
