About the Metra 70-5514 Receiver Wiring Harness
Metra 70-5514 Receiver Wiring Harness
Metra 70-5514 Receiver Wiring Harness
This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.
First, attach the colour-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.
Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness makes installing your new stereo easier, and allows you to put the factory radio back when you sell your vehicle or return it at the end of the lease. We'll send a detailed instruction sheet with your order confirmation email. Warranty: 60 days.
Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections (see Details for a list of connections). You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.
Note: This includes a "jumper" bypass harness that will route your signal around your factory amplifier. You will need to access your factory amp in order to make the bypass harness connections.

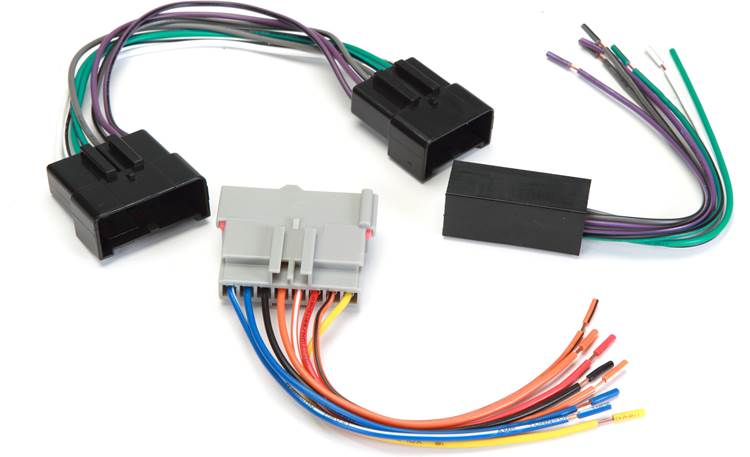

What's in the box:
Metra 70-5514 Receiver Wiring Harness owner's manual
- 7" Power/ground harness
- 7" Speaker harness
- 10" Amp bypass harness
Reviews
Customer reviews
Loading reviews...
Metra 70-5514 Receiver Wiring Harness reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Metra 70-5514 Receiver Wiring Harness
Product Research
Features
Metra Wiring Harness: Metra wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Metra wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Metra wiring harness into your vehicle's factory radio plug.
Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.
Wiring Notes: If the Metra wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required and sold separately.
Wire Code Chart:
(Power Harness)
| Wire Color | Function |
| Red | +12 Volt Accessory |
| Yellow | +12 Volt Constant |
| Black | Ground |
| Blue | Power Antenna |
| Blue/White | Amp Turn-On |
| Orange | Illumination |
| Orange/White | Dimmer |
| Orange/Black | Not Used (tape off) |
(Speaker Harness)
| Wire Color | Function |
| White | Left Front Speaker + |
| White/Black | Left Front Speaker - |
| Gray | Right Front Speaker + |
| Gray/Black | Right Front Speaker - |
| Green | Left Rear Speaker + |
| Green/Black | Left Rear Speaker - |
| Violet | Right Rear Speaker + |
| Violet/Black | Right Rear Speaker - |
