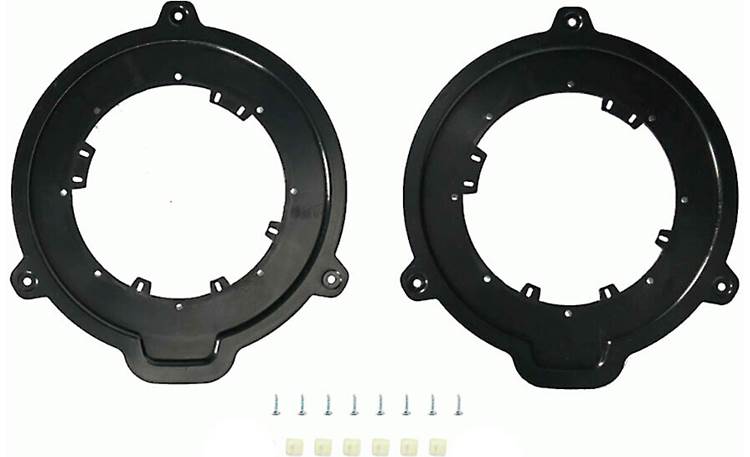

Metra 82-5608 Speaker Mounting Brackets

Features

Overview: As of 7/15/2020, the 82-5608 is compatible with select 2015-2020 Ford Transit vans. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6½ or 6¾ speakers. (Please enter your vehicle information to confirm fit.)

6¾ Speakers: For a 6¾ speaker to fit in the opening of this bracket, the tabs around the inner speaker opening need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.

6½ Speakers: 6½ speakers with the 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket (if the hole spacing matches).

5¼ Speakers: While many 5¼ speakers will mount in this bracket given the bolt pattern, the frame of a typical 5¼ is smaller than the opening in the adapter plate, making a 6½ or 6¾ a better fit. When using a 5¼, a speaker baffle must also be used to seal the rear of the speaker.

Dimensions:

• Inner Diameter: 5.781" (not accounting for the inner tabs)
• Height: 0.887"
• Screw Hole Spacing:
  • Three-Hole (6½):
    • Perimeter: 4.544"-5.037"
  • Symmetrical Four-Hole (6½ and 5¼):
    • Perimeter: 3.683"-4.14"
    • Diagonal: 5.271"-5.8"
  • Ford Four-Hole (6½):
    • Minor Axis: 3.683"-4.14"
    • Major Axis: 4.544"-5.037"
  • Four-Hole Spacing (6¾):
    • Perimeter: 4.247"-4.585"
    • Diagonal: 6.074"-6.414"
