About the Metra 99-5719 Dash and Wiring Kit
You bought a 2004-07 Taurus or a 2004-05 Mercury Sable — great car, but its console makes it impossible to upgrade the factory radio. Metra's kit allows you to install an aftermarket single- or double-DIN receiver in your dash, while maintaining all heating, ventilation, and air conditioning controls, even the heated seats and compass if your model has them.
The kit features backlit soft-touch buttons that let you access all climate controls found in the Taurus or Sable, and it's a perfect match for the color, texture, and contours of your dash. You'll also get an LCD display just like the one in your vehicle. The package also includes all harnesses and antenna adapters needed for the installation. Warranty: 1 year.

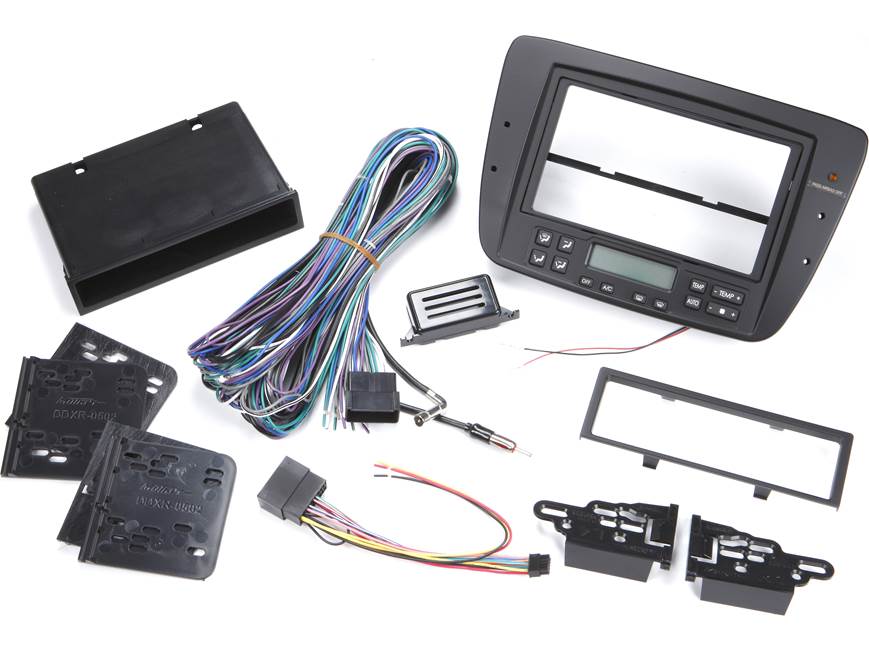

What's in the box:
- Radio housing
- 8" Power/ground harness
- 15' Amp bypass harness
- 15' Antenna cable
- ISO trim plate
- DD trim plate
- 2 ISO brackets
- 2 DD brackets
- Temperature sensor housing
- Installation Instructions
More details on the Metra 99-5719 Dash and Wiring Kit
2004-2007 Ford Taurus Installation Kit: The Metra Turbo 2 Installation Kit (99-5719C) is designed specifically for the 2004-2007 Ford Taurus (with auto climate controls). It allows installation of both double DIN and single DIN aftermarket head units. A storage pocket is included for DIN installs. The installation kit is painted a scratch resistant matte black finish. The 99-5719C installation kit also retains all factory climate control functions with soft touch buttons and LCD display. An airbag indicator light is also featured. All harnesses and antenna adapters are included.
Wiring Harness: This wiring harness prevents you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the wiring harness into your vehicle's factory radio plug.
Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.
Wiring Notes: If the wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.
Wire Code Chart:
|Yellow||+12 Volt Constant|
|Red||+12 Volt Accessory|
(Amplifier Bypass Harness)
|Green||Left Rear Speaker +|
|Green/Black||Left Rear Speaker -|
|Violet||Right Rear Speaker +|
|Violet/Black||Right Rear Speaker -|
|Gray||Right Front Speaker +|
|Gray/Black||Right Front Speaker -|
|White||Left Front Speaker +|
|White/Black||Left Front Speaker -|
