About the Axxess AX-SUB28SWC2-6V Backup Camera Harness
Axxess AX-SUB5RVC-6V
Axxess AX-SUB5RVC-6V
This Axxess AX-SUB5RVC-6V harness lets you keep your factory-installed backup camera when you install an aftermarket stereo in select 2013-14 Subaru vehicles without factory navigation. Once installed, you'll see images from your Subaru's rear-view camera on your new receiver's screen. The package includes Axxess' AX-CAM6V 12-volt to 6-volt converter to power your factory camera.
The harness also allows you to keep your vehicle's AUX input and supplies the outputs (parking brake, reverse, and speed sense) needed to install a video receiver. You'll also get a harness that connects to Axxess' ASWC-1 module (sold separately) which lets you keep your steering wheel audio controls without any splicing. Warranty: 1 year.

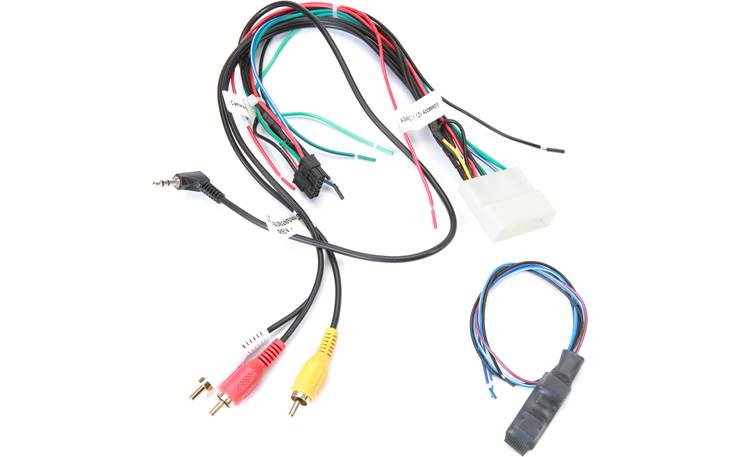

What's in the box:
Axxess AX-SUB28SWC2-6V Backup Camera Harness owner's manual
- AX-SUB28SWC2-6V harness
- AX-CAM6V 12V-to-6V converter harness
- Installation Instructions
Reviews (3)
Customer reviews for Axxess AX-SUB28SWC2-6V Backup Camera Harness
Loading reviews...
Average review:
1.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Axxess AX-SUB28SWC2-6V Backup Camera Harness
Product Research
Features
Vehicle compatibility: The Axxess Integrate AX-SUB28SWC2-6V harness is compatible with the following 2013-2014 Subaru vehicles without factory color display radio and factory navigation.
| Make | Model | Year |
| Subaru | Legacy | 2013-2014 |
| Outback | 2013-2014 |
Retained Features: When installing an aftermarket radio in these Subaru vehicles, the Axxess Integrate AX-SUB28SWC-6V harness allows you to retain the following factory features that are normally lost when removing the factory radio.
- Steering Wheel Controls: The AX-SUB28SWC2-6V harness allows you to retain your factory installed steering wheel controls without having to splice into your vehicle's factory wiring, using the Axxess Steering Wheel Control Interface (120ASWC1, sold separately).
- Aux Input: The AX-SUB28SWC2-6V includes stereo male RCA connectors that allow you to retain your factory installed 3.5mm jack (your aftermarket radio must also have a rear-panel stereo Aux input).
- Backup Camera: In addition, the AX-SUB28SWC2-6V harness includes a composite video connector to allow you to retain your factory installed backup camera.
Note: Additional kit and wiring harness will also be needed to complete installation.
Navigation Outputs: The AX-SUB28SWC2-6V provides the following navigation outputs to make installing an aftermarket navigation radio simpler and less time consuming.
- VSS (vehicle speed sense)
- Parking Brake
- Reverse Gear output
Wire Code Chart:
| Wire Color | Function |
| Red | +12 Volt Accessory |
| Red | +6 Volt Camera Power |
| Black | Chassis Ground |
| Blue/pink | VSS (vehicle speed sense) |
| Green/purple | Reverse gear |
| Light Green | Parking brake |
| 3.5mm Jack (male) | SWC output |
| Yellow Composite Video (male) | Backup camera input |
| White RCA (male) | Aux input (left) |
| Red RCA (male) | Aux input (right) |
| Blue/white | 12V-to-6V converter Reverse |
| Blue/red | 12V-to-6V converter Positive |
| Black | 12V-to-6V converter Ground |
