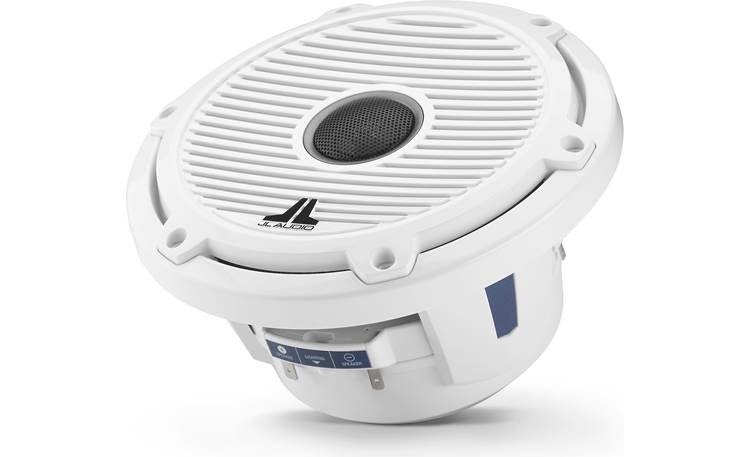

About the JL Audio M6-770X-C-GwGw
Powerful sound from durable speakers
Powerful sound from durable speakers
JL Audio's line of M6 marine speakers bring a whole new level of sound and style to your boat. These powerful 7.7” speakers combine innovative design with rugged, marine-ready componentry to give you outstanding audio performance that really cuts through wind, water, and engine noise.
High-performance componentry
The 1" treated-silk dome tweeter renders brilliant highs, and true 2-way crossover ensures that the woofer and tweeter work in perfect concert. You'll hear all the details of your music, even when the throttle is forward and you're skimming over the waves. You don't have to worry about mounting the crossovers because they're attached to the speaker frames.
Built for life on the water
All JL Audio marine speakers are designed to meet or exceed industry standards for salt, fog, and moisture resistance. They're built tough, too, with UV-resistant grilles and corrosion-resistant polymer baskets that surround the internal structure for extra protection. The marine-grade synthetic fibre spider, injection-moulded polypropylene cone, and synthetic rubber surround provide outstanding performance, while shrugging off sun, salt, and moisture. As an added bonus, you're protected by JL Audio's 2-year warranty.
Product highlights:
- 7.7" 2-way marine speakers
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround

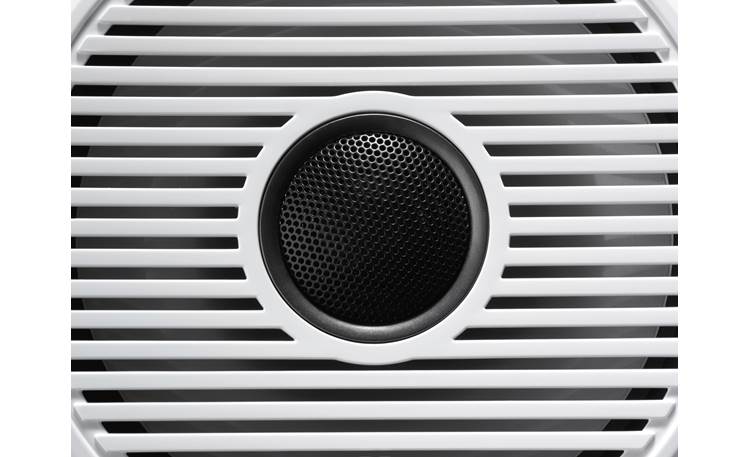

- 1" silk dome tweeter
- 2-way crossover attached to the woofer basket
- UV- and corrosion-resistant polymer baskets and white "Sport" grilles
- patented tweeter bridge attaches to the speaker's frame, allowing for removal and painting of grille
- designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- power handling: 100 watts RMS (200 watts peak power)
- frequency response: 45-25,000 Hz
- sensitivity: 91 dB
- cutout diameter: 6.188
- frame diameter: 7.712
- mounting depth: 3.38
- warranty: 2 years
- MFR # 93728
What's in the box:
JL Audio M6-770X-C-GwGw owner's manual
- Two 2-way Marine speakers
- Twelve 1-1/8" Philips-head stainless-steel screws
- 12 Stainless-steel flat-washers
- Owner's manual
- Template
Reviews (12)
Customer reviews for JL Audio M6-770X-C-GwGw
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JL Audio M6-770X-C-GwGw
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 7.7 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Tweeter Composition | Treated Silk | |
| Woofer Composition | Mica-Filled IMPP | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity |
91 dB at 1 watt | |
| Frequency Response | 45 - 25k Hz | |
| Max RMS Power Handling | 100 | |
| Peak Power Handling (Watts) | 200 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 3 7/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 6 3/16 | |
| Bolt Circle | 6.925 | |
Product Research
Features
Marine Tested: JL Audio's marine speakers are tested in ultraviolet chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments.
Woofers: The woofer cones are mica-filled injection-molded polypropylene (IMPP) with UV inhibitors and synthetic rubber surrounds. The precisely engineered dust cap profiles help smooth the upper-end response. Each woofer uses a marine-grade synthetic fiber spider with a progressive roll design and a vented motor structure with a marine grade stainless steel rear diffuser plate.
DMA (Dynamic Motor Analysis): DMA is JL Audio's proprietary method of improving dynamic motor behavior. The DMA-optimized long-excursion design enhances output, bass extension and power handling of the speaker.
Tweeters: Each speaker features a bridge mounted 1" silk dome tweeter with a specially formulated treatment to withstand the marine environment. The tweeters use neodymium magnets for higher efficiency levels and is Ferrofluid-cooled and damped for improved response and power handling capabilities.
Crossover: The JL audio marine speakers utilize a true 2-way crossover network with 2nd order low-pass and 3rd order high-pass circuits. The crossover network also features a polyswitch solid-state tweeter protection circuit. The crossover is built into the terminal assembly to protect it from vibration and corrosion.
Polymer Basket And Grille: The baskets and grilles are UV-resistant polymer. The baskets encapsulate the woofers' motor systems to prevent corrosion.
Infinite-Baffle Operation: The speakers are optimized for infinite-baffle operation so they can be installed in a variety of locations, without the need for a dedicated enclosure.
Power Handling: JL Audio recommends two RMS power figures for this model; 100 watts RMS continuous power handling and 40-200 recommended amplifier power. We've listed the more conservative 40-100 watts RMS range in the specs table.
The JL Audio M6-770X-C-GwGw replaces these items
- injection-moulded, mica-filled polypropylene woofers with synthetic rubber surrounds
- 1" silk dome tweeters
- designed to work in tower speaker enclosures and other small sealed enclosures
Loading accessories...
Customer Q&A
2 questions already asked
Loading articles...
I recently purchased these JL Audio M6 770's and installed them this past weekend. They are un updated version of the older style JL 770's. They sound louder than my old ones for some reason, and the clarity is superb as you would expect from JL. All in all I am very happy with the purchase.
Michael from Sarasota, FL
