About the AudioControl SPC-10S2
Serious bass that fits your space
Serious bass that fits your space
AudioControl has 45 years of experience bringing great sound to car audio. Their new Space Series of shallow-mount subwoofers continues their legacy, delivering deep, full bass in a package that fits into the smaller spaces of today's vehicles. The SPC-10S2 10" 2-ohm sub features an injection-moulded fibre matrix polypropylene cone that punches out clean sound even when you're driving it hard.
Weather-resistant design and a wrap-sealed rubber gasket help it stand up to the elements, while its stamped steel frame offers solid support. With 400 watts of RMS power handling, this sub can dish out all the bass you'll need and is suitable for sealed or ported enclosures. A metal mesh protective grille keeps your speaker safe.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- 10" 2-ohm subwoofer
- polypropylene fiber matrix paper cone with mica coating
- rubber surround
- stamped steel frame
- power handling: 400 watts RMS (600 watts peak)
- frequency response: 20-250 Hz
- sensitivity: 86 dB
- top-mount depth: 3.5"
- sealed box volume: 0.4-0.8 cubic feet
- ported box volume: 0.9-2.0 cubic feet
- metal mesh grille included
- warranty: 1 year
- MFR # SPC-10S2
What's in the box:
- One 10" Single voice coil subwoofer
- Grille (installed)
- Rubber trim ring/gasket (installed)

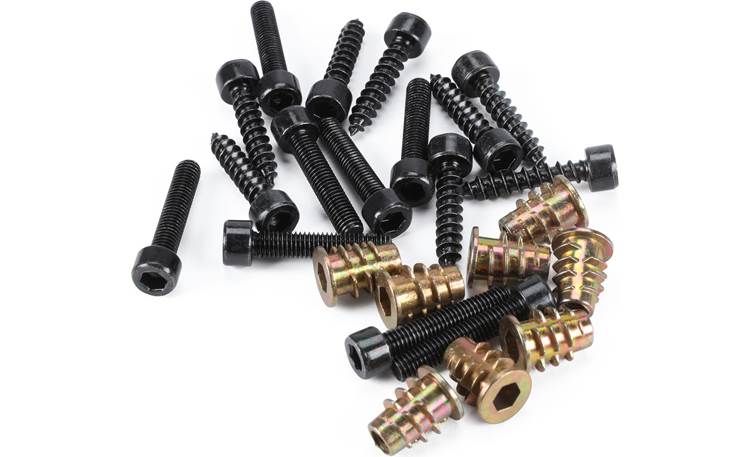

- Eight 1" Screws (4mm Allen head)
- Eight M5x25mm Machine screws (4mm Allen head)
- Eight M5 inserts
- User guide
- Template
Customer reviews for AudioControl SPC-10S2
Loading reviews...
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the AudioControl SPC-10S2
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10 -inch | |
| Impedance (Ohms) | 2 | |
| Cone Material | Fiber Matrix Injection Molded | |
| Surround Material | Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity |
86.0912 dB at 1 watt | |
| Frequency Response | 20 - 250 Hz | |
| Max RMS Power Handling | 400 | |
| Peak Power Handling (Watts) | 600 | |
| Top Mount Depth (inches) | 3 1/2 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 1/8 | |
| Vas (liters) | 23.6364 | |
| Fs (Hz) | 37.48 | |
| Qts | 0.4353 | |
| Xmax (millimeters) | 9 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.6 | |
| Minimum Sealed Box Volume (cubic feet) | 0.4 | |
| Maximum Sealed Box Volume (cubic feet) | 0.8 | |
| Ideal Ported Box Volume (cubic feet) | 1.4 | |
| Minimum Ported Box Volume (cubic feet) | 0.9 | |
| Maximum Ported Box Volume (cubic feet) | 2 | |
Product Research
Features
Power Handling: AudioControl describes the continuous power handling (RMS) as follows:
- Min: 200 watts
- Ideal: 400 watts
- Max: 600 watts

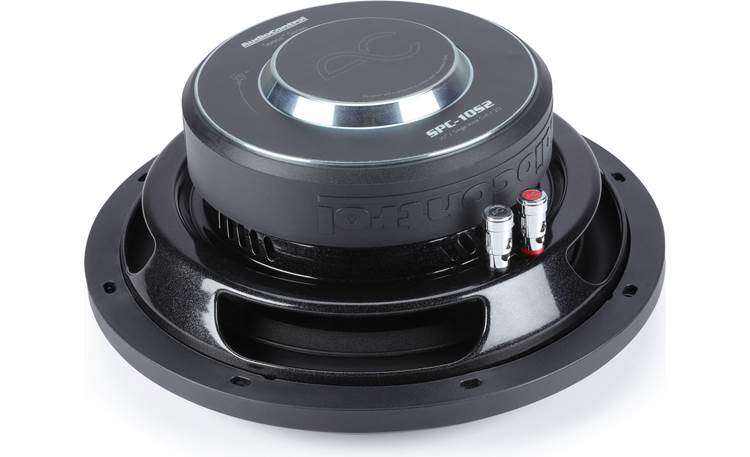

Terminals: The spring post terminals accept pin connectors, single and dual banana plugs (standard ¾" wide dual banana plugs), and bare wire up to 10 gauge.

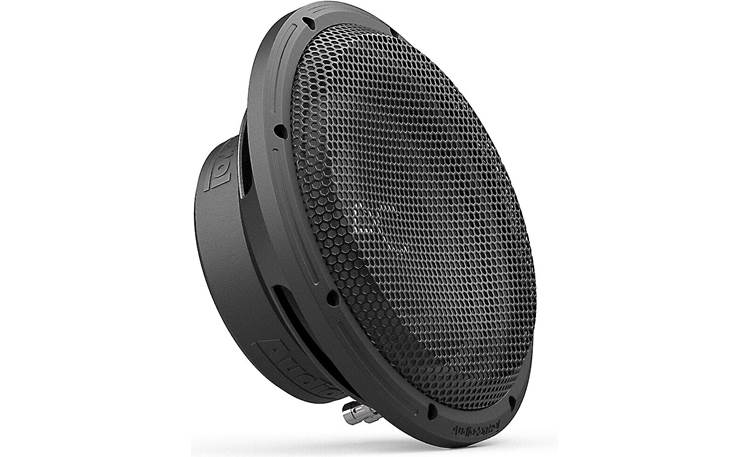

Grille: The removeable grille is mounted under the rubber gasket/mounting-ring. When using the grille the sub's mounting height is approximately 1.32".
Sealed Box Volume: The recommended sealed box volume range is from 0.4 ft³ to 0.8 ft³, with 0.6 ft³ being the ideal size. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Box Volume: The recommended ported box volume range is from 0.9 ft³ to 2.0 ft³. The ideal size is 1.4 ft³ with a slot port measuring 13" x 1¾" x 22¼", resulting in a tuning frequency of 40 Hz and a -3 dB point of 34 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.
