About the Kicker 44L7S104
Truly huge bass
Truly huge bass
Kicker builds their Solo-Baric® subwoofers for one purpose: to deliver truly huge, supremely accurate bass. The 44L7S104 Solo-Baric L7S™ 10" component subwoofer handles up to 600 watts RMS, enough power to fill any vehicle. Its innovative square cone moves much more air than a conventional 10" round cone, and this sub's made to take anything you can dish out.
Built-in toughness

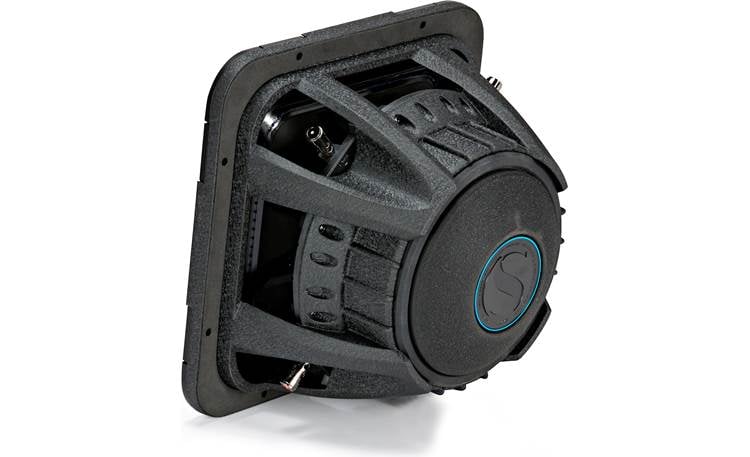

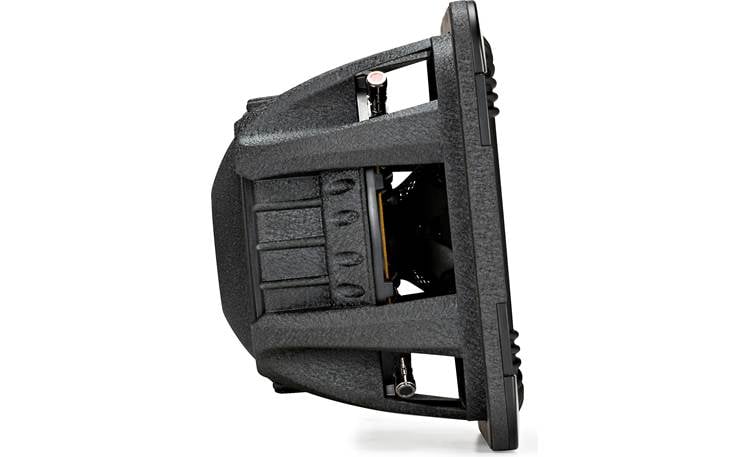

The woofer's forged aluminum frame and Santoprene™ rubber surround handle high-level playback, while keeping the cone on track. The injection-moulded SoloKon™ polypropylene cone features special back bracing for strength and responsiveness. The sub's two 4-ohm voice coils give you extra flexibility in incorporating this sub into your system. And the UniPlate™ back plate and pole piece are made as a single, solid unit to allow heat to escape the motor. Translation? Kicker designed this sub to take some serious punishment.
Product highlights:
- 10" subwoofer with dual 4-ohm voice coils
- square SoloKon™ polypropylene cone with Santoprene rubber surround
- cast aluminum basket
- power handling: 300-600 watts RMS
- peak power: 1200 watts
- frequency response: 24-100 Hz
- sensitivity: 85.87 dB
- top-mount depth: 6-1/4"
- sealed box volume: 1.0-1.25 cubic feet
- ported box volume: 1.25-2.25 cu. ft.
- grille not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 44L7S104
What's in the box:
Kicker 44L7S104 owner's manual
- One square 10" dual 4-ohm voice coil subwoofer
- Owner's manual (English/ Spanish/ German/ French)
- 2 Kicker decals
- Template on box lid
Reviews
Customer reviews
Loading reviews...
Kicker 44L7S104 reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker 44L7S104
Features & specs
| Size | 10 -inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | SoloKon | |
| Surround Material | Rubber | |
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
85.87 dB at 1 watt | |
| Frequency Response | 24 - 100 Hz | |
| Max RMS Power Handling | 600 | |
| Peak Power Handling (Watts) | 1200 | |
| Top Mount Depth (inches) | 6 1/4 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 3/8 | |
| Vas (liters) | 28.347 | |
| Fs (Hz) | 37.5 | |
| Qts | 0.507 | |
| Xmax (millimeters) | 16.25 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Enclosure Compatibility
Features
Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.
Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.
Cone Material: The square SoloKon design is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.
Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge to improve durability.
Speaker Terminals: The terminals are spring loaded and nickel plated for solid connections with speaker wire up to 10 gauge.
Break-in Period: Due to the complex nature of Kicker Solo-Baric L7S woofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
Enclosure Compatibility
Recommended Sealed Box Volume:
- Minimum Volume: 1.0 ft³
- Maximum Volume: 1.25 ft³
Recommended Vented Box Volume:
- Minimum: 1.25 ft³; 2.5" x 11.25" port opening; 19.75" port length
- Maximum: 2.25 ft³; 3" x 11.25" port opening; 18" port length
Cutout: The woofer will not mount in a standard enclosure with a round cutout. Instead, the woofer must be mounted in an enclosure with a 9.324" x 9.324" square opening.
