Customer Reviews

Perfect for adding DSP processor

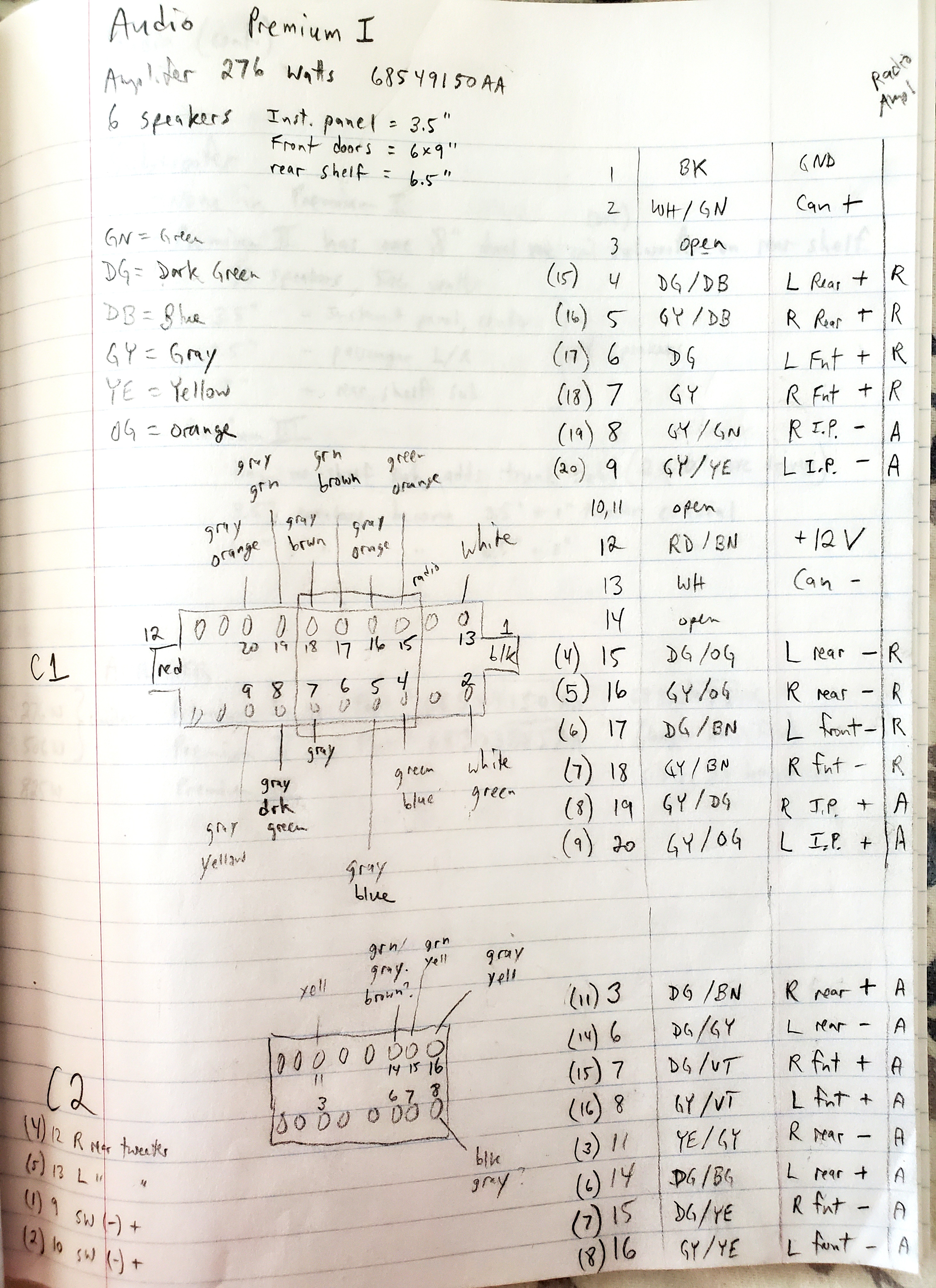

Used with my 2023 Dodge Challenger, with the base (Premium I) stereo system. (It has the 276W amp near the parking brake, no center dash speaker, only the basic rear panel speakers, no sub.) I used this harness to interrupt the signal that carries the head unit's L&R Rear audio channels to the amplifier, so that I could route that audio through a DSP processor prior to the car amplifier. That audio signal is not affected by the volume control, and also not affected by the EQ settings, so perfect for routing to a DSP processor. (Note that the head unit's L&R Front audio carries no sound. The amplifier creates the 4 speaker output channels, as well as implementing the volume and Bass/Mid/Treble settings.) Note that the wiring harness has stickers identifying the wires. Do not rely on this. Get the Audio/Speaker wiring diagram from Dodge or online. See the attached figure showing the backside of the amplifier's connectors.

Have questions for
?

Crutchfield response on

Thank you, Rue ??

I purchased this for my 2014 Fiat with the Beats system. The previous owner had installed an aftermarket radio and had cut the OE wire harness. From the pictures, this harness looked like it would work with the Fiat OEM radio, however it did not. Crutchfield was gracious enough to issue a refund.

Have questions for
?

Crutchfield response on

Right on time!

The right part for me for my factory unit. I was so happy to get and it has my system sounding better than factory. Get buy wish I had done it sooner.

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Exactly what I needed. Everything is properly labeled and includes printout.

Have questions for
?

Crutchfield response on

Clean install

Thank you Crutchfield!!! Easy installation and a much cleaner signal!! !!????

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Works great

Have questions for
?

Crutchfield response on

Quality product as described

Very good quality, product as described, ease of access and ease of use A+++

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Works fawlessly on my Jeep Wrangler JKU!!! Made my Amp upgrade so much easier!!!

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Quick shipping and easy installation!

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Directions could be better. But worked as it should. Only used for the door speakers in my 2015 ram 1500. I ran new wires to the headliner and dash corners.

Have questions for
?

Crutchfield response on

No splicing into factory wire with this Harness

Perfect harness for installing aftermarket amplifiers to stock deck. Just add a high/low converter to it, and conect the speaker wires to your aftermarket amplifiers and you job is done.

Have questions for
?

Crutchfield response on

2011 Dodge Durango with Alpine Premium

Definitely is a plug and play item very easy to do. I would say just read over the instructions and maybe even call Crutchfield or PAC if you have any questions about the install. On that note I have a 2011 Dodge Durango with the Alpine premium sound system. The center channel is actually your sub woofer 2 wires. Connect them together and you will get your center channel.

Have questions for
?

Crutchfield response on

Pac AmpPro Harness

This is a must have for upgrading your factory stereo system. This allows for sub and speaker upgrades with the included harness.. no cutting wires, unplug and plug in. Crutchfield customer service is ideal for anyone with questions. Product was the easiest integration I have ever done. Now I have new amp for all my speakers and I can add a subwoofer and totally have the best sounding system of my choice. This is a must have , add subs or speakers all at once or one at a time, works flawlessly best purchase ever!! Still has all of factory bells and whistles!!

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Good product worked like it should.. The instructions could have been more detailed but figured it out..

Have questions for
?

Crutchfield response on

2020 Dodge Challenger install success

For my 2020 Challenger- worked great. Unfortunately, two of the labeled wires did not correspond with the rear speakers it was supposed to, but it took 5 minutes and two trial and errors to figure it out. Other than that hiccup, it went smooth.

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

I'm always happy with the PAC products!

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Super simple and user friendly great product

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Good Quality

Have questions for
?

Crutchfield response on

To easy

Makes powering speakers from aftermarket amp easy and doesn't require cutting factory harness.

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Pefect fit for my Chrysler 300 the wiring diagram included by Crutchfield was very helpful made instalation so much easier

Have questions for
?

Crutchfield response on

2018 Dodge Challenger -Alpine Factory Amp System

Everything worked fine for Front Dash and Front Door speakers hooked up to aftermarket amp. However the rear speaker wires were color coded wrong. Had to use Center channel and Sub 1 to make rear speakers work. Ran Rears off of factory amp. 2018 Dodge Challenger with the 6 speaker factory amp set up.

Have questions for
?

Crutchfield response on

Easy Install

Perfect for someone like me that didn't want to pull all new wire or cut the factory harness. Was able to access all 11 channels in a dodge ram without adding additional wire. Used 8 and sounds amazing

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Works, but it can be really tough to figure out how to wire it to your car speakers. Spent quite a while working through wiring with Crutchfield tech support and they still got it slightly wrong.

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Great harness works seemingly.

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

Great plug and play harness, no splicing wires!

Have questions for
?

Crutchfield response on

2012 Durango

made connecting amps and speakers much easier without cutting the factory harness. Be sure to check your actual connections to the speakers, seems since this harness covers multiple years some of the speaker labels were incorrect. Both sides of this harness should have the longer wire pigtails.

Have questions for
?

Crutchfield response on

Love crutchfield and their staff

Truly plug and play thanks crutch field

Have questions for
?

Crutchfield response on

Excellent harness for adding amp

This was a great harness for adding an amp to my factory setup. I didn't plan on using it, I was gonna use all new speaker wire, but factory wire was good enough for my build. This great little harness connects to your factory amp to pass through canbus signal, but also splits off the speaker inputs so you can wire your new amp outputs directly to the factory harness without cutting it. Also, it gives you the option to continue using the factory amp at the same time. Like if you want to keep using the stock sub , or save channels on your new amp by powering the mini dash speakers off of the factory amp. Leaves alot of room for possibilities. You could bridge 2 channels on new amp for powerful front sound and still keep decent sound in the back doors, factory sub and dash.

Have questions for
?

Crutchfield response on

Yup

Fits perfect. Works perfect. Great quality

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

PAC does it again with another fantastic harness adapter sonIndint have to hack the OEM harnesses In my $50k car to get great sound. Another great quality product from PAC and Crutchfield.

Have questions for
?

Crutchfield response on

PAC APH-CH01 AmpPro Harness

This harness did not work for my 2013 Dodge Challenger. My car has two 22 pin connectors.

Have questions for
?

Crutchfield response on 11/20/2018

Once we saw this review, our Tech Support specialist, Clint, reached out to this customer to help him further. We'll either help him get the harness installed and working the way it should, or help him return it for an exchange or refund.

PAC APH-CH01 AmpPro Harness

The coding of the cables is totally different to how they are identified in the manual and in the diagrams. example the cables identified as center channel are those of sub-woofer 2, that makes you have to identify each cable so you can know exactly which speaker you are connecting. otherwise it works.

Have questions for
?

Crutchfield response on

2017 Dodge Charger with Beats Audio

Everything powered up fine when i used it. The problem is the pins dont match up with the rear deck speakers i want to amplify. still trying to figure it out. Made the install super easy great product but kinda mad that they use blanket statements that it will work with all dodge through 13+ when it doesnt line up.

Have questions for
?

Crutchfield response on 10/15/2018

Shay contacted our Customer Support rep, Stan, and he sent out a replacement harness. If you encounter a problem with anything you purchase from Crutchfield, it's important to contact our Customer Support or Tech Support teams right away. They can help you solve the problem or set up a return within 60 days of purchase.

Worthless instructions

Never did take to work but I think the product has a good thought process but the directions are worthless did not understand what to do with anything needs to be more details I'm not a novice installer been around and still concept and idea was hard to wrap this thing around and then tractions didn't really say much to help out;

Have questions for
?

Crutchfield response on 10/10/2018

We're sorry you're having issues with your harness. Whenever you encounter a problem with anything you purchase from Crutchfield, please contact our Tech Support team. They can help you solve the problem or set up a return within 60 days of purchase. Lifetime tech support comes with every Crutchfield purchase.

LIFE SAVER when integrating w/factory amp

I wish I'd known about this product before I snipped the factory amp harness off... I had already had the PAC Audio AmpPRO 4 (AP4-CH41) installed, and was trying to wire it through my factory amp in my 2014 Jeep Grand Cherokee Limited and was having a bear of a time. I talked to PAC Audio and they turned me onto this harness, and it saved my life. I re-soldered the factory connector to the wires that I had disconnected and then used this harness. BOOM. I had sound using two aftermarket factory amps and all new speakers while retaining my chimes, warning bells, sensors, and all of the factory bells and whistles.

Have questions for
?

Crutchfield response on
