About the Memphis Audio MS57
The sound of Memphis
The sound of Memphis
Memphis Audio has been making the world of car audio better since 1965, and their M Series speakers are the culmination of quality construction, thoughtful design, and years of experience. With a tradition of great American music in mind, Memphis Audio builds these speakers to reproduce every song with authenticity and impressive detail.
Installation flexibility
If you're not sure whether to go with coaxial speakers or a component system in your car, Memphis Audio's MS57 5"x7" speakers give you the benefit of trying out both approaches on your installation day. The included tweeter mounts in the centre of the woofer in a coaxial application and maintains the ability to swivel, so you can direct high frequencies toward the listener. In component form, you remove the tweeter and mount it separately — Memphis Audio includes a phase plug for the centre of the woofer cone.
Great factory replacements
These speakers will handle up to 50 watts RMS for solid enjoyment of your favourite tunes. The carbon fibre woofer and aluminum tweeter make powerful replacements for low-functioning speakers, delivering strong performance with accuracy and gusto.
External crossovers
You know the M Series speakers are standouts because Memphis Audio equips them with external crossovers for the best sound possible in your car. And thanks to Memphis Audio's unique MClip mounting solution, you can securely clip the crossover onto the back of the speaker basket for a space-efficient installation.
Product highlights:
- 2-way car speakers (pair) with adjustable design
- can be used as coaxial speakers or as a component speaker system
- 5"x7" carbon fiber woofer with rubber surround
- aluminum alloy tweeter
- external crossover
- MClip crossover mounting solution for securing crossover to back of speaker basket or to car door
- handles up to 65 watts RMS (130 watts peak power)
- frequency range: 77-20,000 Hz
- sensitivity: 88 dB
- top-mount depth: 2-1/8"
- grilles included
- warranty: 2 years
- MFR # MS57
What's in the box:
Memphis Audio MS57 owner's manual
- Two 2-way speakers
- 2 Crossovers
- 2 Tweeter flush mount front casings
- 2 Flat tweeter bases
- 2 Flush mount retaining rings
- 2 Tweeter surface mount front casings
- 2 Angled tweeter bases
- 2 Phase plugs
- Two 5' Tweeter extension wires (quick slides on both ends)
- 2 M-Clip crossover mounting brackets
- Eight M4x6mm Machine screws
- Two M4x30mm Machine screws
- Four 3/4" Flat head screws
- Eight 1-3/8" Screws
- 8 Speed clips
- Two 4" Zip ties
- Installation instructions
- Template
Featured video:
Customer reviews for Memphis Audio MS57
Loading...
Loading reviews...
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Memphis Audio MS57
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 5X7 | |
| Design | 2-way | |
| Tweeter Design | Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Aluminum | |
| Woofer Composition | Carbon Fiber | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 88 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 77 - 20k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 65 | |
| Peak Power Handling (Watts) | 130 | |
| Top-mount Depth (Inches) | 2 7/16 | |
| Bottom-mount Depth (Inches) | 2 11/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.641 | |
Product Research
Features
Tweeters: The tweeters are coaxially mounted to the woofers at the factory. The tweeters swivel, so they can be angled for optimum imaging. Additionally, the tweeters can be removed from the woofers and installed separately, either flush mounted or surface mounted using the included housings. The woofers' mounting height is reduced to 0.3" when the tweeters are removed.
Tweeter Dimensions:
| Flush Mount | Surface Mount | Angled Surface Mount | |
|---|---|---|---|
| Mounting Height | 0.2" | 1.28" | 1.785" |
| Mounting Depth | 1.05" | screw depth | screw depth |
| Frame Diameter | 2.357" | 2.065" | N/A |
| Cutout Diameter | 2.055" | N/A | N/A |
| Frame Width | N/A | N/A | 2.06" |
| Frame Depth | N/A | N/A | 2.035" |

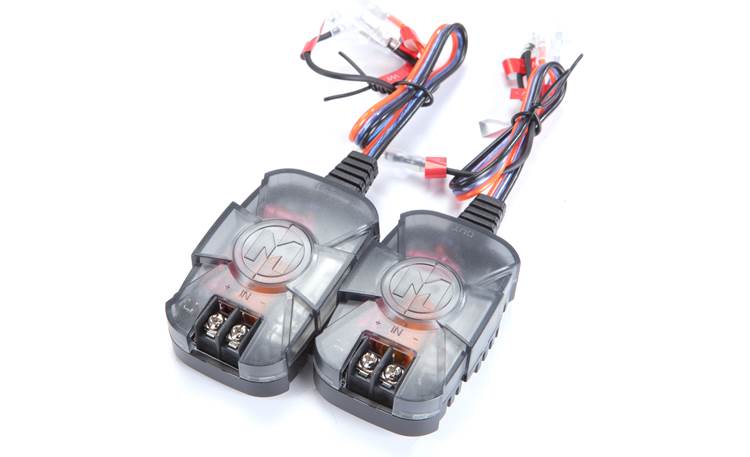

Crossover: The crossovers are separate components with the output wires attached. The tweeter output level can be changed from flat to -3 dB by moving a jumper pin inside each crossover. The inputs are screw terminals that will accept bare wire or spade connectors up to 0.25" wide. The output wires have quick slides attached that easily connect to the terminals on the woofers and on the wire from the tweeters. The crossover dimensions are:
- Width: 1¾"
- Height: 1⅛"
- Length: 2¾" (3⅝ including wire)
M-Clip: The crossovers can be mounted to the back of the speaker magnets, or elsewhere, using the M-Clip brackets. When mounted to the speakers, the crossover adds approximately ⅜" to the depth and 1¼" to the width of one side of the magnet.
