About the American International HSB524 Speaker Mounting Brackets
American International HSB524

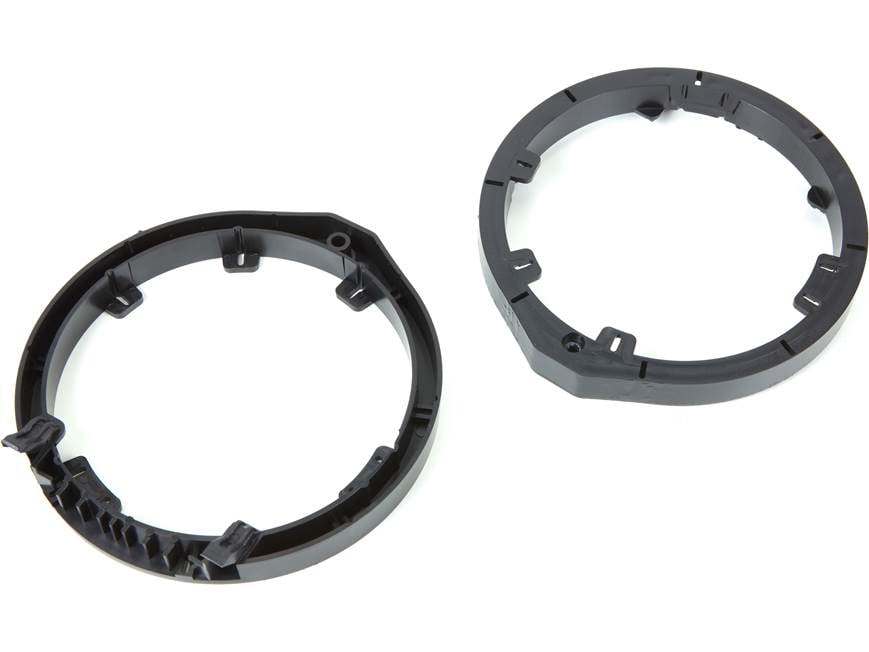

American International's HSB524 brackets will allow you to install 6-1/2" or 6-3/4" speakers in the factory speaker openings of select 2006-up Honda and Acura vehicles. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to confirm that these adapters are compatible with your vehicle. Warranty: 60 days.
What's in the box:
American International HSB524 Speaker Mounting Brackets owner's manual
- Two speaker adapter brackets
- Two M5x30mm Machine screws
- Application guide
Customer reviews for American International HSB524 Speaker Mounting Brackets
Loading...
Loading reviews...
Average review:
4.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the American International HSB524 Speaker Mounting Brackets
Product Research
Features
Overview: As of 4/8/19, the HSC524 is compatible with select Acura and Honda vehicles. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6½ and 6¾ speakers. Please enter your vehicle information to confirm fit.
6¾ Speakers: For a 6¾ speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.
6½ Speakers: 6½ speakers with a 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket (if the hole spacing matches).
5¼ Speakers: While a 5¼ speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5¼ is approximately ½" smaller than the opening in the bracket, making a 6½ or 6¾ a better fit. When using a 5¼, a speaker baffle must also be used to seal the rear of the speaker.
Dimensions:
- Outer Diameter: 6.665"
- Inner Diameter: 5.717" (not accounting for the inner tabs)
- Height: 0.7"
- Screw Hole Spacing:
- Three-Hole (6½):
- Perimeter: 4.498"-5.103"
- Symmetrical Four-Hole (6½ and
5¼):
- Perimeter: 3.649"-4.181"
- Diagonal: 5.203"-5.871"
- Ford Four-Hole (6½):
- Minor Axis: 3.649"-4.181"
- Major Axis: 4.498"-5.103"
- Four-Hole Spacing (6¾):
- Perimeter: 4.217"-4.524"
- Diagonal: 5.918"-6.573"
- Three-Hole (6½):
Loading...
Loading accessories...
Customer Q&A
10 questions already asked
Loading...
Loading articles...
Fits perfectly on civic 2016 lx. did a little modification , drilled a new mounting hole for the kenwood speakers.
Harold from Aurora, IL
