About the American International NSB710 Speaker Mounting Brackets
American International NSB710
American International's NSB710 brackets will allow you to install select 6-1/2" or 6-3/4" speakers in the factory speaker openings of select Mazda, Nissan, or Suzuki vehicles. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to confirm that these adapters are compatible with your vehicle. Warranty: 60 days.
What's in the box:
American International NSB710 Speaker Mounting Brackets owner's manual

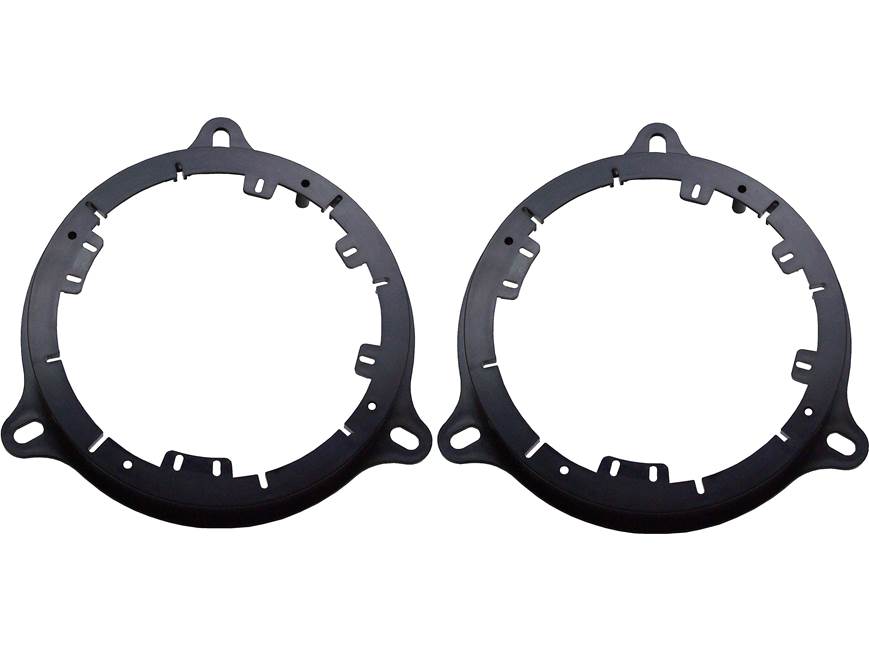

- 2 Speaker adapter brackets
Reviews (293)
Customer reviews for American International NSB710 Speaker Mounting Brackets
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the American International NSB710 Speaker Mounting Brackets

Product Research
Features
6-3/4 Speakers: For a 6-3/4 speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.
6-1/2 Speakers: 6-1/2 speakers with the 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket (if the hole spacing matches).
5-1/4 Speakers: While a 5-1/4 speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5-1/4 is approximately 1/2" smaller than the opening in the bracket, making a 6-1/2 or 6-3/4 a better fit. When using a 5-1/4, a speaker baffle must also be used to seal the rear of the speaker.
Dimensions:
- Outer Diameter: 7.203"
- Inner Diameter: 5.768" (not accounting for the inner tabs)
- Height: 0.83"
- Screw Hole Spacing:
- Three-Hole (6-1/2):
- Perimeter: 4.449"-4.95"
- Symmetrical Four-Hole (6-1/2 and 5-1/4):
- Perimeter: 3.609"-4.058"
- Diagonal: 5.144"-5.695"
- Ford Four-Hole (6-1/2):
- Minor Axis: 3.609"-4.058"
- Major Axis: 4.449"-4.95"
- Four-Hole Spacing (6-3/4):
- Perimeter: 4.217"-4.524"
- Diagonal: 5.8"-6.603"
- Three-Hole (6-1/2):
The American International NSB710 Speaker Mounting Brackets replaces these items

Metra 82-7400 Speaker Mounting Brackets
