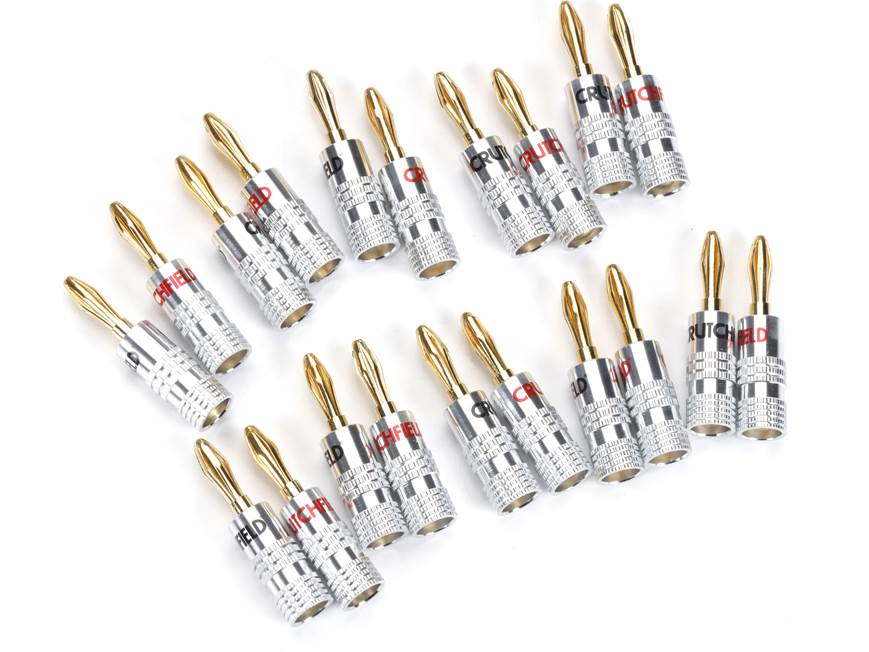

About the Crutchfield Banana Connectors
We like banana connectors — especially for the space-challenged rear panels of A/V receivers. These connectors use a set-screw design that provides reliably easy and secure speaker wire termination. If your receiver, amplifier, or speakers have banana-compatible binding posts, these connectors are a low-cost way to plug in.
Product highlights:
- provides an easy and secure connection between your 16- or 14-gauge speaker wire and your banana-compatible speakers, receiver, or amplifier
- a set-screw secures your speaker wire to the banana connector (screwdriver included)
- 24k gold-plated contacts resist corrosion
- red and black Crutchfield logos to identify positive and negative
- warranty: 1 year
- MFR # B20PK
What's in the box:
- 20 Banana plugs
- Flat-blade screwdriver
Customer reviews for Crutchfield Banana Connectors
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Crutchfield Banana Connectors
Product Research
Features
Crutchfield Banana Plugs: The Crutchfield banana plug connectors provide an easy and secure connection between your 16 or 14 gauge speaker wire and your loudspeakers, receiver, or amplifier. Set-screws secure your speaker wire to the banana plug connector (strip your speaker wire 0.5"). Each Crutchfield banana plug connector features a gold-plated single-banana jack which easily plugs into the binding post terminals of your loudspeakers, receiver, or amplifier. The barrel of each connector has a red or black "Crutchfield" logo to identify positive and negative.
- Connector Diameter: 0.215"
- Barrel Diameter: 0.425"
- Overall Length: 1.805"
Installation Instructions: Twist the banana plug connector clockwise to loosen the connector from the barrel. Slide the connector down through the barrel until it comes out and then loosen the set-screws. Strip your 16 or 14 gauge speaker back 0.5" and insert it up through the hollow end of the banana connector. Tighten the set-screws onto the inserted speaker wire and slide the banana connector back through barrel. Twist the banana connector counter-clockwise to tighten the assembly and plug the banana connector into the binding-post terminal of your speakers, receiver, or amplifier.
Loading...
Loading accessories...
Customer Q&A
4 questions already asked
Loading...
Loading articles...
Exactly as described. Easy to install if a little tedious to do a bunch of them. Having two set screws instead of one is great. For me they worked with 12 gauge wire.
Neal from Valdese, NC
