Clarion CMM-30BB

Marine Integration
Variety Of Sources
Audio Section

Marine Integration

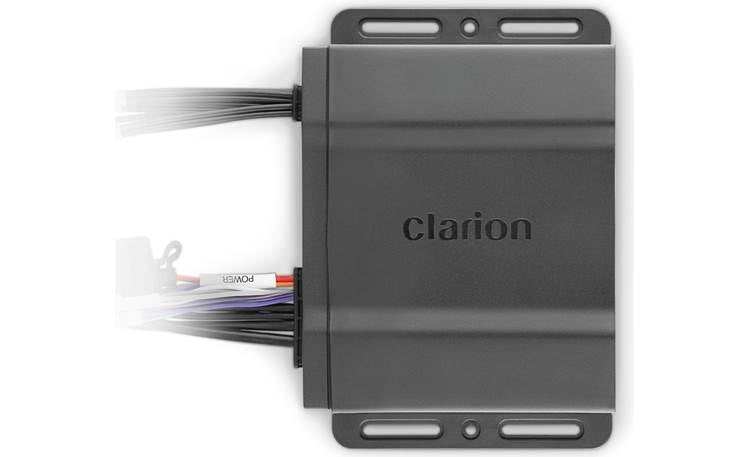

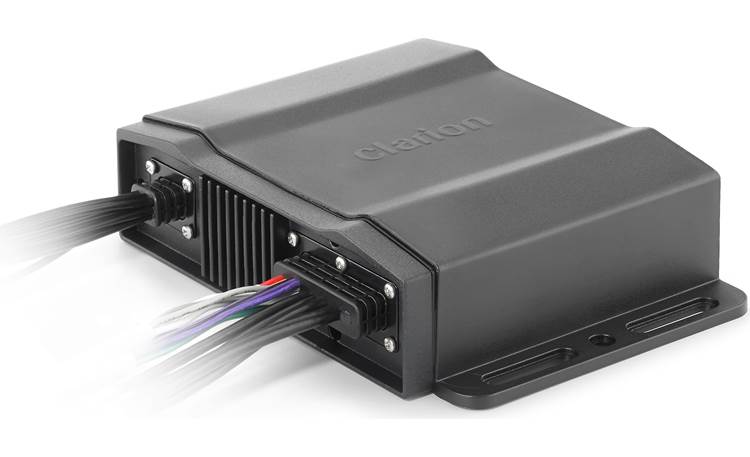

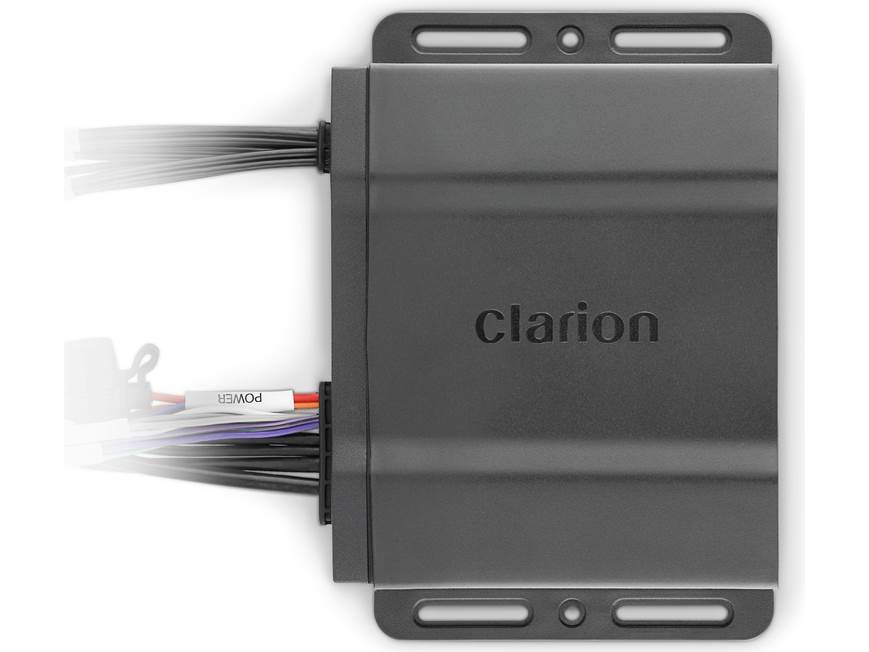

Hideaway Marine Source Unit: The Clarion CMM-30BB is a hideaway marine source unit that can be mounted out of sight and controlled via a Clarion wired remote controller or compatible NMEA 2000 Multi-Function Display (MFD) - all sold separately. The hideaway marine source unit can be mounted under inside your boat's cabin, helm console, or storage locker. The unit features integrated mounting brackets and comes with four screws. The CMM-30BB measures 5.625" (w) x 2.0" (h) x 7.9375" (d).

Marine Certified: The Clarion CMM-30BB features an IP66-rated weatherproof construction design that protects the hideaway marine source unit from exposure to water-spray and dust. Utilizing UV-treated, durable, marine-rated materials, the Clarion CMM-30BB hideaway marine source unit is built to endure the harsh marine environment. It is built to exceed industry standards for salt-fog exposure (ASTM B117), UV exposure (ASTM D4329), and vibration resistance (3.0G) - ensuring excellent long-term durability.

Note: The CMM-30BB can be exposed to water-spray, but cannot be submerged in water.

Required Wired Remote Control (Sold Separately): The CMM-30BB hideaway marine source unit does not contain any controls or display, and requires a separate wired remote controller (not included). All control and display functionality of the CMM-30BB can be accomplished via a compatible Clarion wired remote controller (sold separately). The Clarion wired remotes are IP67-rated which protects them against water submersion (up to 3.3' for 30 minutes) and dust ingress. The CMM-30BB features an attached 9" proprietary remote cable, while the compatible Clarion marine wired remotes feature an attached 8" proprietary cable. In most applications, you'll need to extend the reach between the CMM-30BB and compatible Clarion marine wired remote. A 6' and 25' remote extension cable is available (sold separately). You can add up to two wired remotes using Clarion's CMC-RC-Y splitter (sold separately) or a maximum of three wired remotes using two of Clarion's CMC-RC-Y splitter (sold separately). The maximum total distance of all connected wired remotes should not exceed 75'.

• CM-R30: The CM-R30 is a full-function, wired remote control with an integrated high-contrast LCD segment display and back-lit rubberized buttons. This remote control perfectly complements the design of the CMM-30BB hideaway marine source unit.
• CMR-20: The CMR-20 is also a full-function, wired remote control with integrated high-contrast LCD segment display and back-lit rubberized buttons.
• CMR-10: The CMR-10 is compact wired remote control that offers basic control functions and back-lit rubberized buttons (no display).

Note: All of the wired remote controls, Y-splitter, and extension cables are sold separately. The Clarion CMM-30BB does not offer wireless remote control.

NMEA 2000 Certified: The Clarion CMM-30BB is NMEA 2000 Certified, allowing seamlessly integration with your boat's onboard NMEA 2000 network for control and two-way communication of the hideaway marine source unit directly from your boat's Multi-Function Display (MFD) device. Two-way communication between the hideaway marine source unit and your MFD allows source selection, song/track/album title, radio frequency and more to display on the MFD interface (including Garmin, Lowrance, and Simrad).

Note: Requires compatible NMEA 2000 entertainment protocols (PGN), and may also require a software upgrade of connected MFD device(s).

Variety Of Sources

Bluetooth Audio Streaming: The Clarion CMM-30BB offers built-in Bluetooth 5.0 with support for wireless audio streaming (A2DP) and control (AVRCP). You'll be able to stream stored music, music apps, and other audio content from your Bluetooth-enabled smartphone or tablet to the hideaway marine source unit. You can also control playback functions such as Play/Pause and Previous/Next Track from a compatible controller (sold separate). In addition, some controllers will display song/artist/album information (no album art). You can pair multiple devices with the CMM-30BB, but only one source device can be connected for playback at a time. The hideaway marine source unit has a Bluetooth wireless range of 35'.

Note: The Clarion CMM-30BB does not support Bluetooth hands-free communication for making and answering phone calls.

USB-A Port: The CMM-30BB's USB-A 2.0 port allows for connection of an external USB MSC (mass storage class device), such as a USB thumbdrive. You'll be able to playback MP3/WMA (up to 320kbps) and FLAC/WAV (up to 48kHz) music files stored on a compatible USB thumbdrive (up to 64GB). It can recognize a total of 255 folders and a total of 9,999 files (3,000 files per folder). From a compatible Clarion controller (sold separately), you'll have control of playback functions such as Folder/Track List, Play/Pause, Previous/Next Track, Fast Forward/Rewind, and Random/Repeat. Some compatible controllers can also display song/artist/album information (including album art).

Note: The USB-A port does not support playback from Apple iOS or Android OS devices. The USB port also does not support USB hubs or card-readers.

iPhone Direct Connection: The Clarion CMM-30BB's USB-A port can also be used to connect your Apple iPhone with Lightning connector (iPhone SE/8 and newer), using the Lightning-to-USB cable that came with your iPhone or an Apple Certified Lightning-to-USB cable (sold separately). The CMM-30BB supports audio playback from stored music, music apps, and other audio content on your iPhone device. From a compatible controller (sold separately), you'll be able to browse categories (Playlist/Artist/Song/Album/Genre/Composer), control playback (Play/Pause/Repeat/Shuffle), and view song/artist/album information (including album art). The USB-A port (5V/2.A) will also charge your Apple iPhone while connected.

• Compatible iPhones include the iPhone SE (2nd Generation), 8/8+, X/XR, XS/XSMax, 11/11Pro/11ProMax, 12/12Mini/12Pro/12ProMax, 13/13Mini/13Pro/13ProMax, and 14/14Plus/14Pro/14ProMax
• Not compatible with older iPhones not listed above.
• Not compatible with iPod devices such as the touch, nano, classic, or other older iPod models.
• Not compatible with any older 30-pin iPod/iPhone models.

Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the hideaway marine source unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.

Built-In AM/FM/Weather Band Tuner with RDS: The Clarion CMM-30BB features a built-in AM/FM tuner with NOAA weather-band capability. You can store up to 18 AM/FM/WB presets in any combination. RDS (Radio Data System) displays channel, category, and program information for select FM broadcasts (where available). You can select between US and European tuning.

• AM: 530 kHz to 1710 kHz (9 or 10 kHz steps)
• FM: 87.5 MHz to 108.0 MHz (0.05 or 0.2 MHz steps)
• WB: 16.2400 MHz to 162.550 MHz (0.05 MHz steps)

Note: A marine radio antenna is required (sold separately - see Accessories Tab).

SiriusXM-Ready: The Clarion CMM-30BB hideaway marine source unit provides connection to the SiriusXM Connect Tuner (220SXV300M, sold separately). The SiriusXM Connect Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription. Check out the most popular SiriusXM subscription packages here. A SiriusXM subscription is required for access to the SiriusXM Satellite Radio programming.

• Channel list displays a list of all available channels
• Category Search searches for channels in a certain category
• Station/channel name (including logo) and song/artist/album information (including album art) can be viewed on the unit's LCD
• SiriusXM presets are stored within the marine source unit's 18 preset allotment, along with AM/FM stations presets.
• Channels containing unsuitable content for children can be blocked

Note: Control and display of the SiriusXM Connect Tuner (sold separately) will also require a compatible Clarion wired remote controller (sold separately).

Aux Input: The hideaway marine source unit's Aux input consists of a set of stereo RCA jacks that allow you to connect an external audio source for playback. You can adjust the hideaway marine source unit's Aux input sensitivity (-5 to +5) to match the output level of your connected device.

Audio Section

Multi-Zone Audio: The Clarion CMM-30BB supports multi-zone audio through its built-in amplifier and 8ch preouts. The built-in 25W x 4ch amplifier is capable of powering a pair of speakers in two separate zones, while the 8ch/3.5V preamp outputs allow up to four zones of audio with selectable Zone 4 or subwoofer functionality. Each zone will playback the same audio source (you cannot playback different audio sources in different zones). You will have independent volume and tone control of each zone (1-2-3-4). You can even rename each zone.

• Zone 1 consists can be powered via the built-in amplifier or from an external marine amplifier.
• Zone 2 can be powered via the built-in amplifier or from an external marine amplifier.
• Zone 3 can only be powered from an external marine amplifier.
• Zone 4 can be powered from an external marine amplifier, or used as sub preouts for Zone 1.

Note: You can rename each zone (1-2-3-4). Choose from Bow, Bridge, Cabin, Cockpit, Galley, Helm, Stateroom 1, Stateroom 2, Tower, and/or Transom. The zone name will display on a compatible remote controller or MFD.

Volume Level Control: You can select how each zone (1-2-3-4) will handle volume level control. You can choose from Variable (a zone has its own level setting), Absolute (a zone will share the same volume as the main volume setting), Sub (subwoofer level control for Zone 4 only), or Off (zone is muted).

Equalizer: The Clarion CMM-30BB offers simple Bass, Mid, and Treble control (-10 to +1) to tailor the sound to your preference. You can also further fine-tune the sound by adjusting the hideaway marine source unit's 5-Band EQ (-10 to +10 per band).

Note: The EQ and Tone settings are applied globally to all zones.

High Pass Crossover: You can apply a high pass crossover to each zone independently. You can select from 120Hz, 100Hz, 80Hz, or Off.

Volume Limiter: You can choose the maximum volume level (0-50) for each zone independently.
