Features

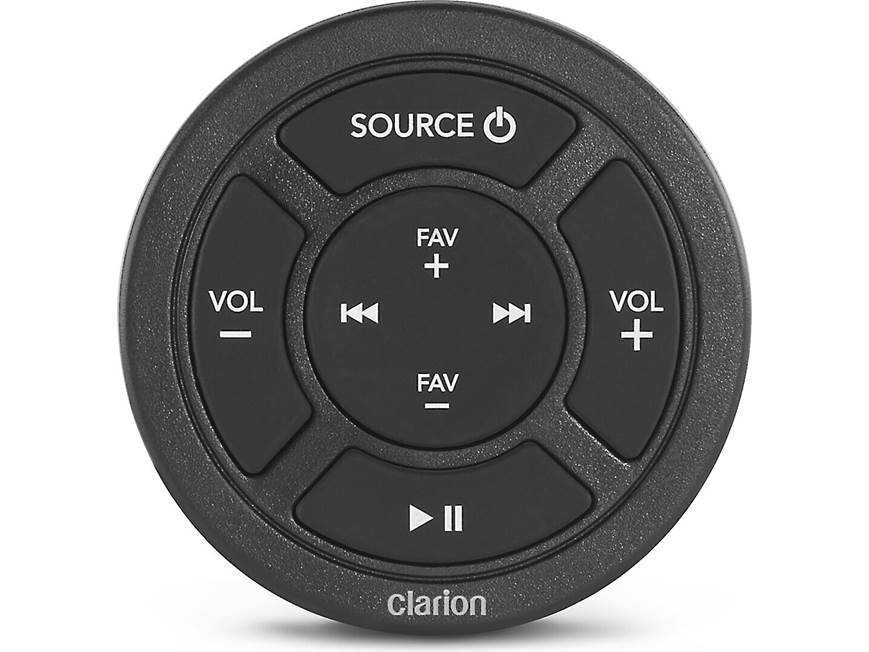

Marine Wired Remote Control: The Clarion CMR-10 is a compact wired remote control that offers basic control functions and back-lit rubberized buttons (no display). The Clarion CMR-10 wired remotes is IP67-rated which protects it against water submersion (up to 3.3' for 30 minutes) and dust ingress.

Compatibility: The CMR-10 is specifically designed to work with select Clarion marine source units with a proprietary 5-pin DIN wired remote connector- including the CMM-20, CMM-30, and CMM-30BB (all sold separately).

• Extension Cables: The CMR-10 features an attached 8" wired remote cable, while the compatible Clarion marine source units feature an attached 9" wired remote cable. In most applications, you'll need to extend the reach between the the CMR-10 and your compatible Clarion marine source unit. A 6' and 25' remote extension cable is available (sold separately).
• Y-Splitter: You can add up to two wired remotes using Clarion's CMC-RC-Y splitter (sold separately). A maximum of three wired remotes can be connected to one compatible Clarion marine source unit using two of Clarion's CMC-RC-Y splitters (sold separately). The maximum total distance of all connected wired remotes should not exceed 75'.

Push-Button Controls: The Clarion CMR-10 features back-lit, rubberized push-button controls. Control functions include -

• Power On/Off
• Source Selection
• Volume Up/Down
• Play/Pause
• Previous/Next Track or Station
• Fast Forward/Rewind Track
• Previous/Next Preset

Mounting Options: The Clarion CMR-10 wired remote control requires a circular cutout that measures 2.0" (diameter) x 2.125" (depth). A "U"-bracket, hardware, integrated foam gasket, and cutout template are included to assist in the installation of the CMR-10 and used to secure the wired remote in place.

• Overall Dimensions: 2.375" (diameter) x 2.625" (depth)
• Cutout Dimensions: 2.0" (diameter) x 2.125" (depth)
• Front-Panel Dimensions: 2.375" (diameter) x 0.625" (depth)
