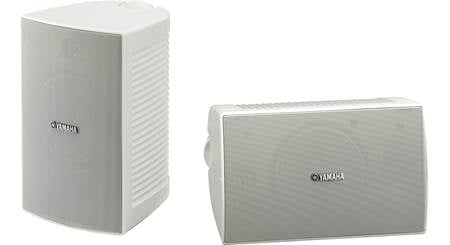

Yamaha NS-AW294

Outdoor speakers (White)

Item # 022AW294WH

These all-weather Yamaha speakers use a 6-1/2" woofer and 1" tweeter for full, detailed sound outdoors.

These all-weather Yamaha speakers use a 6-1/2" woofer and 1" tweeter for full, detailed sound outdoors.

Item # 022AW294WH

In stock
C$279.00 pair

Other options

Since 1974

Years of experience making people happy.

60-day returns

If you don't love it, send it back.

Hands-on research

We double check the details on each item.

About the Yamaha NS-AW294

James Ralston

Solid Yamaha speakers for outdoor spaces

Want to liven up your patio, deck, or pool area with your favourite tunes? Yamaha's NS-AW294 outdoor speakers deliver crisp, detailed sound in a simple, elegant-looking design. Each speaker features a weather-resistant 6-1/2" woofer and 1" tweeter, and each comes with an adjustable U-shaped mounting bracket for vertical or horizontal placement. An outdoor IPX3 rating means they're tested to withstand partial-exposure installations, such as underneath roof eaves.

Product highlights:

  • IPX3-rated all-weather design stands up to the elements
    • perfect for mounting underneath roof eaves or other partial-exposure installations
  • ported (bass reflex) enclosure
  • 6-1/2" waterproof woofer cone
  • 1" fluid-cooled, balanced-dome tweeter
  • frequency response: 80-20,000 Hz
  • sensitivity: 87 dB
  • 8-ohm impedance
  • handles up to 50 watts
  • adjustable U-shaped mounting brackets included
    • can be mounted vertically or horizontally
  • spring clip speaker wire connectors
  • 7-1/2"W x 12-1/8"H x 10-3/8"D
  • weight: 5.1 lbs. each
  • warranty: 2 years
  • MFR # NS-AW294WH

What's in the box:

  • 2 Outdoor loudspeakers
  • 2 Grilles (pre-installed)
  • 2 Brackets
  • 4 Knobs
  • Installation Instructions
  • Online Registration Information
  • Warranty Sheet

Customer reviews for Yamaha NS-AW294

We don't have any reviews, yet.
Be the first to review this product

Loading reviews...

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Yamaha NS-AW294

Stacey B.

Features & specs

Type Surface Mount
Bluetooth No
Enclosure Ported
Tweeter Type Hard-Dome
Tweeter Size (inches) 1
Midrange Size (inches) N/A
Woofer Size (inches) 6.5
Woofer Composition Polypropylene
Woofer Surround Rubber
Power Range (watts) up to 50
Sensitivity 87 dB
Impedance (ohms) 8
Frequency Response 80-20k Hz
Connector Type Spring clip
Height (inches) 12-1/8
Width (inches) 7-1/2
Depth (inches) 10-3/8
Weight (pounds) 5.1
Wall-mountable Yes
Bracket Included Adjustable bracket
Parts Warranty 2 Years
Labor Warranty 2 Years

Product Research


All-Weather Outdoor Series: The Yamaha NS-AW294 outdoor loudspeaker features an all-weather cabinet (IPX3-Rated) that is drip, water and UV resistant. The weather-resistant enclosure protects the speaker from the elements when mounted outdoors on your porch, patio, or deck. The NS-AW294 also comes with powder-coated aluminum grilles.

Note: The IPX3 rating means the speaker can withstand light water spray, but cannot hold up to heavy water spray or submersion in water.

2-Way Design: The Yamaha NS-AW294 outdoor loudspeaker employs a two-way driver design featuring one 1" balanced-dome tweeter for clear high frequencies and one 6.5" polypropylene cone woofer with rubber surround for accurate mid/ow frequency response.

Bass Reflex Enclosure: The 1" balanced-dome tweeter and 6.5" polypropylene woofer are housed in a bass-reflex enclosure with a front-firing port for greater efficiency and bigger bass response.

Spring Clip Terminals: The Yamaha NS-AW294 outdoor loudspeaker is outfitted with a set of spring-clip speaker terminals that support bare wire (up to 12 AWG).

Mounting Options: The Yamaha NS-AW294 outdoor loudspeaker can be table-top mounted or wall-mounted. The speaker can be be mounted vertically or horizontally. The supplied wall-mount bracket allows you to mount the all-weather speaker to the side of your house or garage (screws not supplied). When the speaker is mounted vertically, the speaker can be rotated left or right 81-degrees; when the speaker is mounted horizontally, the speaker can be angled up or down 81 degrees. The bracket can be removed to simply mount the speaker on a flat table-top surface.

  • Wall-Mount Dimensions:
    • Vertical (with bracket): 7.5" (w) x 12.125" (h) x 10.375" (d)
    • Horizontal (with bracket): 12.125" (w) x 7.5" (h) x 10.375" (d)
  • Table-Top Dimensions:
    • Vertical (without bracket): 7.5" (w) x 12.125" (h) x 8.5" (d)
    • Horizontal (with bracket): 12.125" (w) x 7.5" (h) x 9.375" (d)
Note: You should mount the speaker under an eve or awning to minimize its exposure to rain and snow.
