About the MB Quart GMR-LED
A compact receiver with tons of features
A compact receiver with tons of features

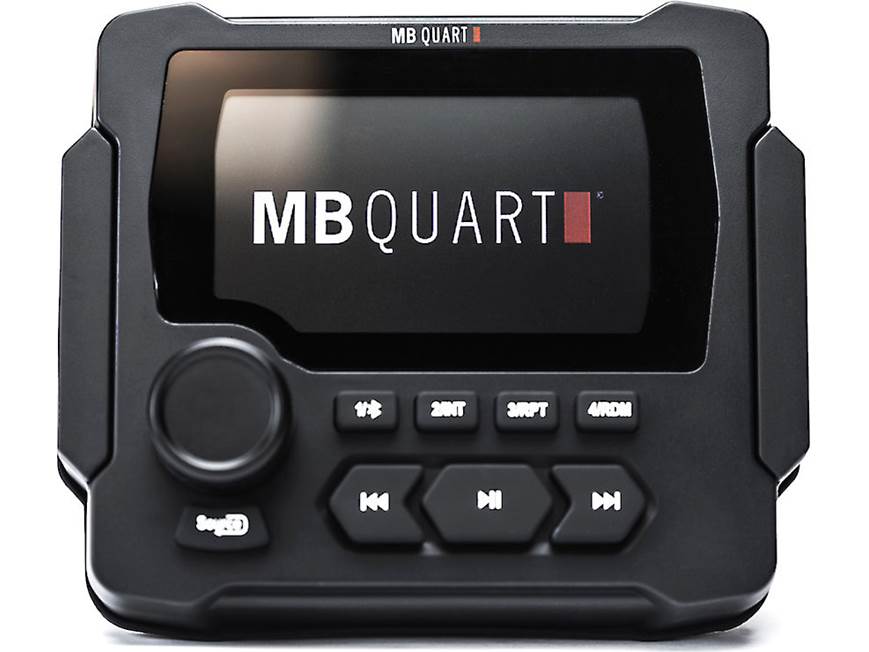

MB Quart's GMR-LED powersport digital media receiver fits in a standard gauge opening, but its 3.5” color LCD screen gives you a great view of what's playing or what your rear-view camera is seeing. You'll also like the built-in Bluetooth for music streaming, plentiful connectivity options, and impressive sound. It's a great option for ATVs, small boats, and more.
Apple® control and more
You can tune in to AM/FM radio, of course, but we know you're really here for the built-in Bluetooth® that lets you stream music from your smartphone or other Bluetooth-enabled device. The GMR-LED is Apple-ready too, so you can access the iTunes collection on your iPhone®, iPod®, or iPad®. Simple Secure Pairing makes getting started a breeze. You can use the rear aux input for your music player, or plug a thumb drive into the rear USB port to enjoy your favorite music. And, as noted above, it'll work with your backup camera (sold separately), too.
Expand your system
The GMR-LED also includes three pairs of rear-mounted preamp outputs, making it easier to add on MB Quart marine amps. The LCD display gives you the info you need, while this IP67-rated receiver's watertight, UV-resistant face and big, easy-to-use buttons will stand up to the rigors of life on the trail or the water. The GMR-LED is dual-zone capable, so if you install it on a boat, you can control the volume in two areas.
You can also add an MB Quart wireless RF remote that attaches to your steeting wheel.
Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.
iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.
- AM/FM/WB marine digital media receiver (does not play CDs)
- 3.5" color LCD screen
- ideal for powersports and marine use (IP67 rating)
- built-in amp (20 watts x 4 RMS/40 peak x 4 channels)
- built-in Bluetooth® for music streaming
- works with Apple® and Android® smartphones
- marine-rated watertight face
- large, easy-to-use buttons
- backlit LCD display
- inputs: rear USB input with panel-mount extension; rear aux input (RCA); camera input
- outputs: 6-channel preamp outputs (4-volt zone 1, zone 2, sub)
- fits into a standard tachometer opening
- large, backlit control buttons
- waterproof, dustproof, and shockproof
- required cutout: 3" (diameter) x 4" (depth)
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # GMR-LED
What's in the box:
- Marine digital media receiver (10A fuse)
- Wiring harness
- Mounting bracket
- 2 Threaded studs/posts
- 4 Nuts
- 2 Front-covers (pre-installed)
- Operator's Guide & Installation Instructions
More details on the MB Quart GMR-LED
Features & specs
|AUX Input||RCA (rear)|
|USB Port Power||0.5A|
|Backup Camera Input||No|
|Second Camera Input||No|
|Alexa Voice Control||N|
|Memory Card Slot||USB memory|
|Satellite Radio Ready||No|
|Nano||5Gen and newer|
|Touch||4Gen and newer|
|iPhone||3GS and newer|
|RMS Power (CTA-2006)||N/A|
|RMS Power (Manufacturer)||20 watts|
|Peak Output||40 watts|
|RMS Power Bandwidth||1kHz|
|Sub Preamp Outputs||Yes|
|Switchable Rear Preamp Outputs||No|
|Navigation App Compatible (iOS)|
|Navigation App Compatible (Android)|
|Preamp Voltage||4 volts|
|Display Color||Full Color|
|Key Button Color||Bluish white|
|Steering Wheel Control Compatible||No|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|FM Sensitivity||13 dBf|
|Radio Data System||No|
|Music File Playback||MP3,WMA,AAC,WAV|
Marine & Installation Features
Marine Grade Protection (IPX67): The MB Quart Nautic GMR-LED meets or exceeds the American Boat and Yacht Council (ABYC) marine electronics standards and the American Society for Testing and Materials (ASTM). It has been designed and tested against the elements and built to handle the outdoors with an IPX67 rating. Its waterproof, dust proof, snow proof, and shock proof.
3.5" Display Screen: The MB Quart Nautic GMR-LED marine digital media receiver features a 3.5" high-contrast LCD screen with LED backlight to view song/artist/album information (including album art) and a connected external camera (sold separately). The backlight of the display can be set to High or Low. A rotary knob and large rubberized buttons provide Power On/Off, Volume Up/Down, Mute, Source Select, Play/Pause, Previous/Next Track, Repeat/Random, Intro (10-sec), and Preset functions. The size and space of the buttons and knob also makes them easy to operate with gloves on.
Mounting Options: The GMR-LED is a gauge-style marine source unit with a rectangular front-panel. The marine source unit requires a round cutout in the bulkhead or dash for inserting the chassis, and will fit in standard 3" round gauge-style openings. The integrated protective gasket, supplied U-bracket, and included hardware secure the unit in place behind the mounting surface. Or, you can secure the unit to the front of the mounting surface using four screws (not included); the pre-intalled front-covers must be removed to access the screw holes.
- Chassis: 3.0" (diameter) x 3.0" (depth)
- Face-Plate: 4.9375" (w) x 4.125" (h) x 1.5" (d)
- Cutout: 3.0" (diameter) x 4.0" (depth)
- Screw Hole Spacing: 4.5" (w) x 1.625" (h)
Note: The GMR-LED features a round, gauge-style design and does not include a mounting sleeve or ISO-mount screw holes to accommodate standard automotive installation.
Optional Wireless Remote: The optional MB Quart RF remote control (049RFREM, sold separately) provides wireless operation of the GMR-LED marine digital media receiver.
Bluetooth Audio Streaming: The MB Quart Nautic GMR-LED features built-in Bluetooth 4.0 with support for wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled source device. The GMR-LED supports playback of stored music, music apps, and other audio content on your Bluetooth source device. The unit will be able to control basic playback functions, such as Play/Pause & Skip Next/Previous. Advanced music control of your music apps will still need be done via your Bluetooth source devices. You can also view song/artist/album information (including album art) on the receiver's LCD screen. The unit offers quick and easy wireless connection to your Bluetooth enabled device. When the unit powers up, it immediately connects to the last device connected. The wireless Bluetooth range is approximately 32' (10 meters).
Note: This unit does not support Bluetooth hands-free communication for making and answering phone calls.
USB Port: The MB Quart Nautic GMR-LED is equipped with a rear-panel USB (type-A) port attached to the chassis by a 7" pigtail and comes with a 40" USB extension cable. The USB port allows you to connect a USB MSC (mass storage class) device, like a USB thumbdrive. The unit supports audio playback & control of MP3, WMA, AAC, and WAV audio files stored on a compatible USB thumbdrive or MSC device. The unit offers Play/Pause, Previous/Next Track, Intro (10-sec), and Random/Repeat playback functions; as well as song/artist/album display (including album art). The unit also charges your connected USB device (up to 0.5A).
Note: The unit's USB port does not support USB hubs, card-readers, or Android devices.
iPhone Direct Connect: The unit's rear-panel USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone with the cable that came with your Apple device. The GMR-LED supports audio playback, basic control (Play/Pause, Previous/Next Track, Random/Repeat), song/artist/album display (including album art), and charging of your compatible Apple device. You will continue to use your iPod/iPhone for advanced music browsing. The GMR-LED is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features: (as of 4/25/2019)
|Apple Device||Generation||Tested Version||Media Type||Control Type||Display Type||Bluetooth||Charge|
|Audio||Video||Head Unit||iPod/iPhone||Artist/Song Text||Track Info||Phone||Audio|
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.
Aux Input: This unit features a rear mounted, stereo RCA auxiliary input on a 5" pigtail so you can connect an external audio source. An RCA-to-Minijack cable (sold separately) will be required for the connection of a portable audio player with a headphone jack output.
AM/FM/WB Tuner: The MB Quart Nautic GMR-LED features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM preset and 12 AM presets (for a total of 30 preset stations). You can select either US or European tuning. It also features a built-in weather band tuner, so you can stay up to date on the weather while you are out on the water.
- USA Frequency: FM 87.9-107.9MHz / AM 530-1710kHz
- Europe Frequency: FM 87.5-108MHz / AM522-1620kHz
- NOAA NWR Weather Band Frequency: 162.400-162.550MHz
Camera Input: The MB Quart GMR-LED is equipped with a composite video camera input and a reverse trigger wire to connect an outboard camera (sold separately - see Accessories Tab). The camera input could be used for a front thermal imaging UTV camera or boat docking camera depending on the application. The unit's 3.5" LCD screen displays a clear picture of what the camera views. The camera image can be selected manually or triggered automatically. You'll need to connect the receiver's purple/white wire to a +12V reverse gear signal wire in your vehicle to automatically trigger the camera when the vehicle is put into reverse gear.
Video Output: The GMR-LED's composite video output will mirror the marine digital receiver's screen onto an external monitor. This is a useful feature to provide a secondary screen for passengers or in other zones within a larger space, such as a boat or RV.
Amplifier & Audio Section
4-Channel Amplifier: The MB Quart Nautic GMR-LED digital media receiver is equipped with a 20W (RMS) / 40W (Peak) x 4ch amplifier. With quick heat dissipation the system can play loud and long for years of service.
4V/6Ch Preouts: The GMR-LED marine digital media receiver offers 4V/6Ch preouts (Front/Rear/Sub) for connecting external power amplifiers. The front & rear preouts have fade capability, while the sub preouts are non-fading.
Sub Control: The unit features a low-pass crossover and subwoofer level control to fine-tune the subwoofer preouts. The low-pass crossover can be set to 80Hz, 100Hz, or 120Hz. You can also adjust the subwoofer level from 0-40 independent from the unit's overall volume control.
Dual Zone Control: You can setup a dual zone system on you boat by connecting the head unit's built-in amplifier to your interior cabin speakers (zone 1) and the receiver's preouts to an external amplifier and tower speakers (zone 2). You'll be able to control volume in both areas (zones) independently - the captain/passenger area and the tower speakers facing the skiers or wake surfers. The same source is played back in both zones with independent volume control for each zone.
Equalizer: The GMR-LED features an 8-band EQ to customize your listening experience. The 8-band EQ consists of 62, 125, 250, 500, 1k, 4k, 10k, and 16k Hz frequencies. You can store up to two Custom EQ Presets. If you prefer simpler sound customization, you can simply adjust the receiver's Bass (100Hz) & Treble (10kHz) from -7 to +7. The unit also offers Balance & Fader control.
