About the MB Quart JC1-108

Take to the (off) road with better sound
Take to the (off) road with better sound
It's fun tricking out your Jeep for tooling around town or going overland. But before you start bolting gear onto the outside, why not improve the audio inside? MB Quart makes it well worth your time with their JC1-108 3-1/2" coaxial speakers. Specifically designed to fit in the upper dash of your Jeep, you can bolt these speakers right in place of the factory speakers. But that's where the similarity ends — the paper/mica woofers and magnesium tweeters of these speakers kick out sound that'll make you realize exactly what you were missing before.
Plug 'em in
The speakers come with factory-compatible plugs — no splicing required. MB Quart provides vehicle-specific instructions to eliminate the guesswork, too.
Product highlights:
- compatible with select 2018-up Jeep Wrangler JL and 2020-up Jeep Gladiator models
- Jeep-tuned replacement speakers for upper dash
- 3-1/2" pop aerated paper and mica blend woofers
- 3/4" magnesium dome tweeters with tunable waveguide tweeter housings
- Jeep wiring connector plugs
- power handling: 50 watts RMS (100 watts peak)
- frequency response: 100-22,000 Hz
- sensitivity: 89 dB
- impedance: 4 ohms
- warranty: 1 year
- MFR # JC1-108

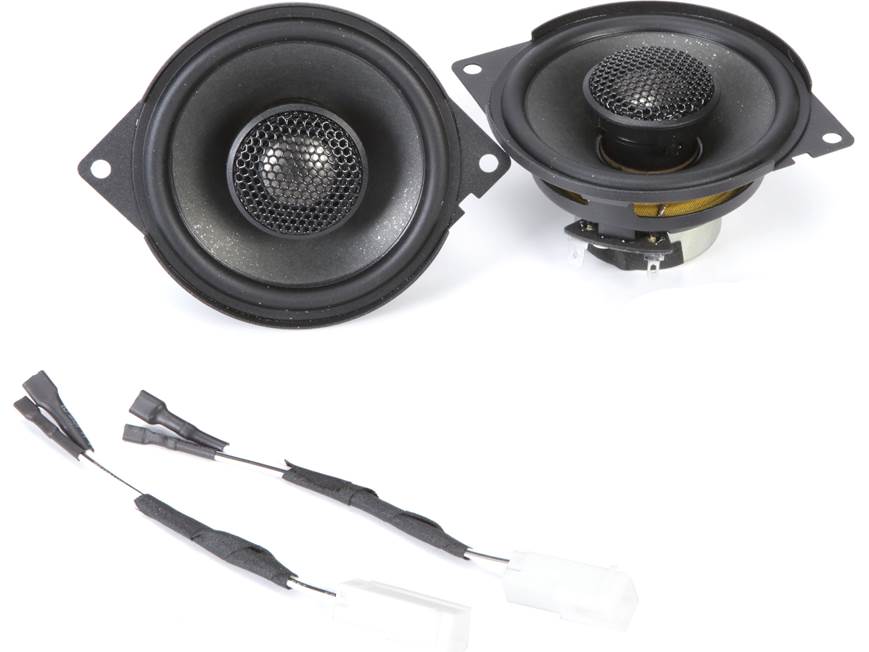

What's in the box:
MB Quart JC1-108 owner's manual
- 2 Coaxial speakers
- Two 4" Wiring harnesses
Customer reviews for MB Quart JC1-108
Loading...
Loading reviews...
Average review:
3.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MB Quart JC1-108

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Design | 2-way | |
Tweeter Design | 3/4" Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Magnesium | |
Woofer Composition | Paper/Mica | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 89 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 100 - 22k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 100 | |
Top-mount Depth (Inches) | 1 5/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 3 1/16 | |
Mounting Height (Inches) | 0.444 |
Product Research
Features
Overview: These speakers are designed to replace the upper dash speakers in select 2018 and later Jeep Wranglers (JL) and 2020 and later Jeep Gladiators (JT).
Wiring: The included wiring harnesses plug directly into the factory wiring.
Installation: Although no paperwork is included with the speakers, a link to the installation instructions is under the Overview tab.
