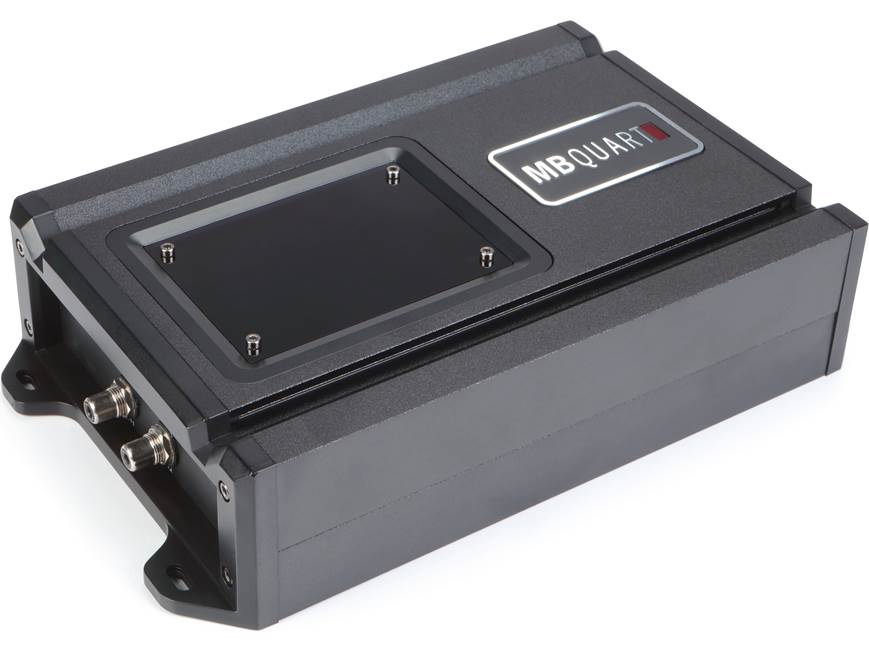

About the MB Quart RA1-150.2
Power your music
Power your music
MB Quart's Reference Series RA1-150.2 two-channel amplifier provides 50 watts of power to a pair of speakers, so you can hear and feel your music clearly over road and engine noise. Designed to power high-quality aftermarket speakers, like their Reference Series speakers and components, this Class D amplifier utilizes MB Quart's unique Q-Stasis (Class SQ) circuitry to improve the accuracy and clarity of your music.
Versatile features
The amplifier's features include speaker-level inputs with signal-sensing amp turn-on, so it's ready to work in almost any system. A high-pass filter shapes the signal to fit your full-range speakers for their best-sounding output. You can also configure this amp for one-channel operation to power a subwoofer with up to 200 watts RMS. A low-pass filter and a bass boost EQ help dial in just the right amount of bass bump.
RA1-150.2 power and output connection panel
Product highlights:
- 2-channel car amplifier
- 50 watts RMS x 2 at 4 ohms
- 100 watts RMS x 2 at 2 ohms
- 200 watts RMS x 1 bridged at 4 ohms
- variable low- or high-pass filter (50-250 Hz, 12 dB/octave)
- variable bass boost (0-9 dB at 45 Hz)
More Info:
- preamp and speaker-level inputs
- speaker wire-to-RCA adapters required for speaker-level input
- DC offset-sensing turn-on with speaker-level input
- wiring, fuse, and hardware not included with amplifier
- 4-gauge power and ground leads and a 20A fuse recommended
- dimensions: 10-1/2"W x 2-1/4"H x 5-7/8"D
- warranty: 1 year
- MFR # RA1-150.2
What's in the box:
MB Quart RA1-150.2 owner's manual
- 2-channel amplifier
- 4mm Hex key
- 2mm Hex key
- Four 5/8" screws
- MB Quart logo badge (taped to the top)
- Quickstart guide
Customer reviews for MB Quart RA1-150.2
Loading...
Loading reviews...
Average review:
1.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the MB Quart RA1-150.2
Features & specs
Performance | ||
---|---|---|
RMS Power Output (Watts x Channels) |
50 x 2 | |
Peak Power Output (Watts x Channels) | N/A | |
Power at 2 Ohms (Watts x Channels) | 100 x 2 | |
Power at 1 Ohm (Watts x Channels) | --- | |
Bridged Power (Watts x Channels) | 200 x 1 | |
Minimum Impedance Bridged | 4 | |
Minimum Impedance Unbridged | 2 | |
Minimum Impedance | 2 | |
Best Frequency Response | 10-35k Hz | |
THD at Rated RMS Power | 0.09% | |
Signal to Noise Ratio | 101 dB | |
Input Voltage | 14.4v | |
Features | ||
Amplifier Class | AB | |
Low-Pass Crossover Frequency | 50-250 Hz | |
Low-Pass Slope (dB/octave) | 12 dB/octave | |
High-Pass Crossover Frequency | 50-250 Hz | |
High-Pass Slope (dB/octave) | 12 dB/octave | |
Bass Boost | 0-9 dB | |
Bass Boost Frequency | 45 Hz | |
Fan Cooled | No | |
Fuse Rating | 20 | |
Speaker Level Inputs | Yes | |
Preamp Outputs | No | |
Width (inches) | 10-1/2 | |
Height (inches) | 2-1/4 | |
Depth (inches) | 5-7/8 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features
Connections:
- Audio Inputs: one pair of stereo RCA jacks; accepts pre-amp level or speaker-level input
Note: If connecting the amp with speaker-level input signals, a speaker wire to RCA adapter will be required (sold separately).
- Speaker Outputs: two pair of set-screw terminals; accept up to 12-gauge speaker wire
- Power/Ground: set-screw terminals; accept up to 4-gauge wire; MB Quart recommends 4-gauge power and ground wire, and using a 20-amp in-line fuse (there is no fuse on the amplifier chassis)
- Remote: set-screw terminal; accepts up to 12-gauge wire
Controls: A removable cover-plate protects the top-panel audio controls and can be accessed using the provided 2mm hex key.
- Level: rotary dial; adjust to match incoming signal level
- Mode: two position switch; Stereo or Mono (bridged)
- X-Over: three position switch; HPF (high-pass filter), LPF (low-pass filter), or Full (full range)
- FREQ: rotary dial; set crossover point; continuously variable 50-250 Hz
- Bass EQ: rotary dial; boost bass 0-9 dB; centered at 45 Hz
- Activation Type: two position switch; select the
turn-on method for the amp:
- REM Turn-On: amp turns on with a +12 volt trigger from the source unit
- DC Sense: amp turns on with speaker-level input signal
