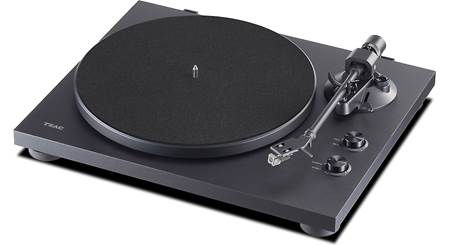

About the TEAC TN-280BT-A3
Product highlights:
- built-in Bluetooth lets you stream audio to compatible speakers or headphones
- built-in switchable phono preamplifier for moving magnet cartridges
- straight tonearm with universal headshell
- includes pre-mounted Audio-Technica AT3600L moving magnet cartridge
- built-in switchable phono preamplifier for moving magnet cartridges
- when switch is set to ON, turntable must be connected to a standard line input (labeled AUX, CD, or TAPE)
- when switch is set to THRU, turntable must be connected to an outboard phono preamp or dedicated phono input
- 12" die-cast aluminum platter with felt mat to protect records from scratches
- 33-1/3 and 45 rpm speeds
- high-torque DC motor
- high-density MDF base with vibration-resistant feet
- chrome-plated RCA audio jacks
- detachable dust cover included
Performance specs:
- frequency response with included cartridge: 20-20,000 Hz
- wow and flutter: 0.2%
- signal-to-noise ratio: 67 dB
Dimensions and warranty:
- 16-9/16"W x 4-9/16"H (with dust cover down) x 14-3/4"D
- weight: 10.87 lbs.
- warranty: 1 year
- MFR # TN-280BTA3B
- Item # 063280BT3B
What's in the box:
TEAC TN-280BT-A3 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Turntable
- Cartridge/stylus with headshell
- Platter
- Belt (pre-installed on platter)
- Dust cover (pre-installed)
- Mat
- Counterwight
- 45 RPM adapter
- AC power adapter (attached 59" DC cord)
- 3 AC plug adapters (US/UK/EU)
- 39" Stereo RCA cable
- Owner's Manual
- Warranty Card
- AC Plug Instruction Manual
More details on the TEAC TN-280BT-A3
Features & specs
| Features | ||
|---|---|---|
| Color | Black | |
| Operation | Manual | |
| Automatic Functions | N/A | |
| Speeds | 33-1/3, 45 | |
| Speed Control | Electronic | |
| Drive Type | Belt | |
| Pitch Control | No | |
| Phono Preamp | Built-in | |
| Phono/Line Switch | Yes | |
| Adjustable Vertical Tracking Angle | No | |
| Adjustable Azimuth | No | |
| Bluetooth Built-In | Transmitter | |
| Wi-Fi Streaming | No | |
| 45 RPM Adapter | Yes | |
| Dust Cover | Yes | |
| Materials and Construction | ||
| Plinth | MDF | |
| Platter | Aluminum | |
| Tone Arm Shape | Straight | |
| Tone Arm Material | Aluminum | |
| Tone Arm Lift | Finger, Lever | |
| Cartridge Info | ||
| Included Cartridge | AT3600L | |
| Cartridge Type | MM | |
| Removable Headshell | Curved | |
| Tracking Weight | 3.5 g (35mN) | |
| Frequency Response | 20-20,000 | |
| Output Voltage | 2.5 | |
| Load Impedance | 47,000 | |
| Load Capacitance | 100-200 | |
| Connections | ||
| RCA Audio Output | Yes | |
| 3.5mm Audio Output | --- | |
| 5-pin Mini XLR Audio Output | No | |
| 5-pin DIN Audio Output | No | |
| Ground Wire Terminal | --- | |
| USB-A Port | No | |
| USB-B Port | No | |
| Audio Cable | Detachable | |
| Power Cable | Detachable (12-volt DC adapter) | |
| Audio Specs | ||
| Signal to Noise Ratio | 67 | |
| Wow and Flutter | 0.2 | |
| Dimensions and Warranty | ||
| Width (Inches) | 16.5625 | |
| Height (Inches) | 4.5625 | |
| Depth (Inches) | 14.75 | |
| Weight | 10.875 lbs. | |
| Turntable Parts Warranty | 1 Year | |
| Turntable Labor Warranty | 1 Year | |
| Cartridge Parts Warranty | 1 Year | |
| Cartridge Labor Warranty | 1 Year | |
Product Research
Features
2-Speed Belt Drive Turntable: The TEAC TN-280BT-A3 is a manual belt-drive turntable that is powered by a high torque DC motor, while a precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed. The turntable supports 33-1/3 RPM and 45 RPM (adapter included) speeds.
High-Density MDF Plinth & Aluminum Platter: Crafted from high-density MDF, the plinth (base) of the TN-280BT-A3 has been designed to minimize unwanted vibration and resonance. Also included is a 12" (30cm) high inertia aluminum die-cast platter and soft felt mat that further reduces vibration effectively. Together, the high-density MDF plinth, die-cast aluminum platter and felt mat minimize vibrations and resonance for clearer sound when you playback your vinyl collection.
Audio-Technica AT3600L Cartridge: An Audio-Technica AT3600L MM (moving magnet) cartridge and headshell is included. It will need to be installed to the turntable's 8.8125" (223mm) straight, static-balanced tonearm at the factory. The AT3600L delivers premium audio quality and lets you enjoy every sonic detail of your favorite vinyl records. The TN-280BT-A3's counterweight & anti-skating mechanism ensure accurate tracking.
Switchable Phono MM Preamp: The TEAC TN-280BT-A3 features a built-in Phono MM preamp that allows you to connect the turntable to a line-level or Phono MM input of your AV receiver, integrated amplifier, or powered speakers. Turn the built-in Phono preamp "On" to connect the turntable to a line-level input of your receiver or amplifier. Turn the built-in Phono preamp "Thru" to connect the turntable to a Phono input of your receiver or amplifier.
Stereo RCA Outputs: The TEAC TN-280BT-A3 turntable is outfitted with a set of stereo RCA outputs to connect to your AV receiver, integrated amplifier, or powered speakers.
Bluetooth Transmitter: In addition to Phono or Line connectivity, the TN-280BT-A3 is able to deliver sound wirelessly via its built-in Bluetooth transmitter (version 4.0) to a Bluetooth-enabled AV receiver, powered speaker, or set of headphones (all sold separately). The pairing button is located just below the plinth on the right hand side (see Owner's Manaul) and illuminates when your Bluetooth-enabled receiver, speaker, or headphones is successfully connected. The turntable has a wireless range of approximately 30'.
Note: Only one Bluetooth-enabled receiver, speaker, or set of headphones can be paired, connected, and used for playback at a time.
Dust Cover: The TEAC TN-280BT-A3 comes with a detachable, hinged dust cover to protect the turntable and your vinyl records from dust and debris.
