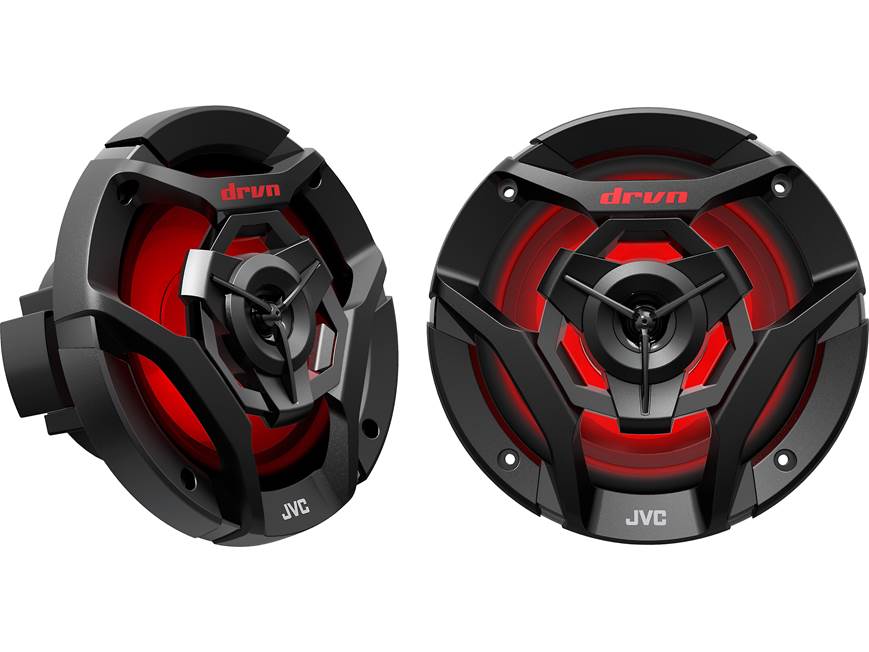

About the JVC CS-DR620MBL
Speakers with lights at a nifty price
Speakers with lights at a nifty price
These JVC 6-1/2" marine speakers will bring impressive sound and cool RGB LED lighting to your boat. Available in your choice of black or white, these rugged speakers will look great in any cabin and stand up to the extremes of life on the water.
Built to perform
If you're going to invest in marine speakers, you want to know you're getting speakers that can be heard over engine noise and wind roar. These full-range speakers will handle up to 50 watts RMS and they're tough enough to handle high volume all day long. The durable, lightweight woofer cone ensures smooth, consistent performance, while the 1" balanced dome polypropylene tweeter will improve your music's clarity whether you're on the water or at the marina. Grilles are included.
Light things up
The nifty RGB LED lighting will add style to your boat, plus extra walking-around safety during night cruises. Use the included remote to choose from 21 different colour combinations.
Product highlights:
- 2-way marine speakers
- built-in RGB LED lighting with remote included
- 6-1/2" water-resistant polypropylene woofer
- rubber surround
- 1" balanced dome polypropylene tweeter
- handles up to 75 watts RMS (260 watts peak power)
- grilles included
- ideal for boats or off-road vehicles
- iPX5-rated for water resistance
- frequency response: 65-21,000 Hz
- sensitivity: 86 dB
- cutout diameter: 5-3/4"
- frame diameter: 7-3/16"
- top-mount depth: 2-5/8"
- available in black or white
- remote included
- warranty: 2 years
- MFR # CS-DR620MBL
What's in the box:
JVC CS-DR620MBL owner's manual
- Two 2-way marine speakers with fixed black grilles (one has LED control module)
- LED remote control
- CR2025 battery (installed)
- 10' Link Cable A (male to male LED power)
- 10' Link Cable B (male to female LED power)
- Four 1-1/4" Heat shrink tubes
- Eight 1" Stainless steel mounting screws
- 8 Stainless steel speed-clips
- Instruction manual (English/ Spanish/ French)
- Warranty information
- Template
Reviews (1)
Customer reviews for JVC CS-DR620MBL
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JVC CS-DR620MBL
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 1/2" Balanced Dome | |
| Tweeter Composition | PEI | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity |
86 dB at 1 watt | |
| Frequency Response | 65 - 21k Hz | |
| Max RMS Power Handling | 75 | |
| Peak Power Handling (Watts) | 260 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 2 5/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 3/4 | |
| Bolt Circle | 6.1915 | |
Product Research
Features
Tweeters: The tweeters are mounted to the grilles, rather than to a pole piece, thus there is no chance of water leaking through the woofer cone.
LEDs: There are red, green, and blue LEDs in the back of each tweeter casing to create a glow on the woofer cones. The LEDs are controlled using the included RF remote; choose between 21 different static colors, or 21 different dynamic modes. There are also eight brightness settings and seven speed settings (for changing the cycling speed of the dynamic modes).
LED Wiring: A 12 volt power supply is needed to turn the LEDs on and a 3-amp fuse should be wired in-line (fuse not included). One of the speakers has an LED control module attached with an RF remote control receiver, to which the LED power and ground wires are connected. The included Link Cable B is routed to the other speaker to control its LEDs. Up to six pair of these speakers can be connected with the LEDs synchronized, at which point the included Link Cable A is also used. The LED power and ground supply is still only connected to one of the speakers.
Size: The speakers fit into the openings for some 6¾ applications (a standard car speaker size). However, because the frame is bigger than a typical 6¾ and the grille is not designed to be removed, they won't fit in most car applications.
